Components
COMPONENTS

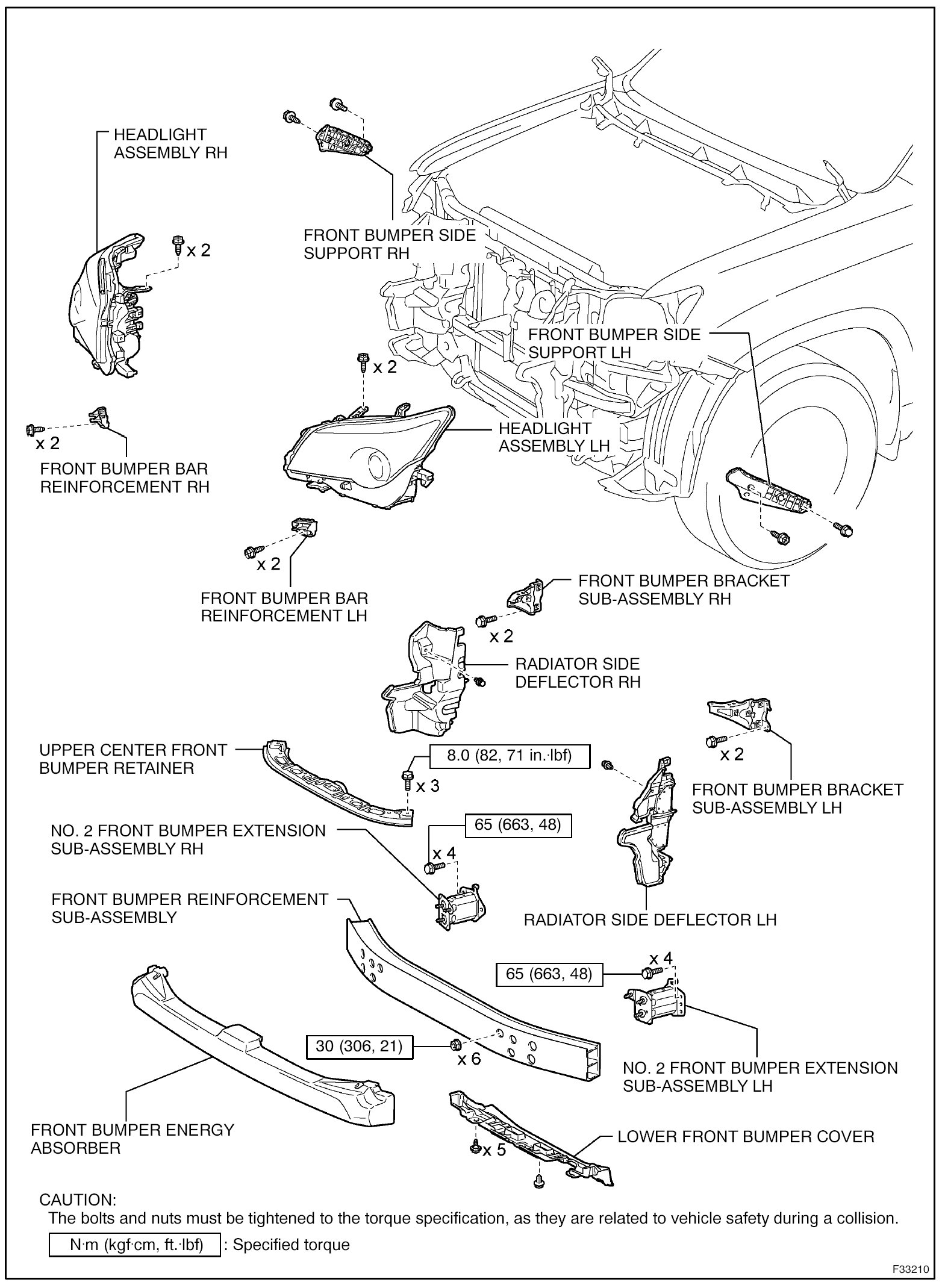

a.

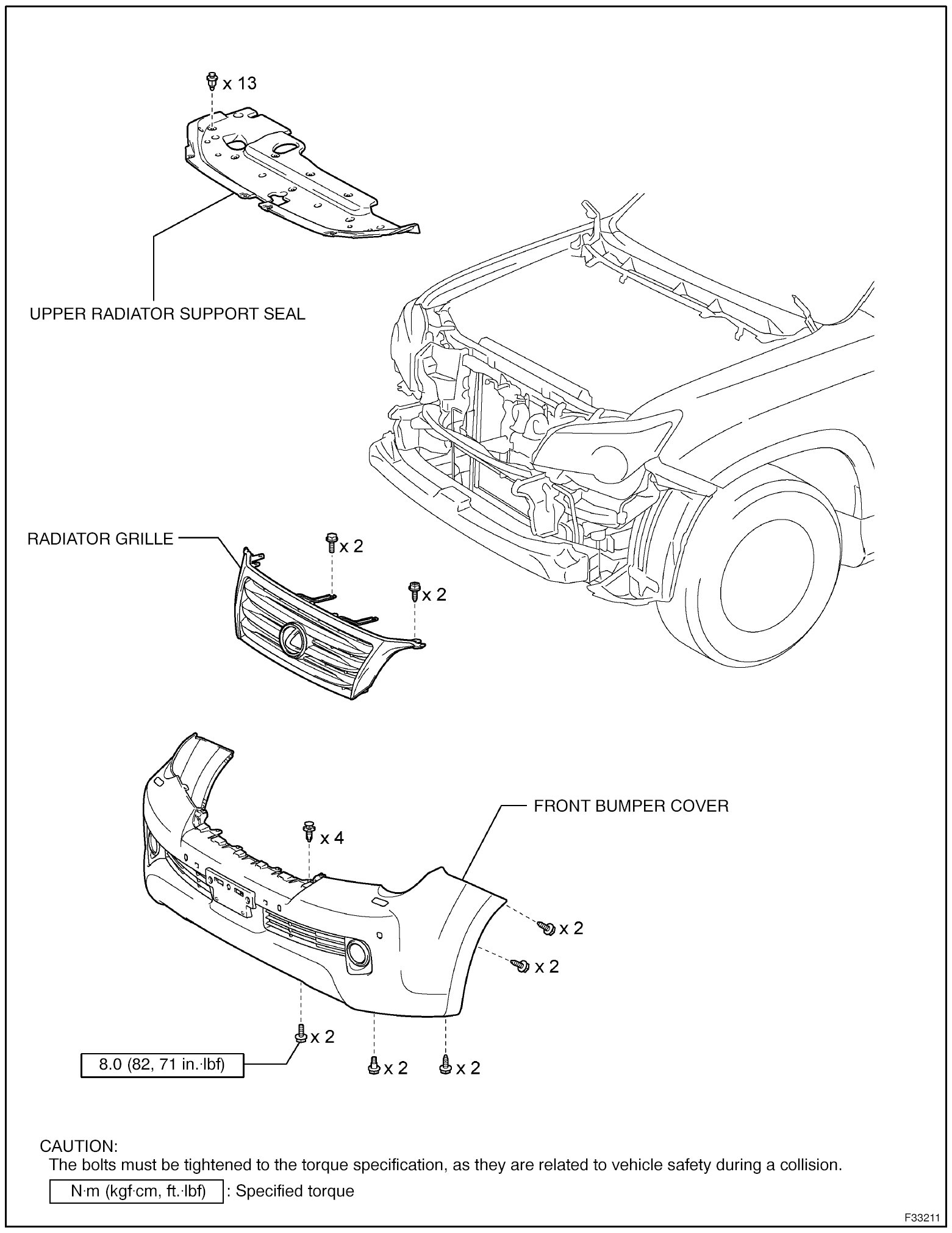

FRONT
BUMPER

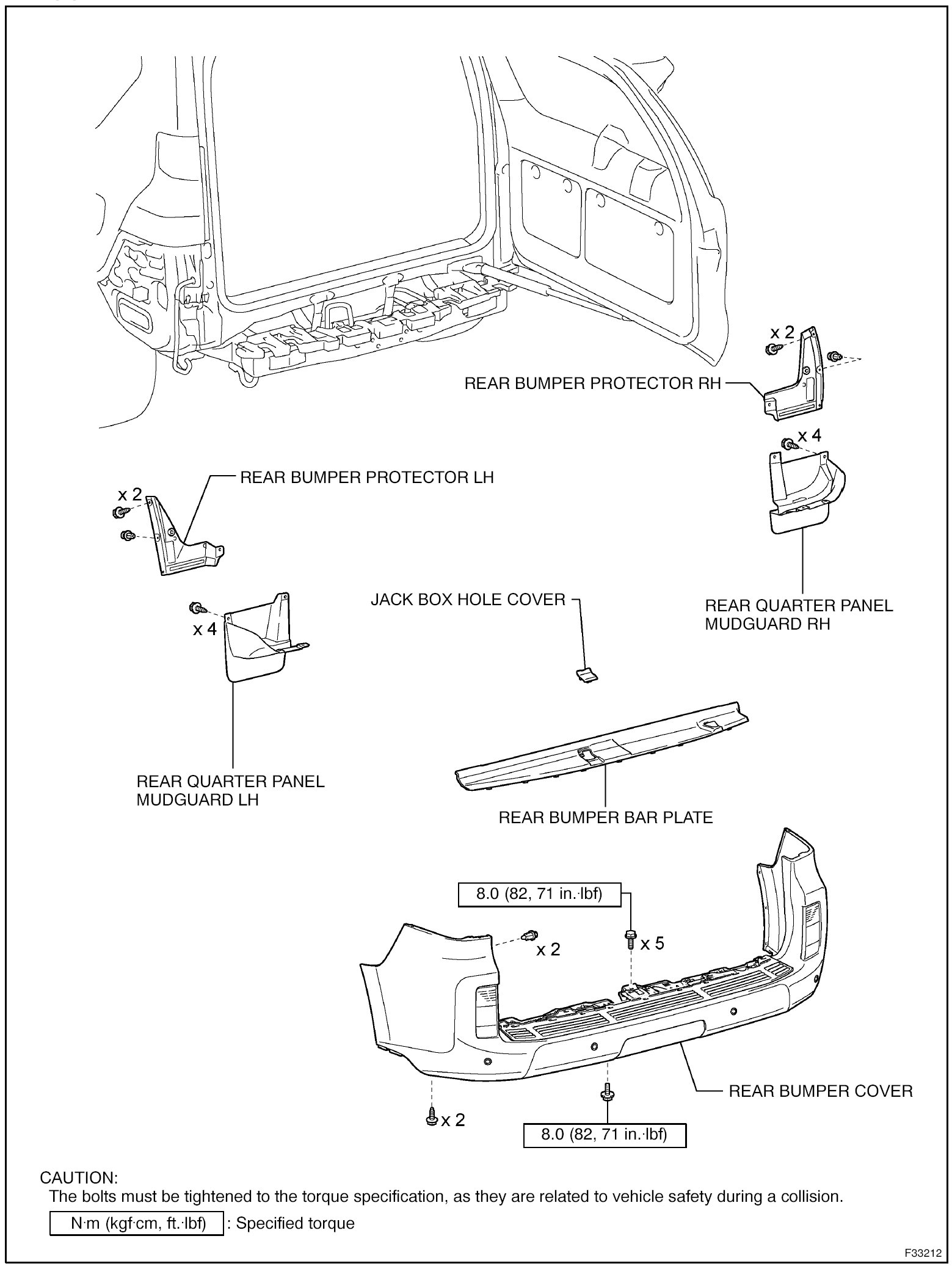

b.

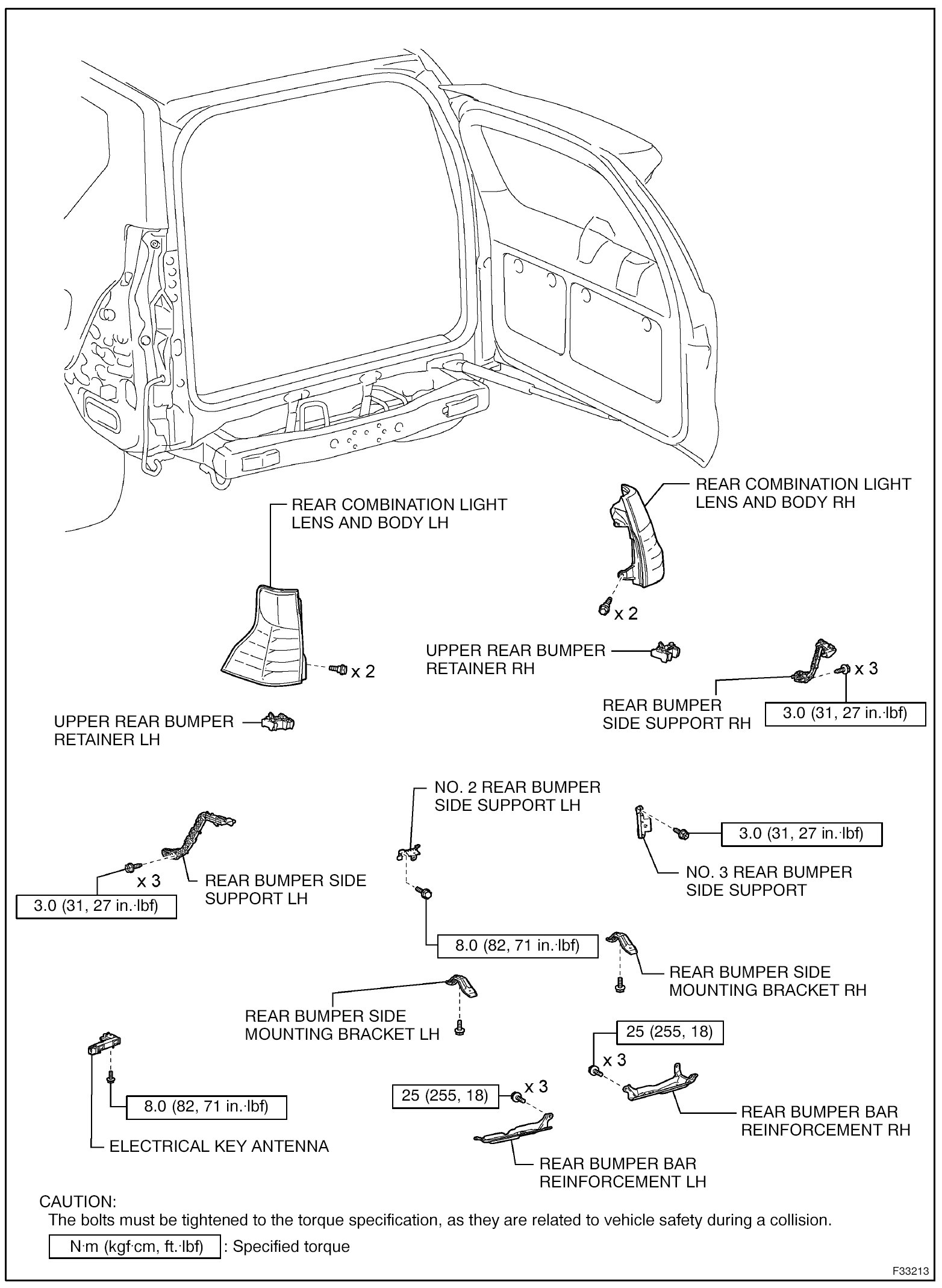

REAR
BUMPER

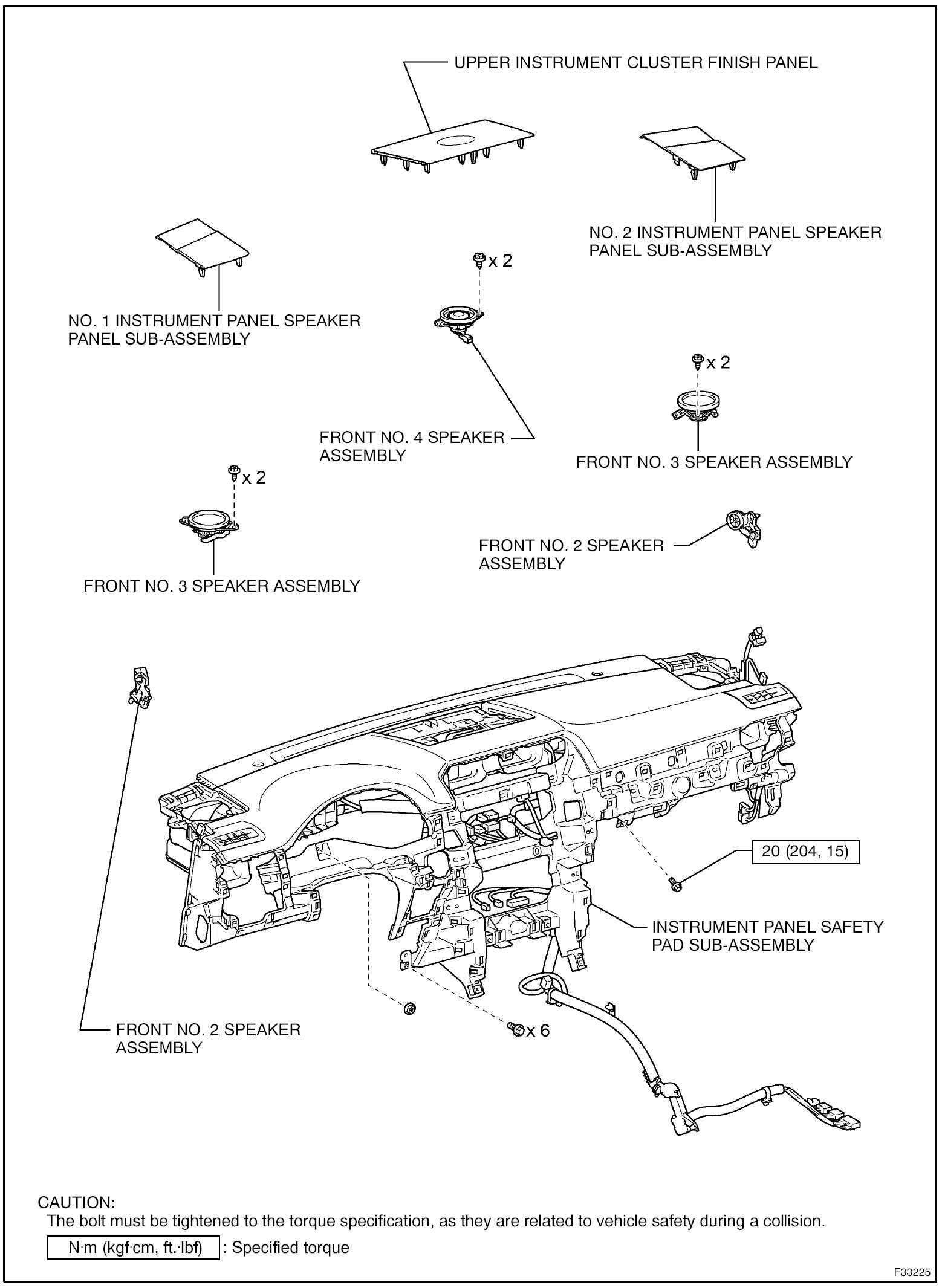

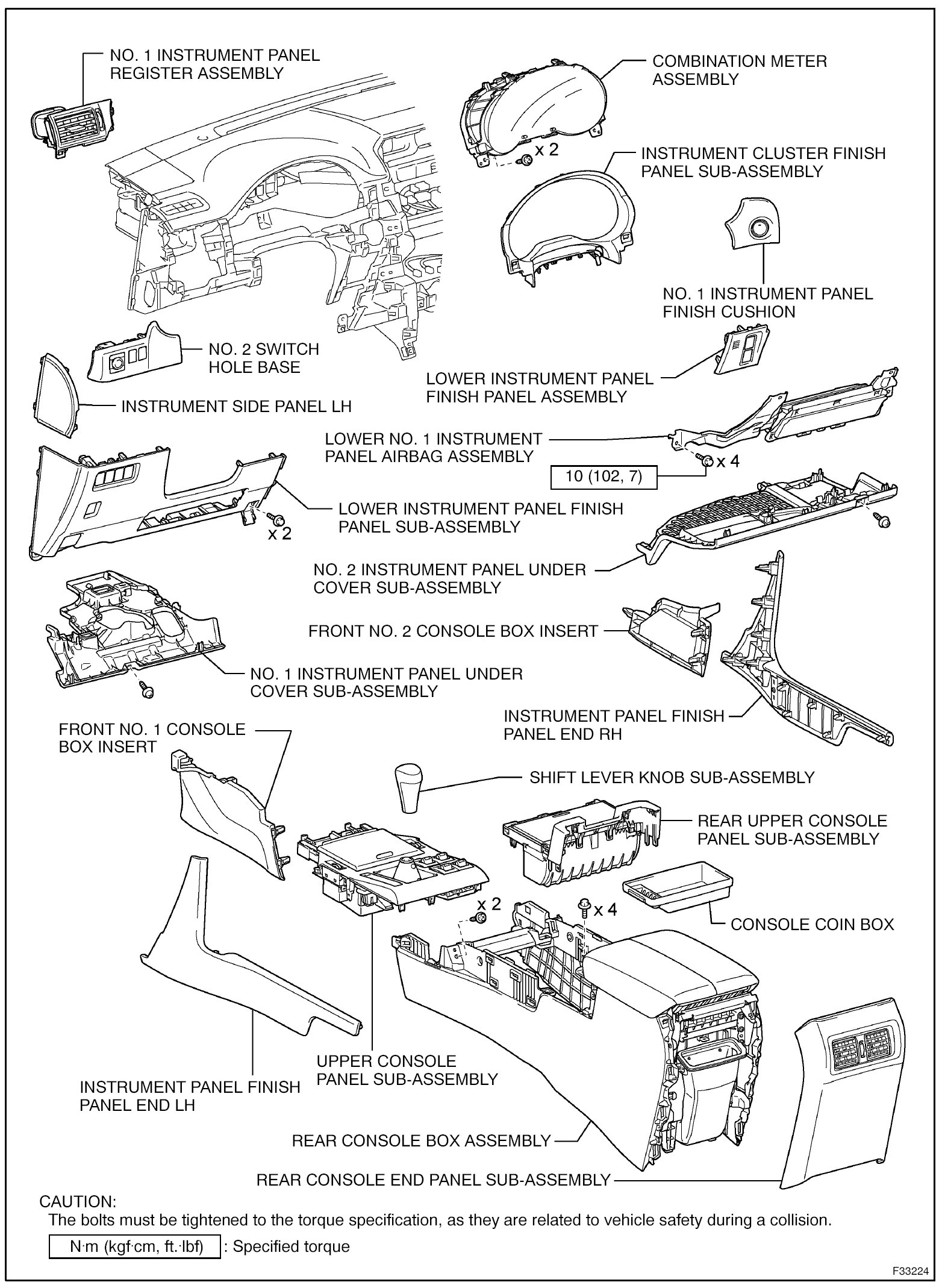

c.

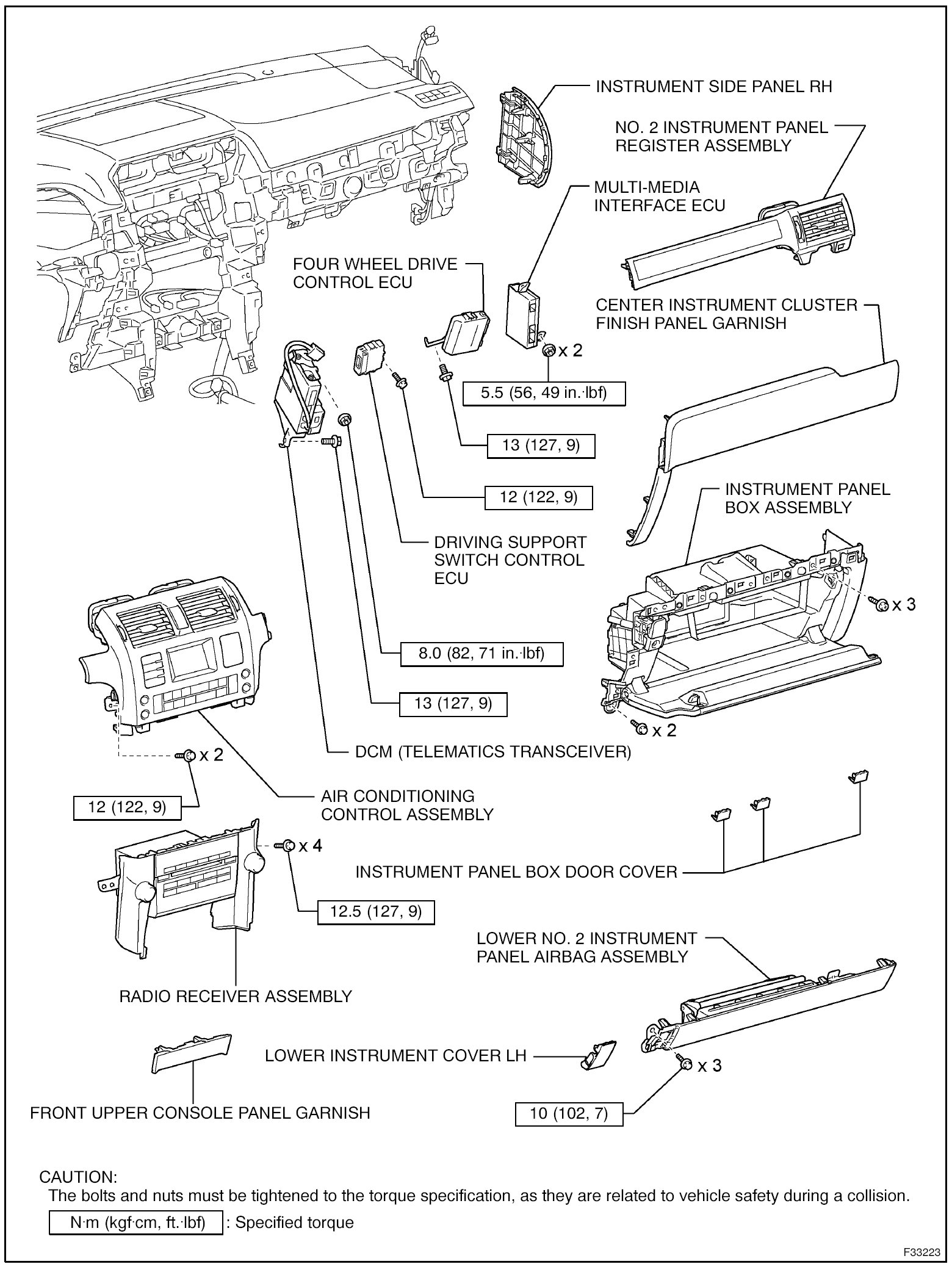

INSTRUMENT PANEL

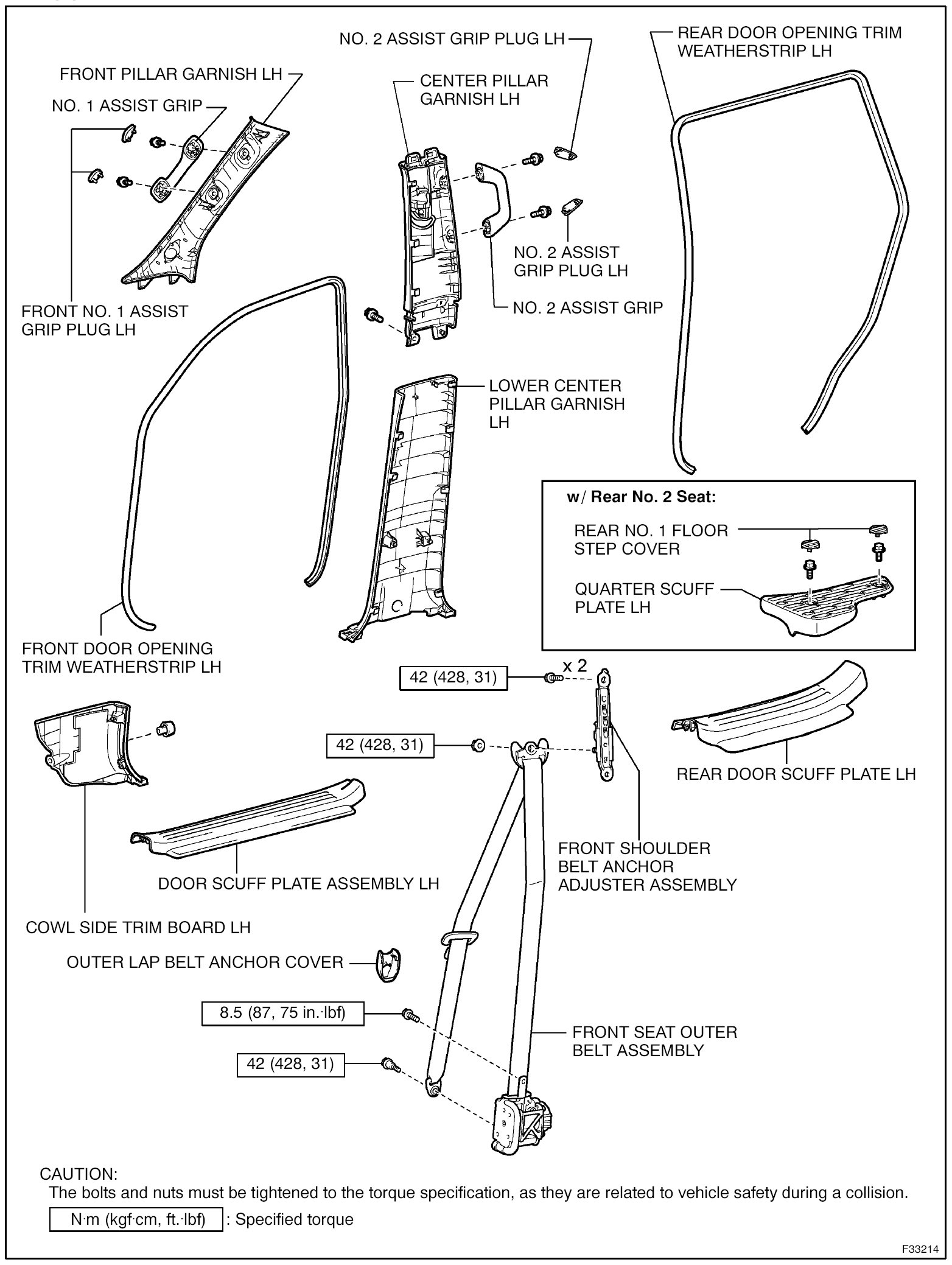

d.

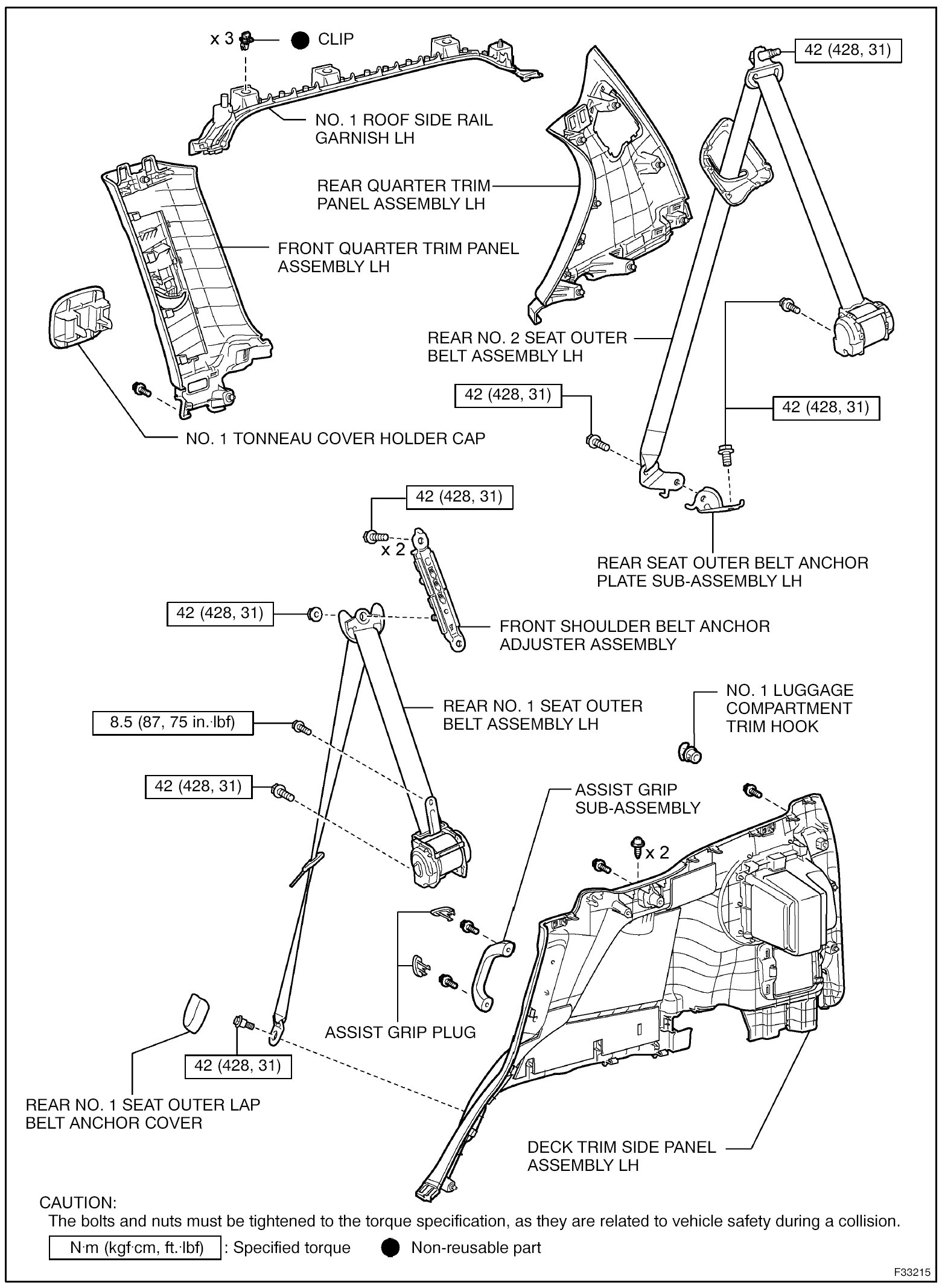

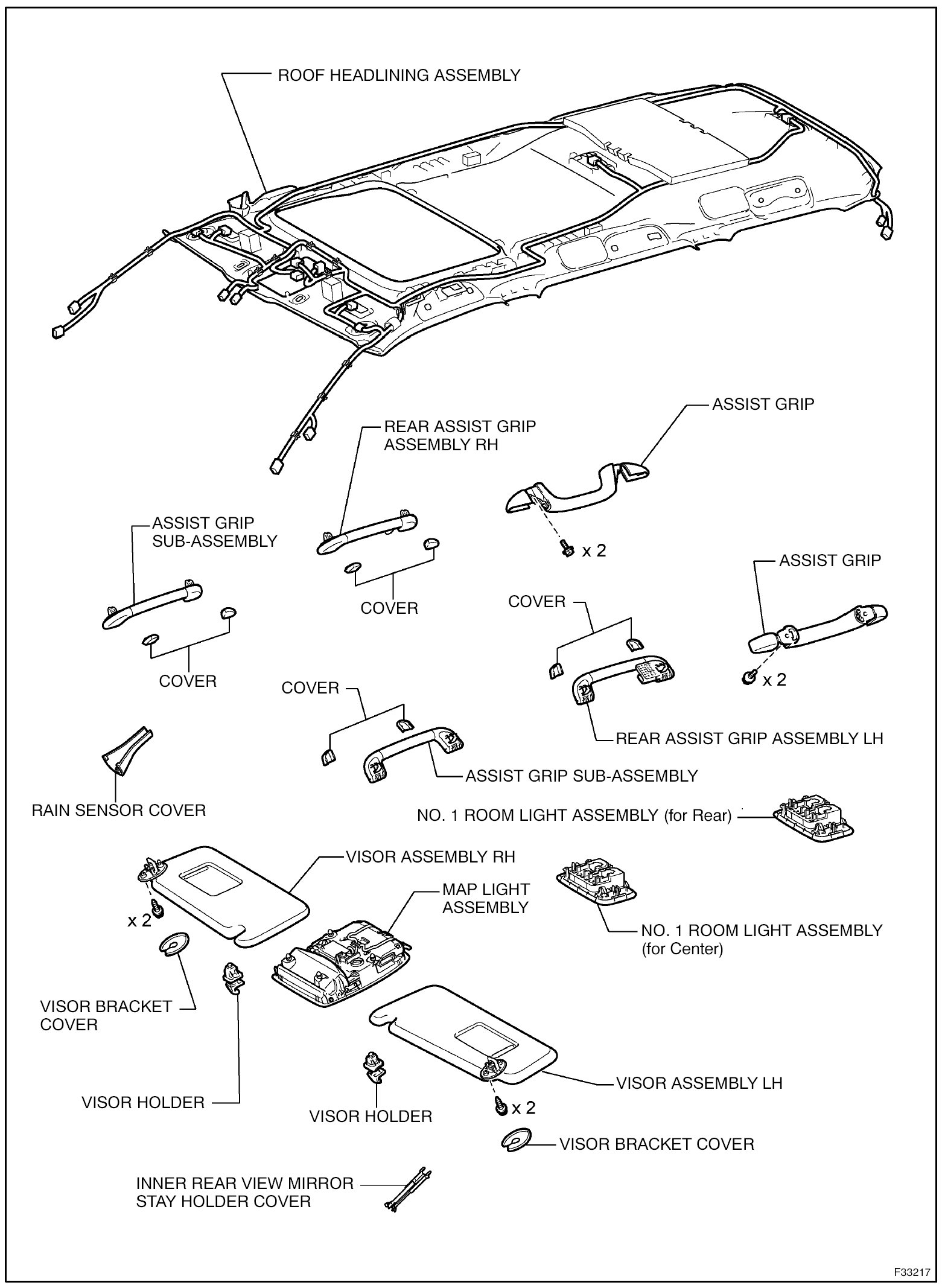

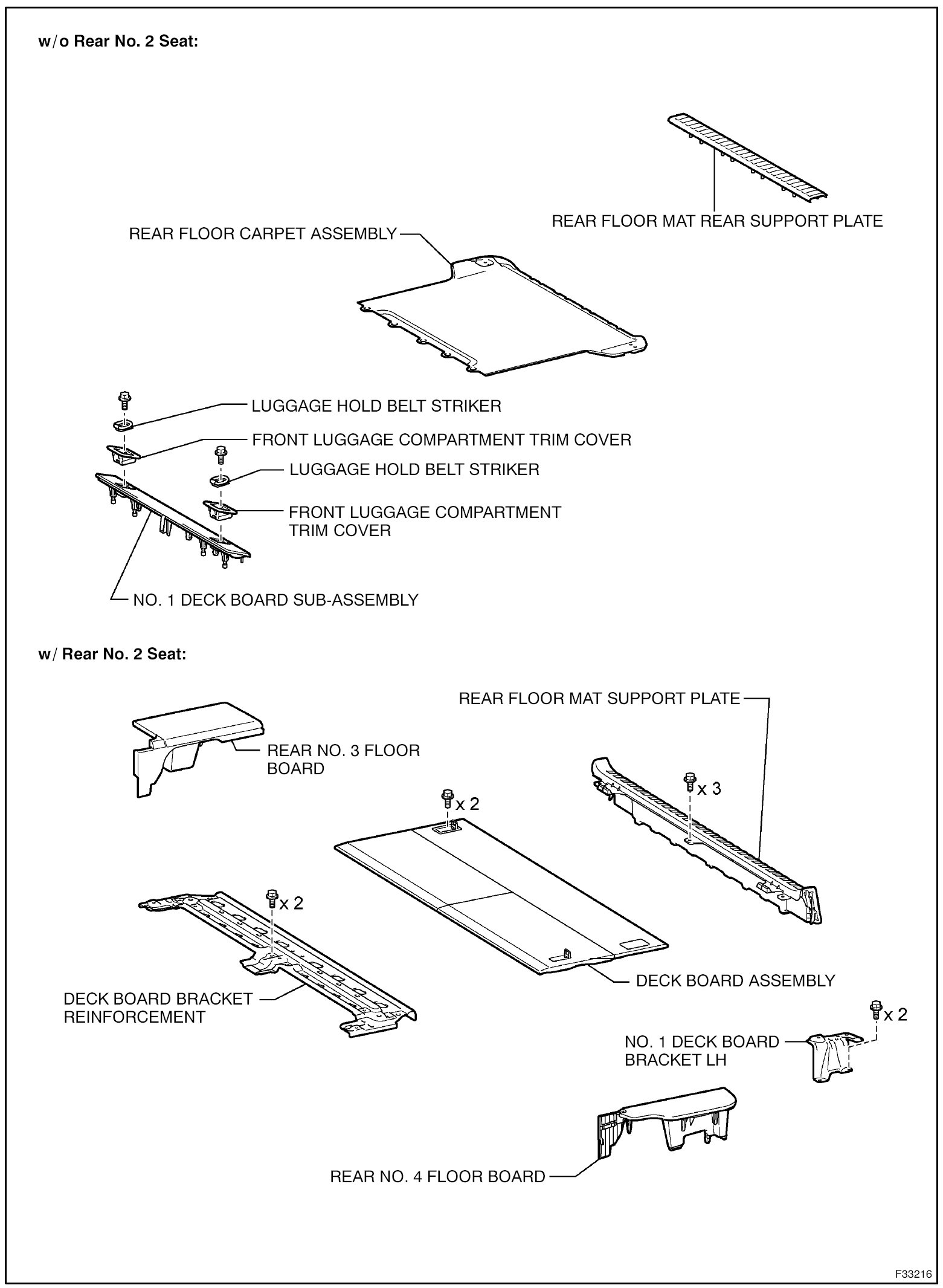

INTERIOR TRIM
e.

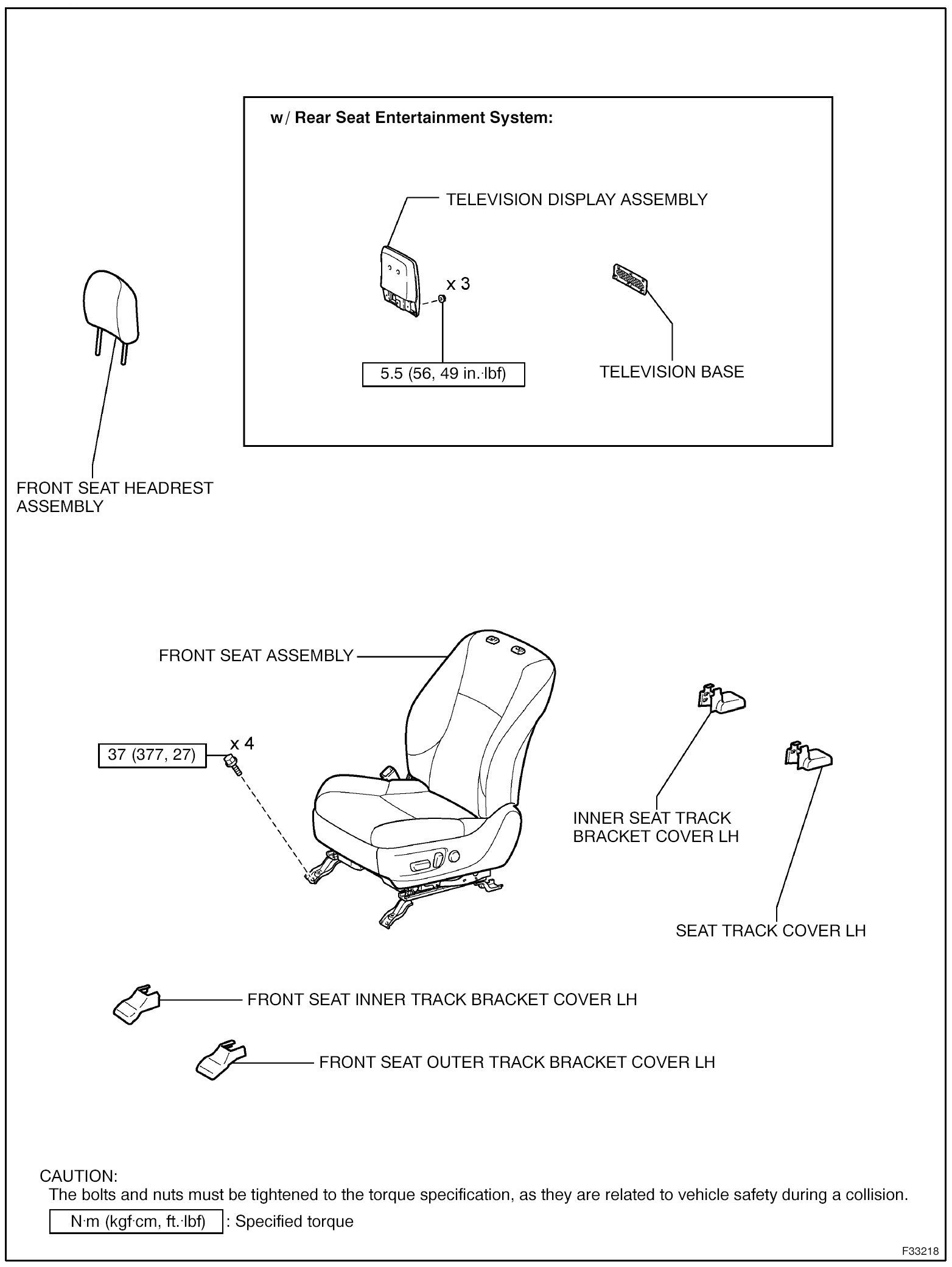

FRONT SEAT

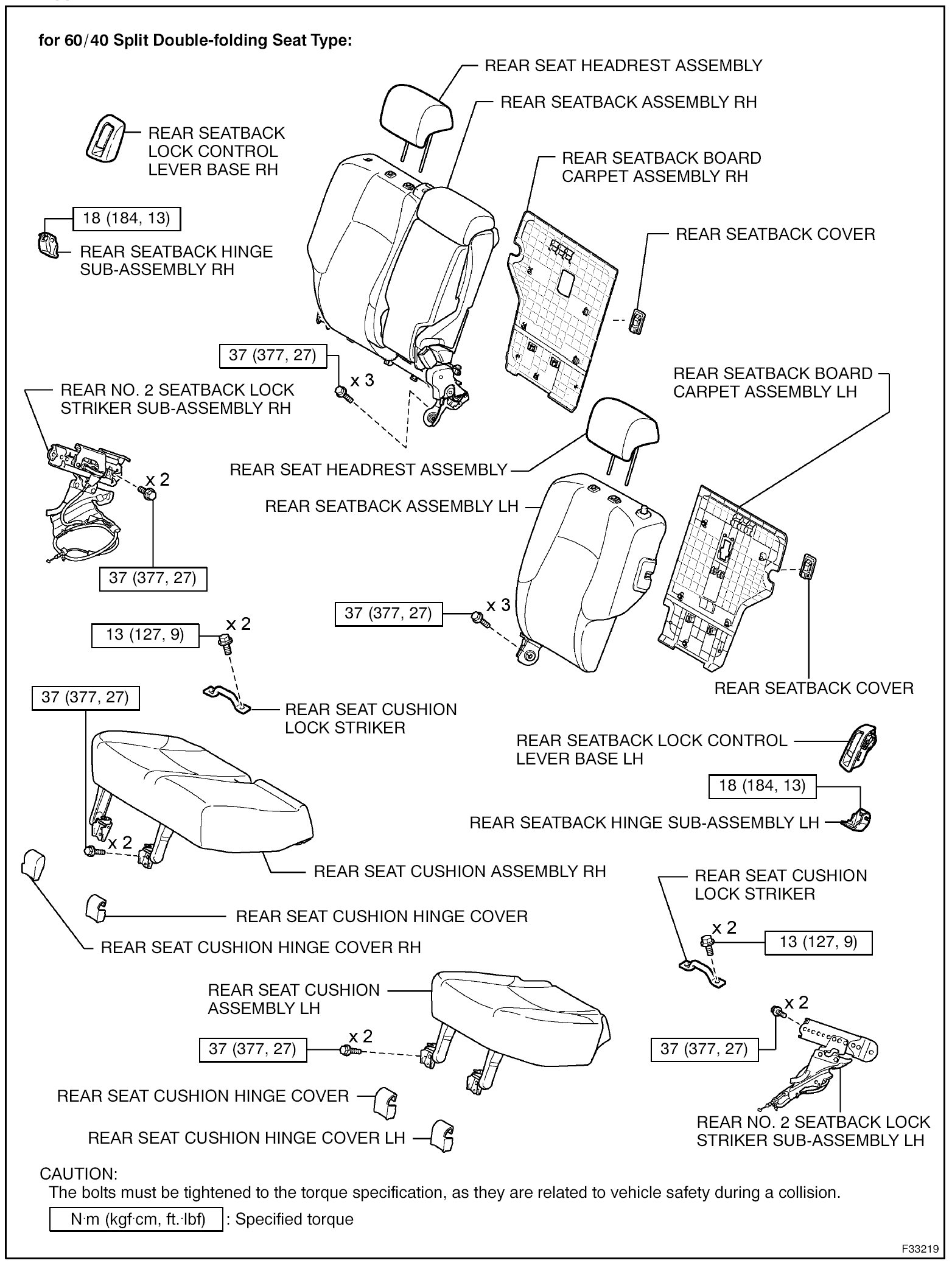

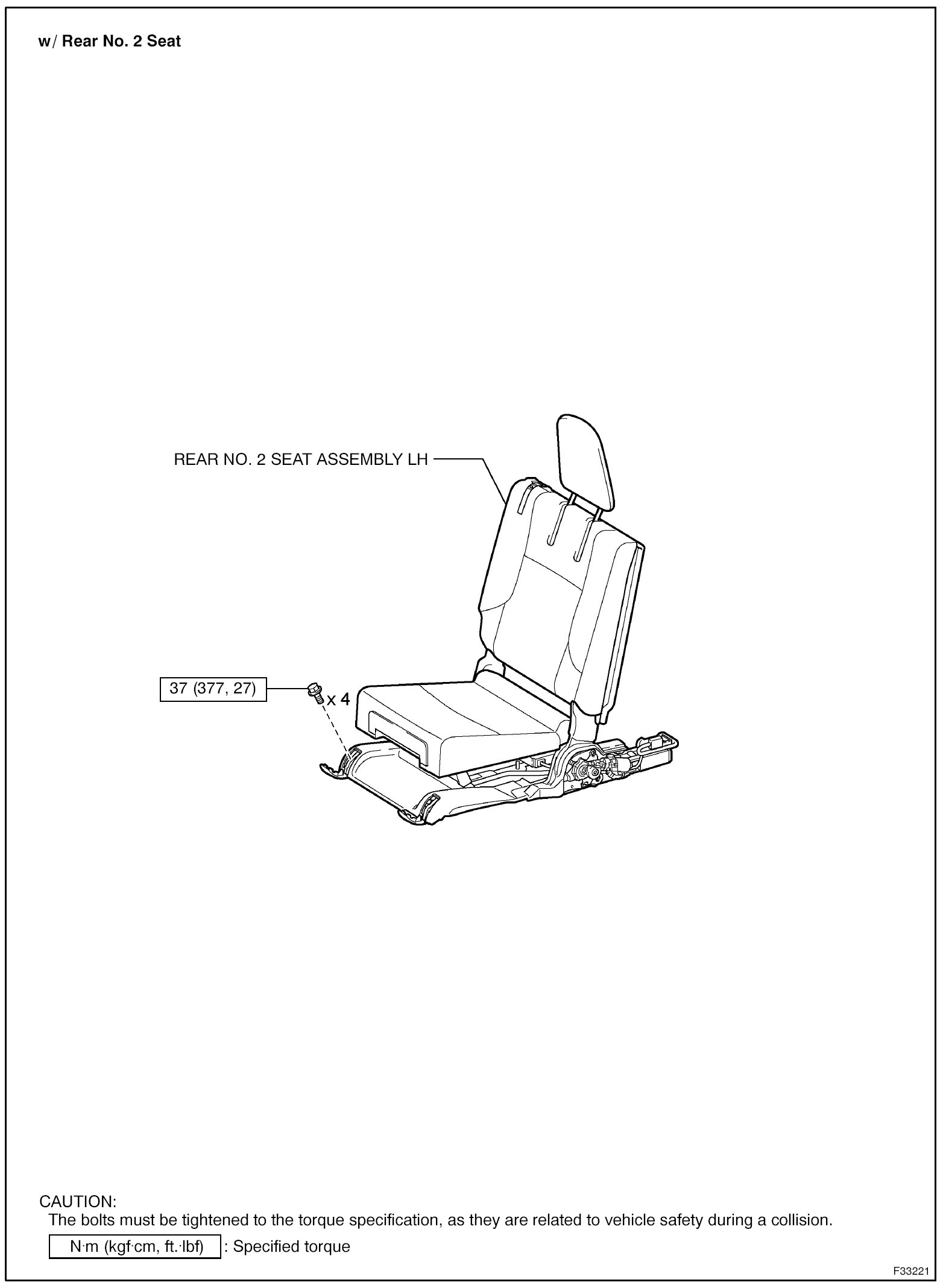

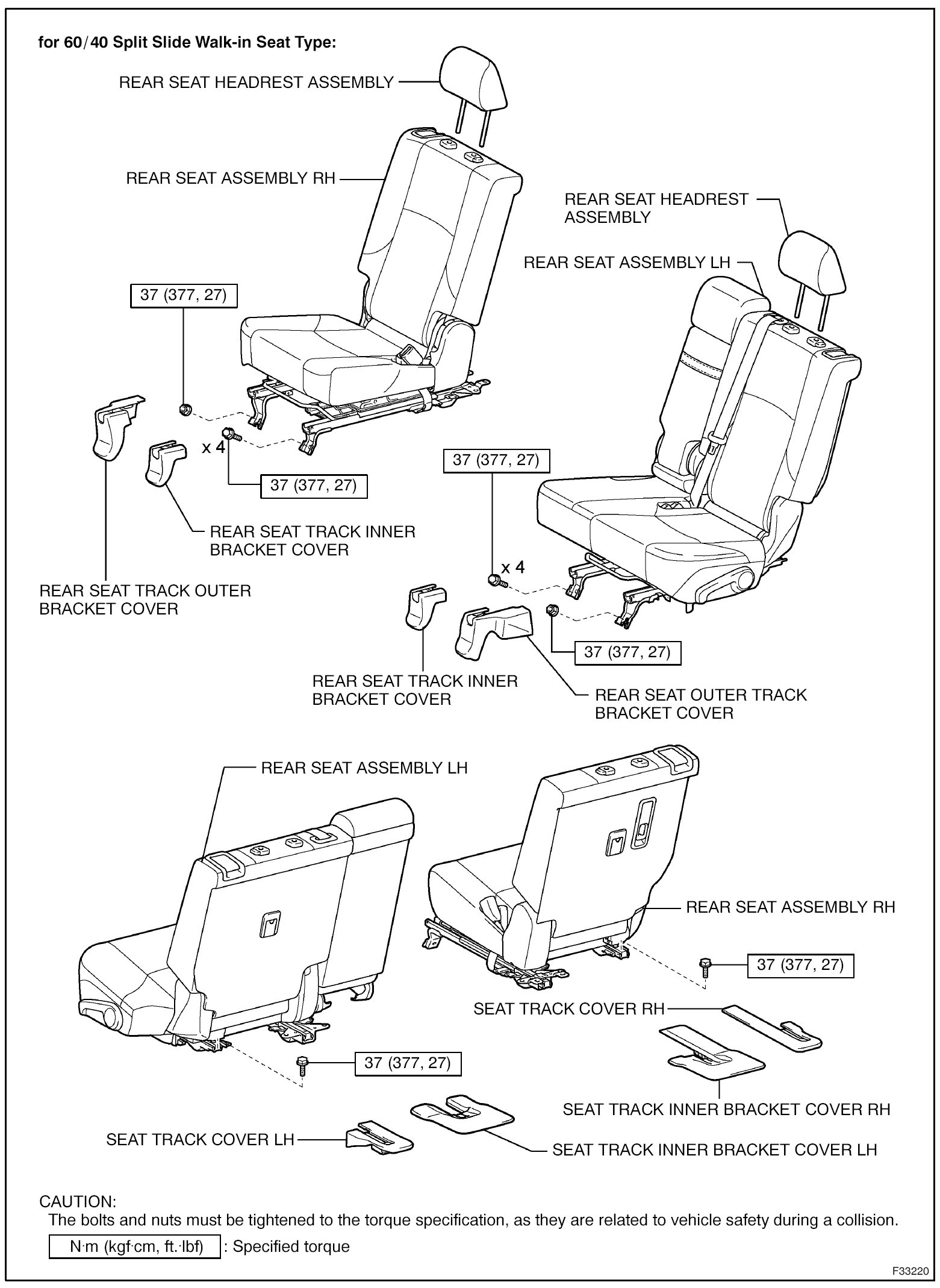

f.
REAR SEAT
