Torque Specifications





SPECIFICATIONS: 1UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

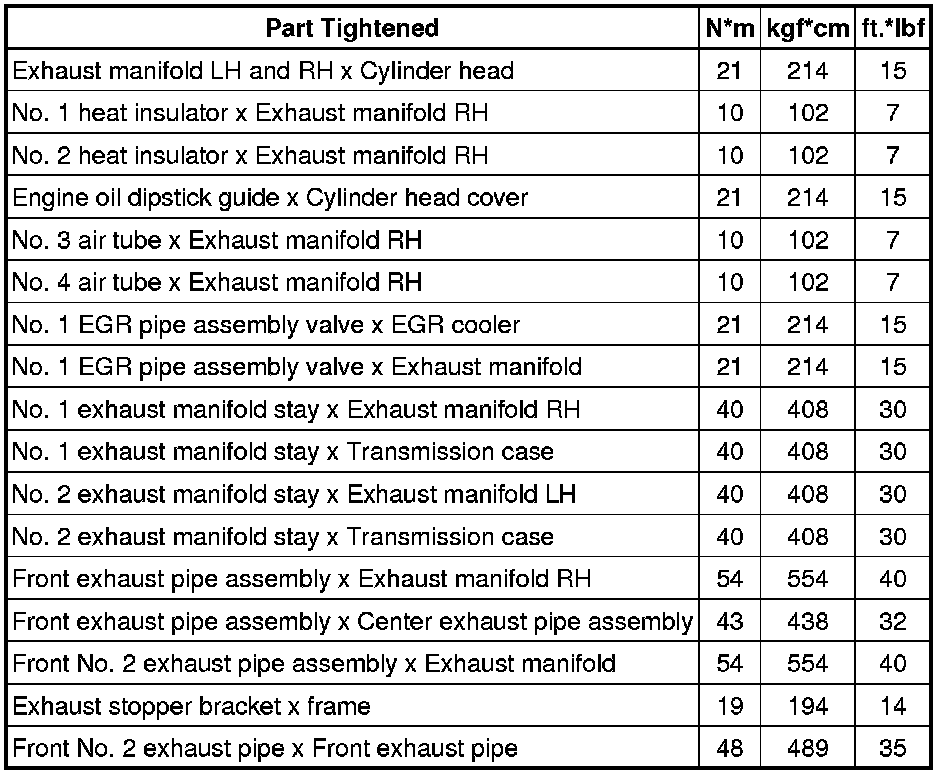

Exhaust manifold

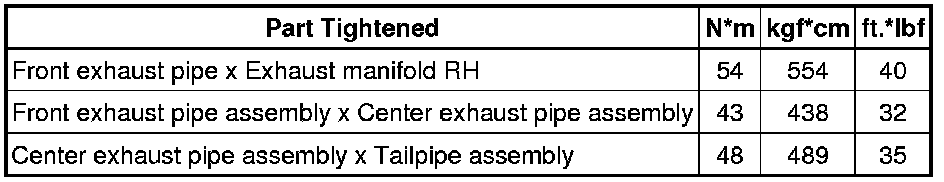

Exhaust pipe

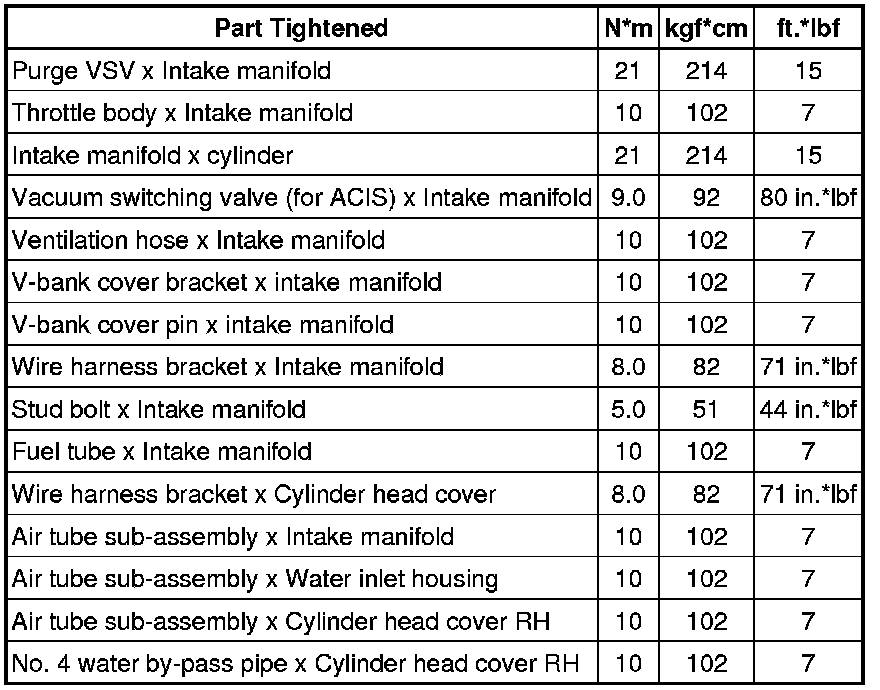

Intake manifold
