Control Module: Locations

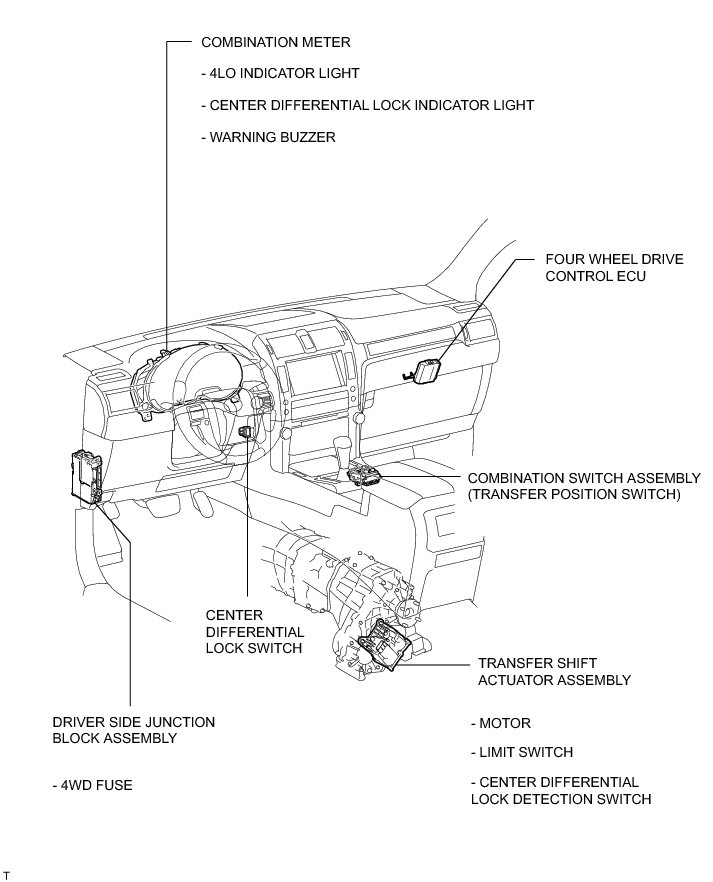

VF4BM TRANSFER / 4WD / AWD: TRANSFER SYSTEM: PARTS LOCATION
20 - Instrument Panel:
