Service Data





SPECIFICATIONS: WIPER / WASHER: SERVICE DATA

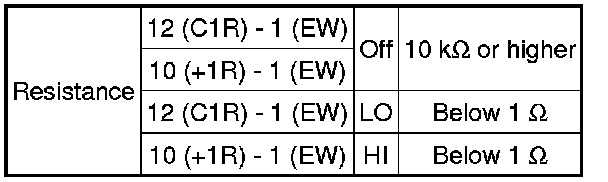

Rear Wiper Switch

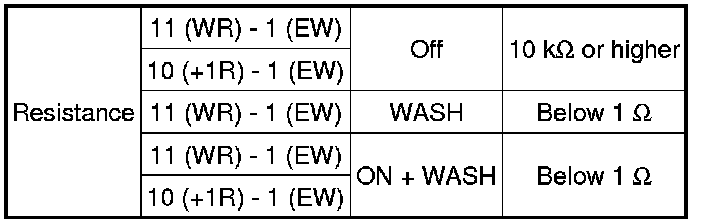

Rear Washer Switch

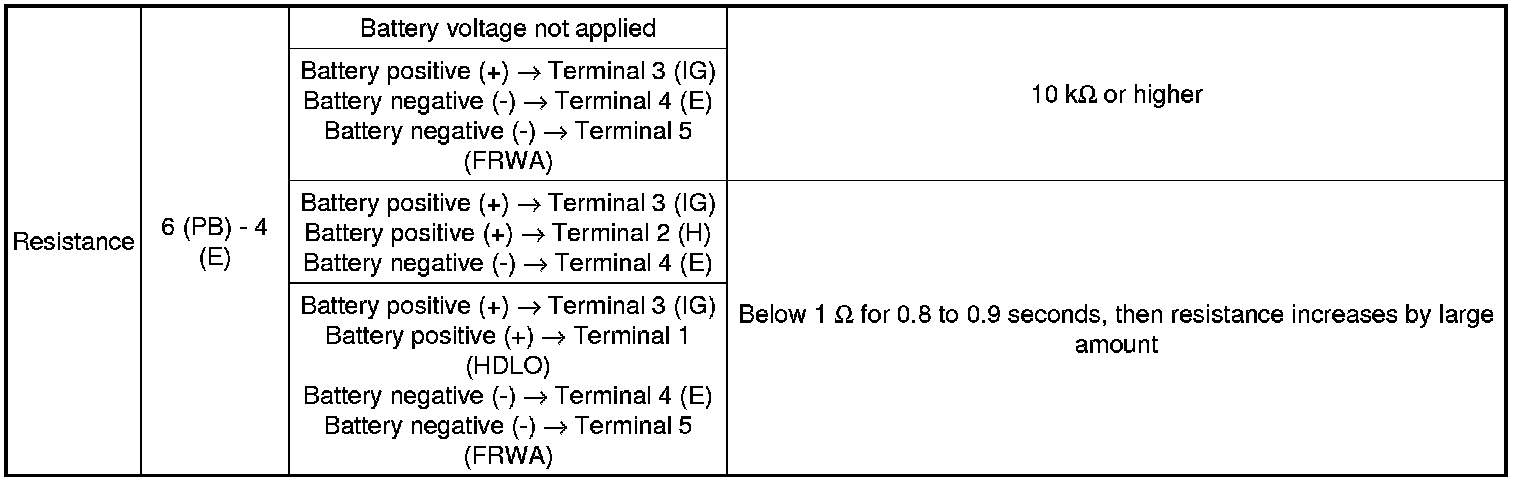

Headlight Cleaner Switch Assembly





RELAY (Headlight Cleaner Washer)





RELAY (Rear Wiper)
