Adaptive Front-Lighting System: Notes

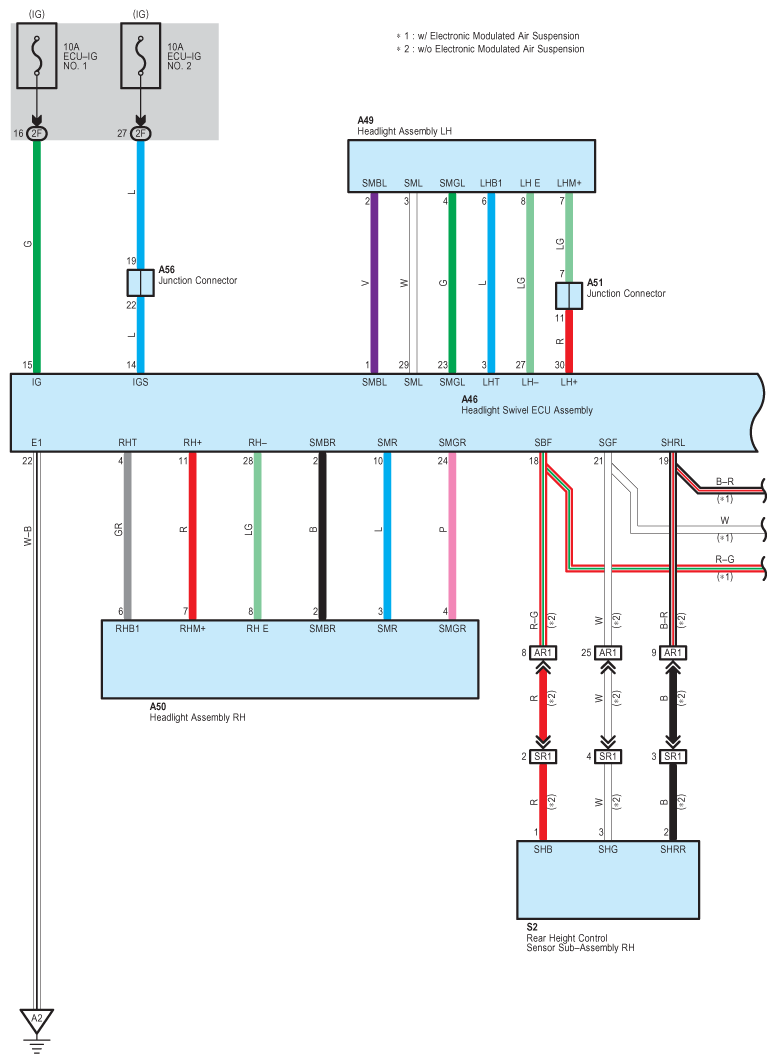

Fig 1: Adaptive Front-Lighting System - Wiring Diagram (1 Of 7)
G08930930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

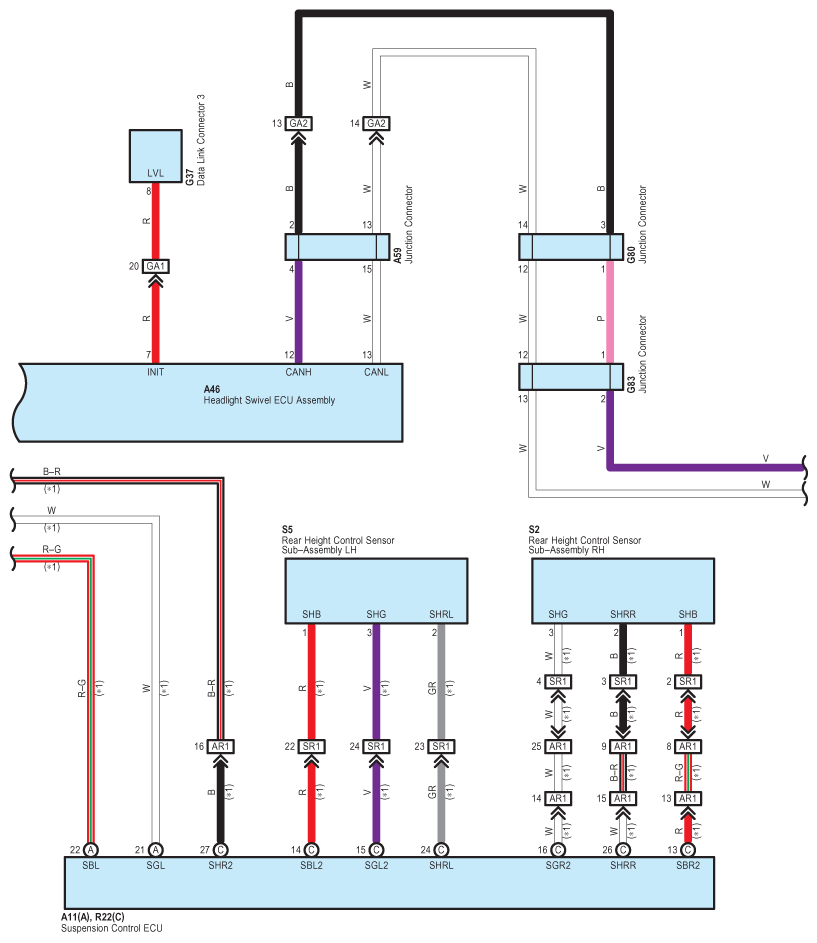

Fig 2: Adaptive Front-Lighting System - Wiring Diagram (2 Of 7)
G08930931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

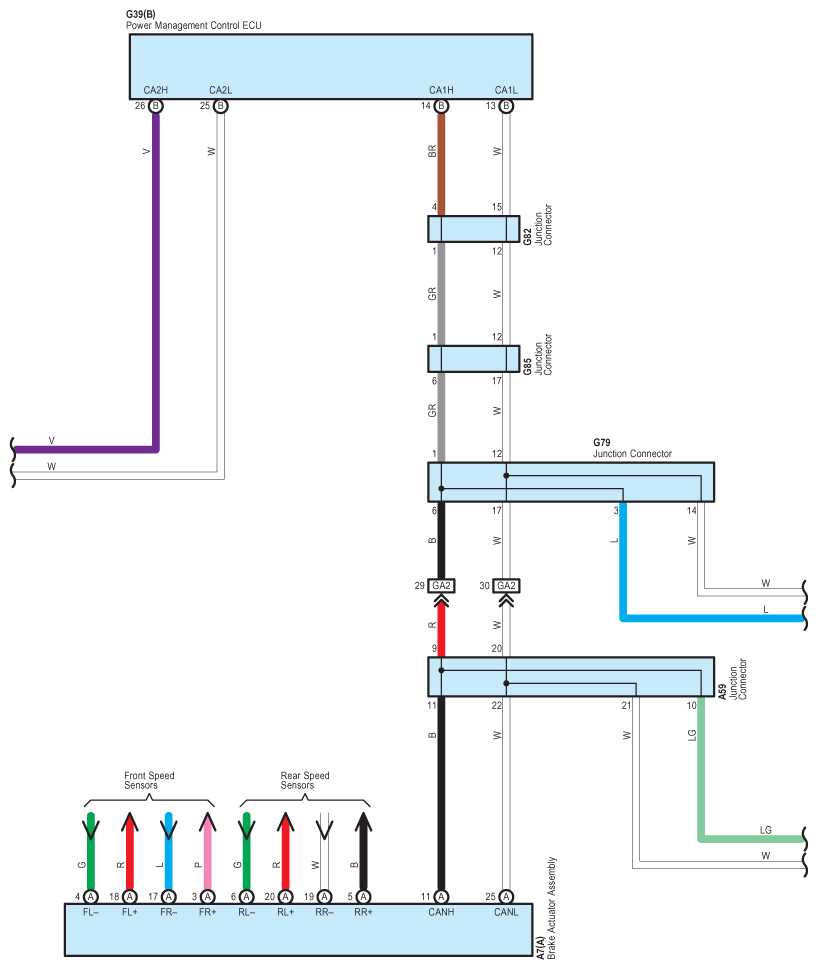

Fig 3: Adaptive Front-Lighting System - Wiring Diagram (3 Of 7)
G08930932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

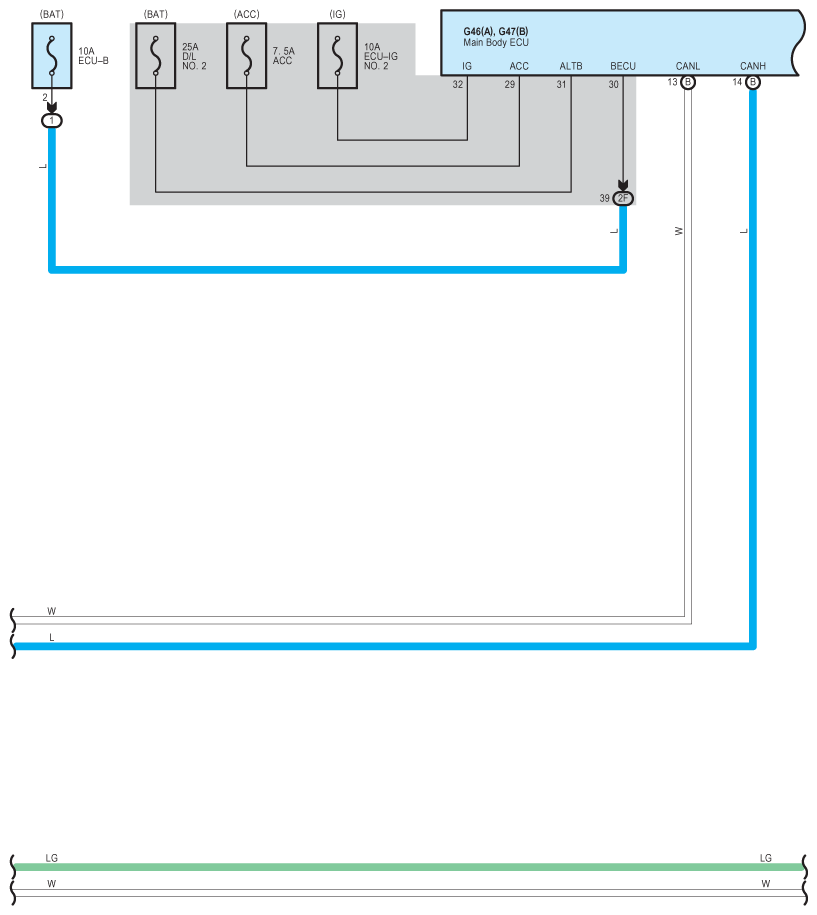

Fig 4: Adaptive Front-Lighting System - Wiring Diagram (4 Of 7)
G08930933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

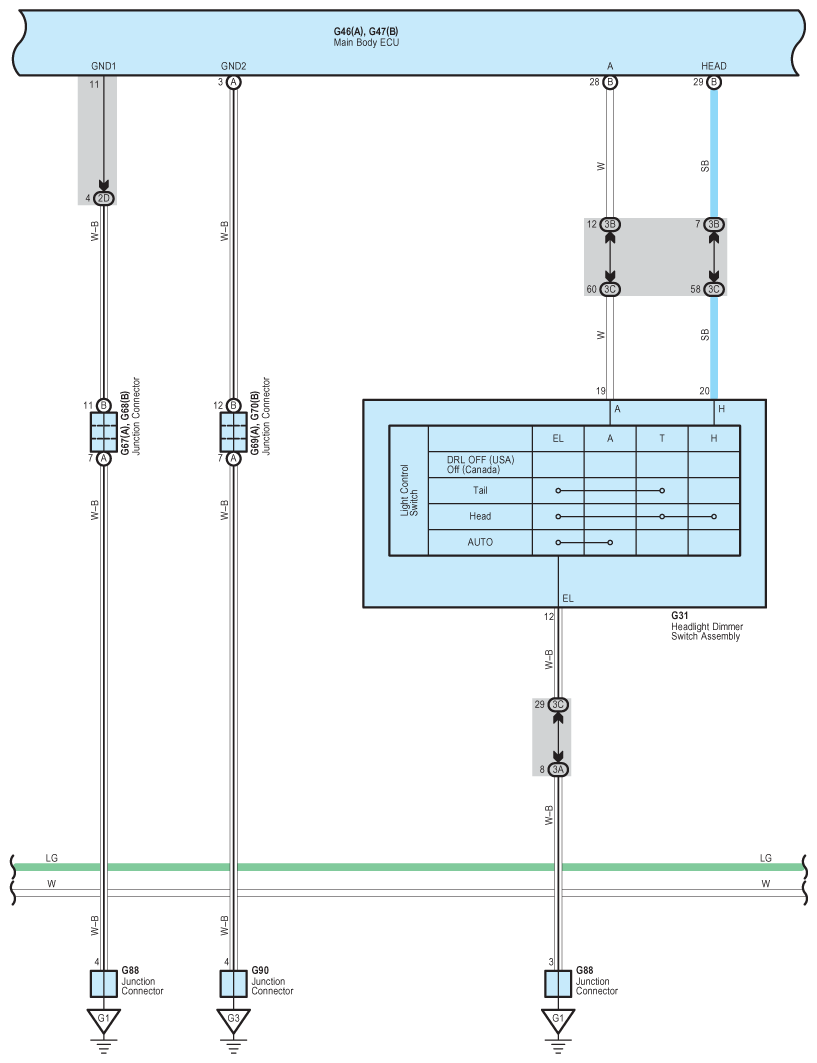

Fig 5: Adaptive Front-Lighting System - Wiring Diagram (5 Of 7)
G08930934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

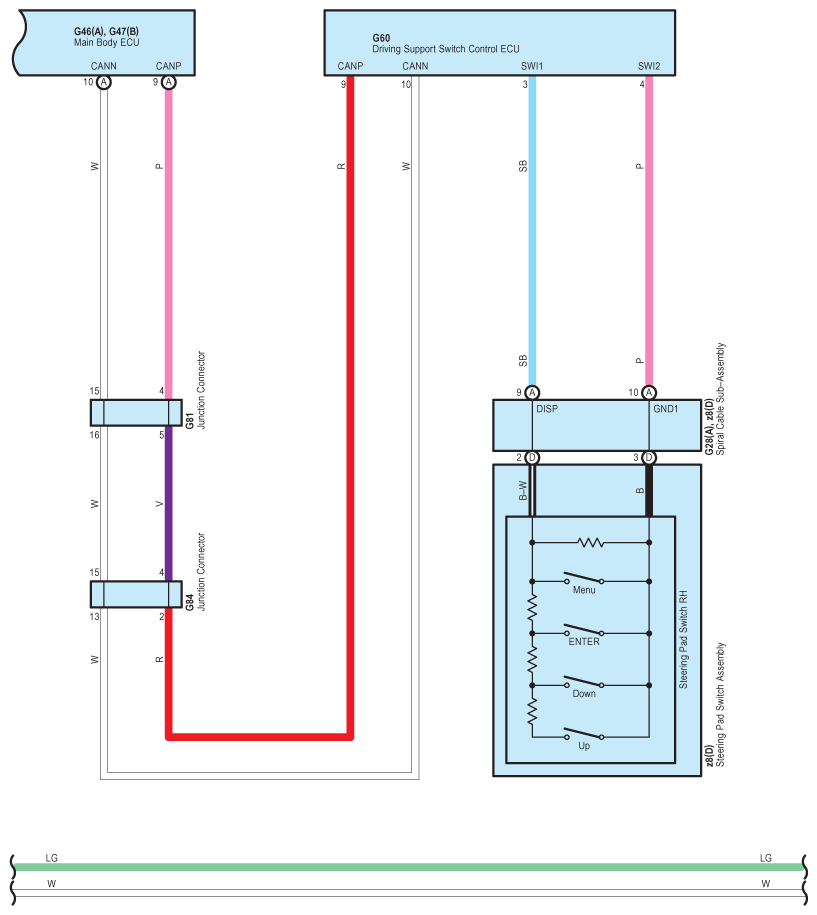

Fig 6: Adaptive Front-Lighting System - Wiring Diagram (6 Of 7)
G08930935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

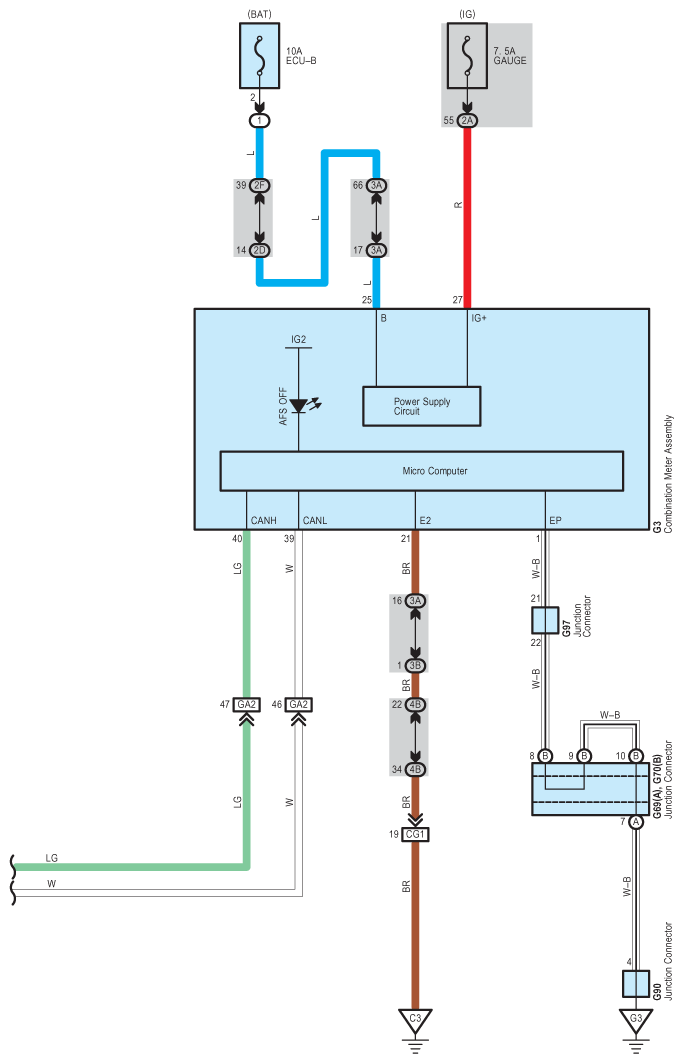

Fig 7: Adaptive Front-Lighting System - Wiring Diagram (7 Of 7)
G08930936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
