Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE LOWER FRONT BUMPER COVER  . Refer to REMOVAL - Step 6
  2. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 7
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 5
  4. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 15
  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

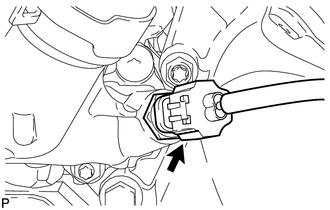

      Fig 1: Identifying Engine Coolant Temperature Sensor Connector
      GTY275030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor.
    3. Remove the gasket from the engine coolant temperature sensor.
