Heated Oxygen Sensor: Removal: Removal

WARNING:

The exhaust pipe is extremely hot immediately after the engine has stopped.
Confirm that the exhaust pipe has cooled down before removing it.

REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Disconnect the heated oxygen sensor connector.

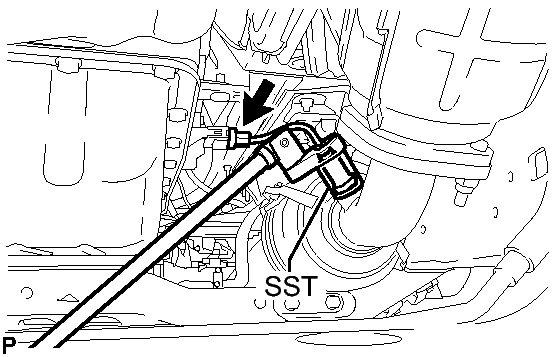

  Fig 1: Identifying SST, Connector & Heated Oxygen Sensor (Bank 1 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the heated oxygen sensor from the front No. 2 exhaust pipe.
  - SST: 09224-00010
REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Detach the 2 clamps and disconnect the heated oxygen sensor connector.

  Fig 2: Identifying Clamps, Connector & Heated Oxygen Sensor (Bank 2 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.

  Fig 3: Identifying SST & Heated Oxygen Sensor (Bank 2 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
