Downhill Assist Control Switch: Components: Illustration

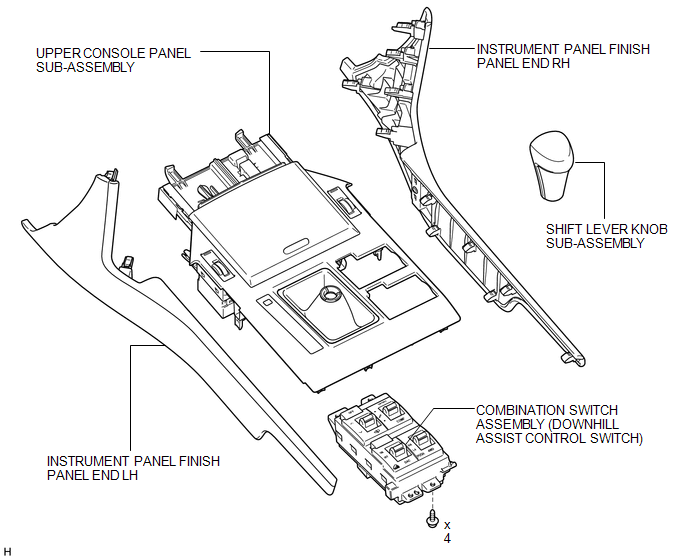

Fig 1: Identifying Downhill Assist Control Switch Replacement Components
GTY278596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
