Downhill Assist Control Switch: Inspection: Inspection
- CHECK COMBINATION SWITCH ASSEMBLY (DOWNHILL ASSIST CONTROL SWITCH)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance

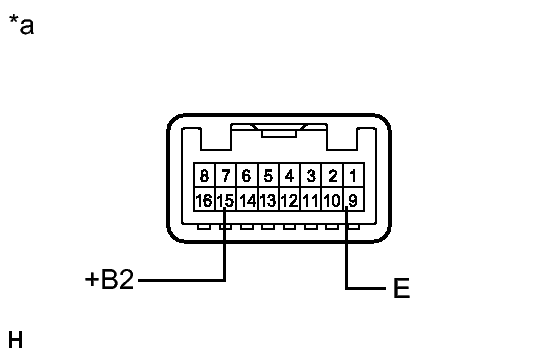

Tester Connection Switch Condition Specified Condition 9 (E) - 15 (+B2) Pressed Below 1 Ω Not pressed 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Combination Switch)If the result is not as specified, replace the combination switch assembly (downhill assist control switch).
- Measure the resistance according to the value(s) in the table below.
