Back-Up Light: Notes

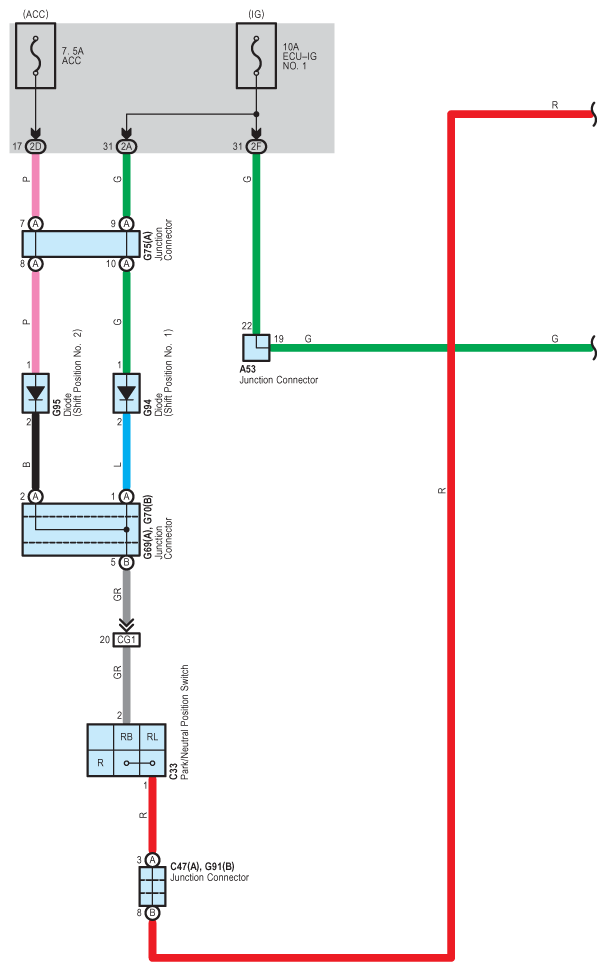

Fig 1: Back-Up Light - Wiring Diagram (1 Of 2)
G08930898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

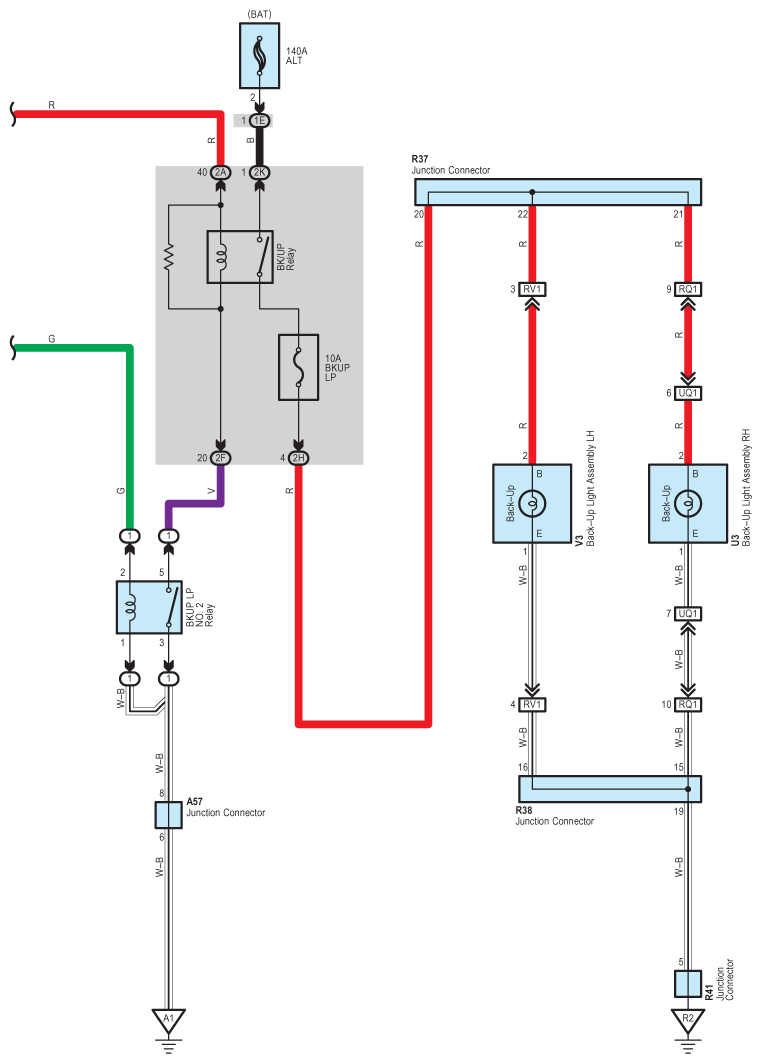

Fig 2: Back-Up Light - Wiring Diagram (2 Of 2)
G08930899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
