Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control: Notes

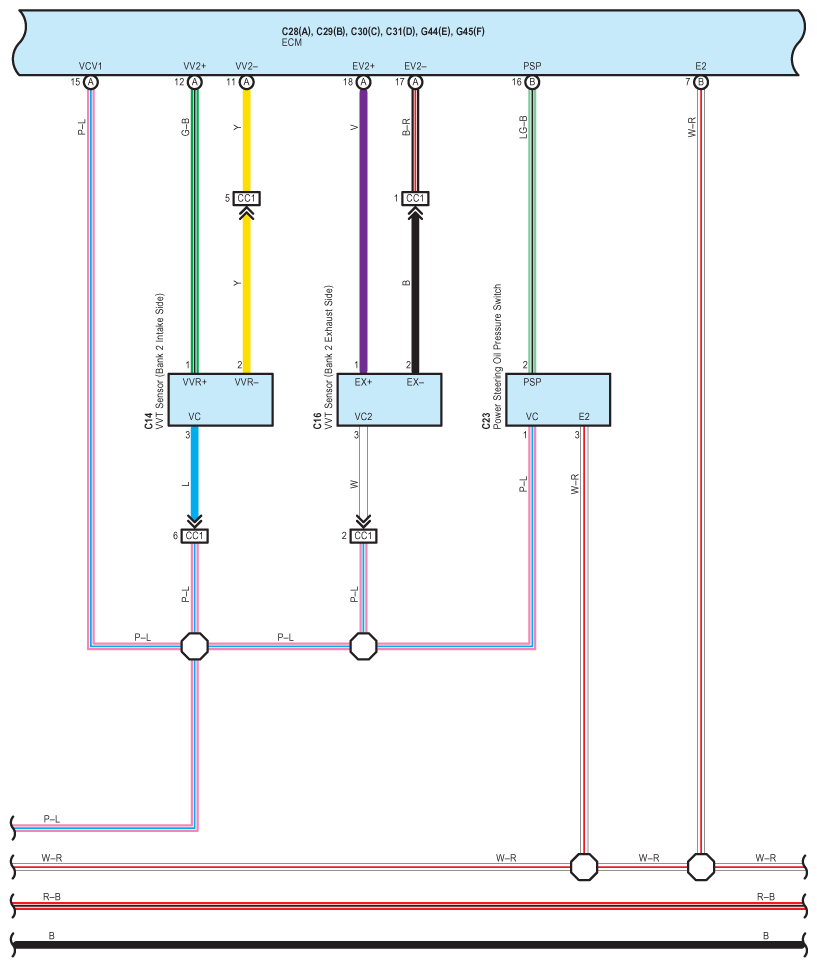

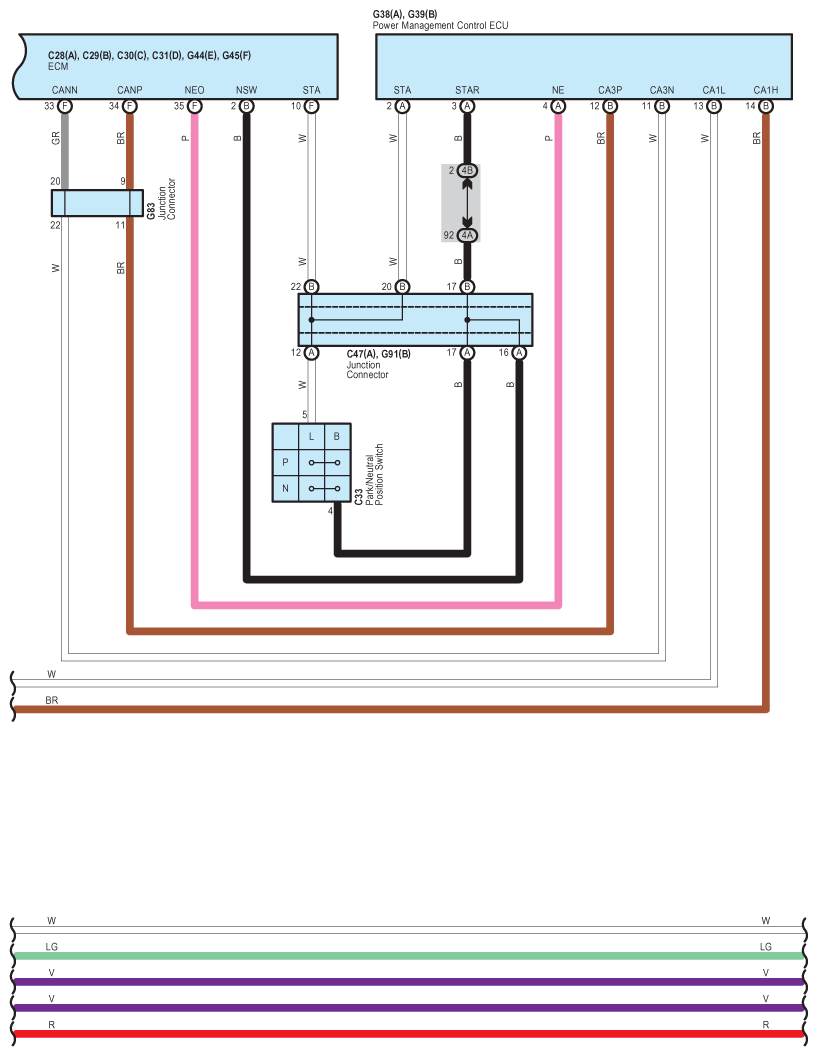

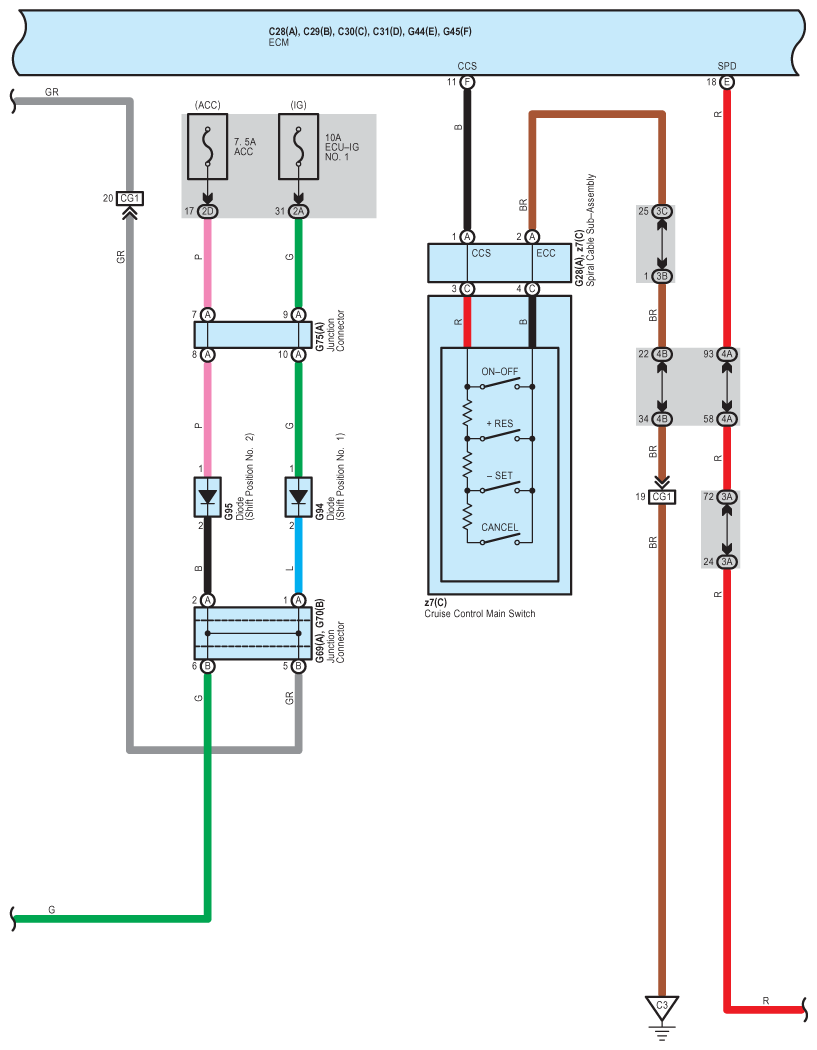

Fig 1: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (1 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

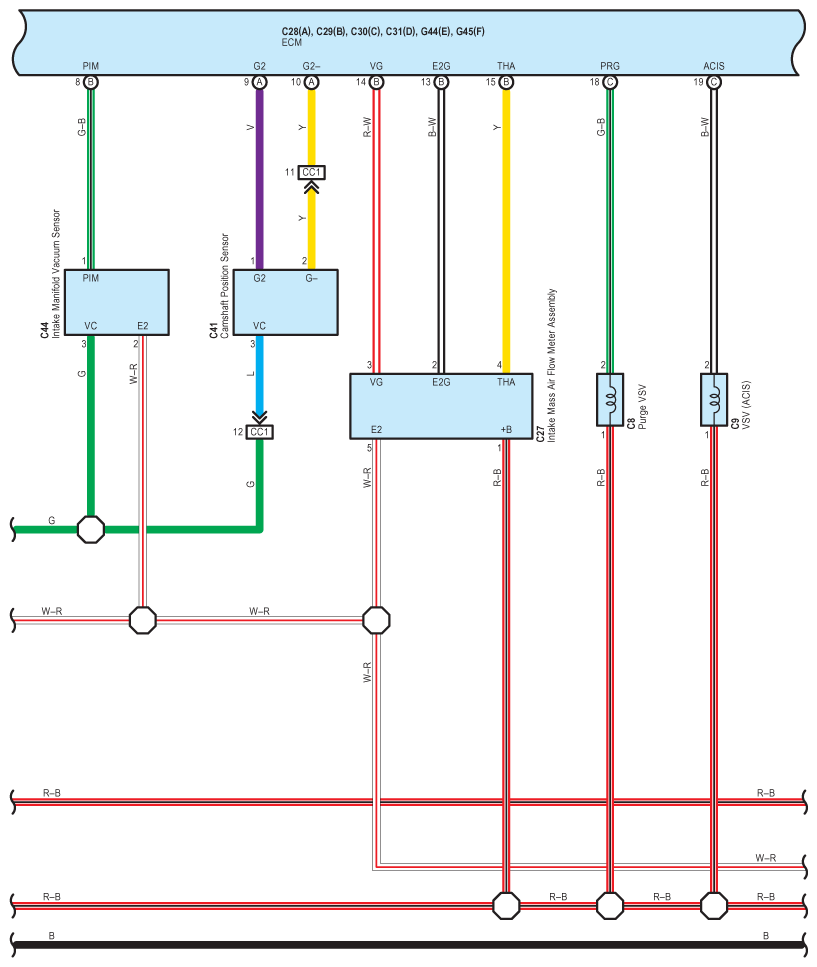

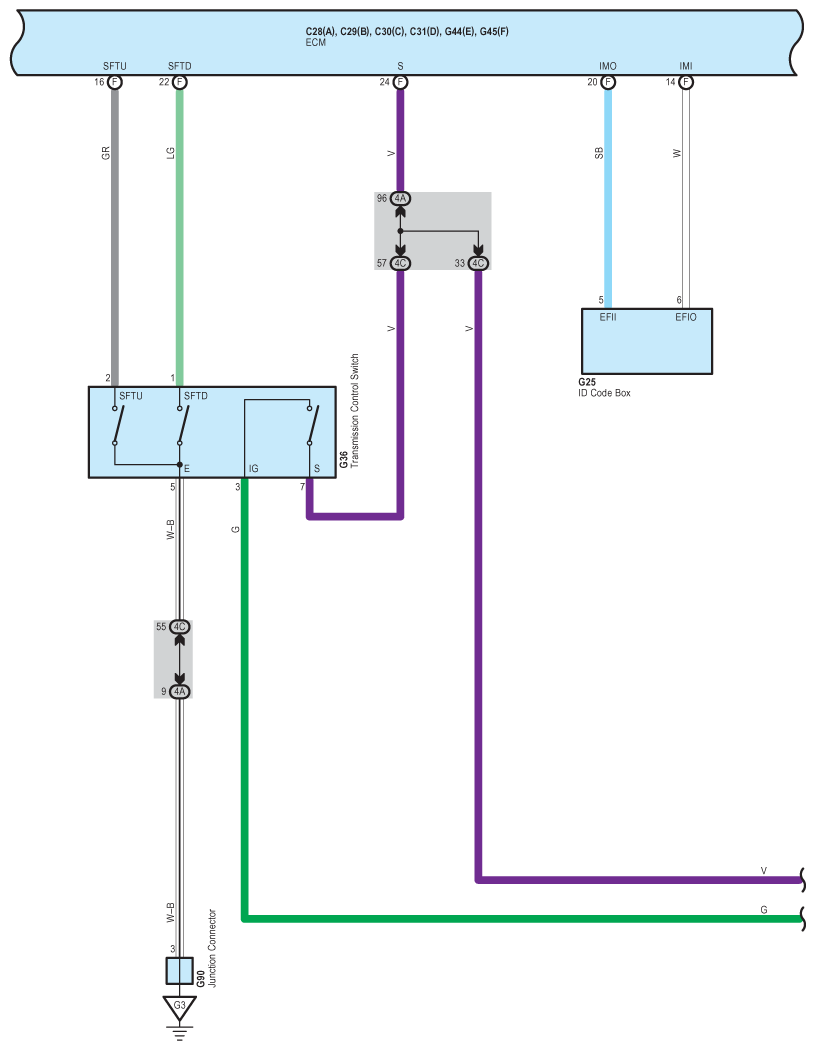

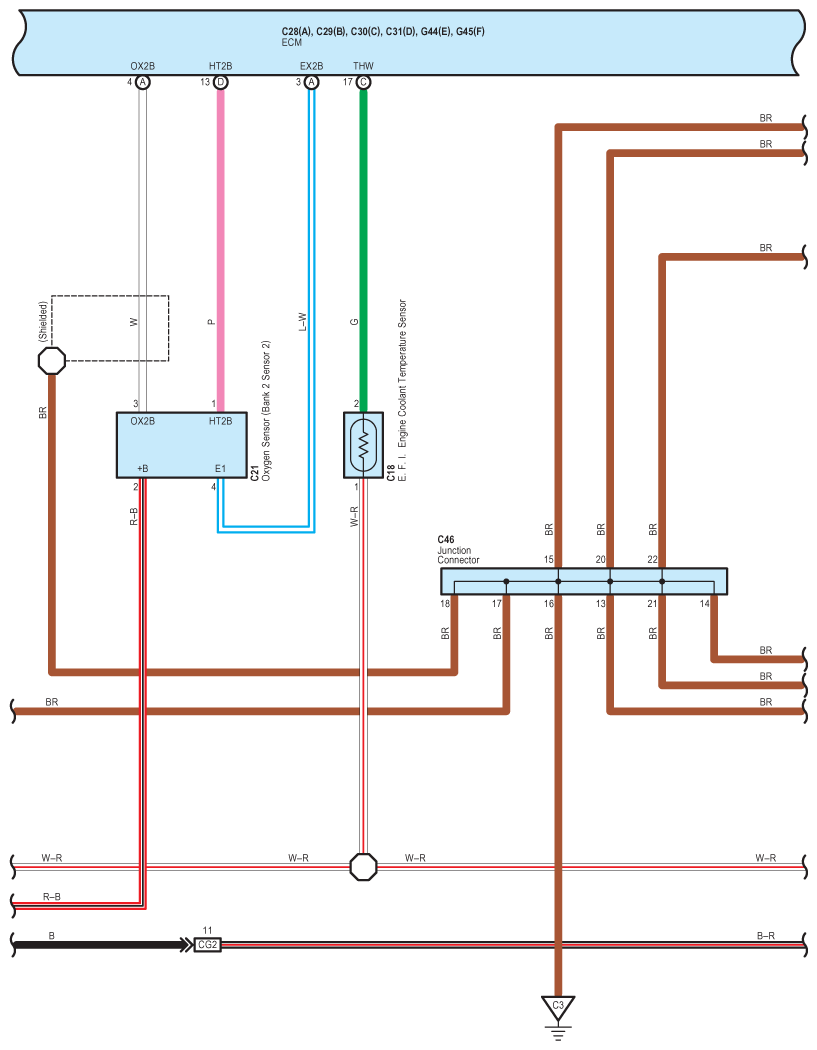

Fig 2: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (2 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

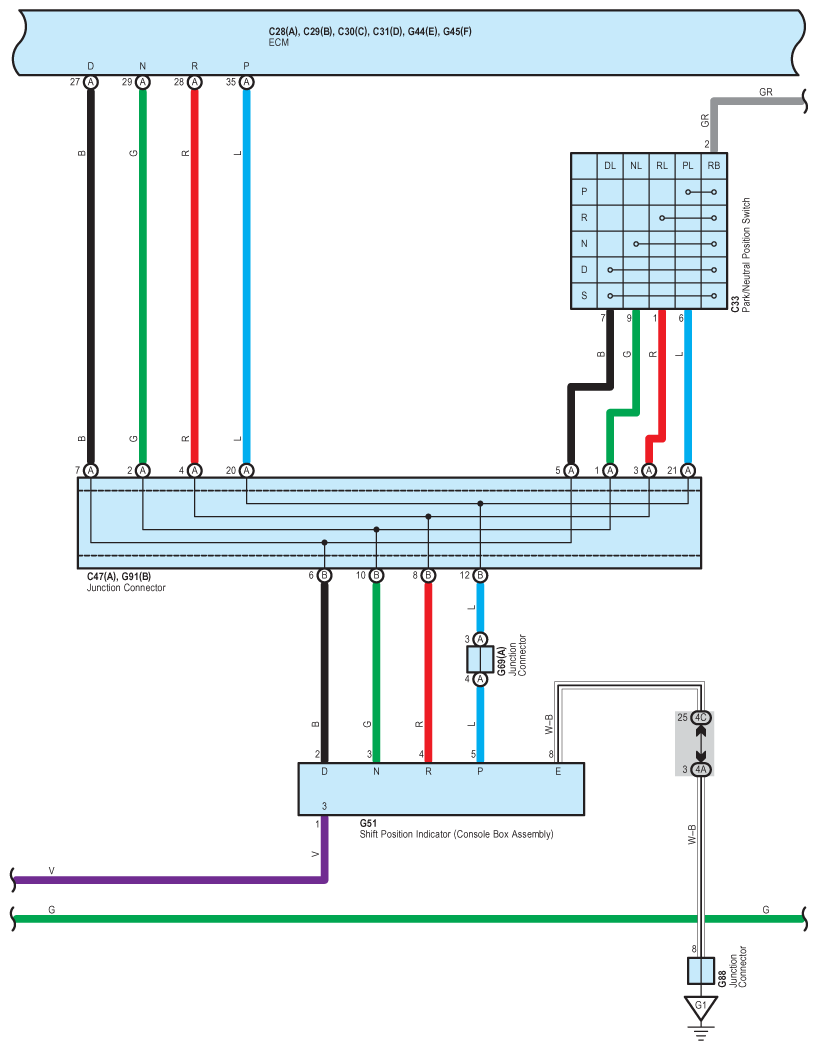

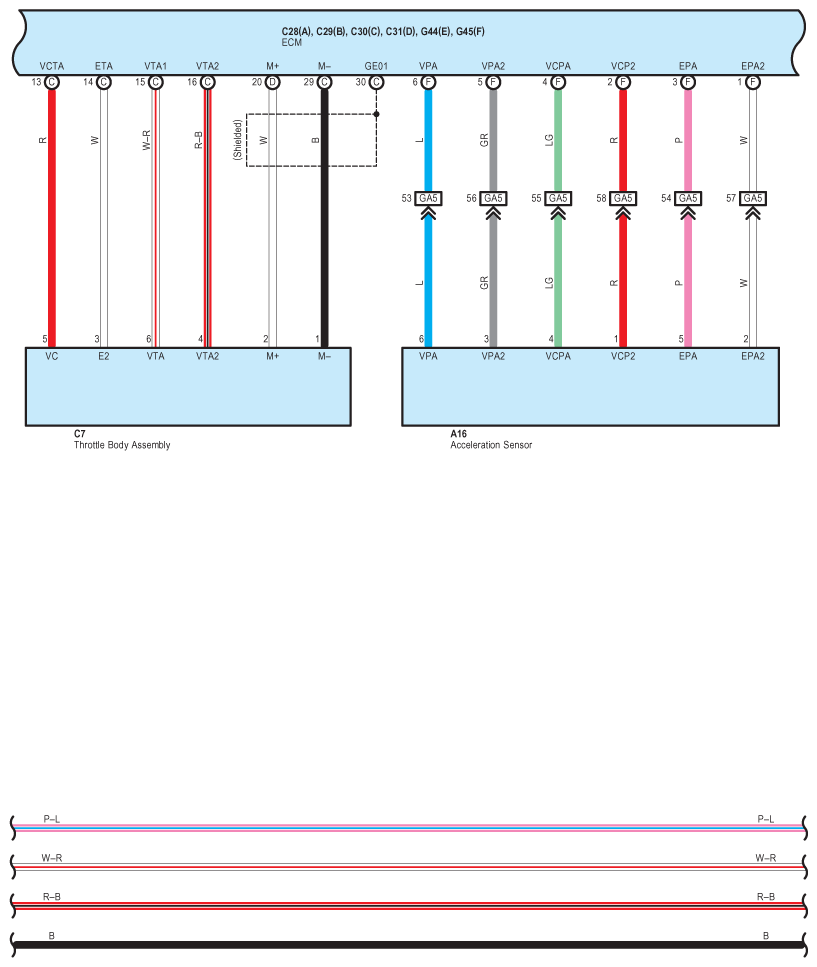

Fig 3: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (3 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

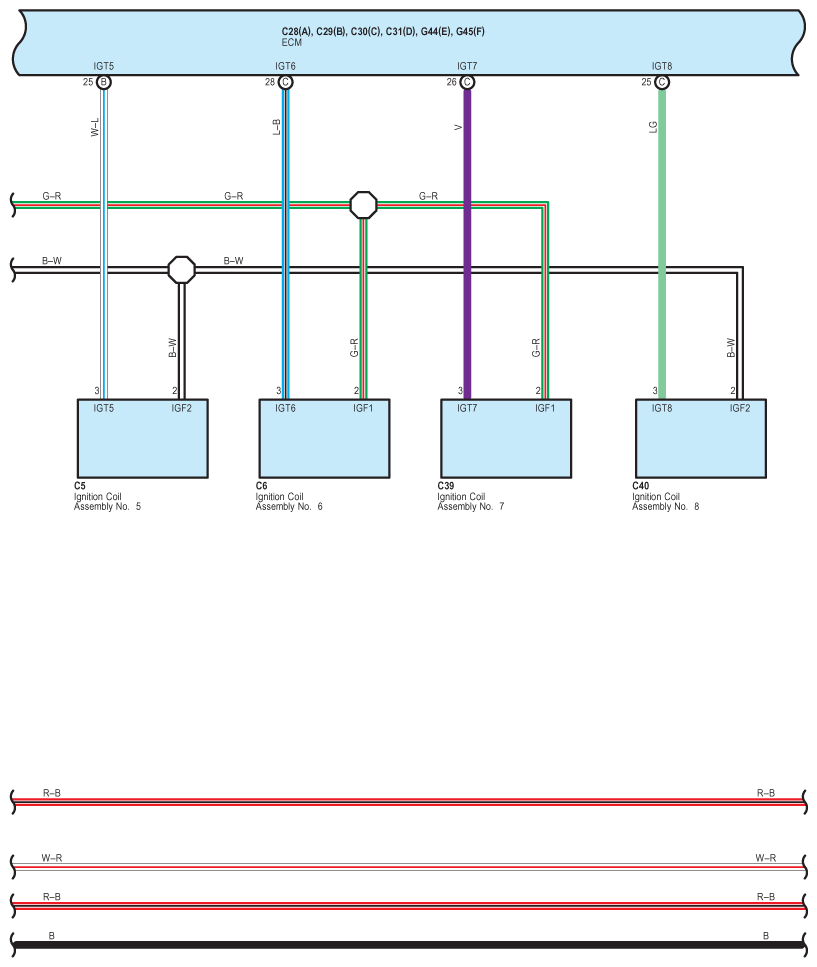

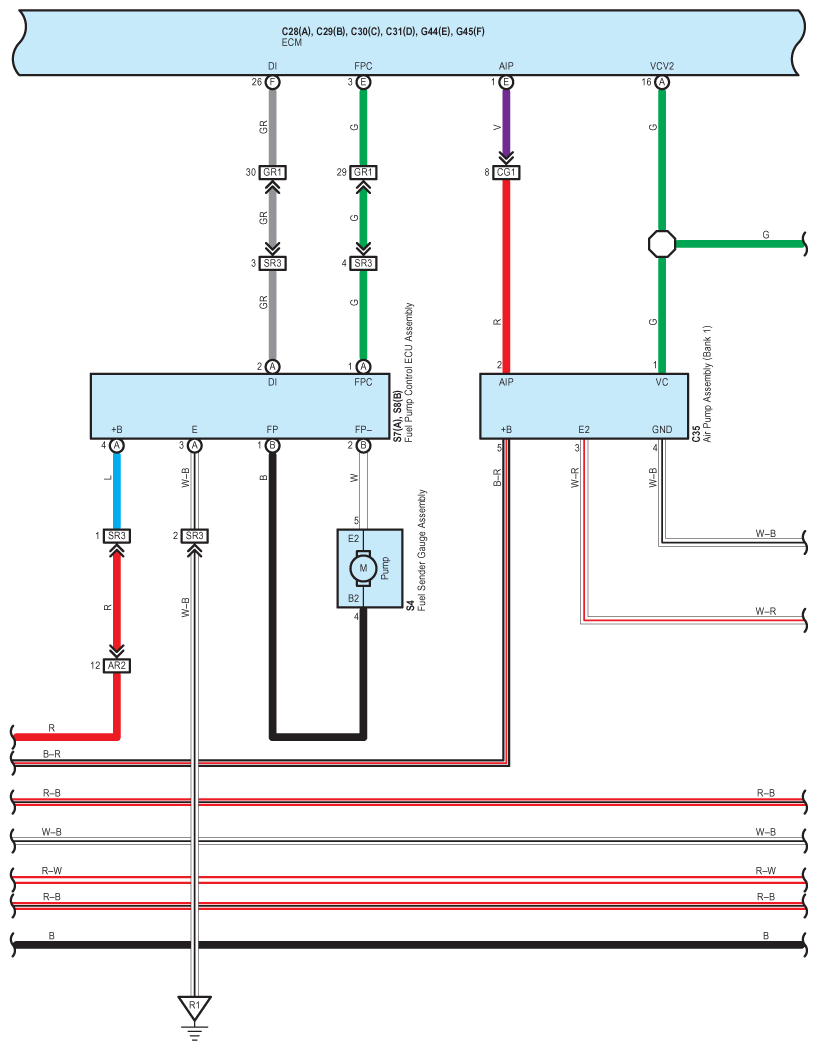

Fig 4: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (4 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

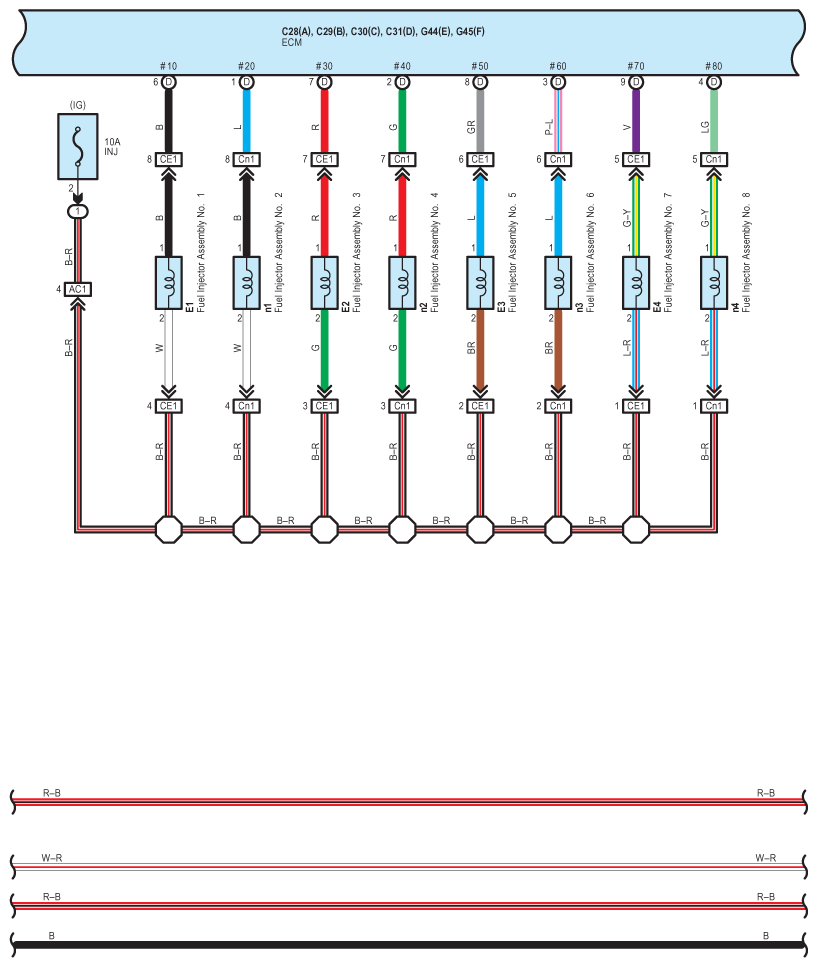

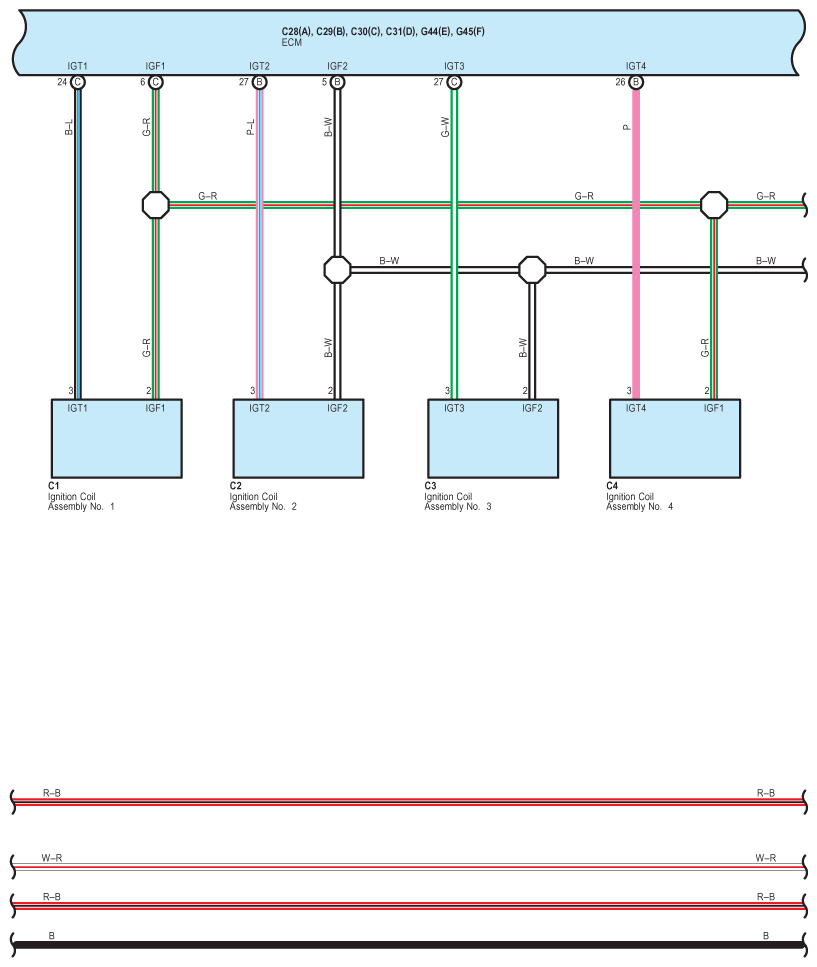

Fig 5: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (5 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

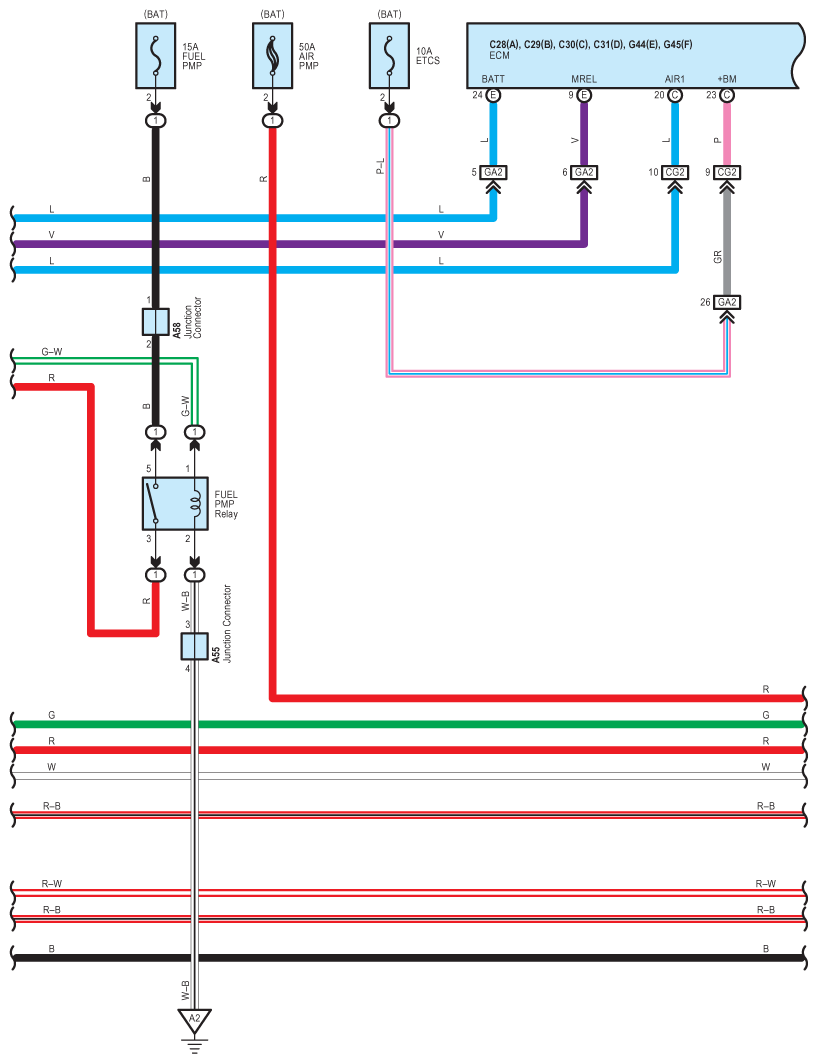

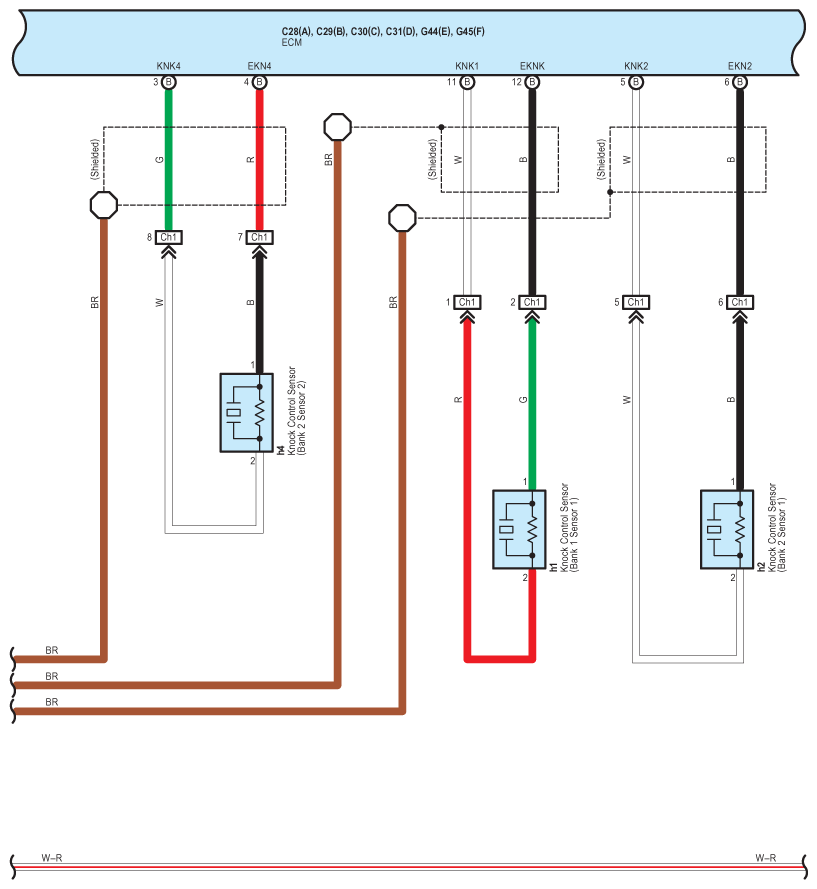

Fig 6: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (6 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

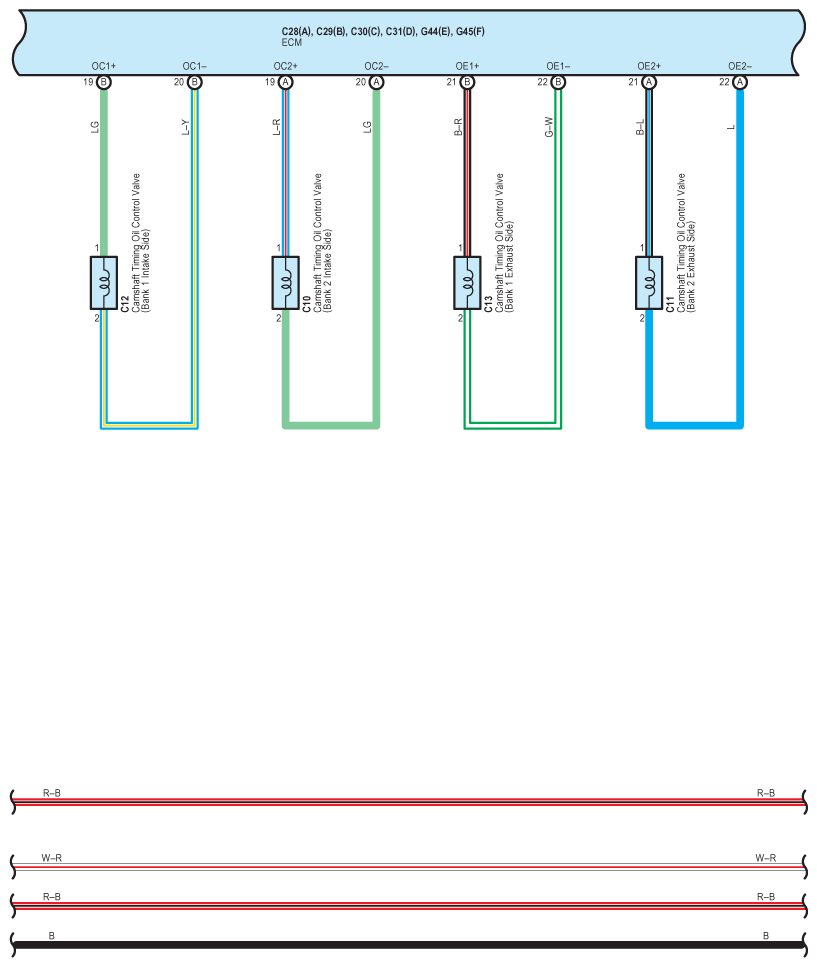

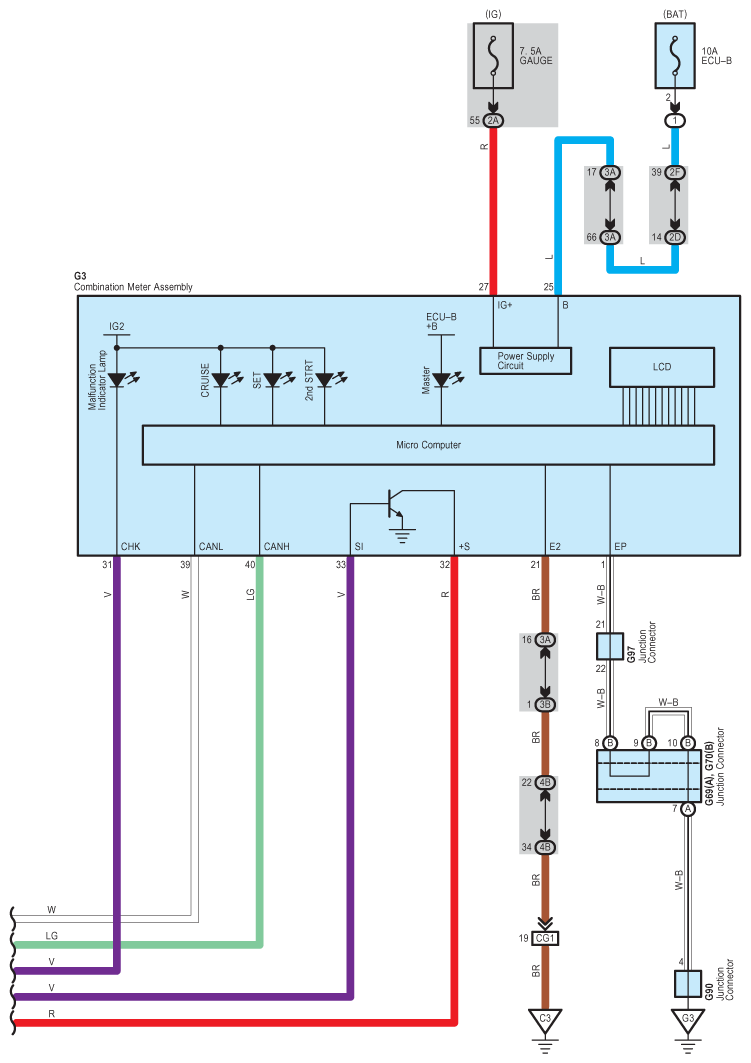

Fig 7: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (7 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

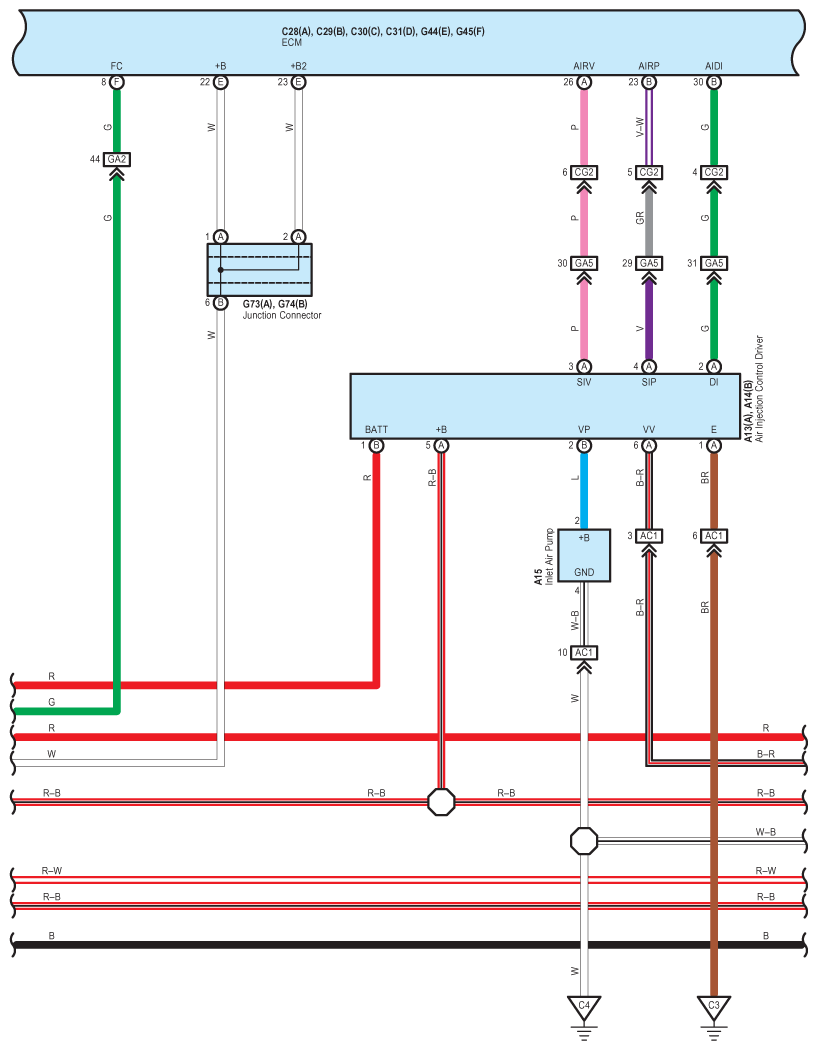

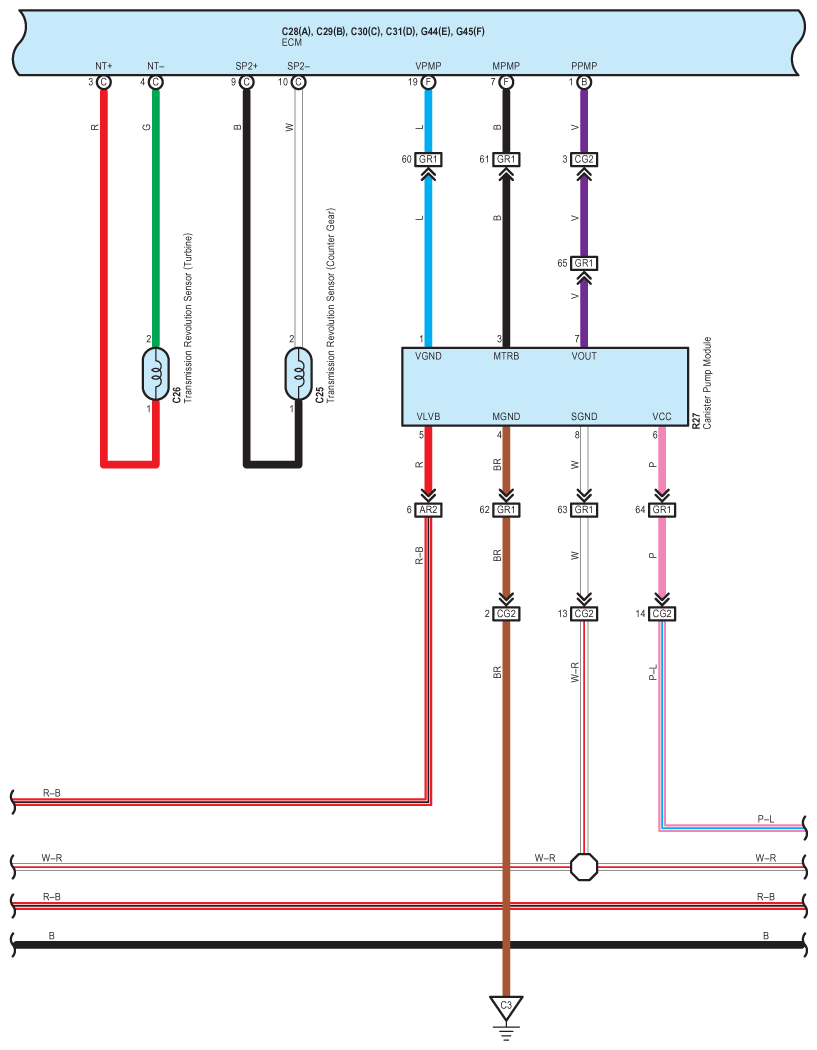

Fig 8: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (8 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (9 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (10 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (11 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (12 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (13 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (14 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (15 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (16 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (17 Of 26)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (18 Of 26)

Fig 19: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (19 Of 26)

Fig 20: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (20 Of 26)

Fig 21: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (21 Of 26)

Fig 22: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (22 Of 26)

Fig 23: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (23 Of 26)

Fig 24: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (24 Of 26)

Fig 25: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (25 Of 26)

Fig 26: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Wiring Diagram (26 Of 26)
