Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control: Notes

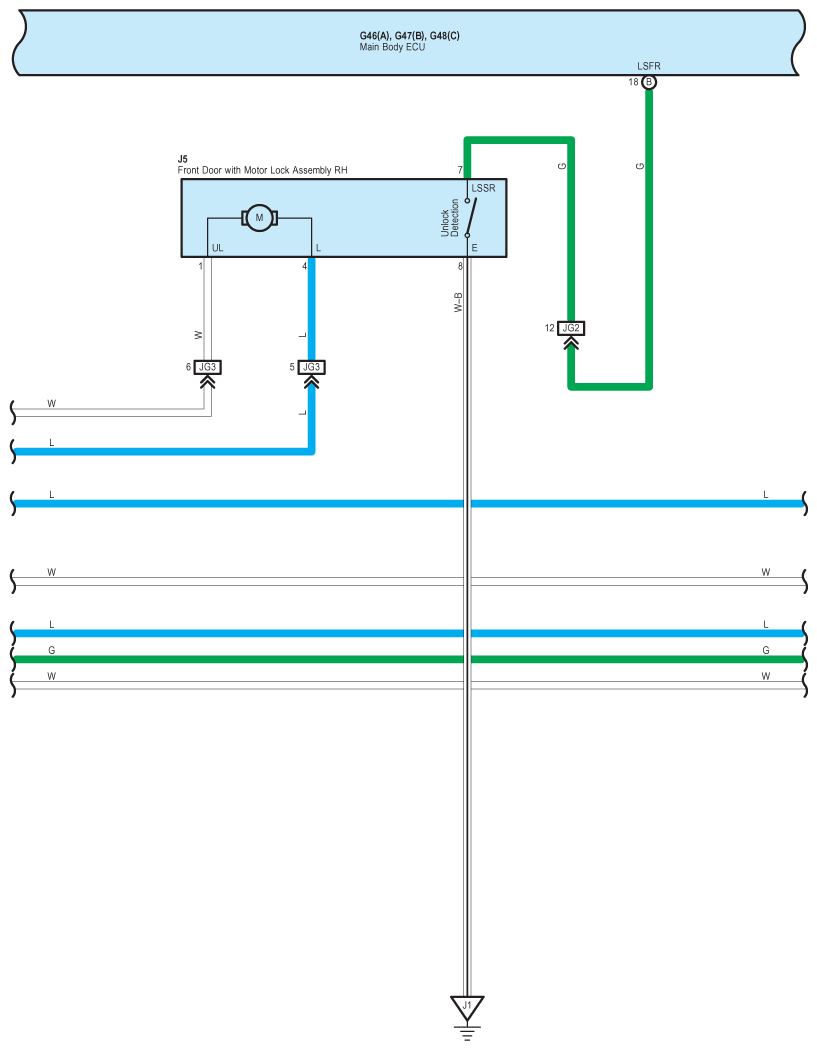

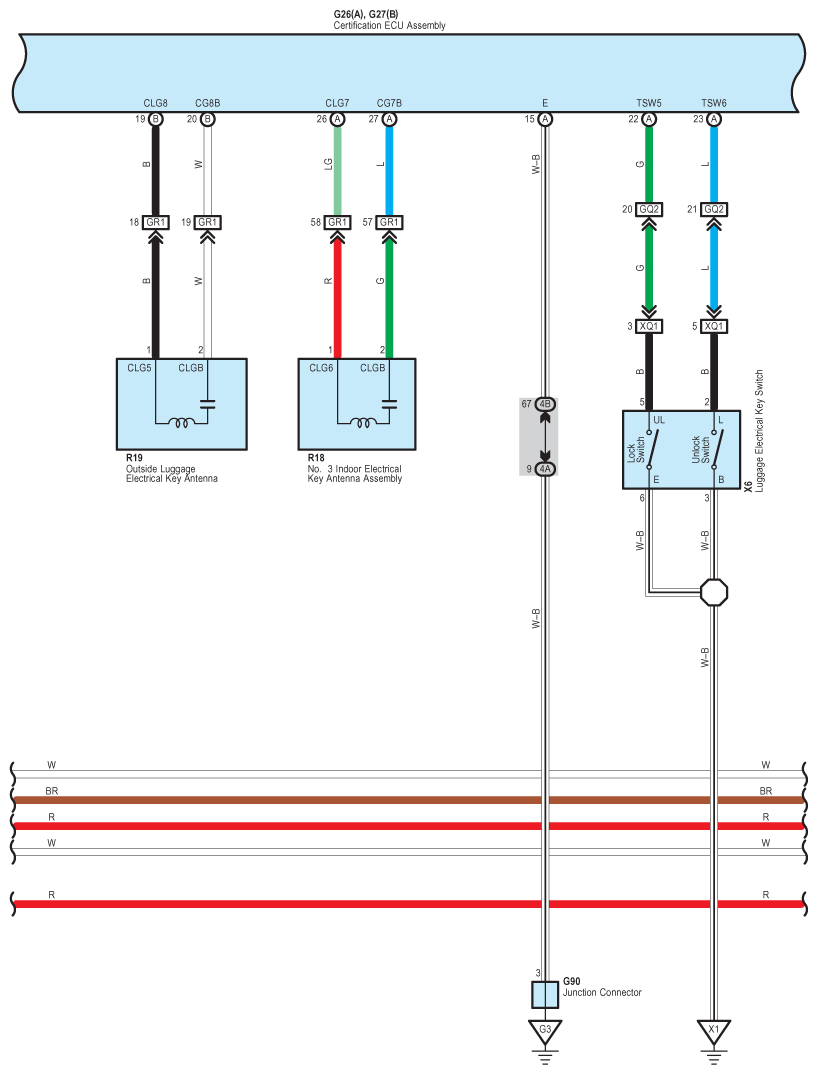

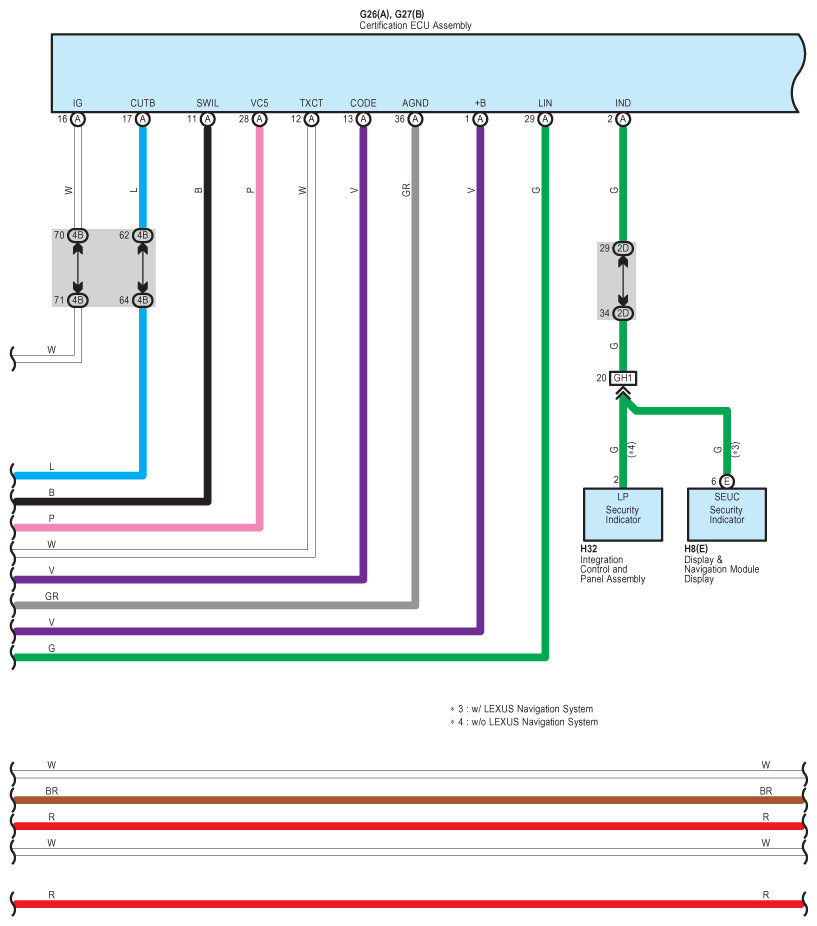

Fig 1: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (1 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

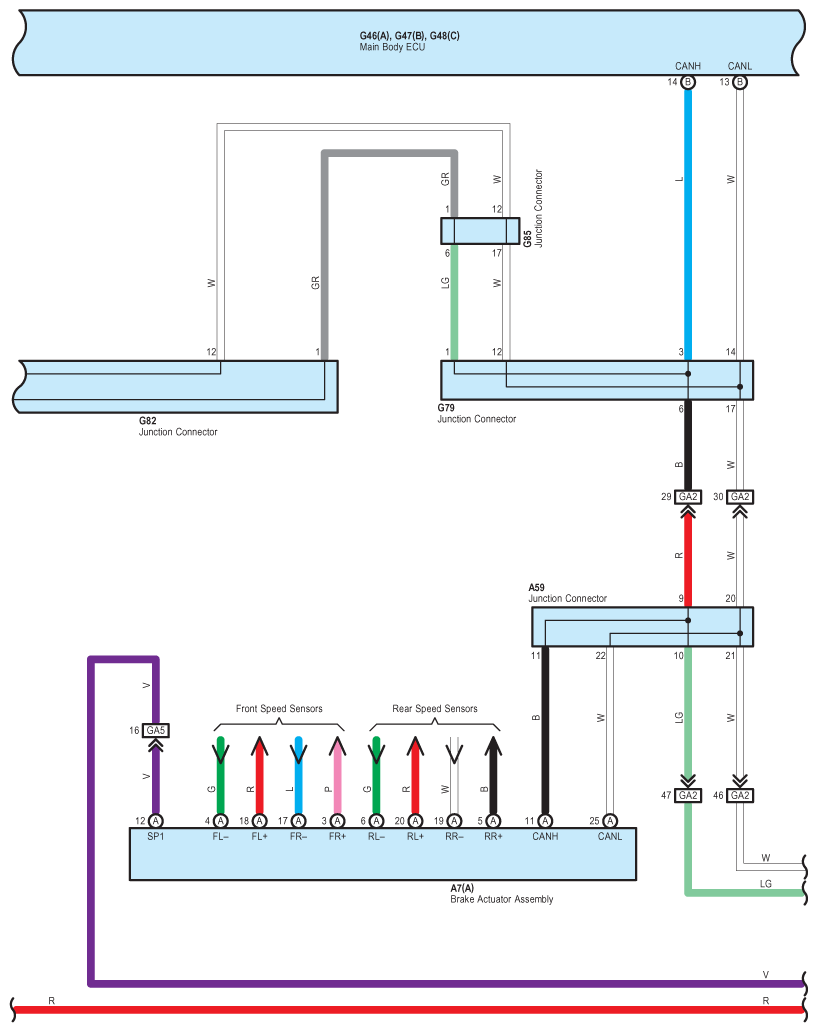

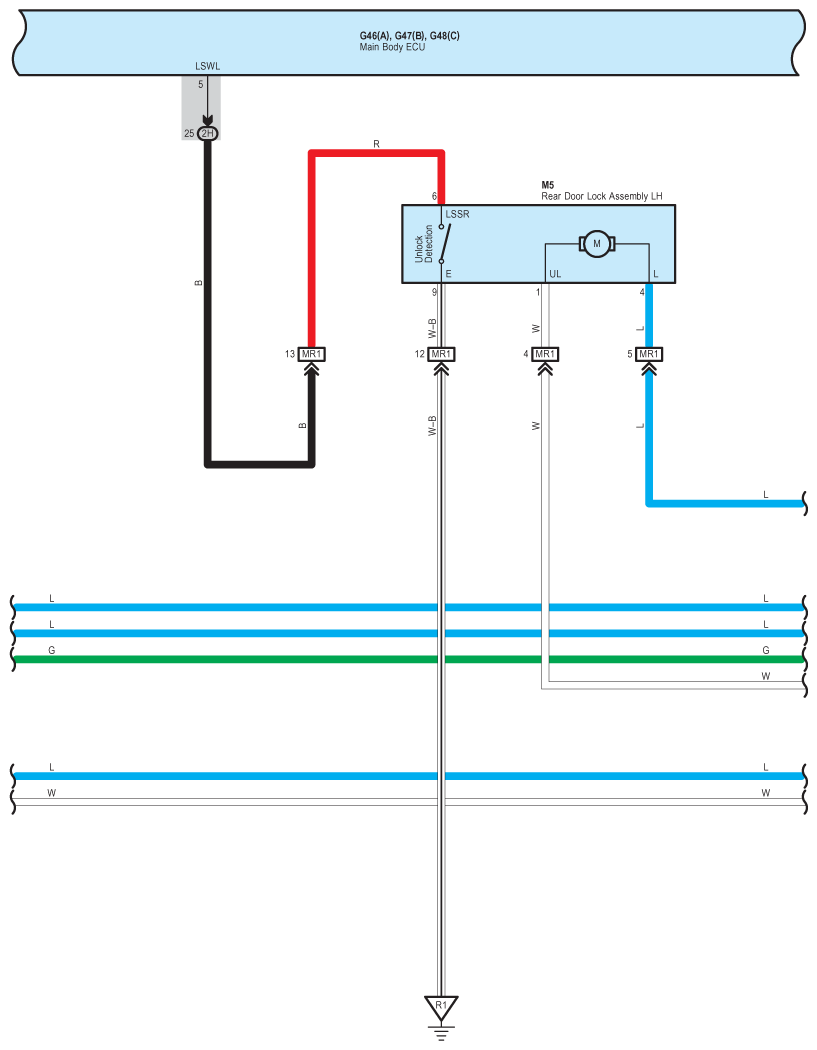

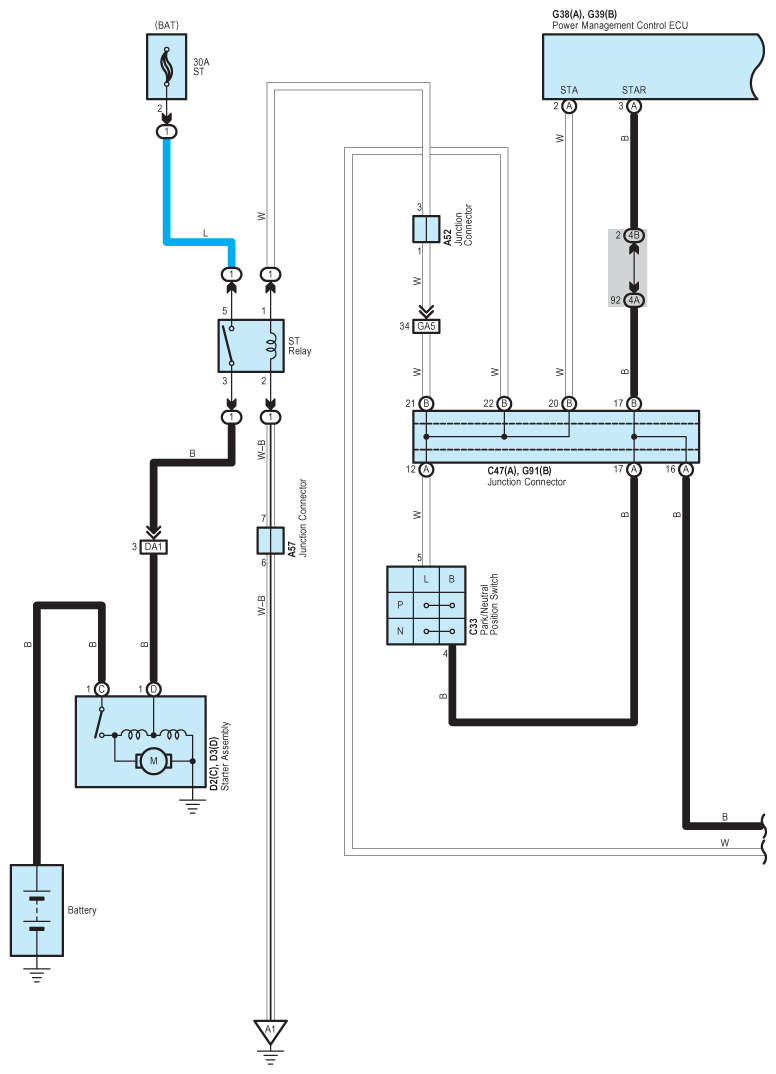

Fig 2: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (2 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

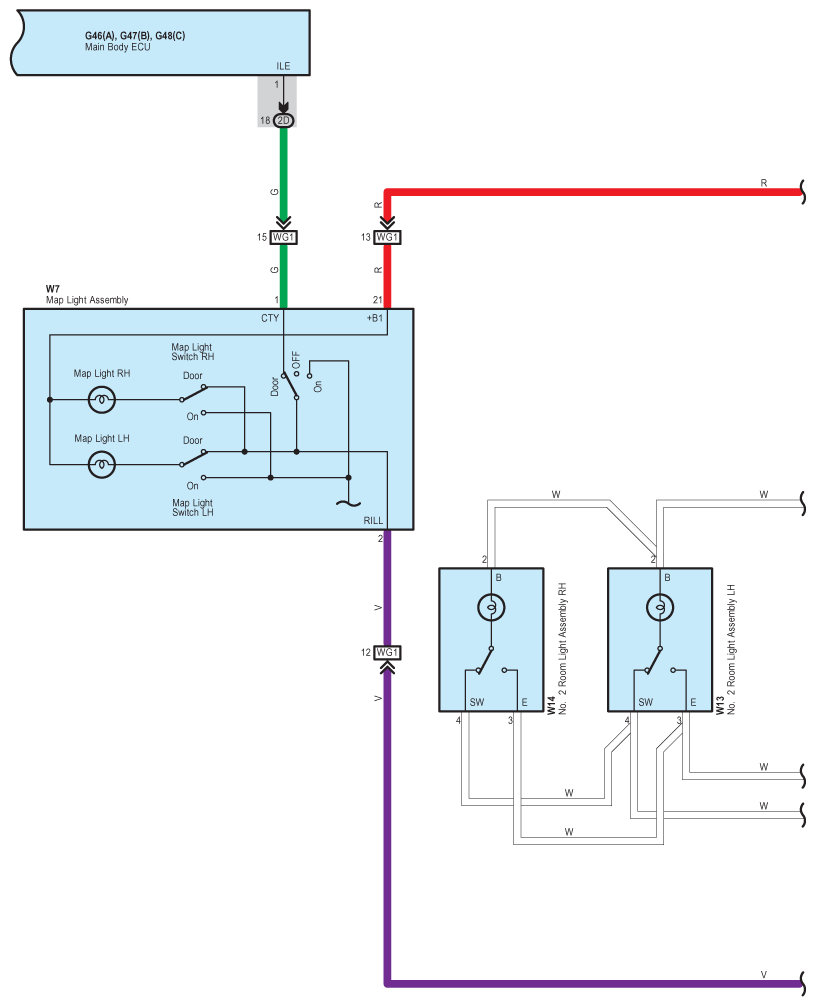

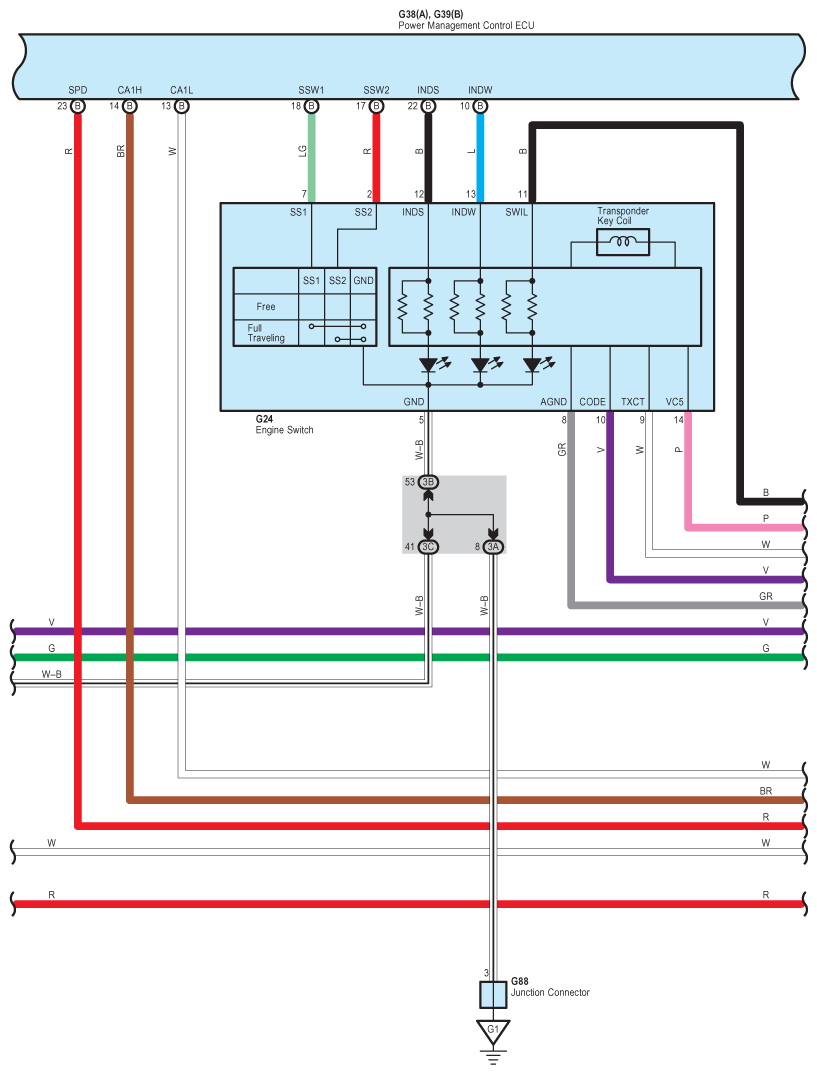

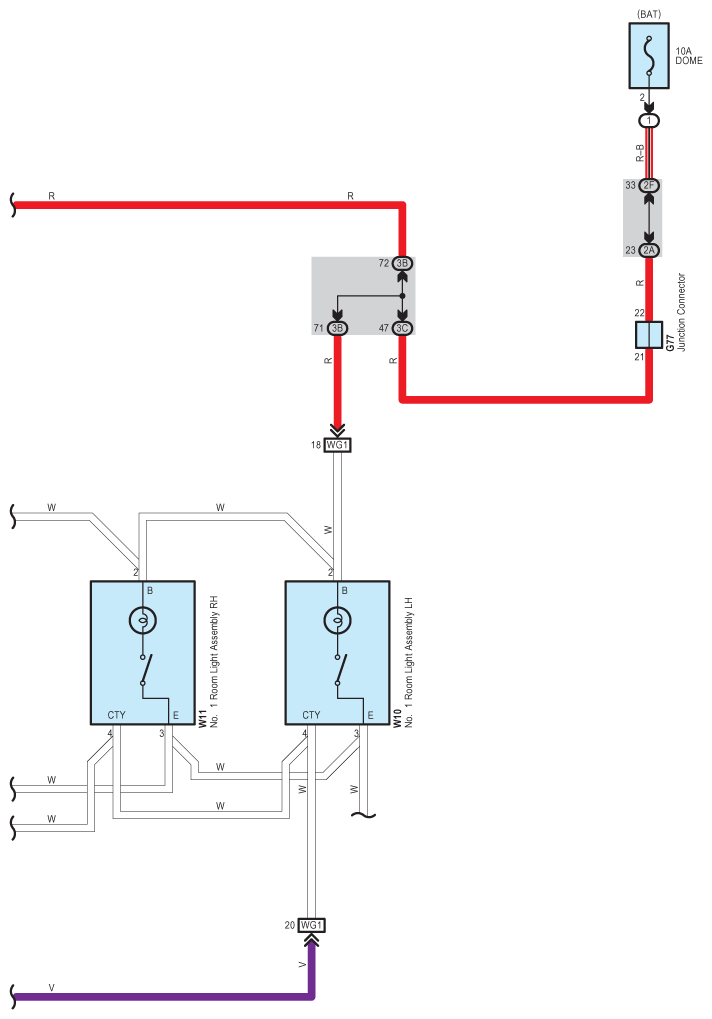

Fig 3: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (3 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

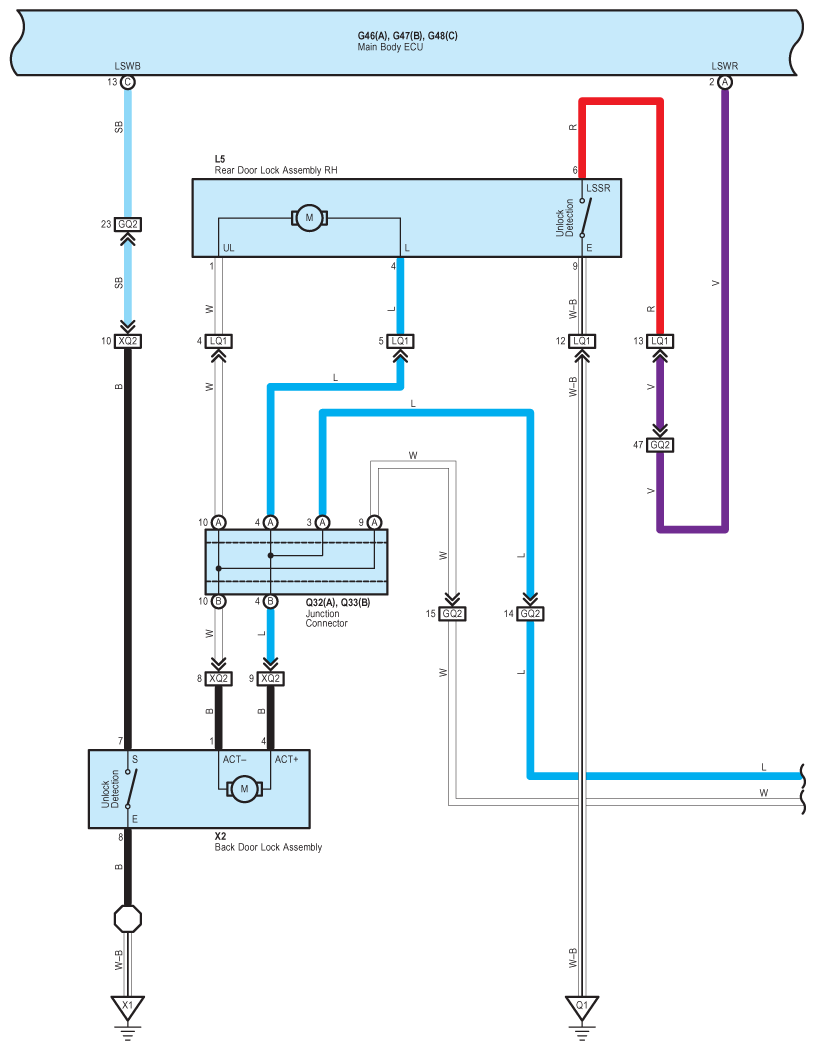

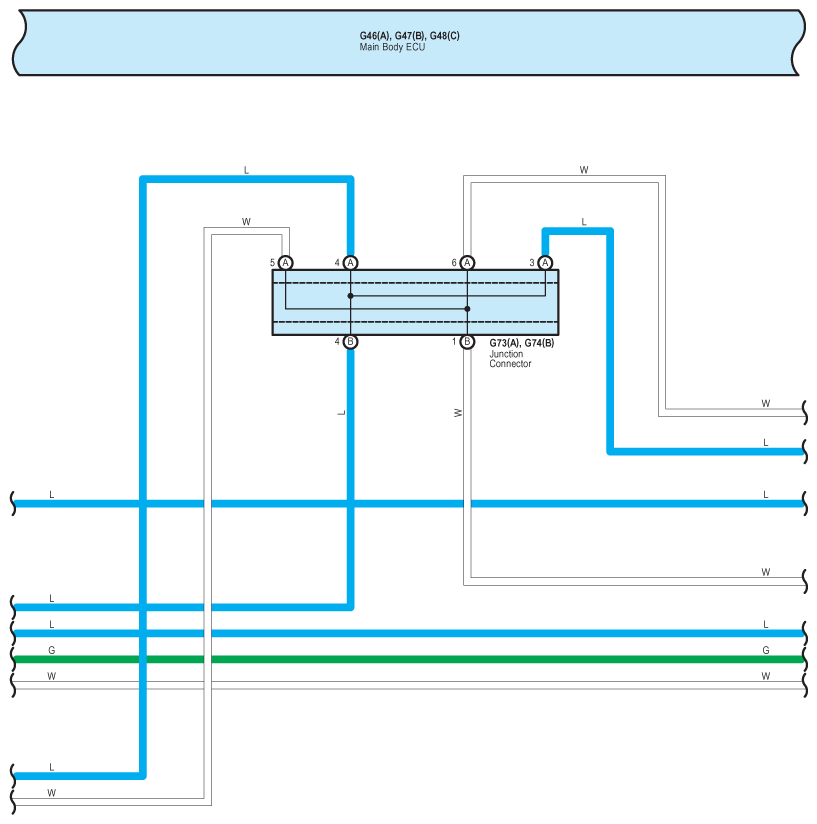

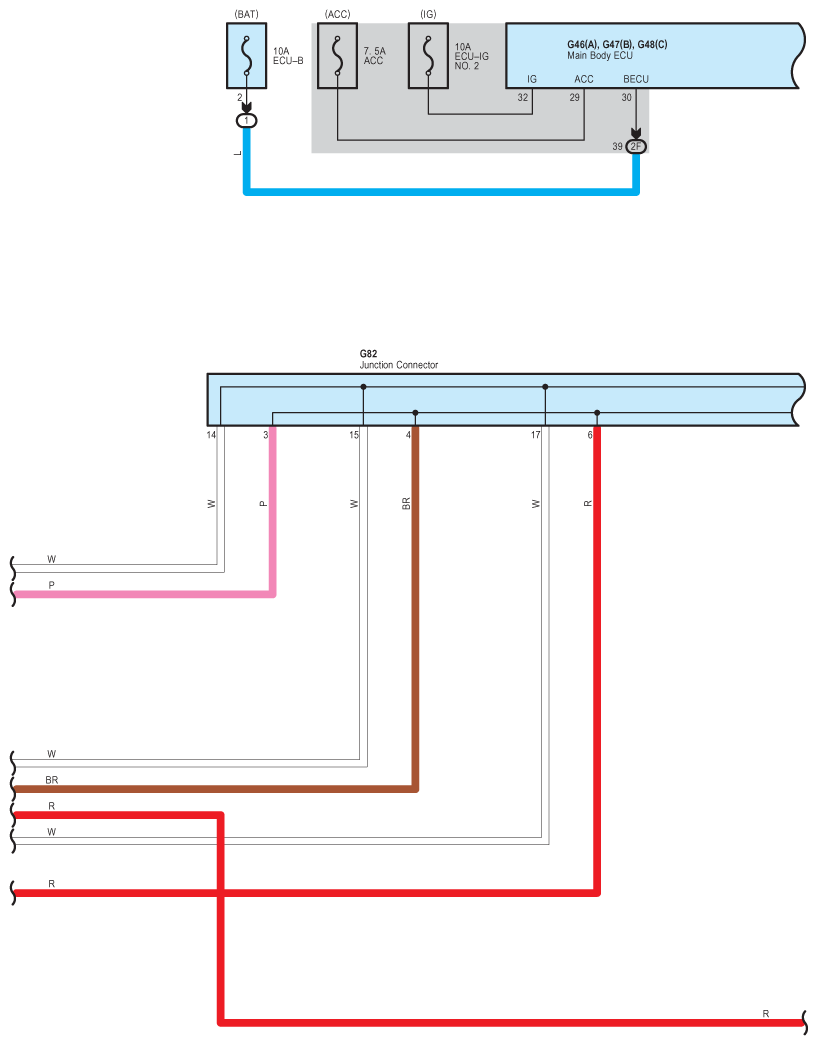

Fig 4: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (4 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

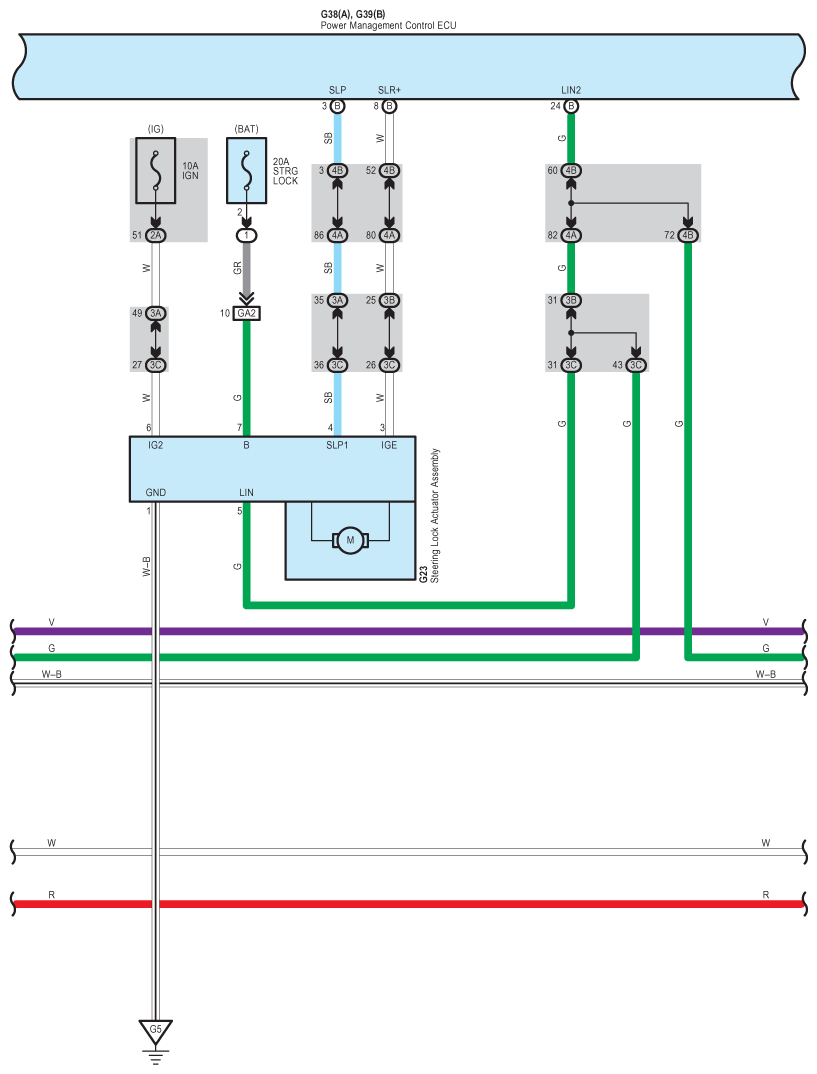

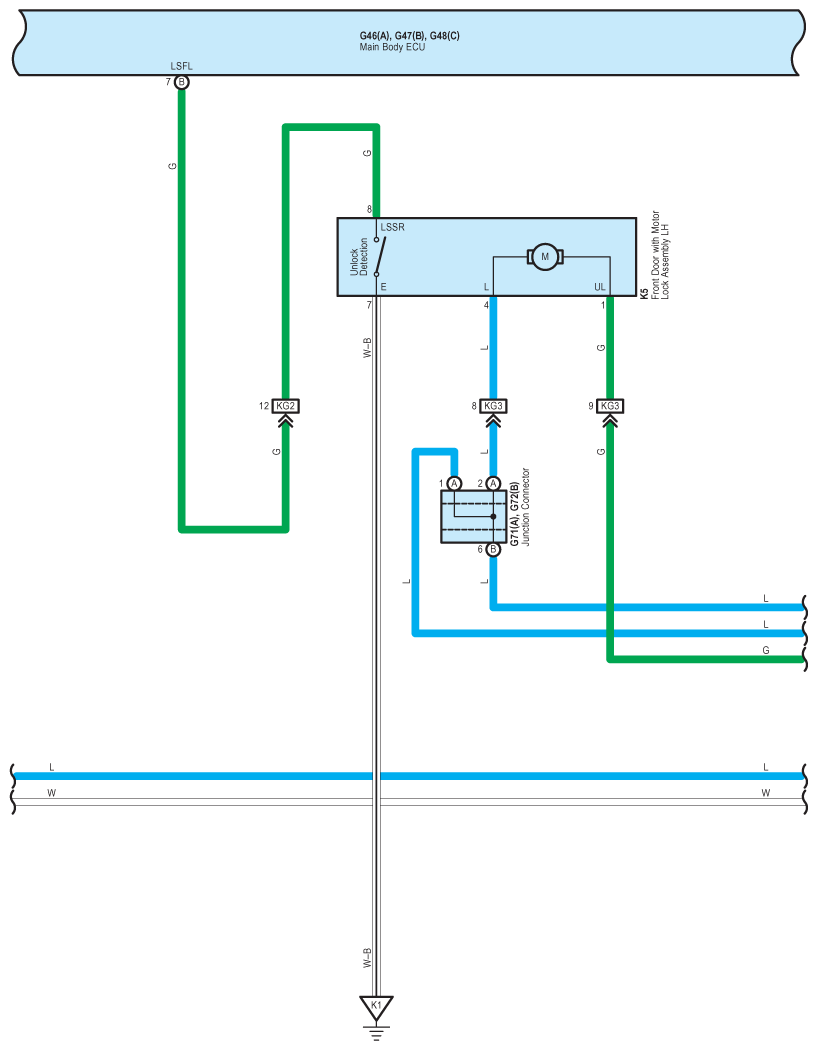

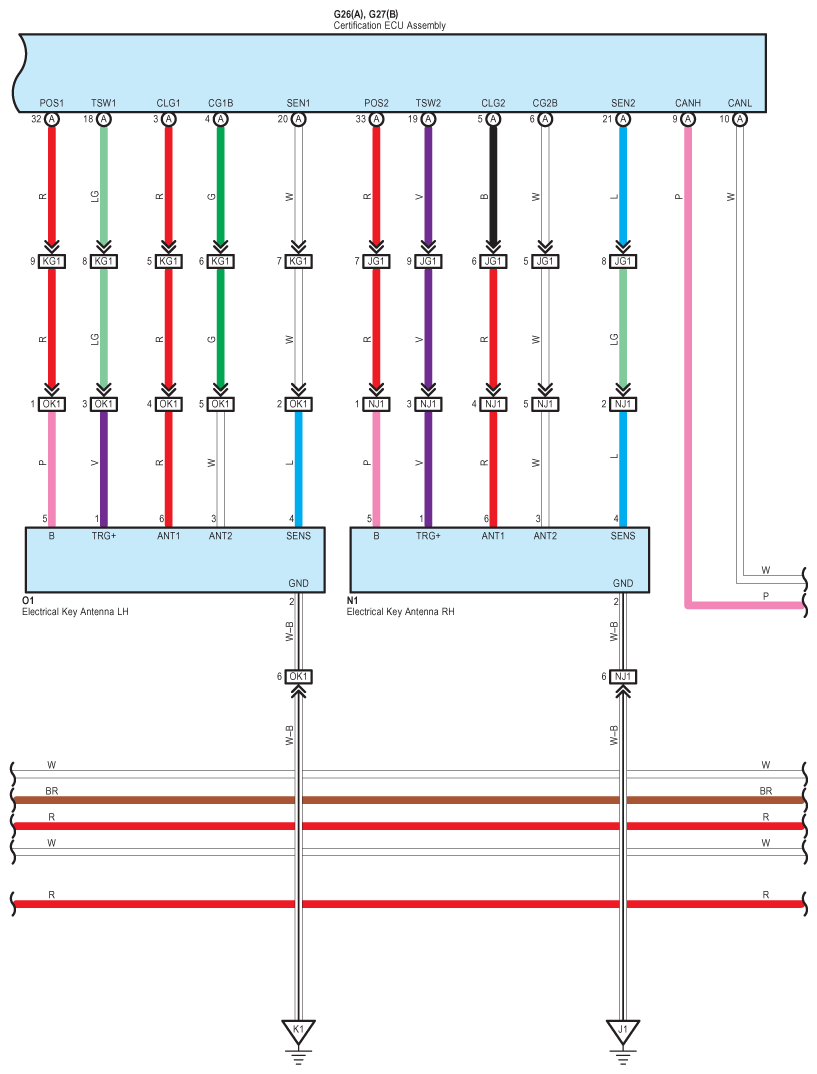

Fig 5: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (5 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

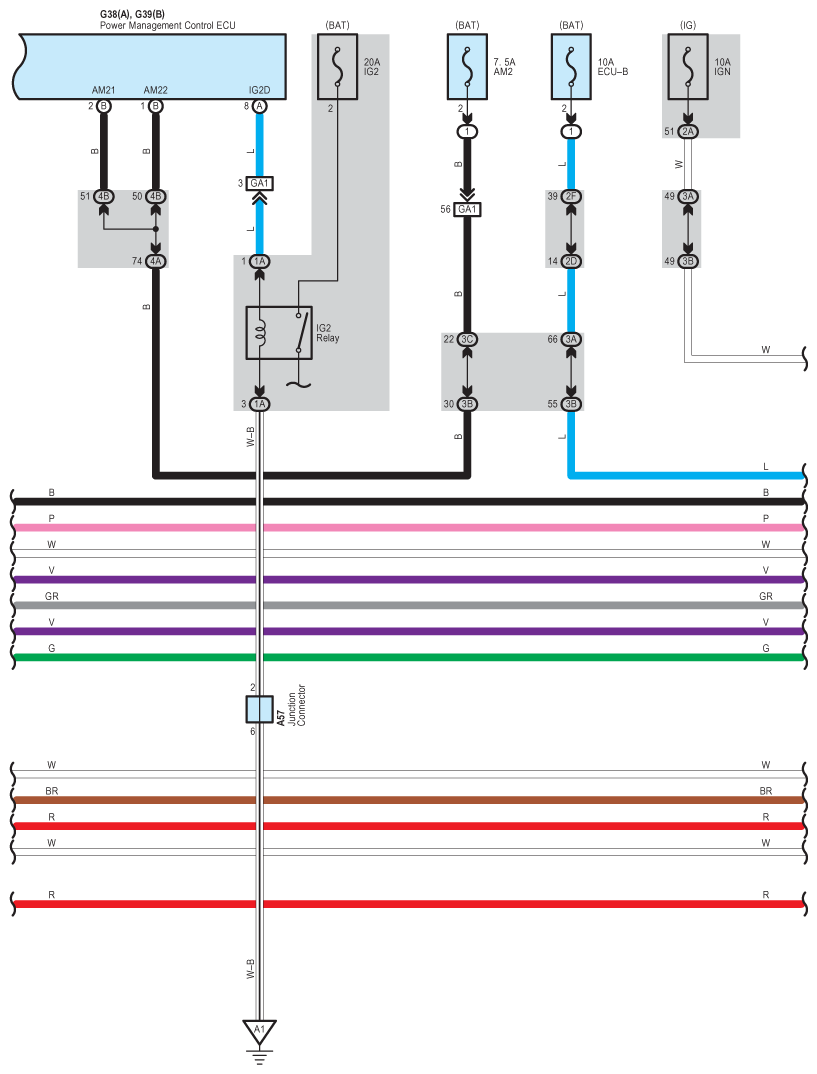

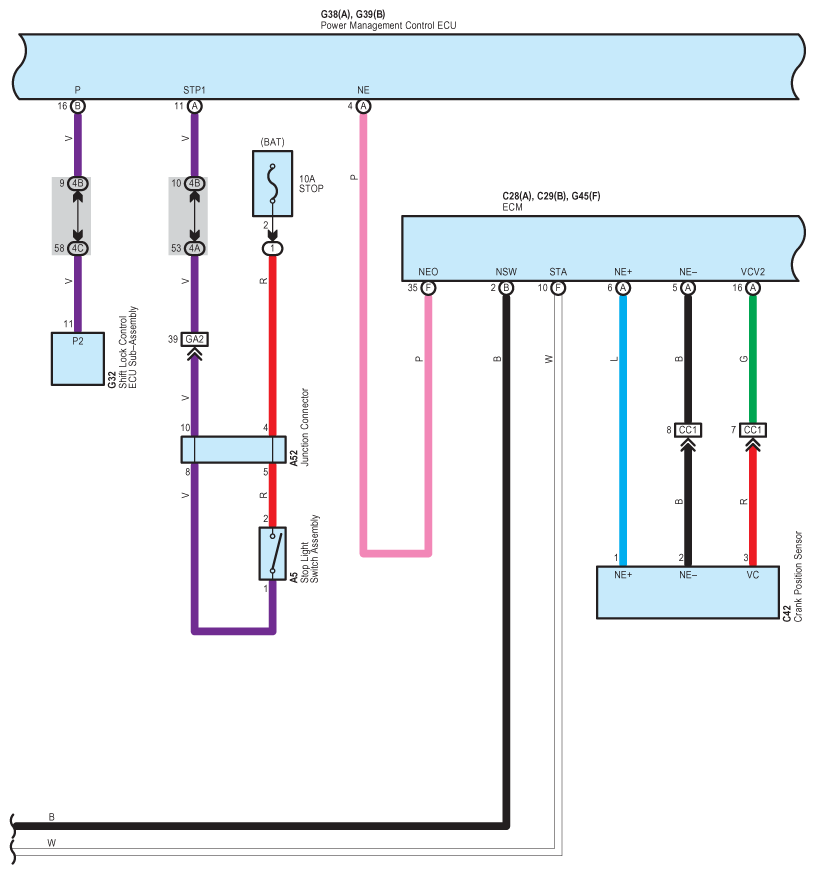

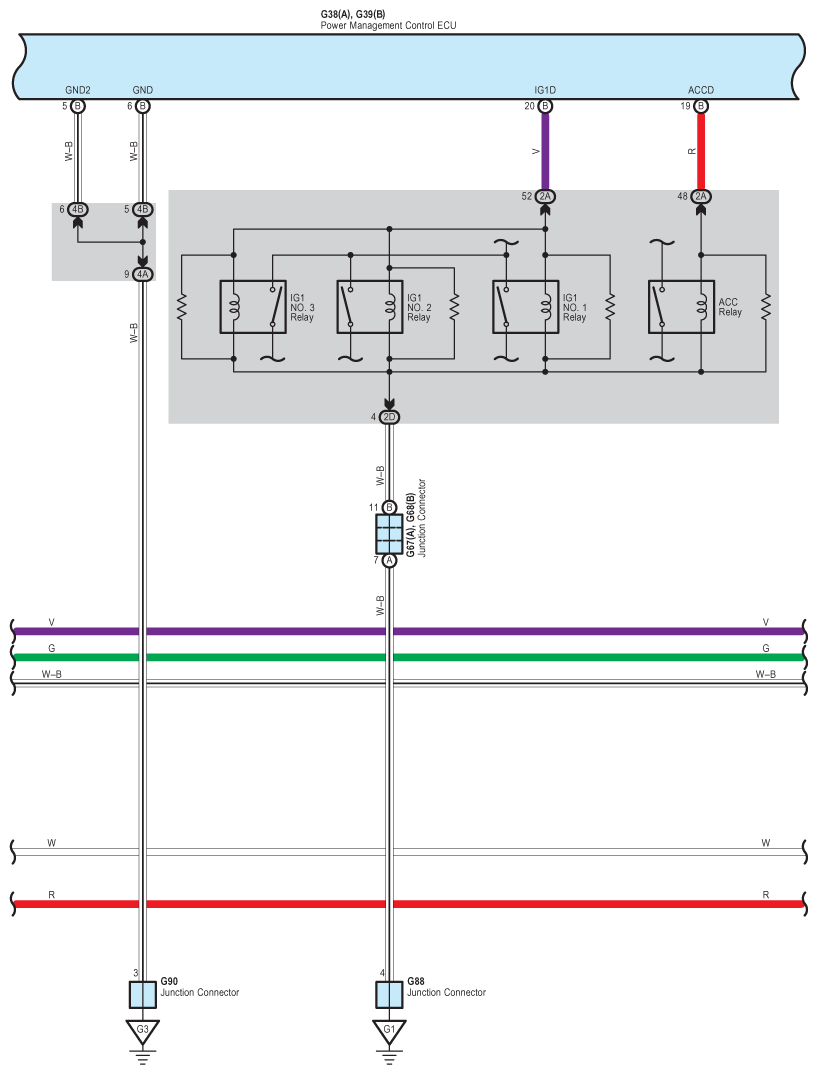

Fig 6: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (6 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

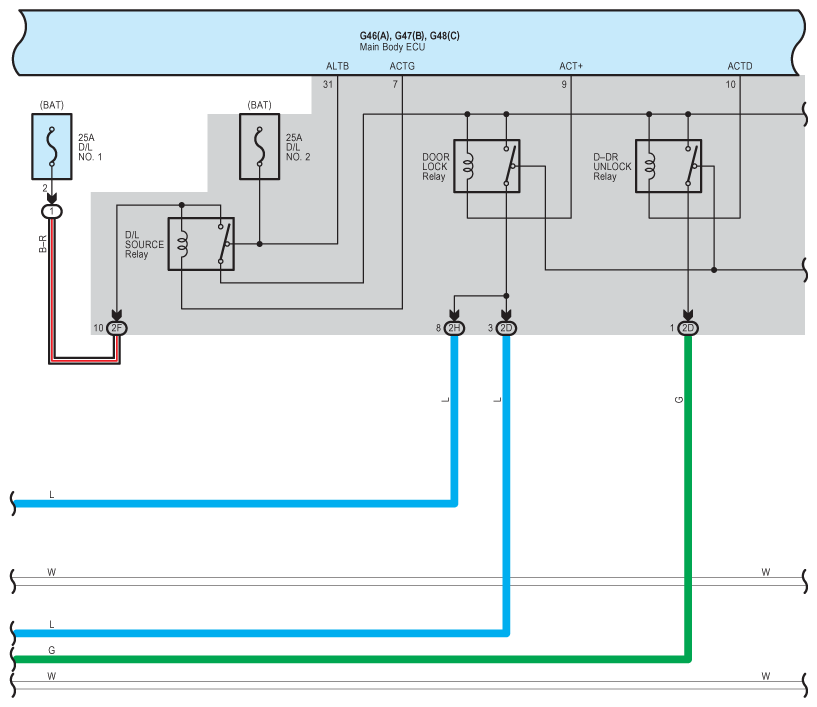

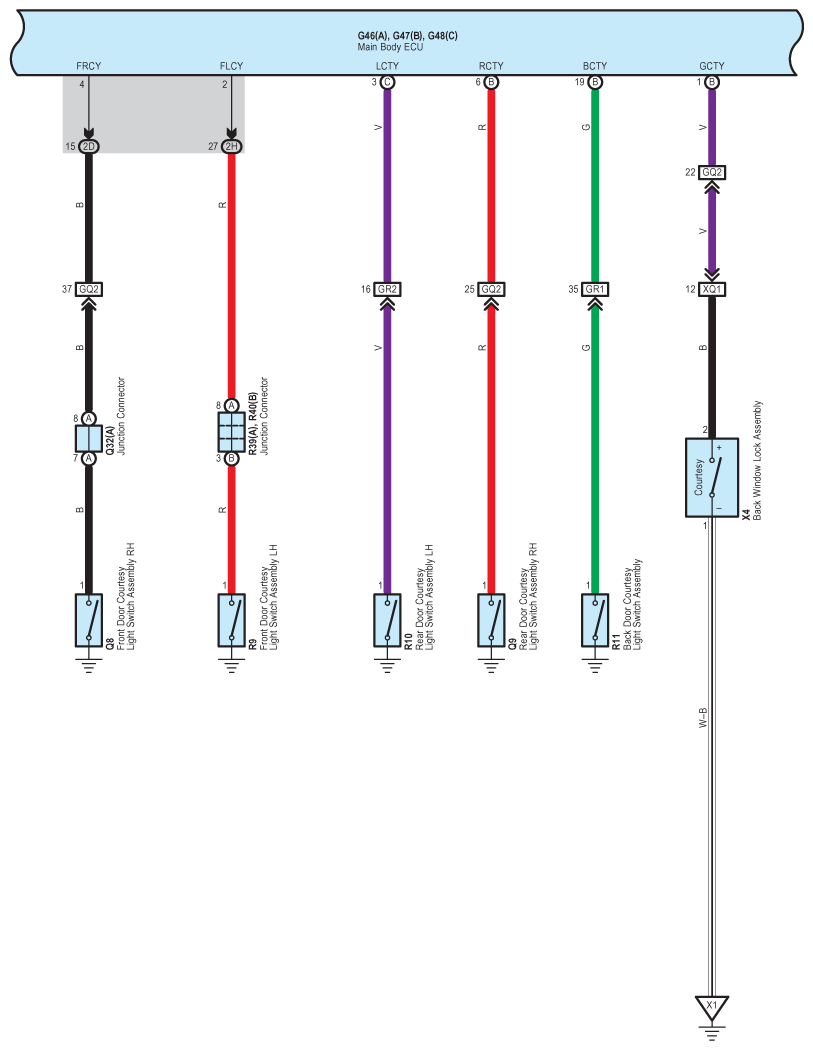

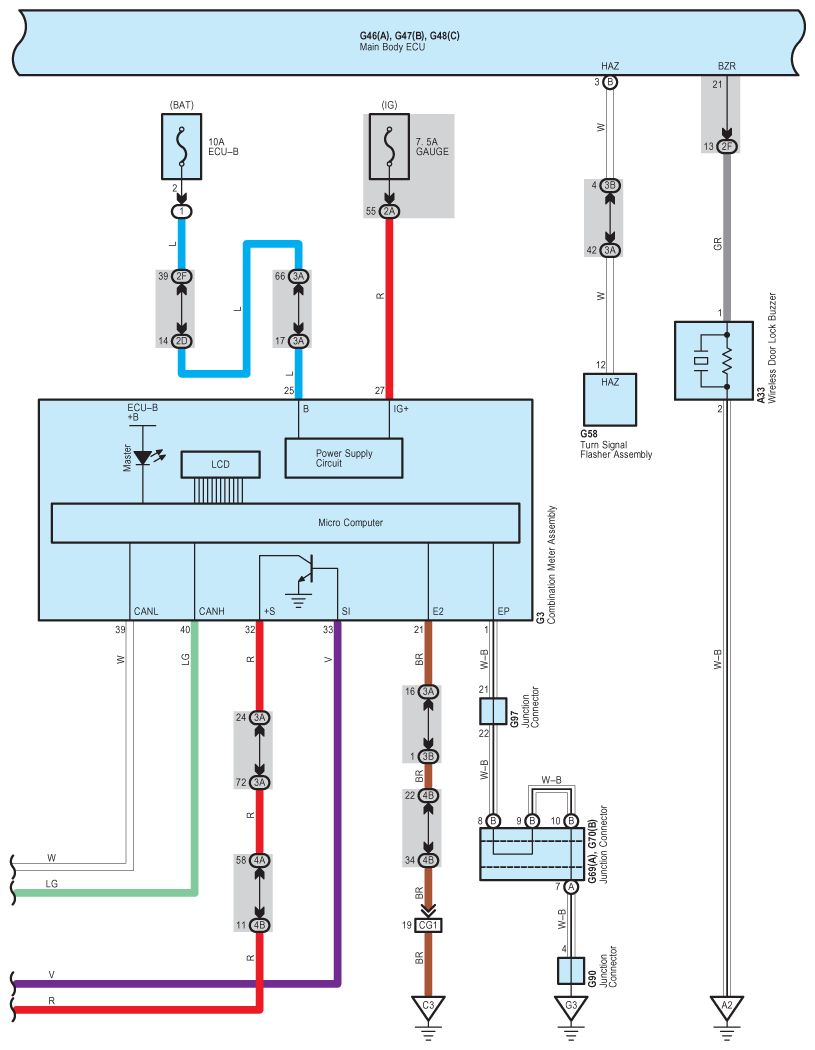

Fig 7: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (7 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

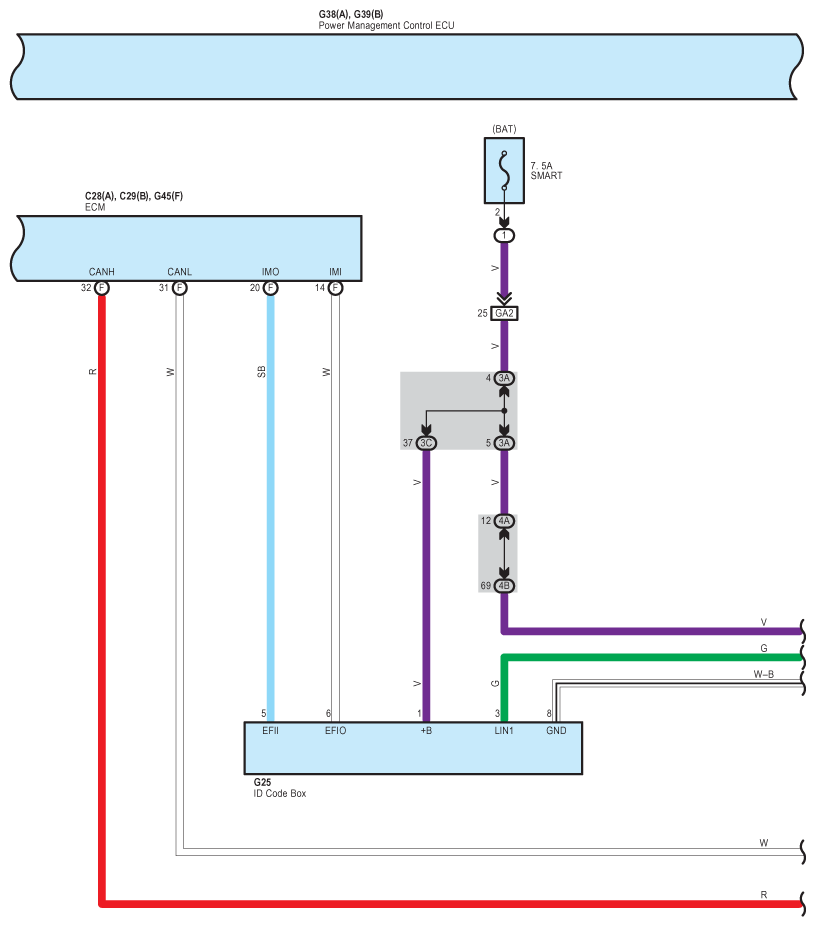

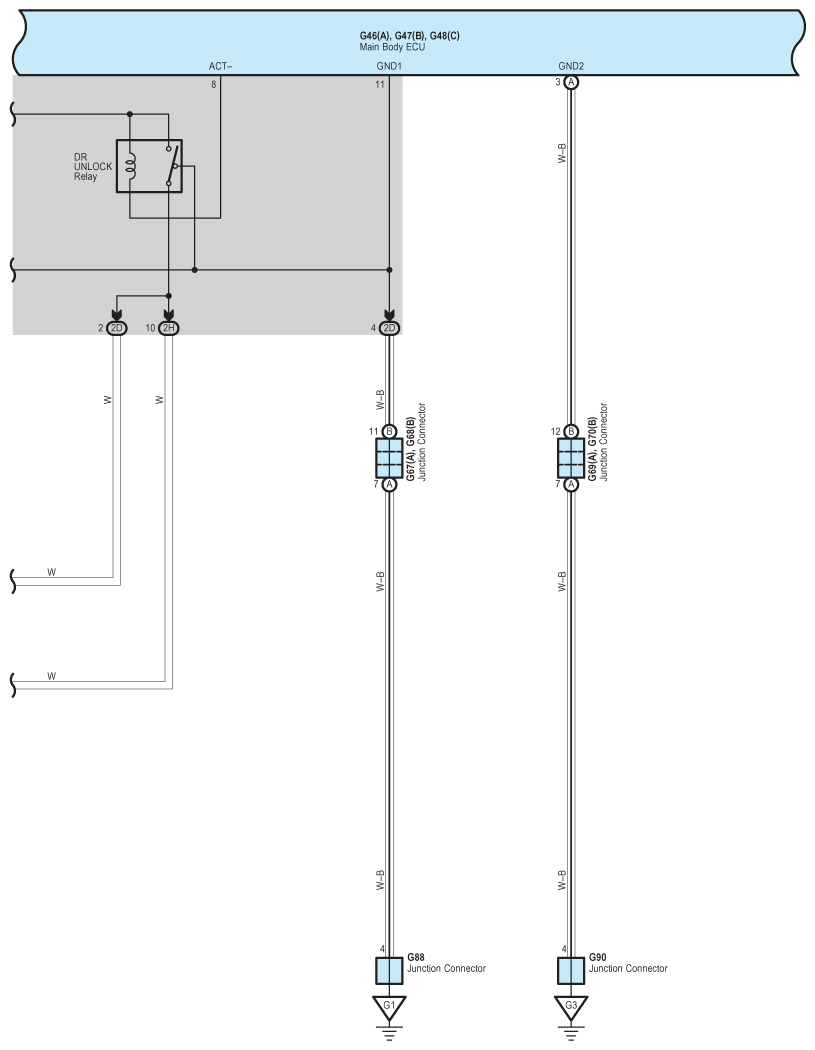

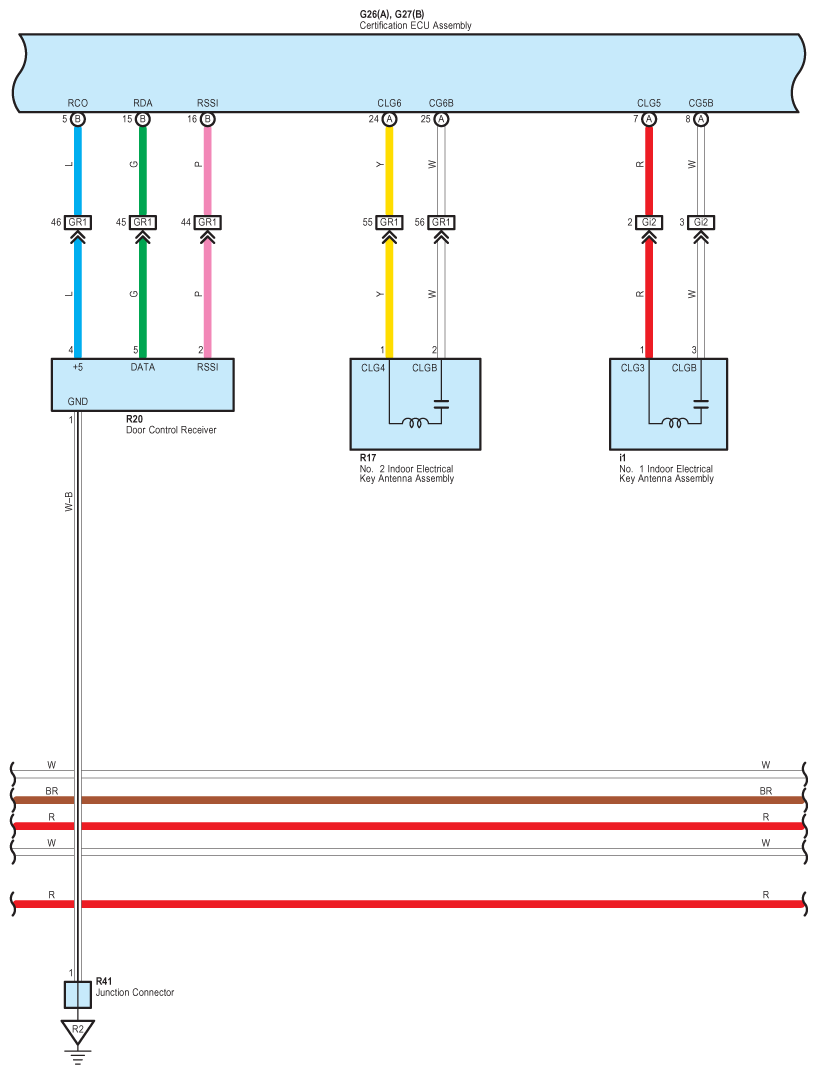

Fig 8: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (8 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (9 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (10 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (11 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (12 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (13 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (14 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (15 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (16 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (17 Of 24)

Fig 18: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (18 Of 24)

Fig 19: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (19 Of 24)

Fig 20: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (20 Of 24)

Fig 21: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (21 Of 24)

Fig 22: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (22 Of 24)

Fig 23: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (23 Of 24)

Fig 24: Engine Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Wiring Diagram (24 Of 24)
