Front Fog Light: Notes

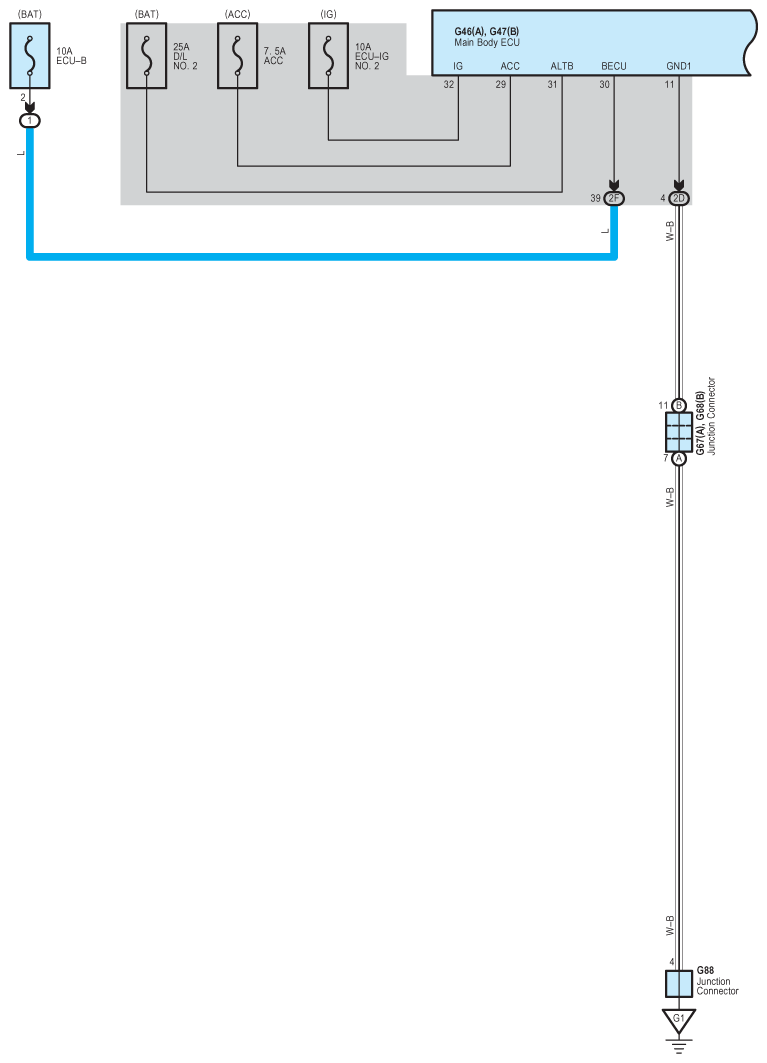

Fig 1: Front Fog Light - Wiring Diagram (1 Of 4)
G08930900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

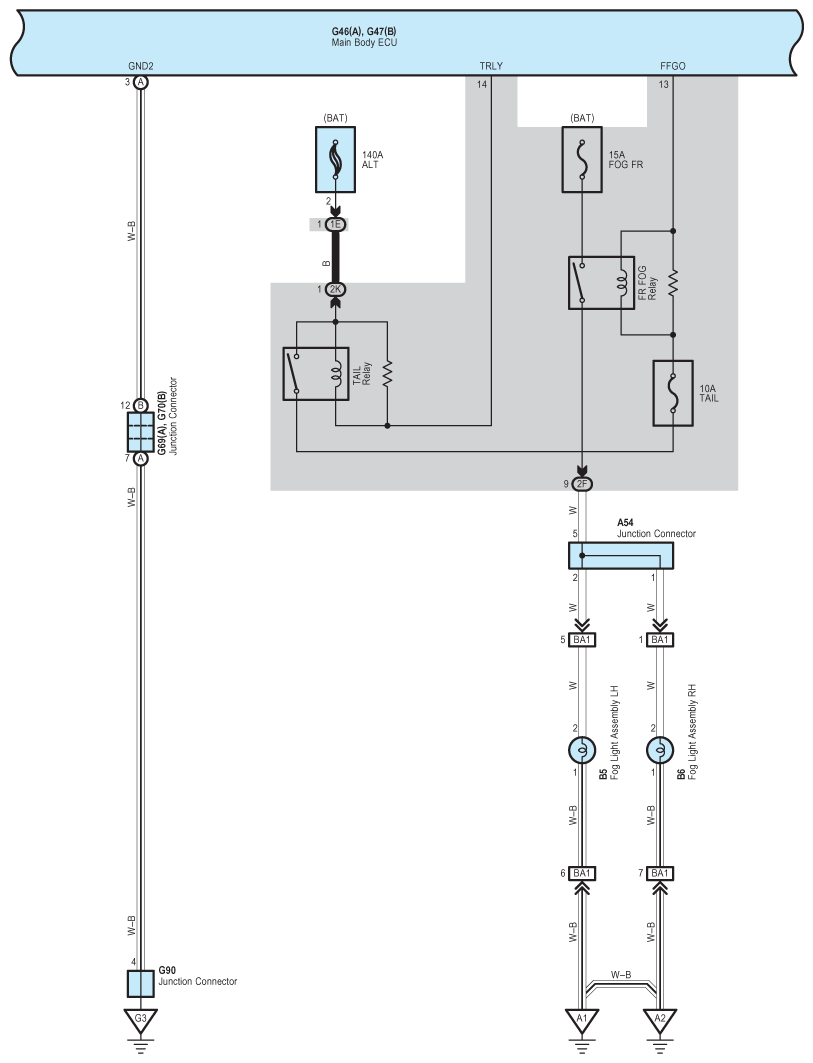

Fig 2: Front Fog Light - Wiring Diagram (2 Of 4)
G08930901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

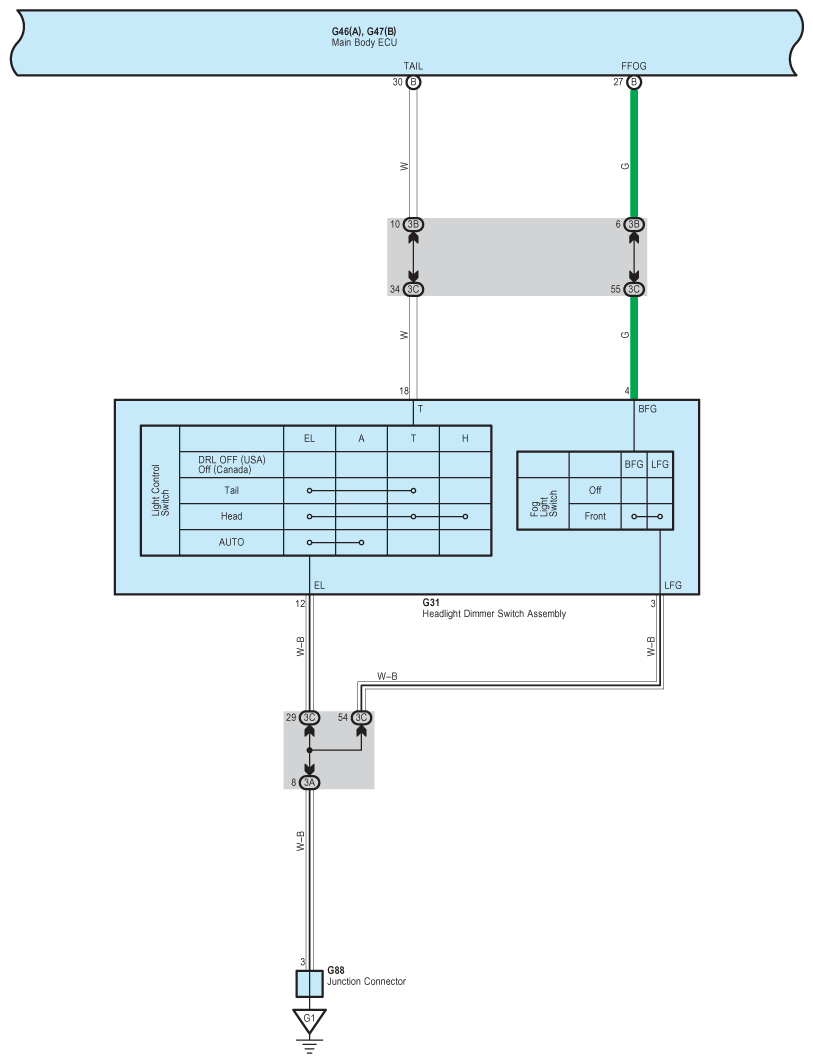

Fig 3: Front Fog Light - Wiring Diagram (3 Of 4)
G08930902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

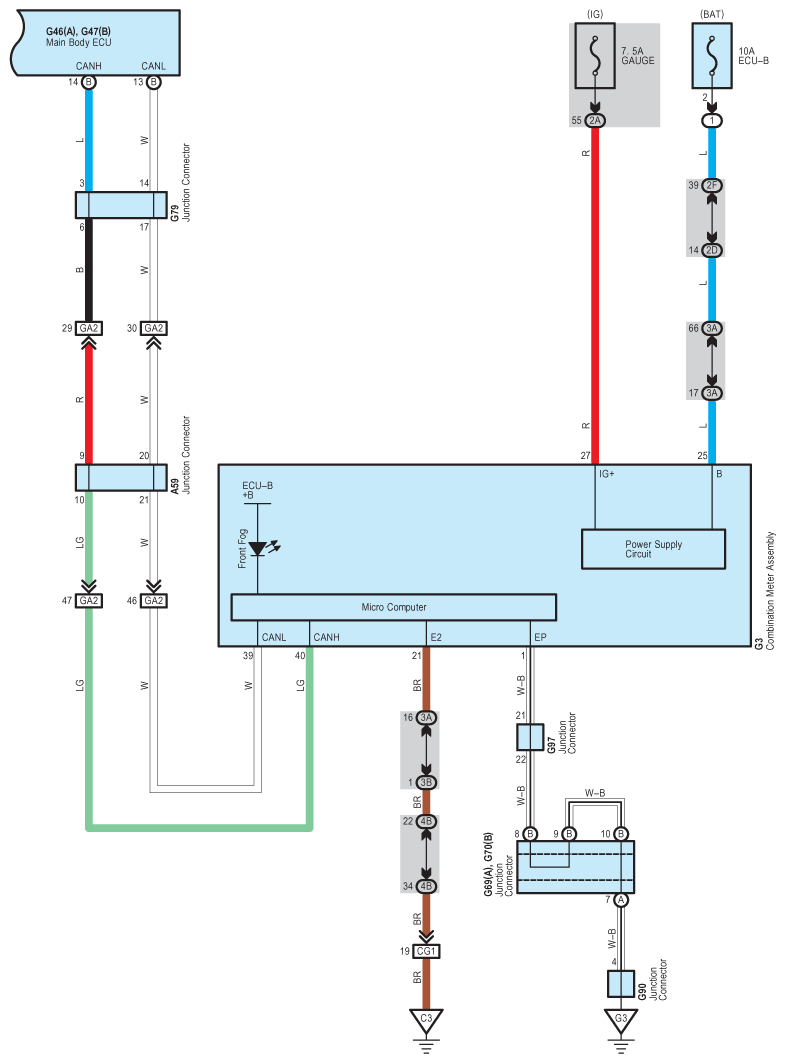

Fig 4: Front Fog Light - Wiring Diagram (4 Of 4)
G08930903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
