LEXUS ENFORM or Safety Connect: Notes

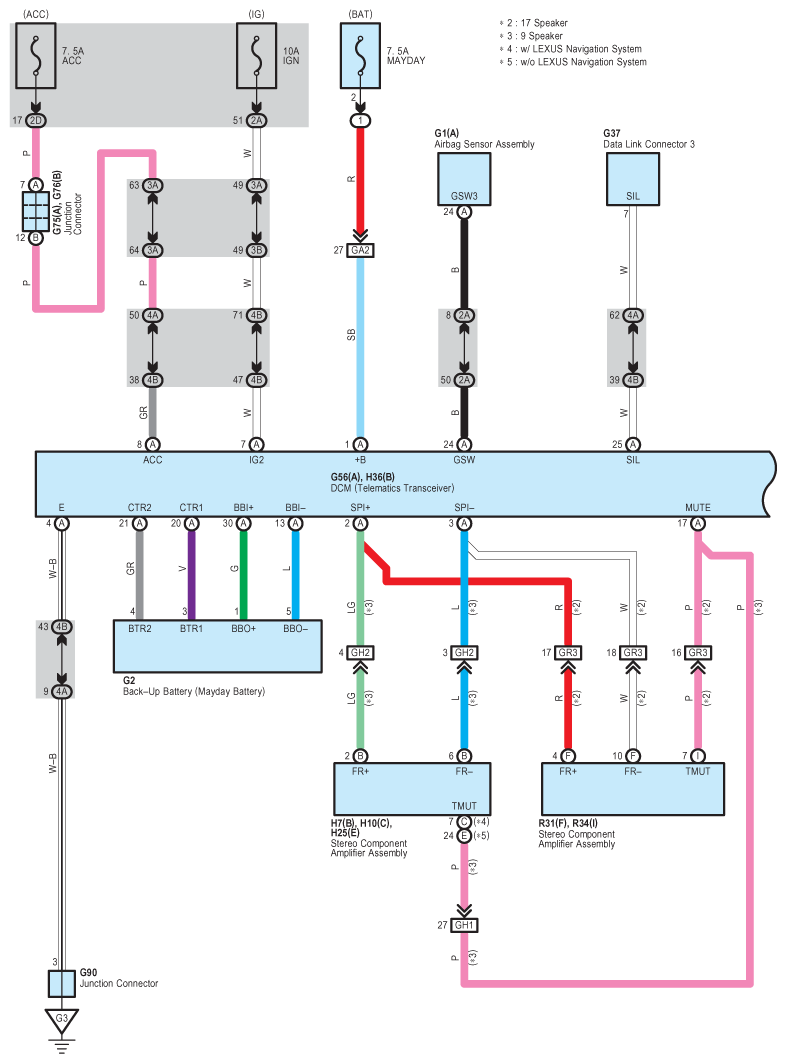

Fig 1: Lexus Enform Or Safety Connect - Wiring Diagram (1 Of 6)
G08931108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

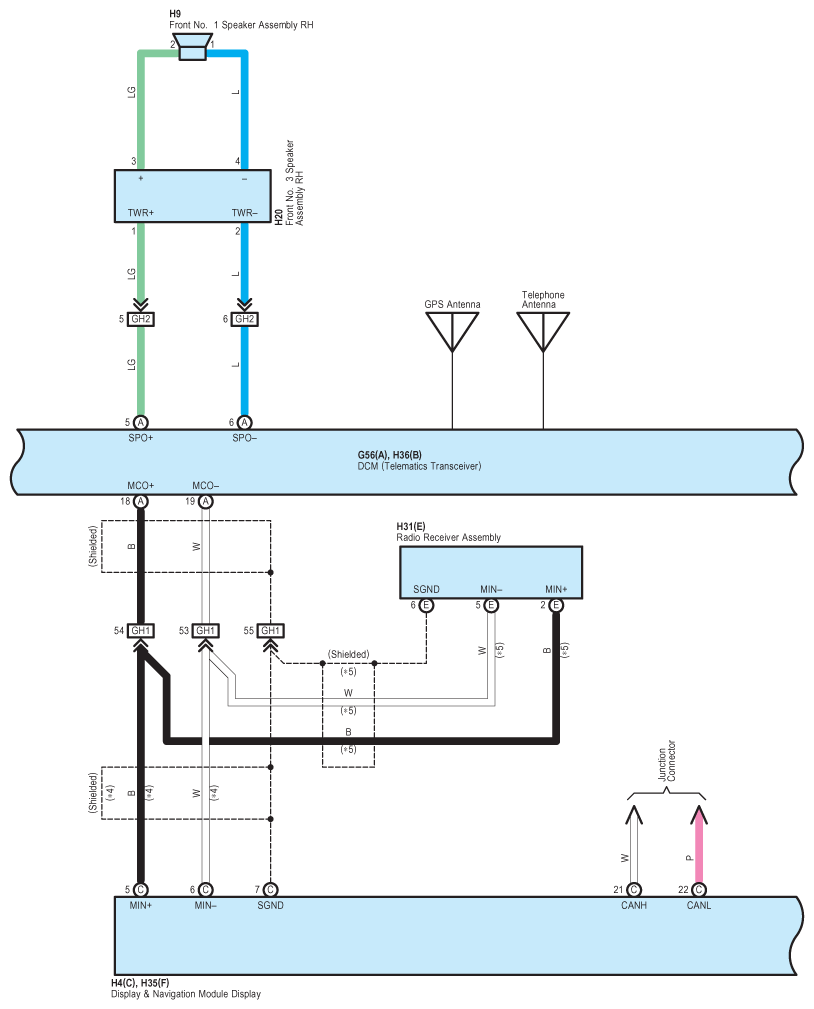

Fig 2: Lexus Enform Or Safety Connect - Wiring Diagram (2 Of 6)
G08931109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

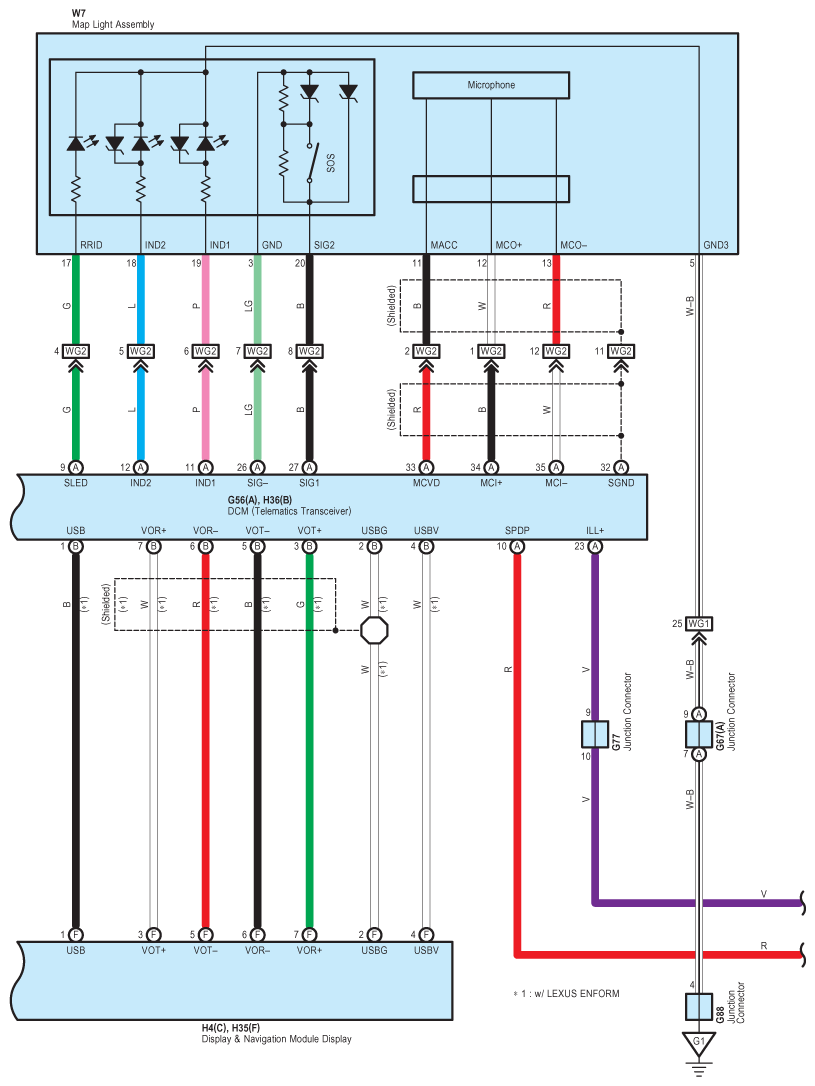

Fig 3: Lexus Enform Or Safety Connect - Wiring Diagram (3 Of 6)
G08931110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

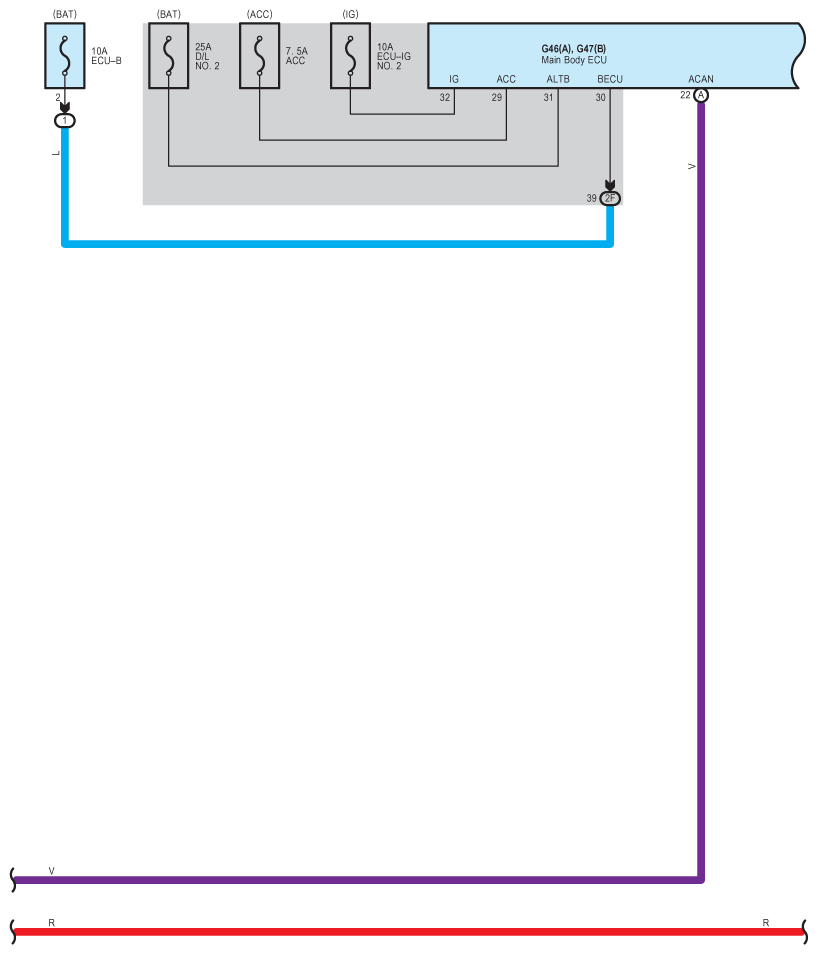

Fig 4: Lexus Enform Or Safety Connect - Wiring Diagram (4 Of 6)
G08931111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

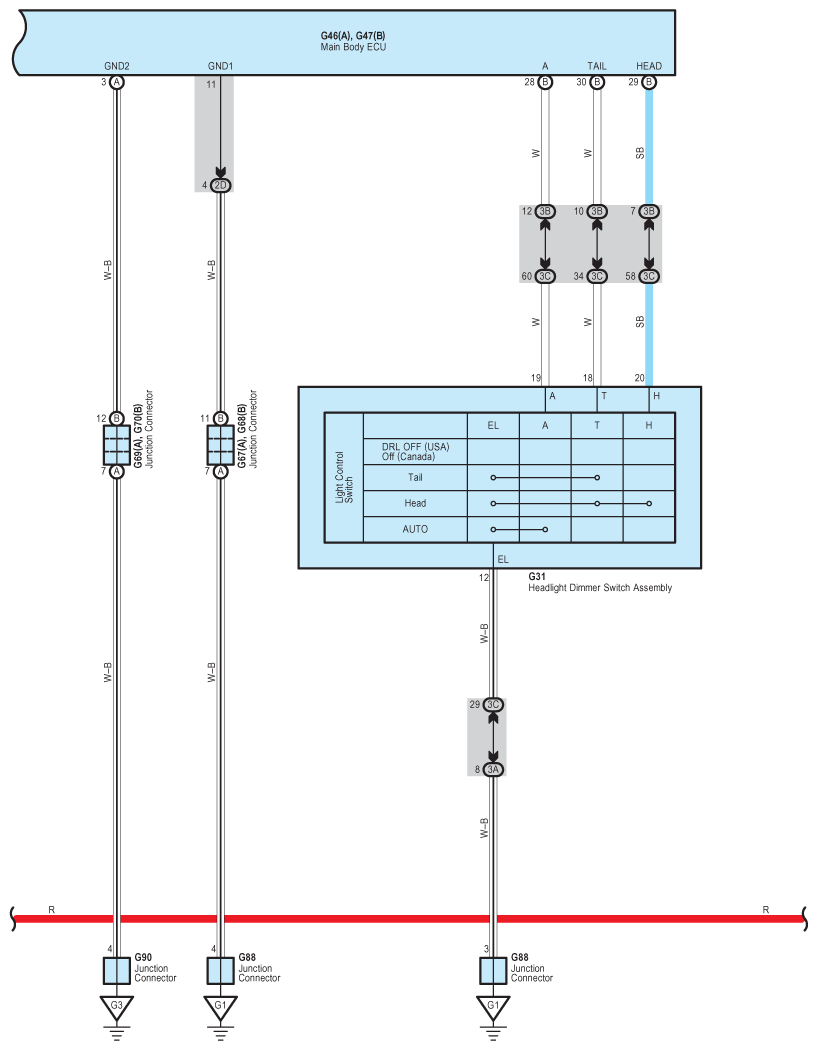

Fig 5: Lexus Enform Or Safety Connect - Wiring Diagram (5 Of 6)
G08931112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

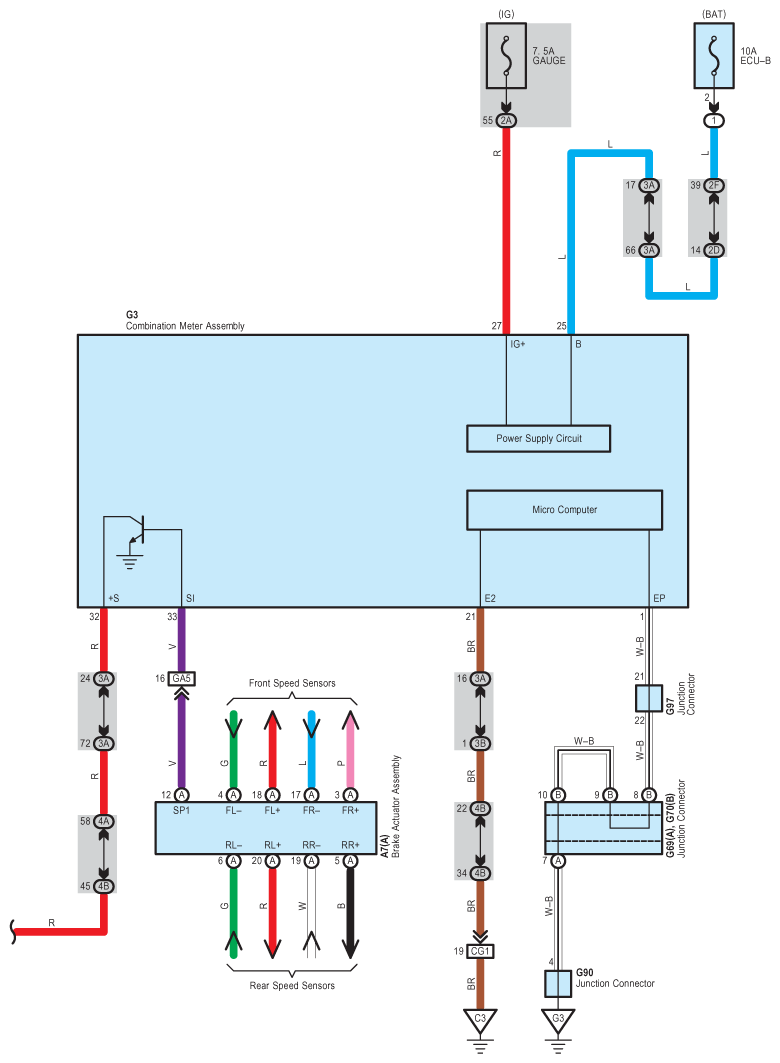

Fig 6: Lexus Enform Or Safety Connect - Wiring Diagram (6 Of 6)
G08931113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
