Driving Support Switch Control Ecu: Components: Illustration

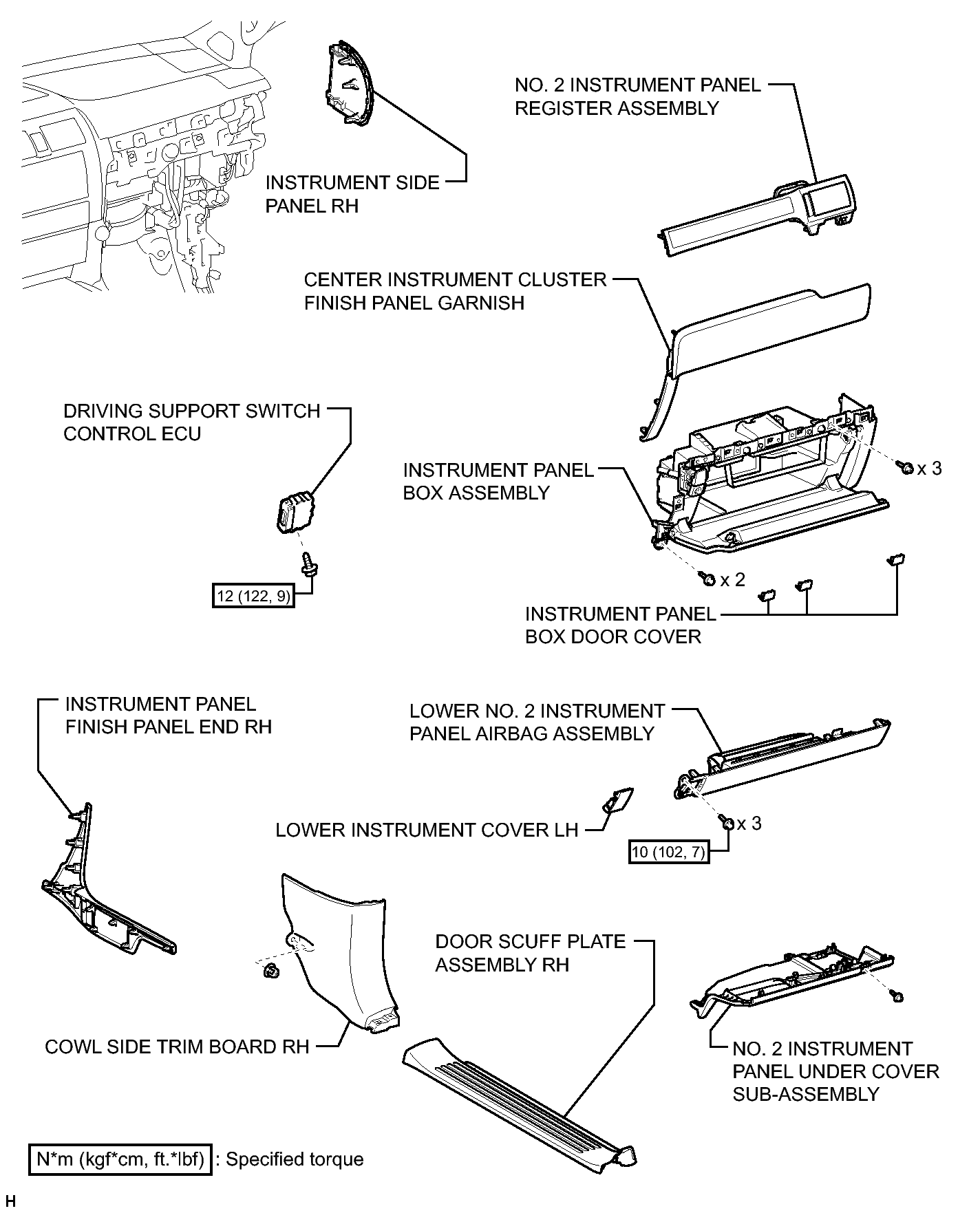

Fig 1: Identifying Driving Support Switch Control ECU Replacement Components With Torque Specifications
GTY256830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
