Control Valve Assembly: Components: Illustration

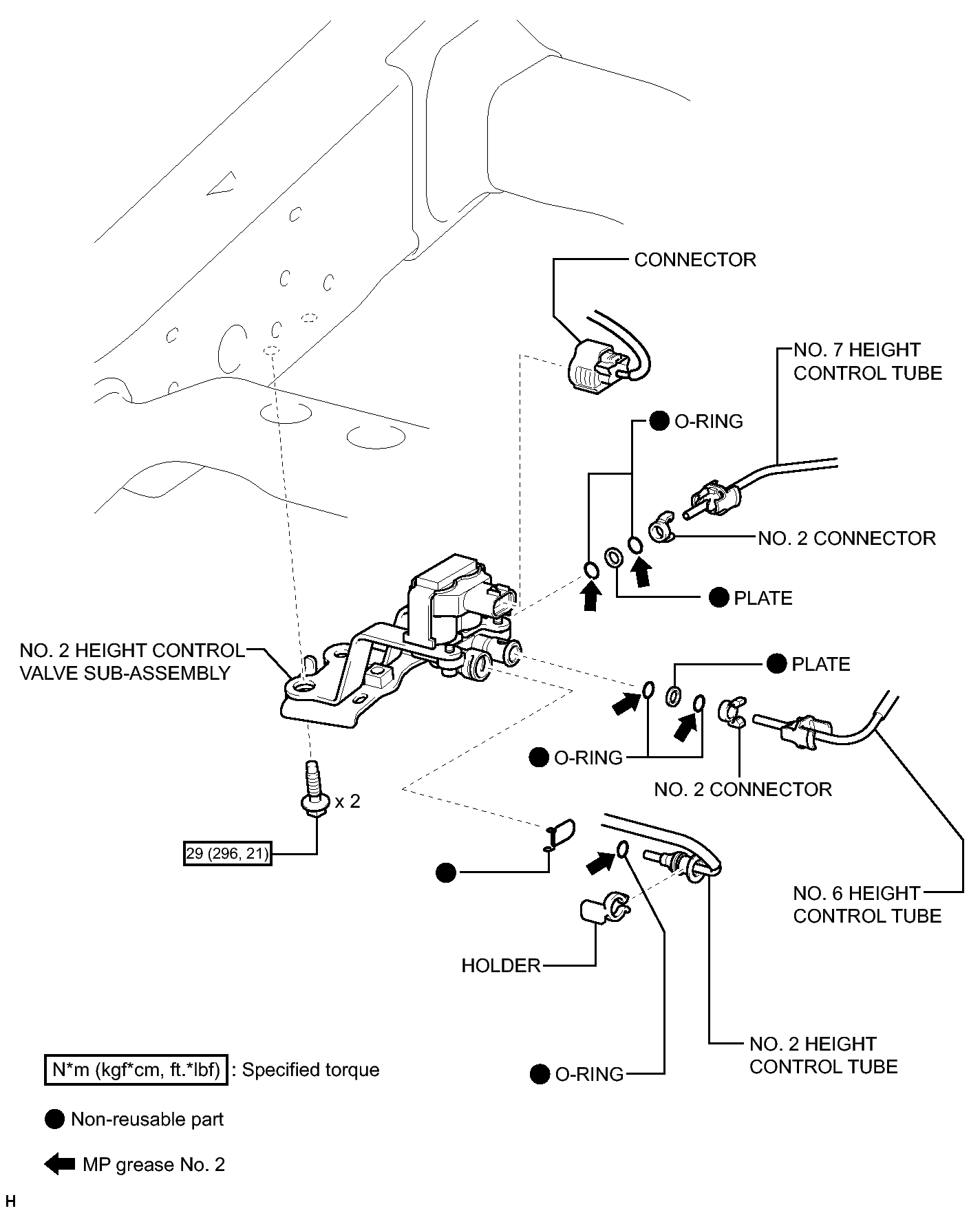

Fig 1: Identifying Control Valve Assembly Replacement Components With Torque Specifications
GTY270298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
