Height Control Compressor: Components: Illustration

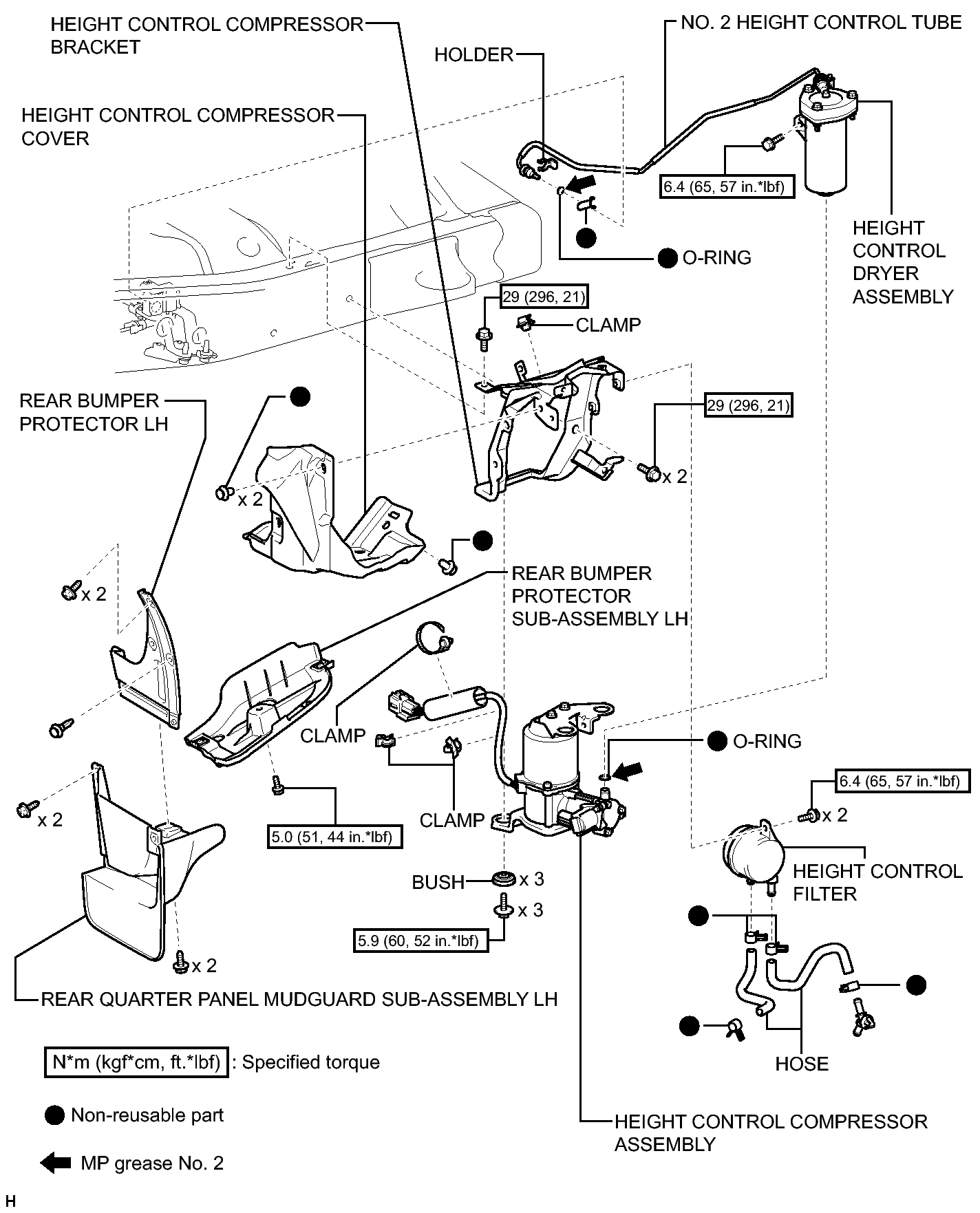

Fig 1: Identifying Height Control Compressor Replacement Components With Torque Specifications
GTY281212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
