Height Control Off Switch: Inspection: Inspection

  1. INSPECT HEIGHT CONTROL OFF SWITCH
    1. Measure the resistance according to the value(s) in the table below.

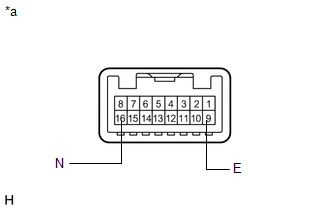

      Fig 1: Identifying Height Control Off Switch Connector Terminals
      GTY268459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      16 (N) - 9 (E) Height control OFF switch pressed Below 1 Ω
      Height control OFF switch not pressed 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Height Control OFF Switch)

      If the result is not as specified, replace the height control OFF switch.
