Height Control Sensor: Components: Illustration

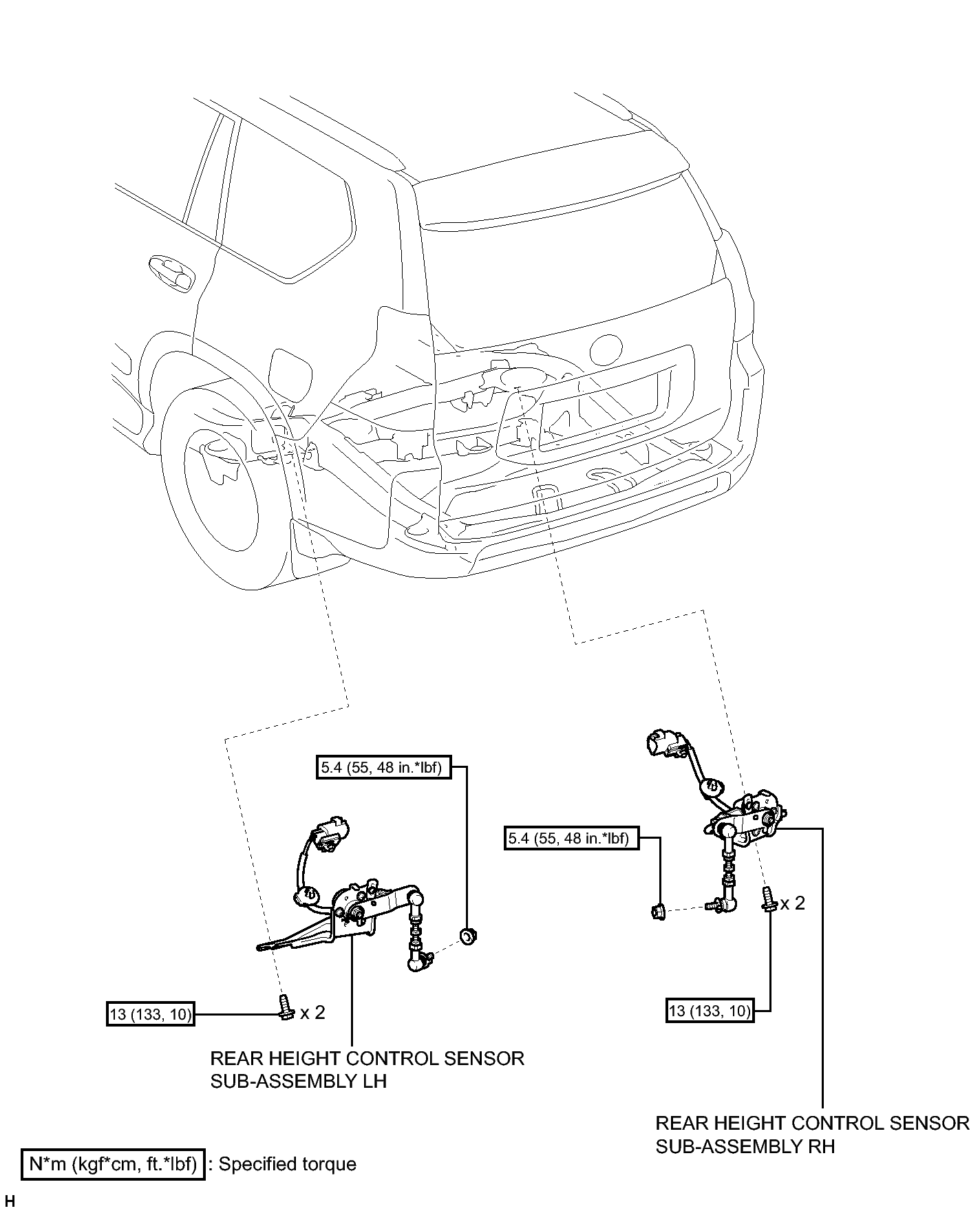

Fig 1: Identifying Height Control Sensor Replacement Components With Torque Specifications
GTY274027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
