Hybrid Power Control Module: Locations

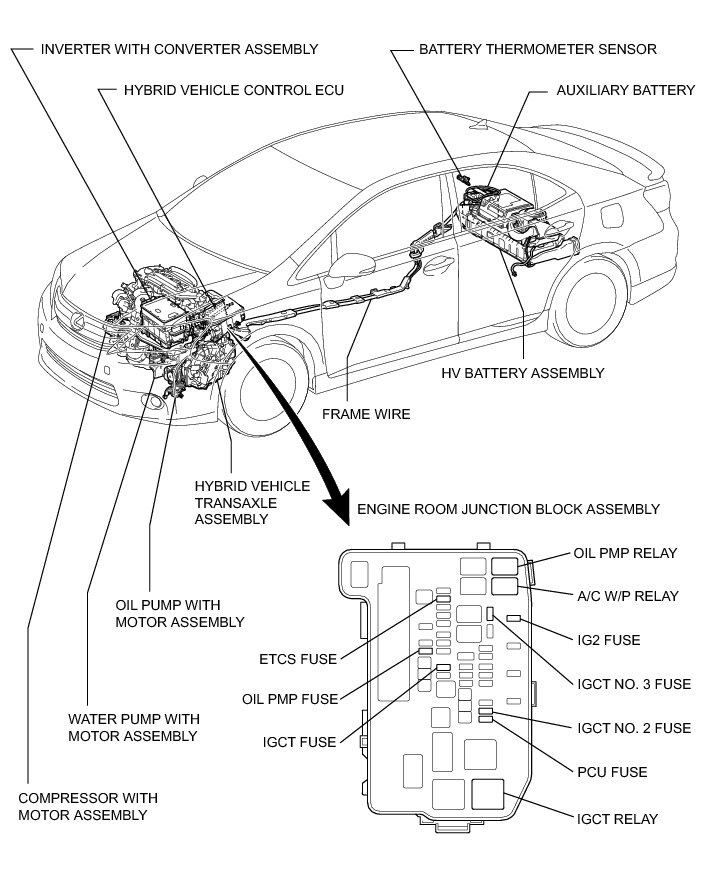

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: PARTS LOCATION
Instrument Panel:
