Body Control Module: Locations

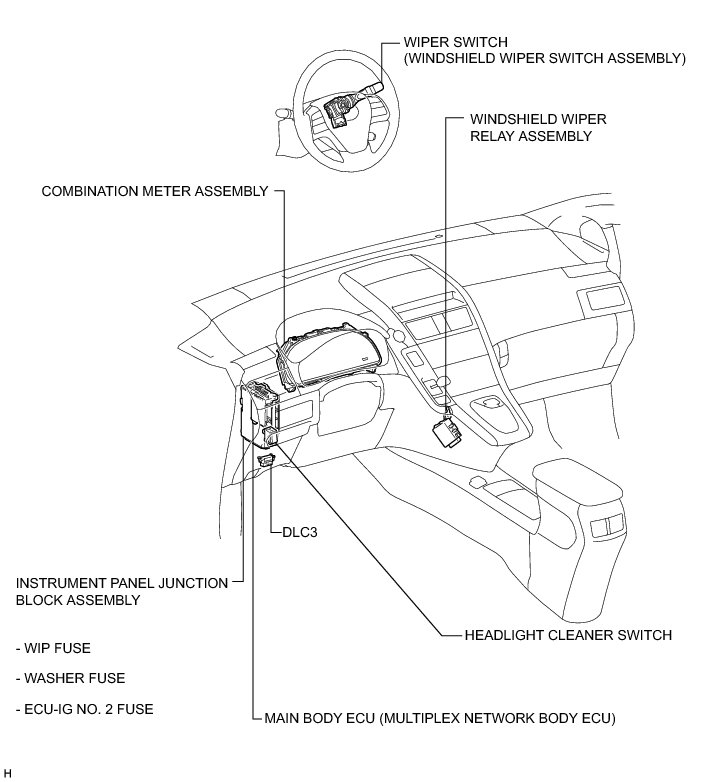

WIPER / WASHER: WIPER AND WASHER SYSTEM: PARTS LOCATION

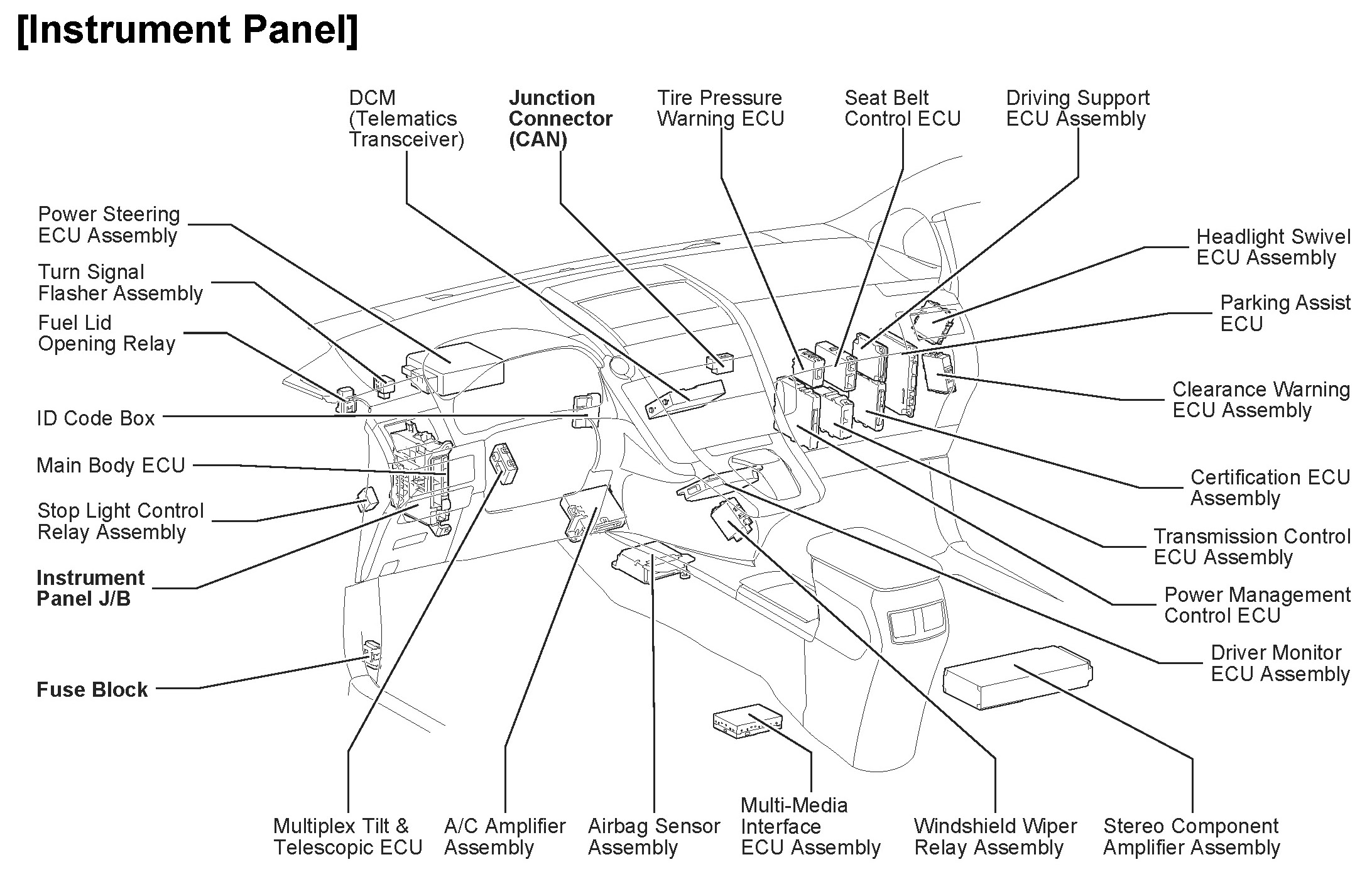

Instrument Panel:
