Torque Specifications





SPECIFICATIONS: 2AZ-FXE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

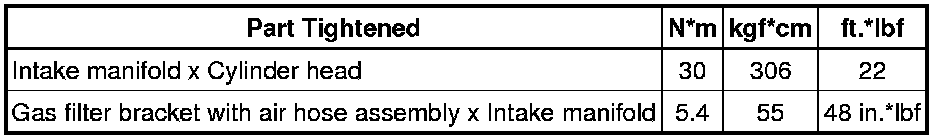

INTAKE MANIFOLD

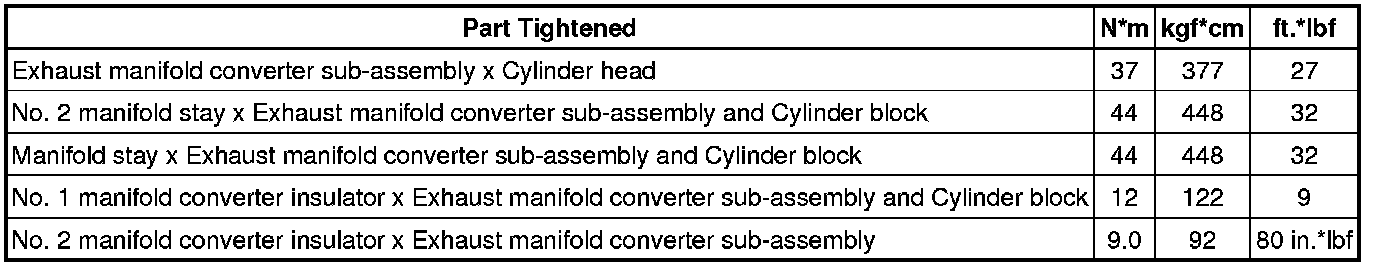

EXHAUST MANIFOLD

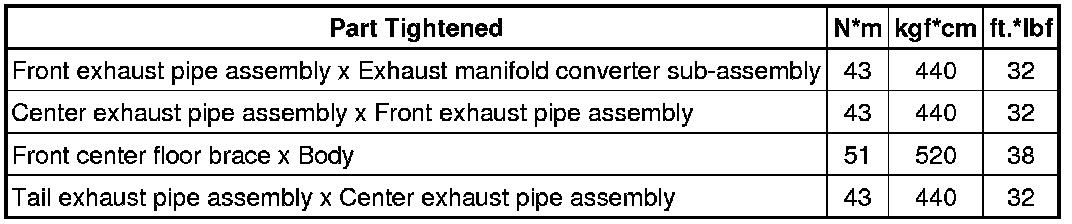

EXHAUST PIPE
