Yaw Rate And Acceleration Sensor: Installation: Installation

1. Connect the yaw rate and acceleration sensor connector to the yaw rate and acceleration sensor.

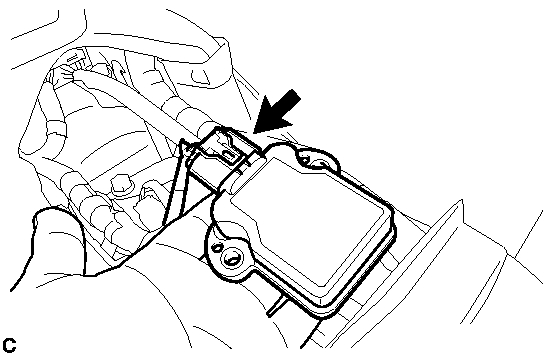

   Fig 1: Identifying Yaw Rate And Acceleration Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Make sure that the yaw rate and acceleration sensor connector is connected securely.
2. Install the yaw rate and acceleration sensor to the body with the 2 bolts.

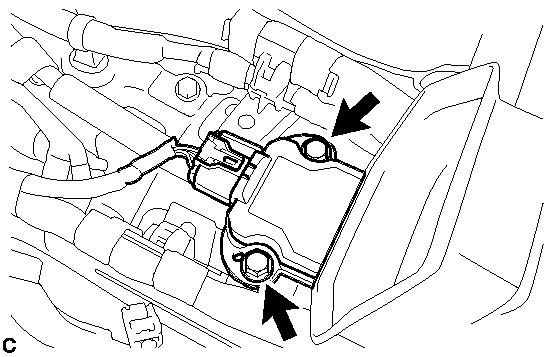

   Fig 2: Identifying Bolts And Yaw Rate And Acceleration Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Do not damage the yaw rate and acceleration sensor.
   • Make sure that the yaw rate and acceleration sensor is installed securely.
   • Do not use dropped or damaged parts.
   • Keep the contact surfaces of the yaw rate and acceleration sensor and the body free of foreign matter.
   • Make sure that the yaw rate and acceleration sensor is facing the correct direction.

HINT:

Refer to the procedure from Install Cooler Blower Assembly. Refer to INSTALLATION .

1. Perform the yaw rate and acceleration sensor zero point calibration. Refer to CALIBRATION .
