Crankshaft Position Sensor: Removal: Removal

  1. REMOVE ELECTRIC INVERTER COMPRESSOR
    1. Remove the electric inverter compressor. Refer to REMOVAL - Step 1 .
  2. REMOVE V-RIBBED BELT
    1. Remove the V-ribbed belt. Refer to REMOVAL - Step 1 .
  3. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY  . Refer to REMOVAL - Step 4
  4. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

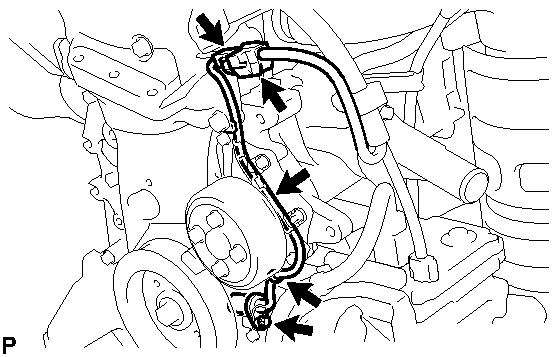

      Fig 1: Identifying Crankshaft Position Sensor Connector And Clamp Brackets
      GTY183406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the connector clamp and wire harness clamp.
    3. Remove the wire harness clamp bracket from the wire harness.
    4. Remove the bolt, and then remove the crankshaft position sensor.
