Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE NO. 1 ENGINE UNDER COVER
  2. DRAIN COOLANT (for Engine)  . Refer to REPLACEMENT - Step 2
  3. REMOVE FRONT WIPER MOTOR AND LINK
    1. Remove the front wiper motor and link. Refer to REMOVAL .
  4. REMOVE WATER GUARD PLATE RH  . Refer to REMOVAL - Step 6
  5. REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL  . Refer to REMOVAL - Step 7
  6. REMOVE COWL BODY MOUNTING REINFORCEMENT RH  . Refer to REMOVAL - Step 8
  7. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 9
  8. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 28
  9. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  See step  9
  10. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  . Refer to REMOVAL - Step 44
  11. SEPARATE ENGINE WIRE
    1. Remove the 2 bolts and disconnect the 2 ground cables.

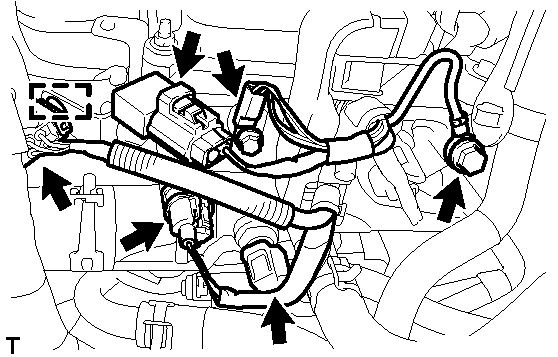

      Fig 1: Identifying Engine Wire, Bolts, Ground Cables, Connectors Clamp From Bracket
      GTY267459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 4 connectors.
    3. Disconnect the connector clamp from the bracket.
  12. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Using SST, remove the engine coolant temperature sensor and gasket.

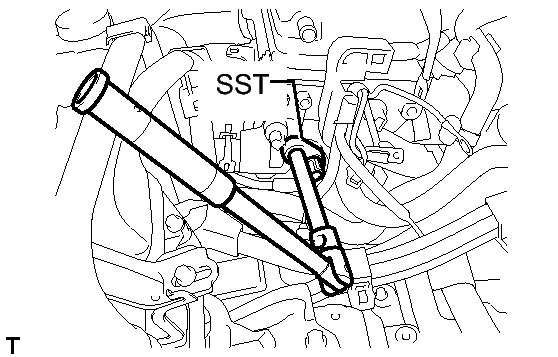

      Fig 2: Identifying SST, Engine Coolant Temperature Sensor & Gasket
      GTY266303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09023-12900
