Throttle Body: Inspection: Inspection

INSPECT THROTTLE BODY ASSEMBLY

Using an ohmmeter, measure the resistance between the terminals.

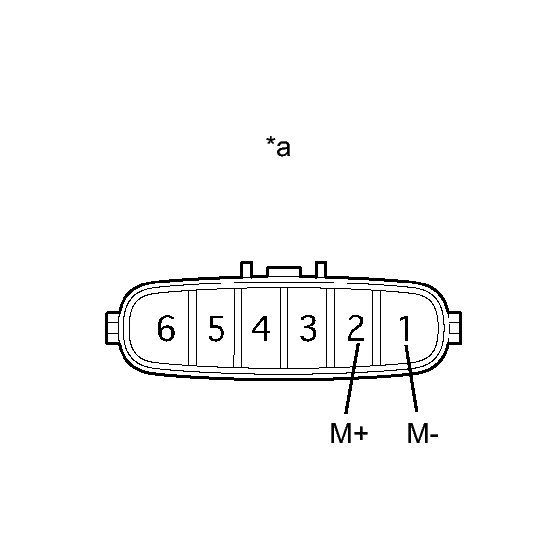

Fig 1: Identifying Throttle Body Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Component without harness connected (Throttle Body)

Standard Resistance

Terminal No. (Symbol)	Resistance	Temperature
2 (M+) - 1 (M-)	0.3 to 100 Ω	20°C (68°F)

If the result is not as specified, replace the throttle body assembly.
