Confirmation Driving Pattern

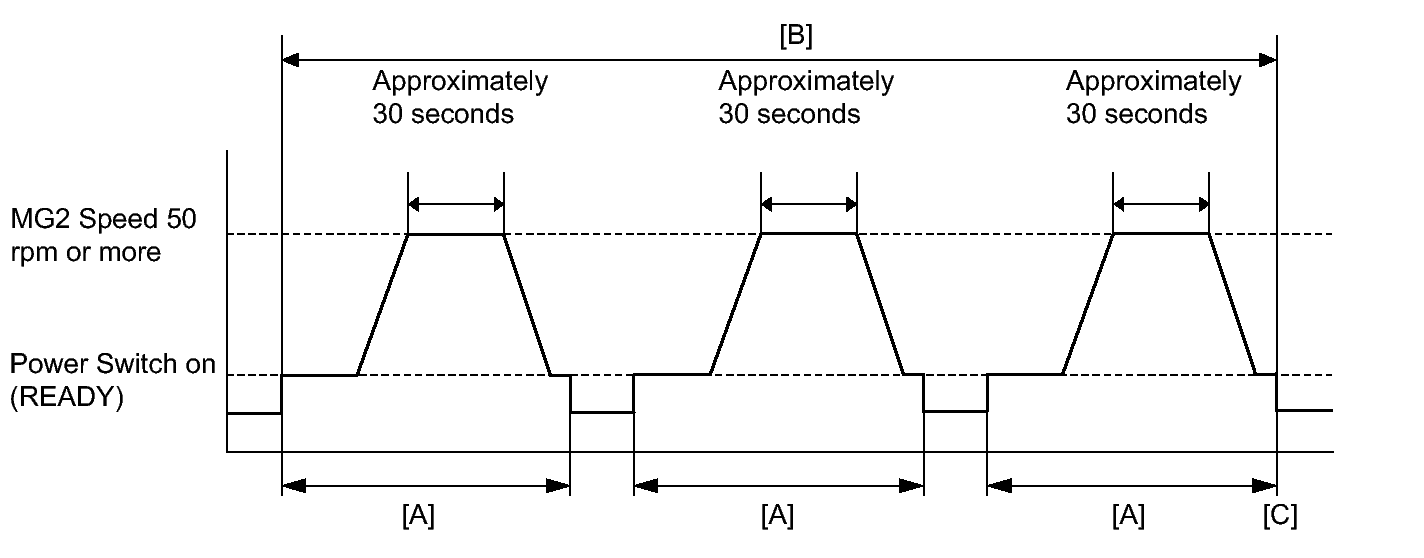

Fig 1: Identifying Power Switch/Scantool Operation Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the power switch off.
5. Turn the power switch on (READY) and allow MG2 to rotate at 50 rpm or more for 30 seconds, then turn the power switch off. [A]
6. Repeat [A] 3 times. [B]
7. Turn the power switch on (IG) and turn the Techstream on.
8. Enter the following menus: Powertrain/Hybrid Control/Trouble Codes. [C]
9. Check that permanent DTCs are cleared.
10. If the permanent DTCs are not cleared, perform the universal trip, and then check for permanent DTCs again.

HINT:

• If a permanent DTC is output, the system is malfunctioning.
• If no permanent DTC is output, the system is normal.
