DTC P0A1A-200, P0A1A-792, P0A1A-793: Generator Control Module; Generator Control Module; Generator Control Module
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0A1A-200, P0A1A-792, P0A1A-793: Generator Control Module; Generator Control Module; Generator Control Module: Wiring Diagram

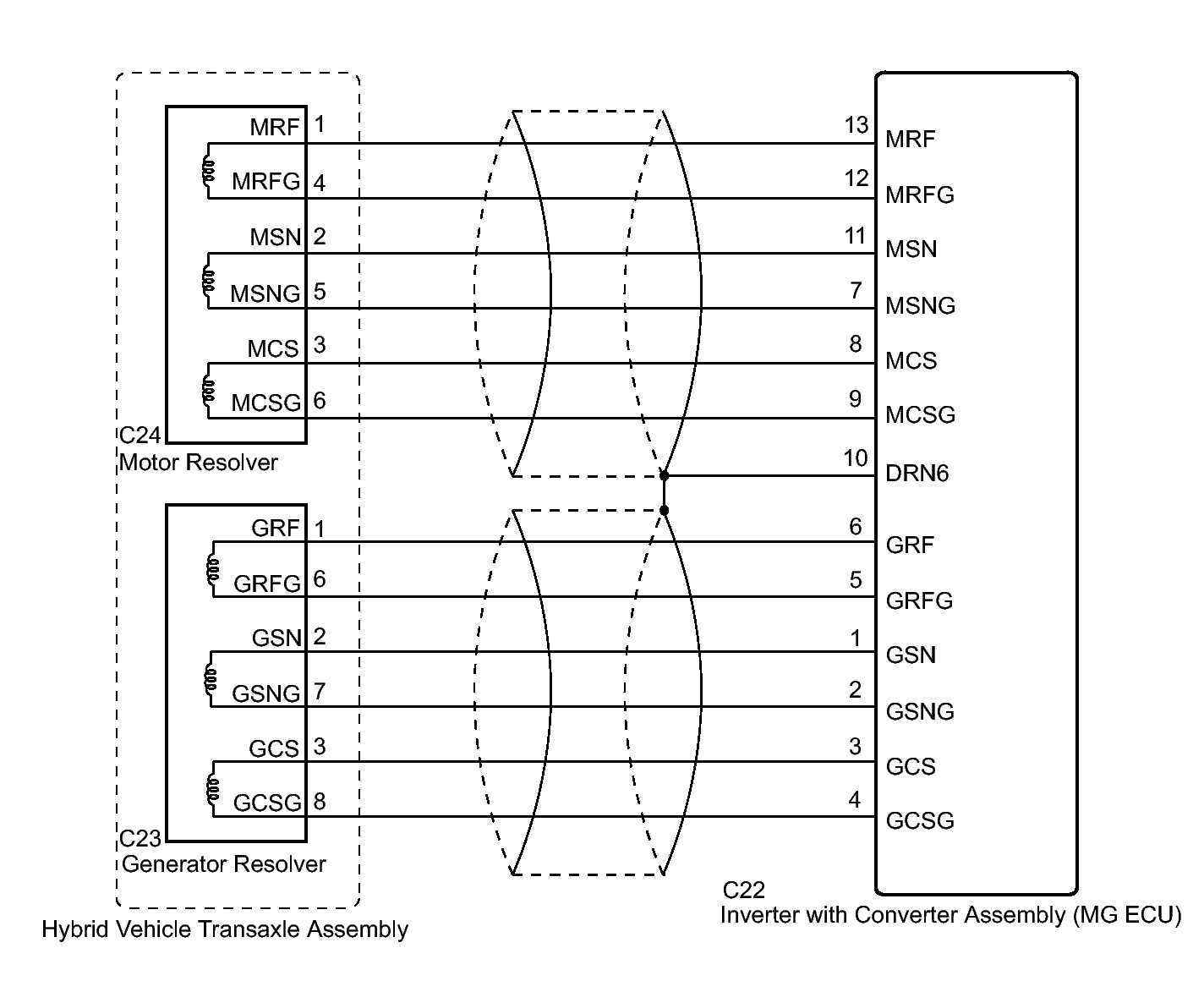

Fig 1: C22 Inverter With Converter Assembly (MG ECU) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
