Audio System (w/o LEXUS Navigation System) and Safety Connect: Notes

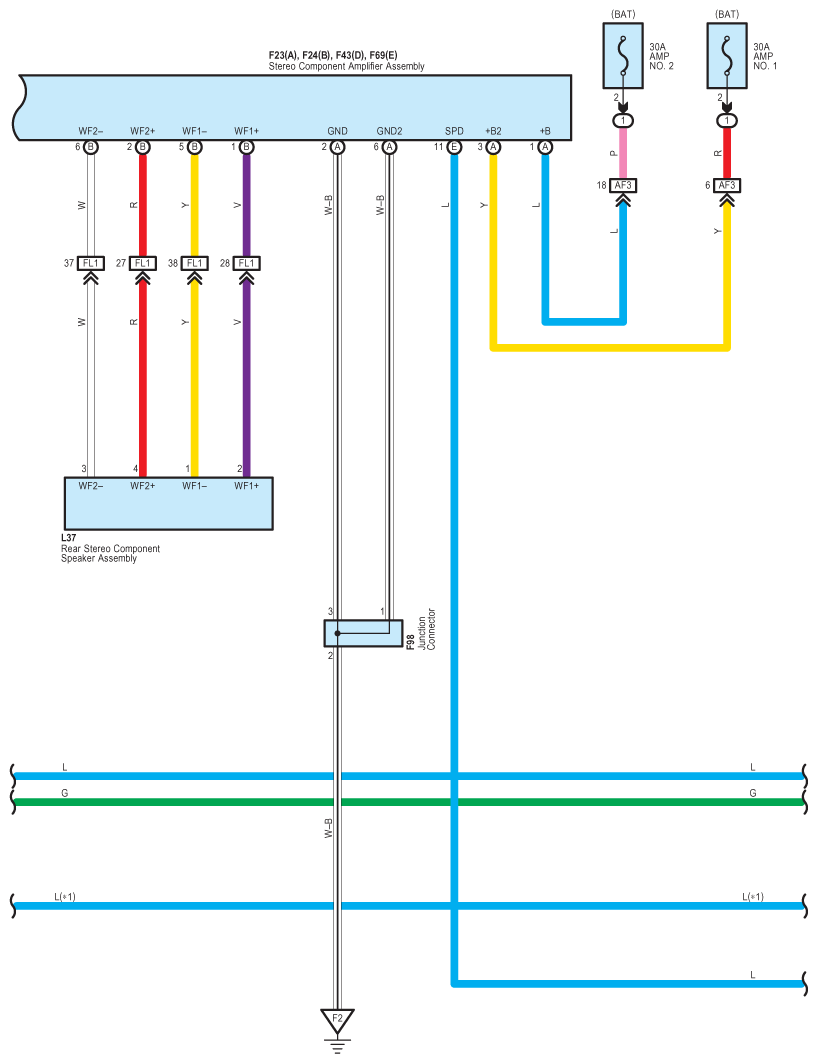

Fig 1: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

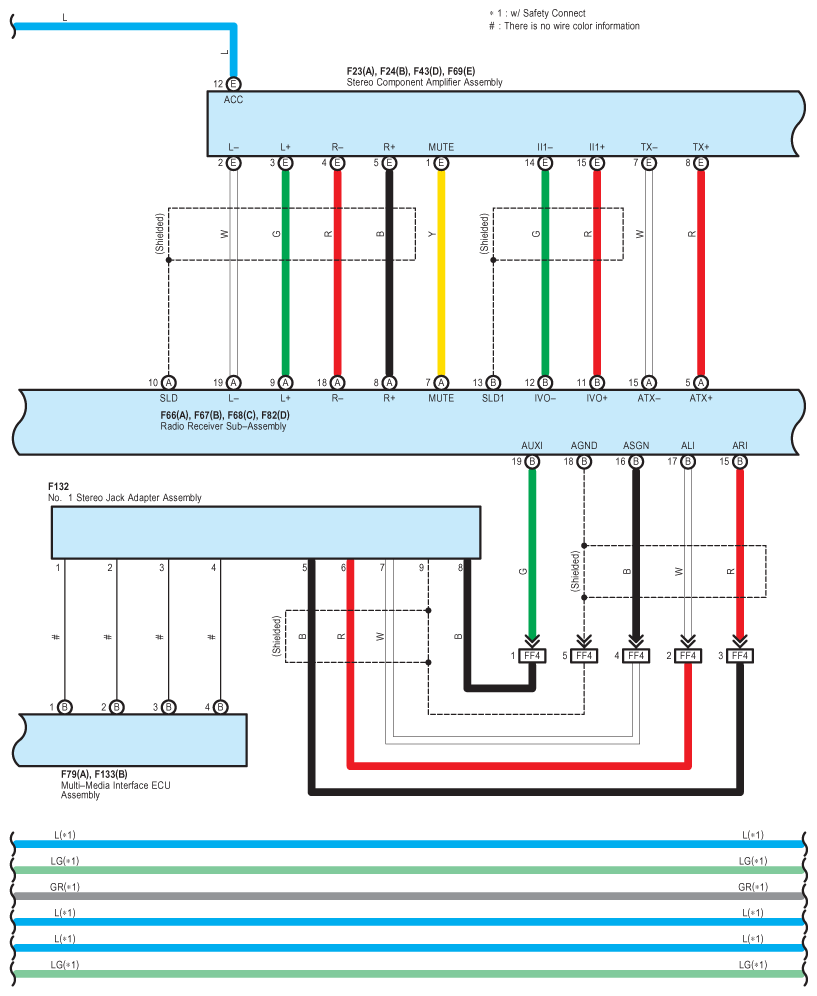

Fig 2: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

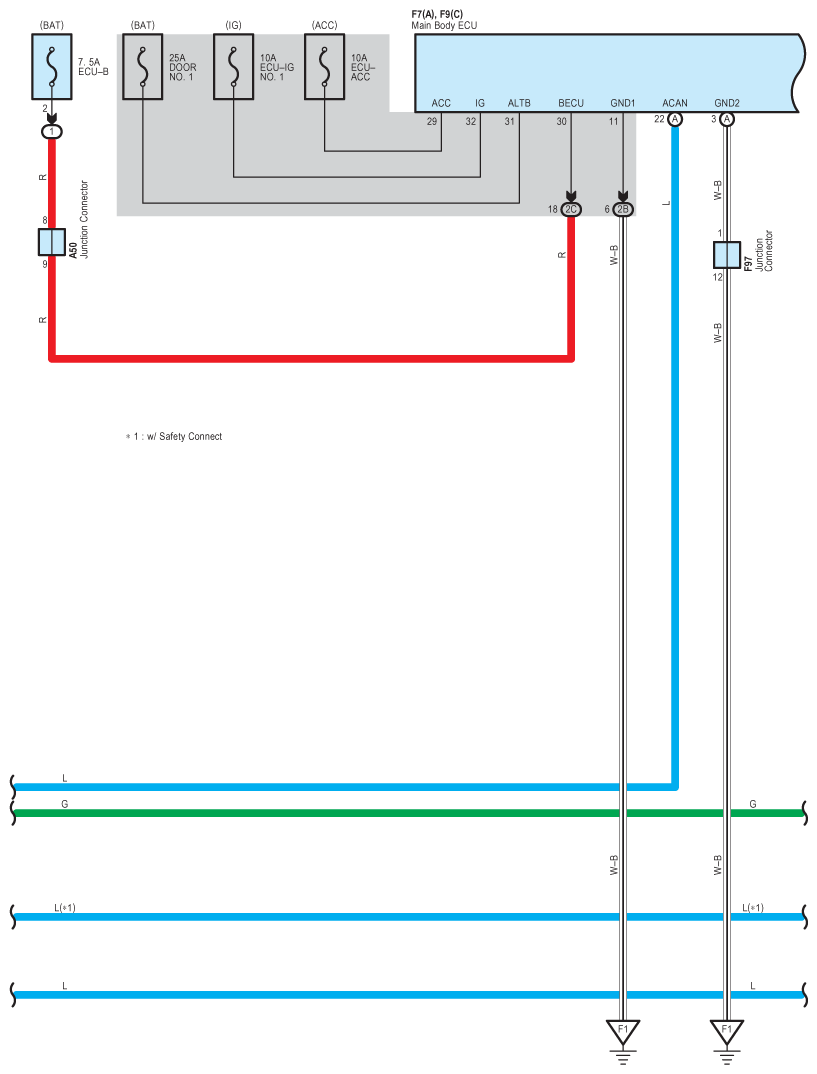

Fig 3: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

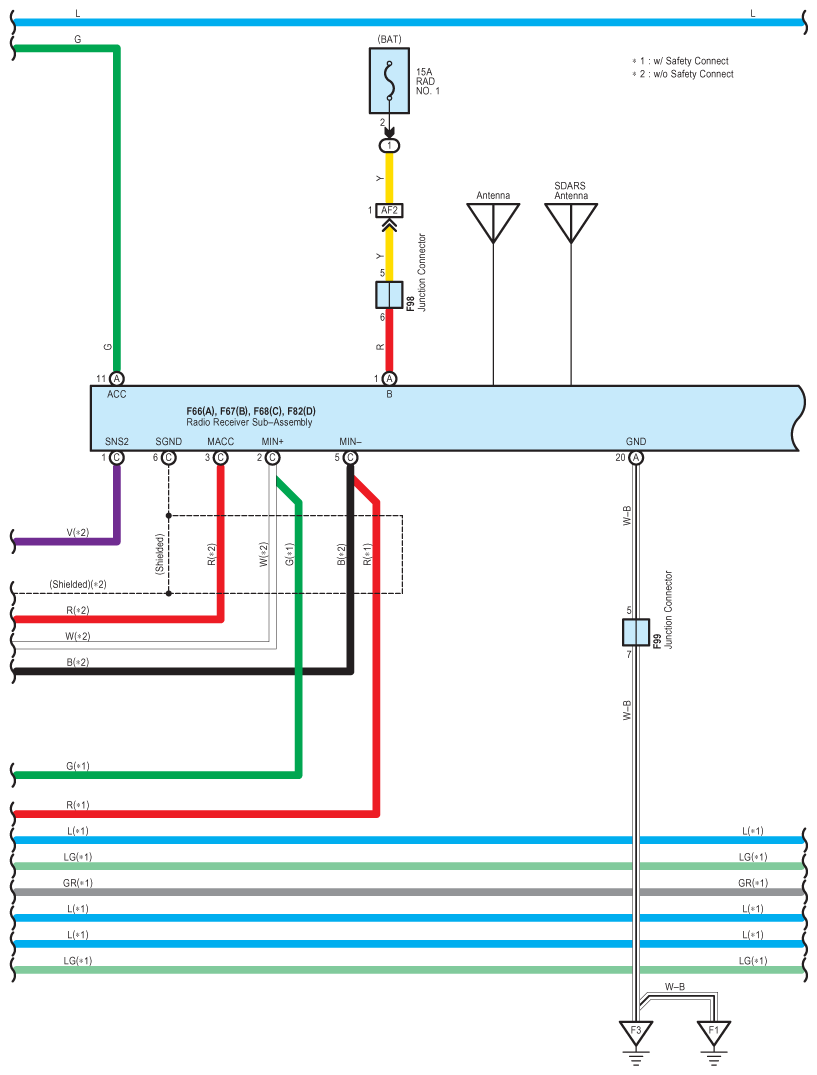

Fig 4: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

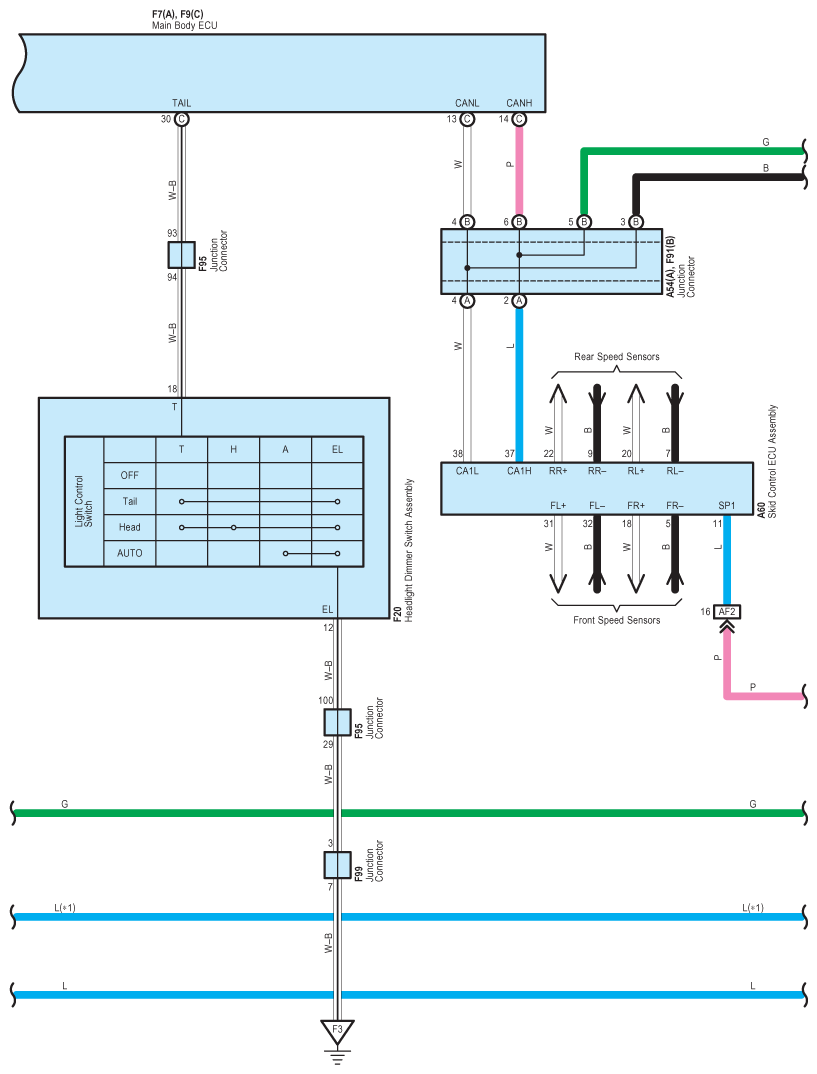

Fig 5: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

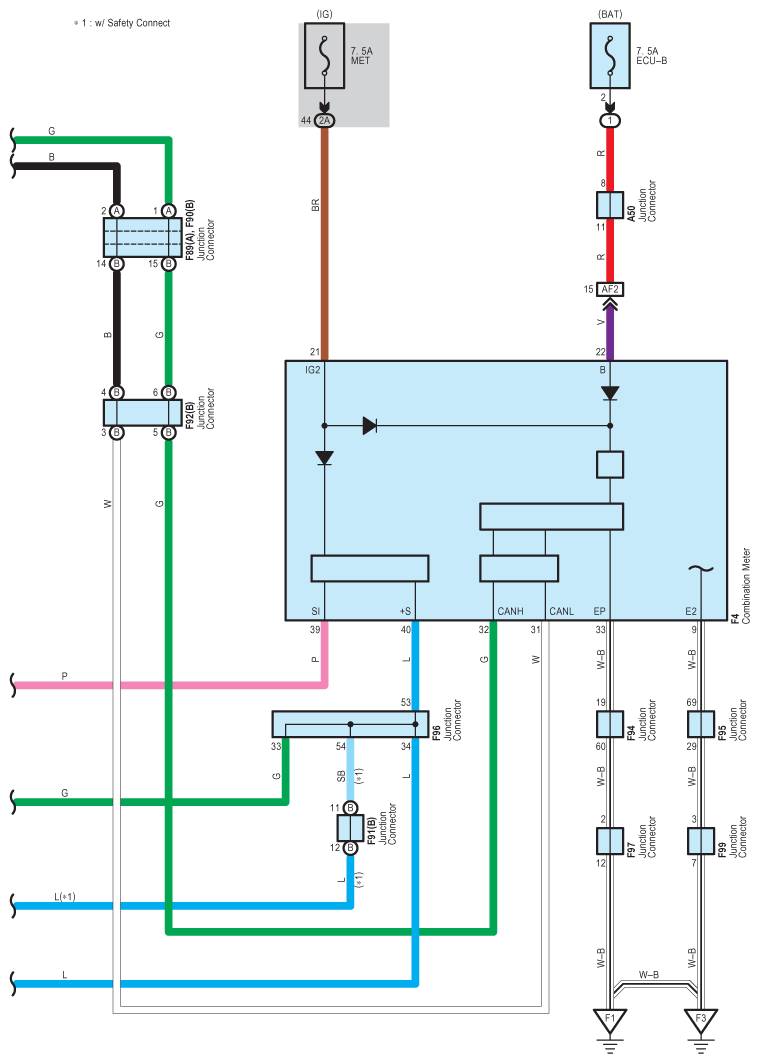

Fig 6: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

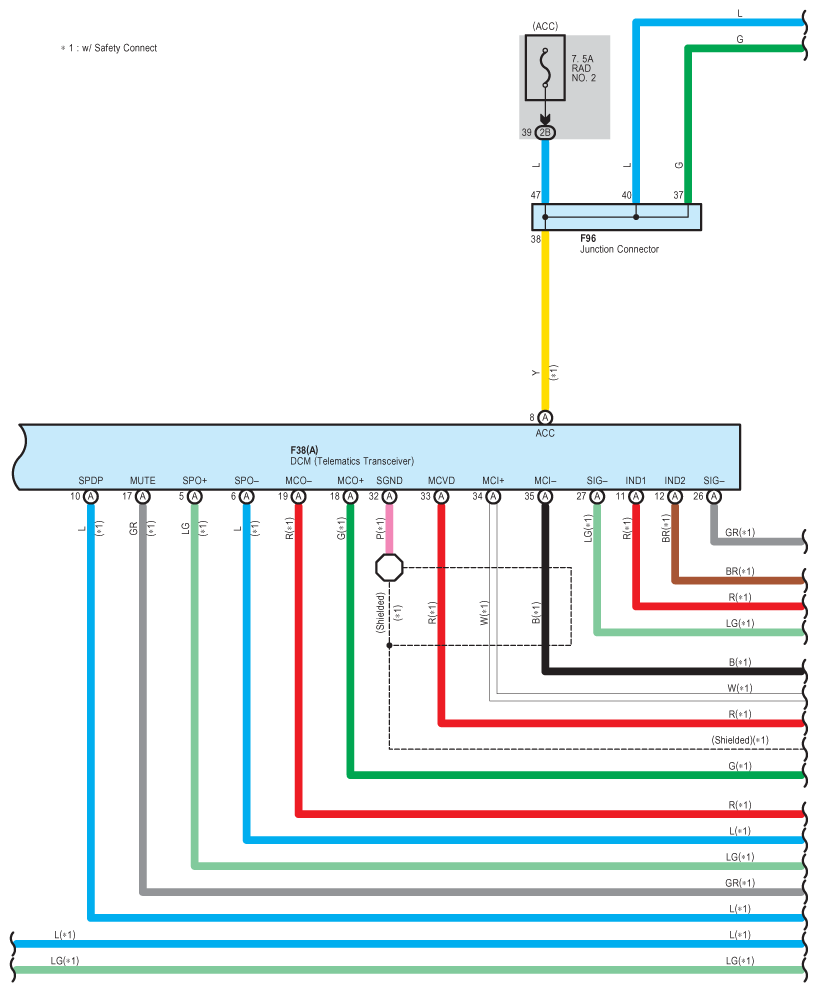

Fig 7: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

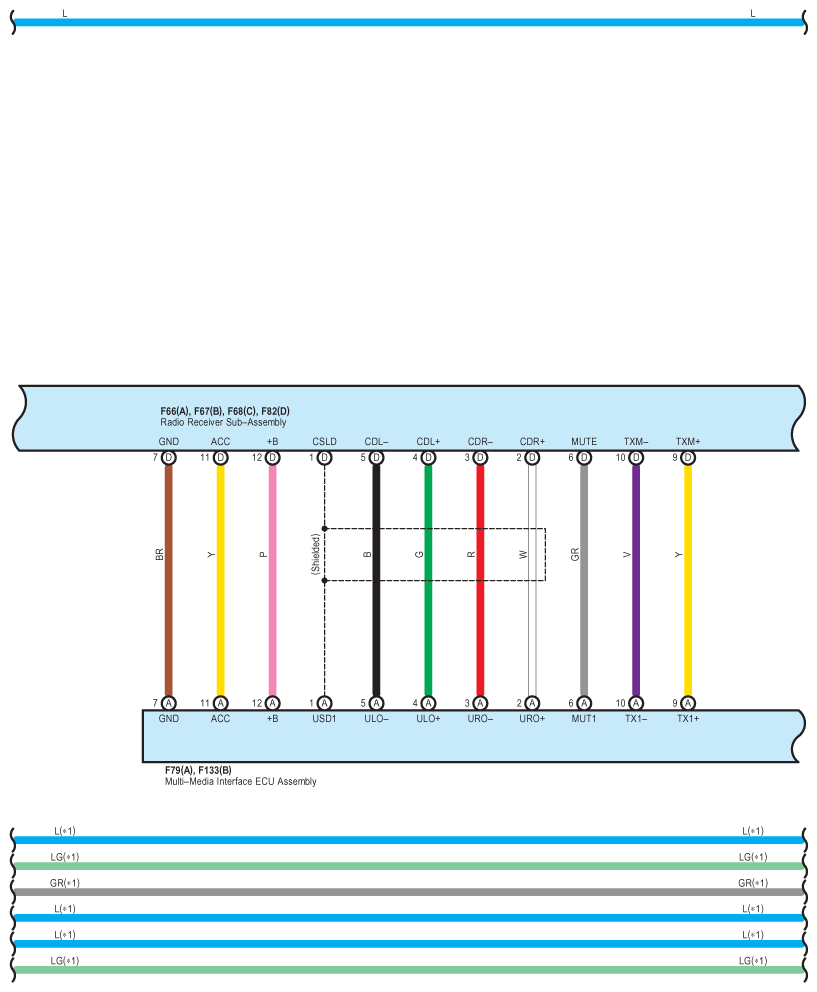

Fig 8: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

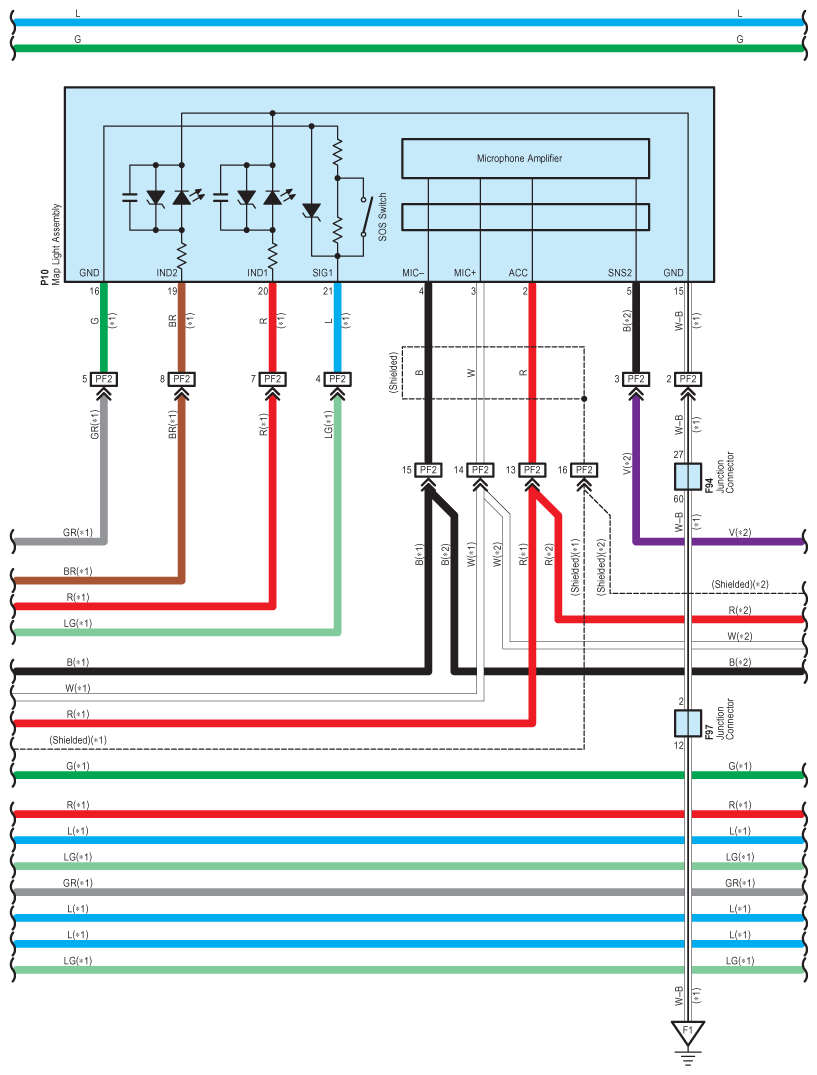

Fig 9: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (9 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

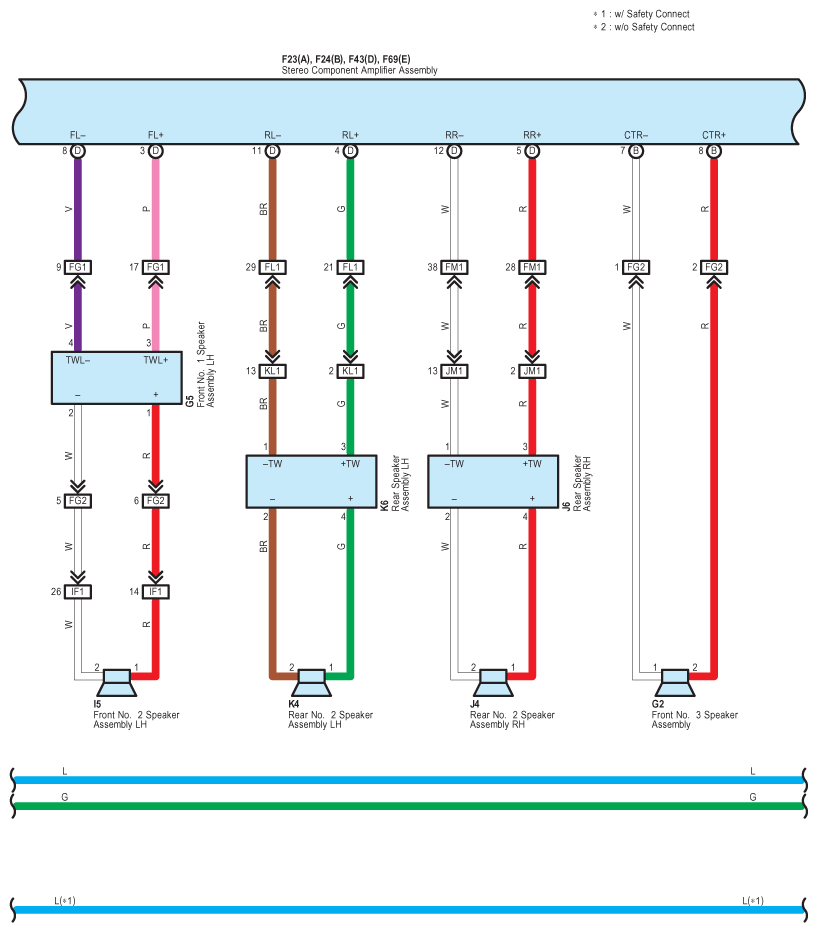

Fig 10: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (10 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

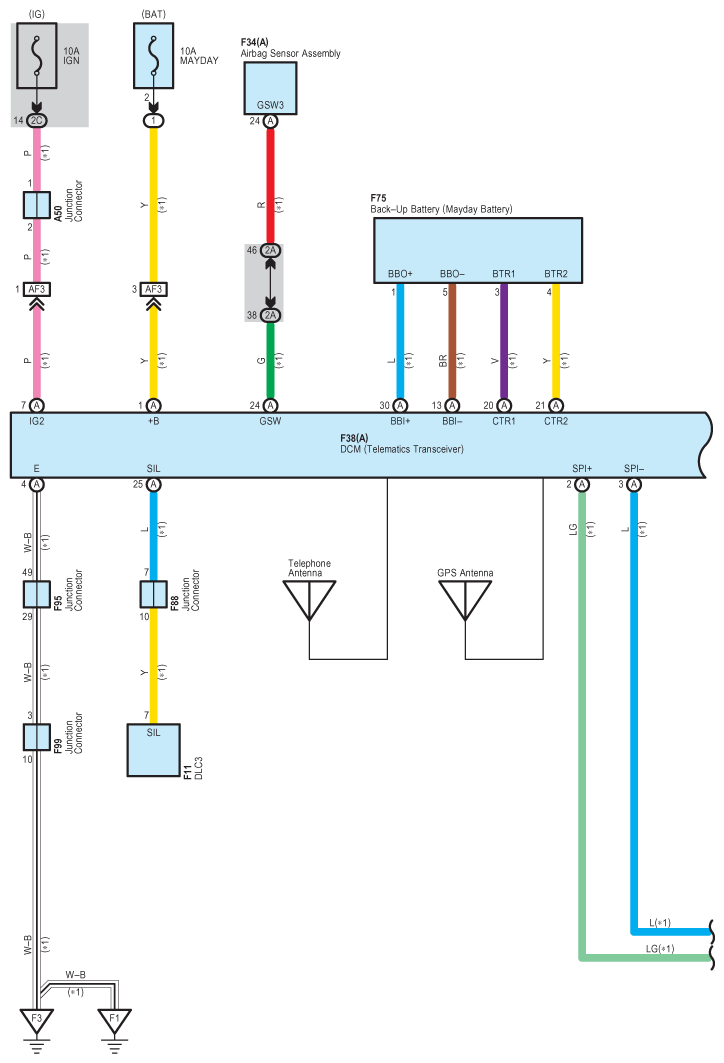

Fig 11: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (11 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

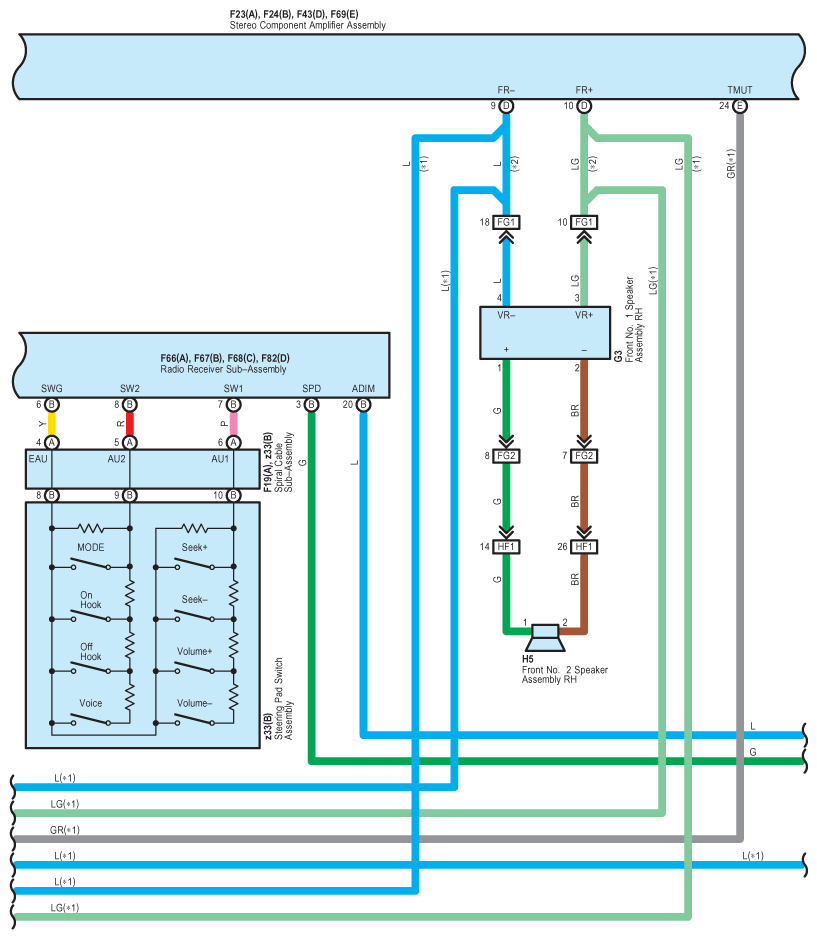

Fig 12: Audio System (W/O Lexus Navigation System) And Safety Connect - Wiring Diagram (12 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
