Automatic Glare-Resistant EC Mirror and Compass: Notes

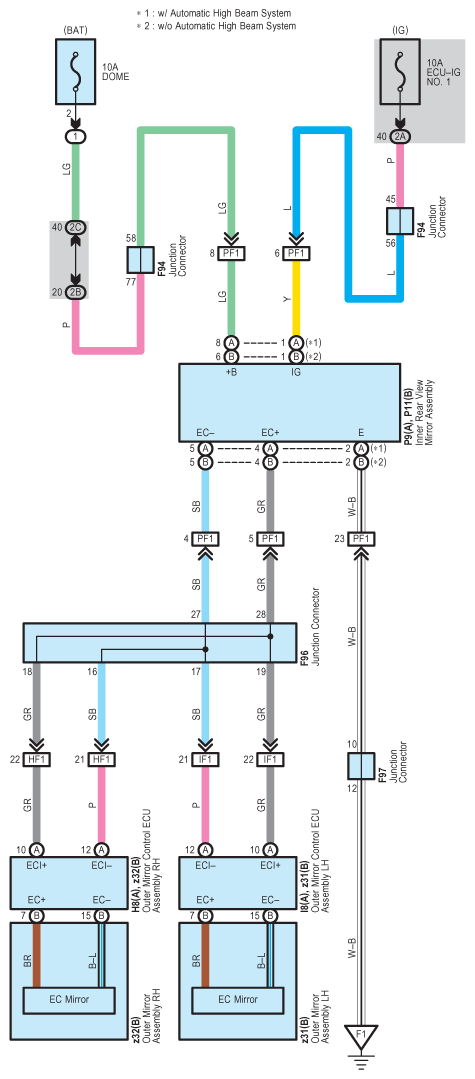

Fig 1: Automatic Glare-Resistant Ec Mirror And Compass - Circuit Diagram
G08911574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
