Hybrid System: Notes

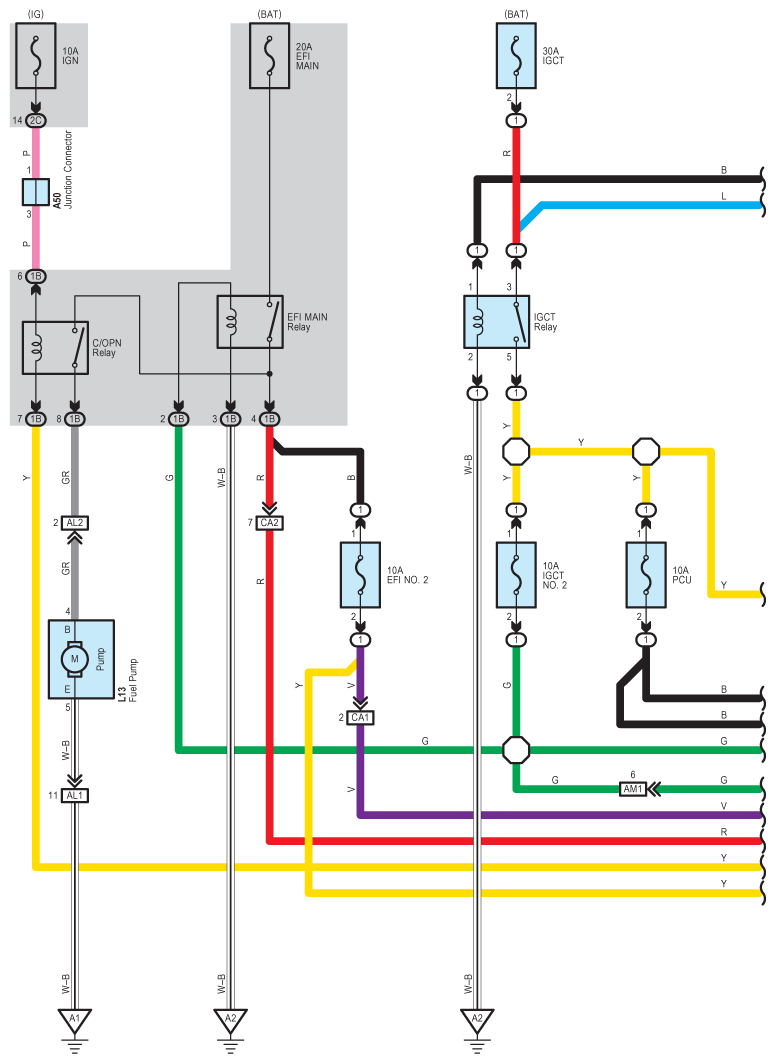

Fig 1: Hybrid System - Wiring Diagram (1 Of 30)

G08911359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

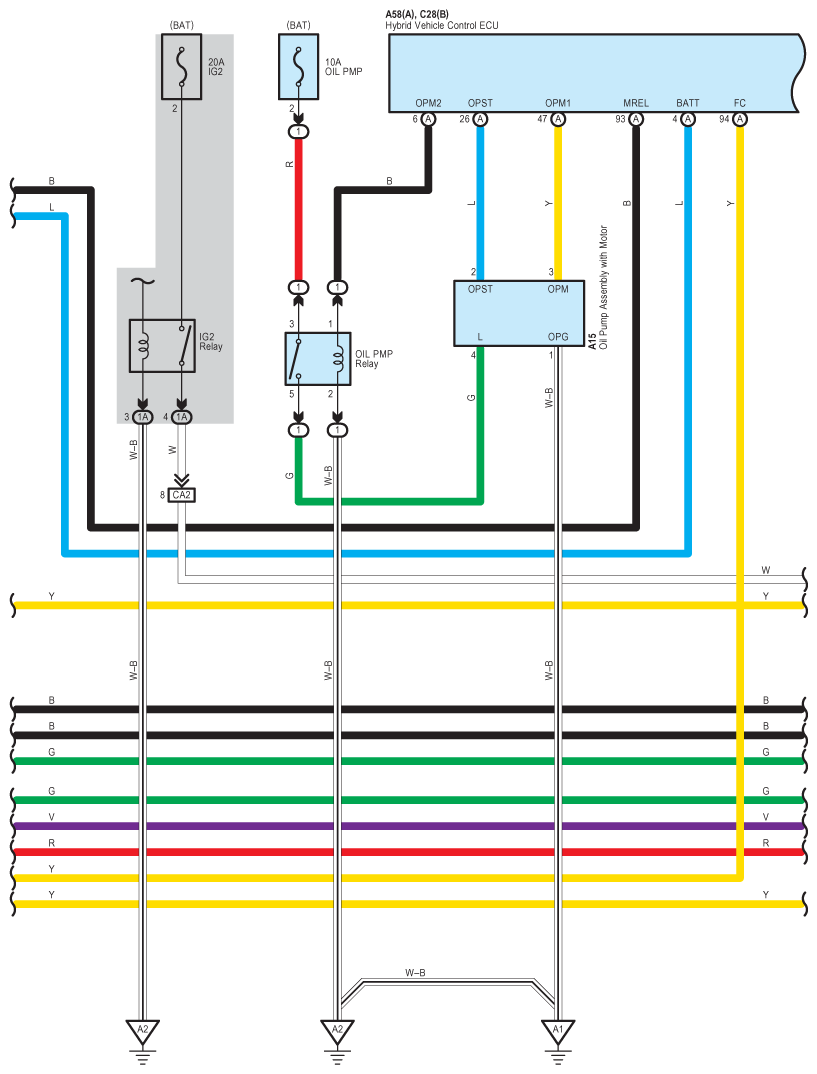

Fig 2: Hybrid System - Wiring Diagram (2 Of 30)

G08911360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

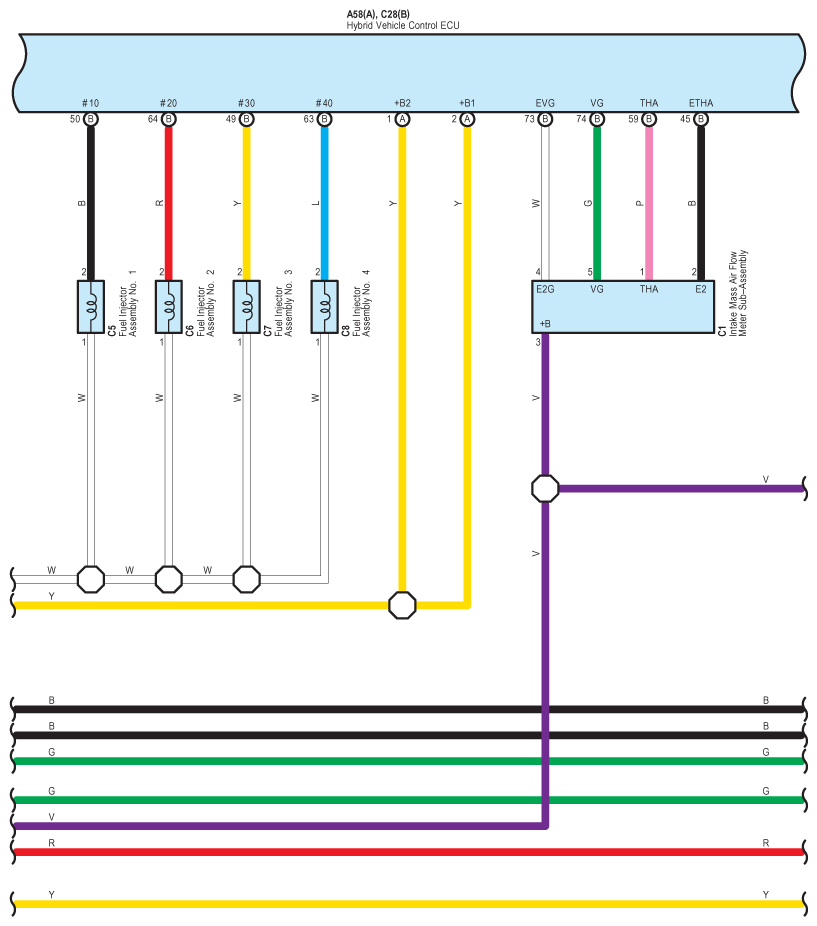

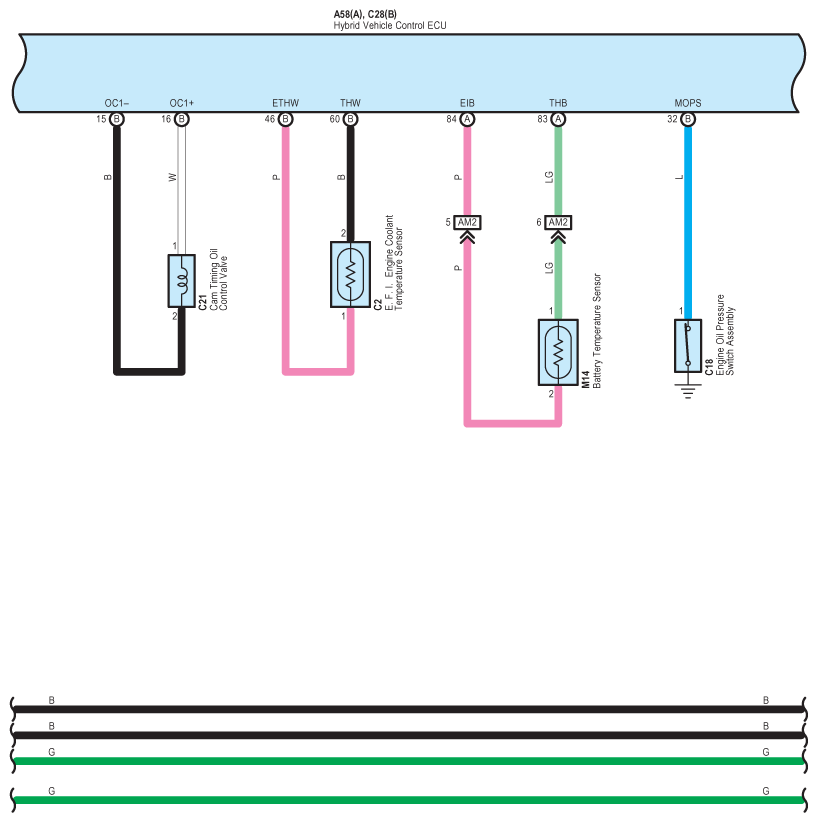

Fig 3: Hybrid System - Wiring Diagram (3 Of 30)

G08911361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

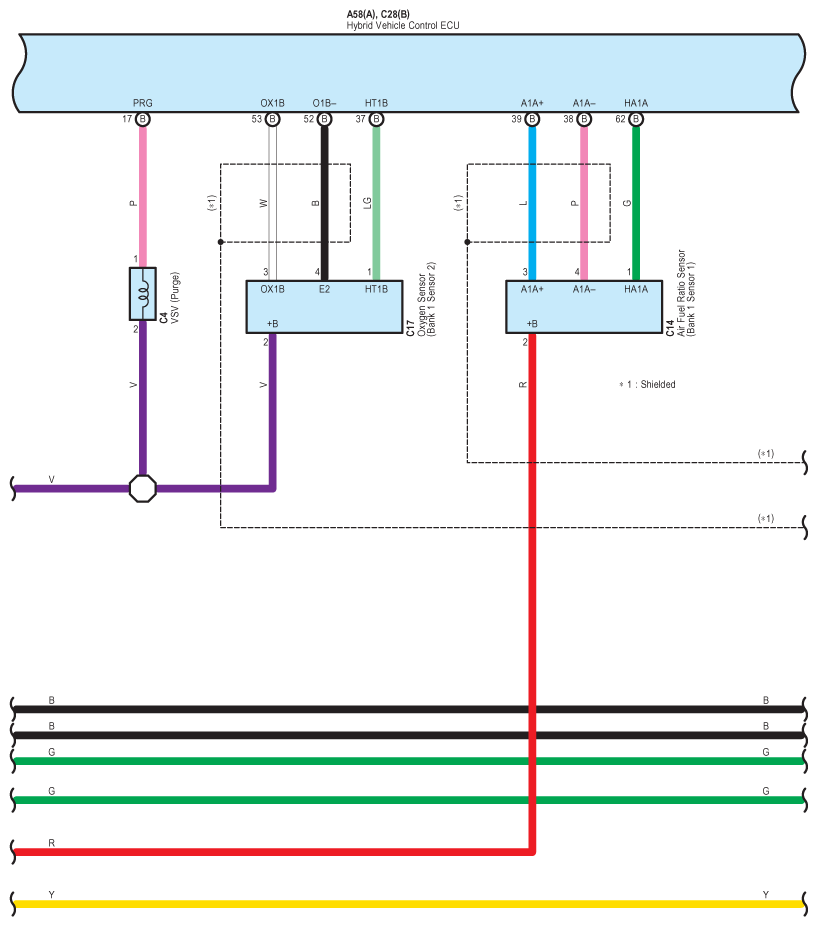

Fig 4: Hybrid System - Wiring Diagram (4 Of 30)

G08911362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

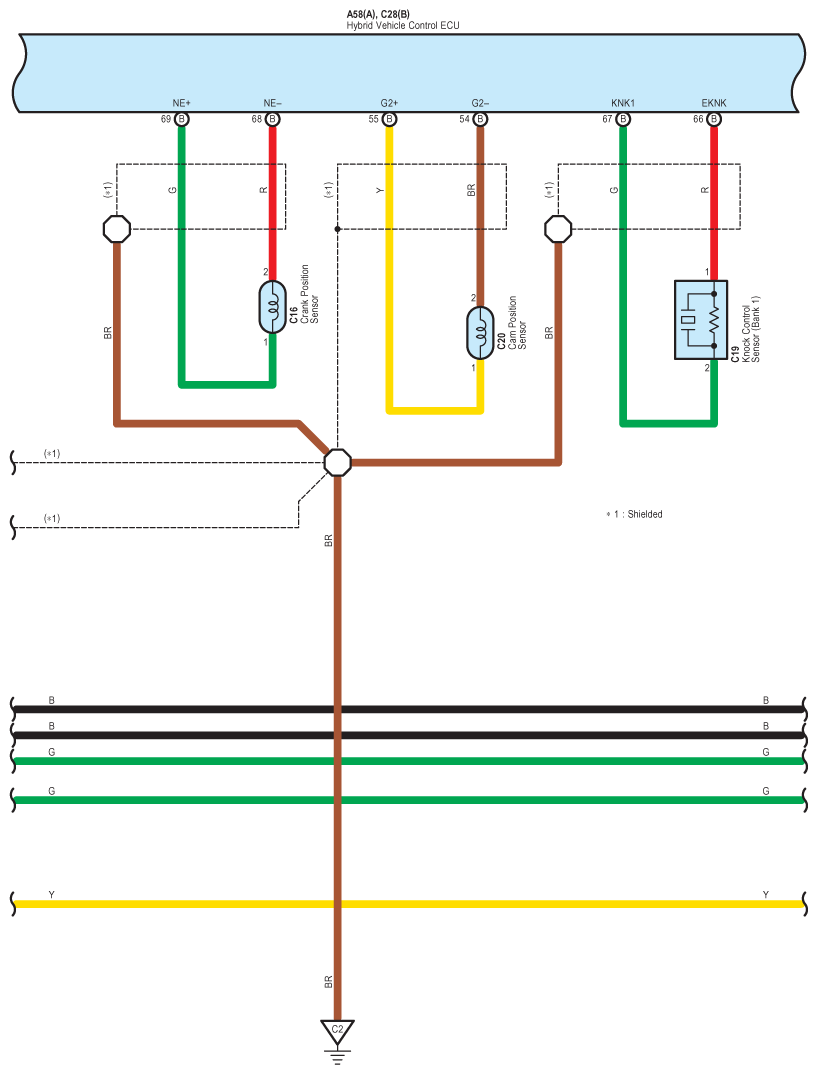

Fig 5: Hybrid System - Wiring Diagram (5 Of 30)

G08911363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

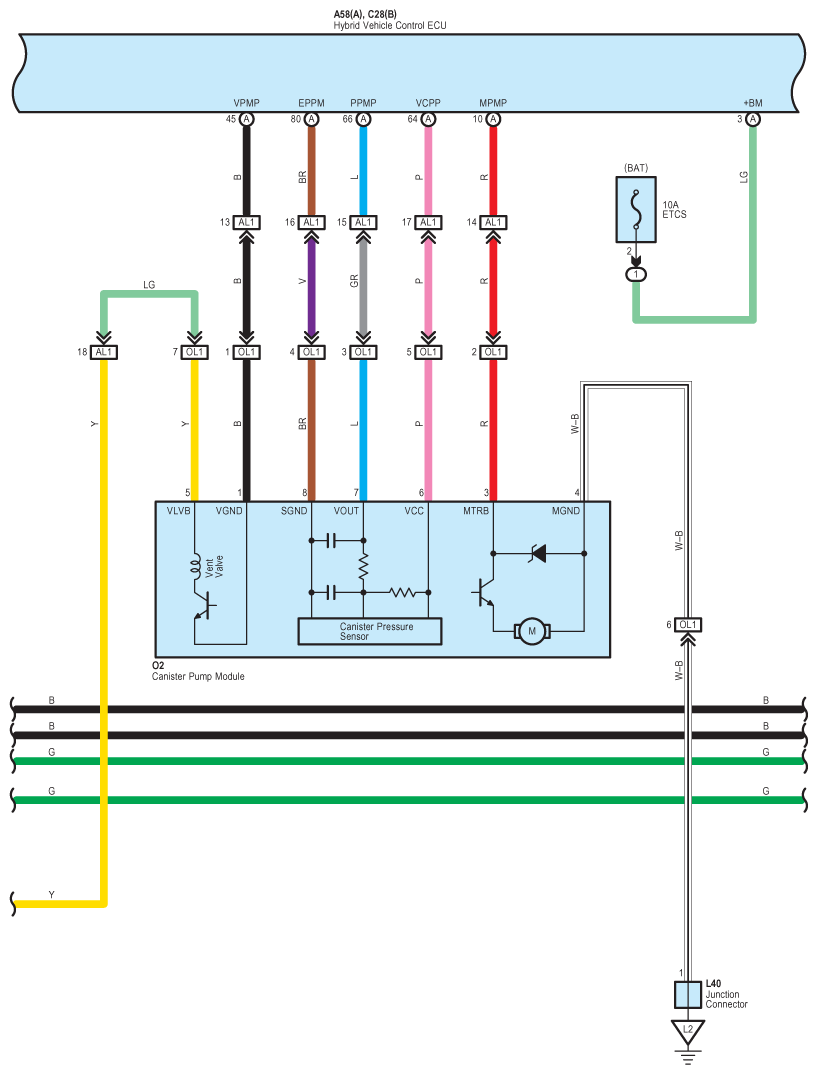

Fig 6: Hybrid System - Wiring Diagram (6 Of 30)

G08911364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Hybrid System - Wiring Diagram (7 Of 30)

G08911365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

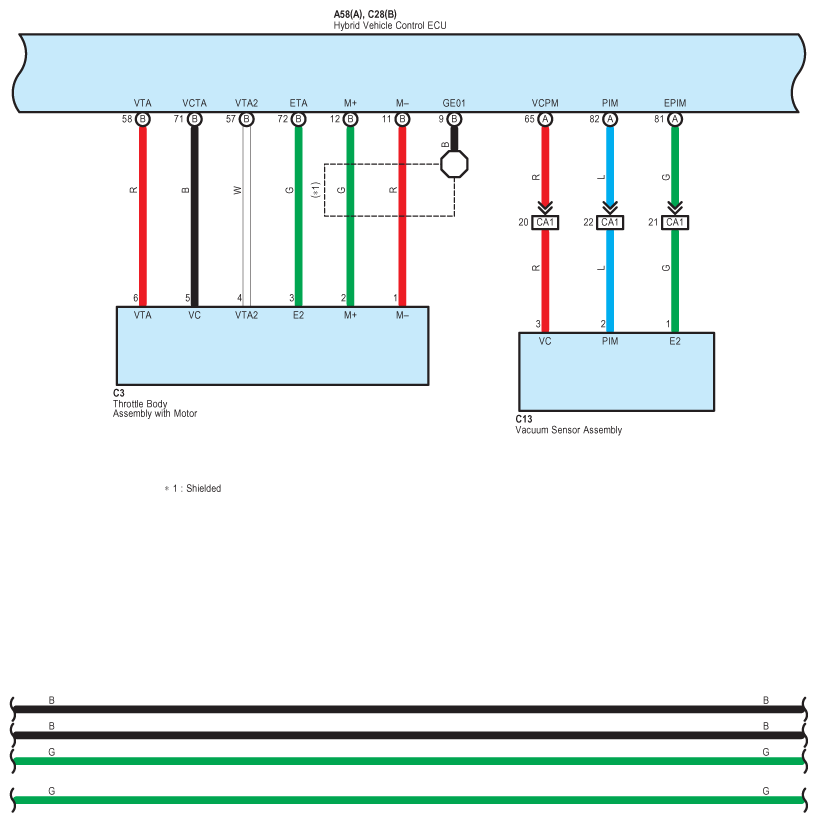

Fig 8: Hybrid System - Wiring Diagram (8 Of 30)

G08911366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

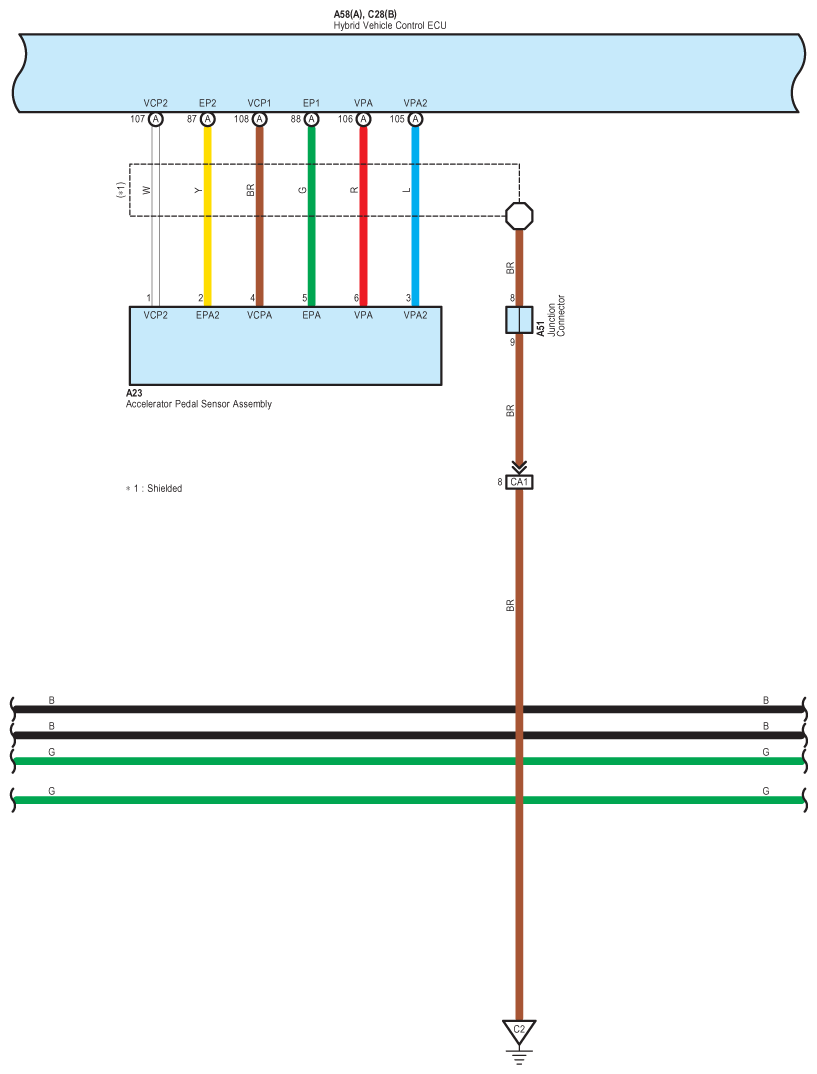

Fig 9: Hybrid System - Wiring Diagram (9 Of 30)

G08911367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

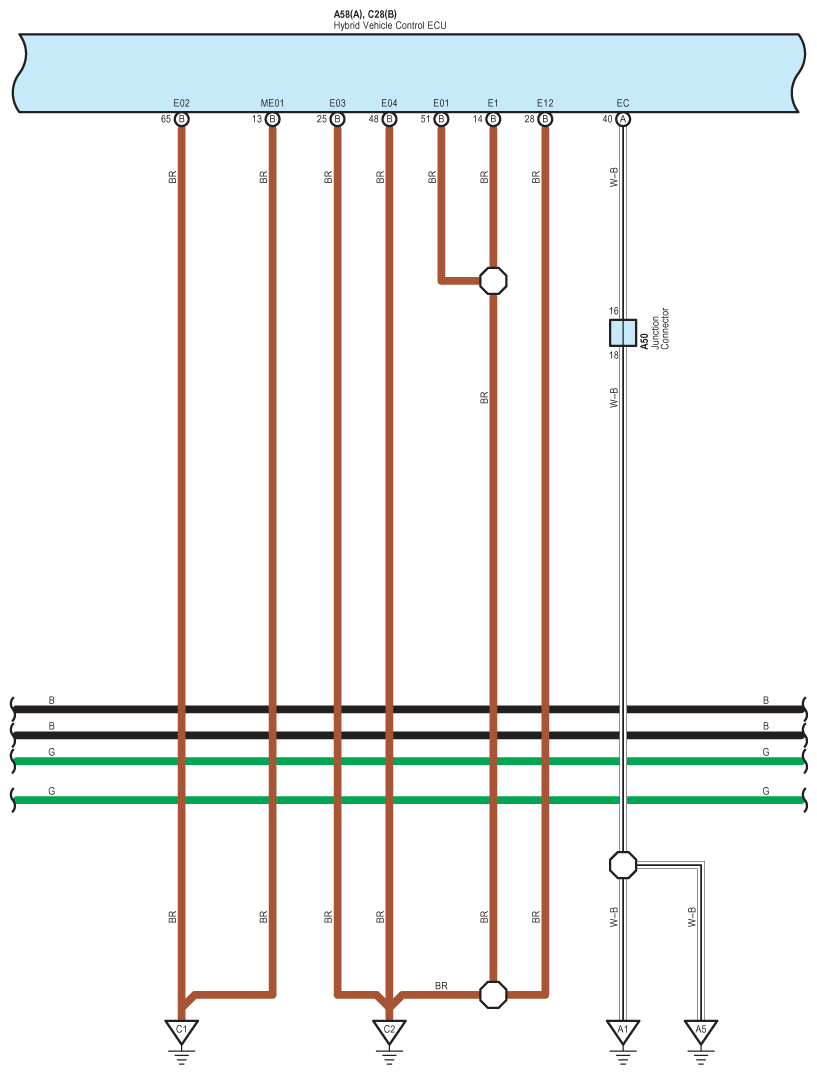

Fig 10: Hybrid System - Wiring Diagram (10 Of 30)

G08911368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

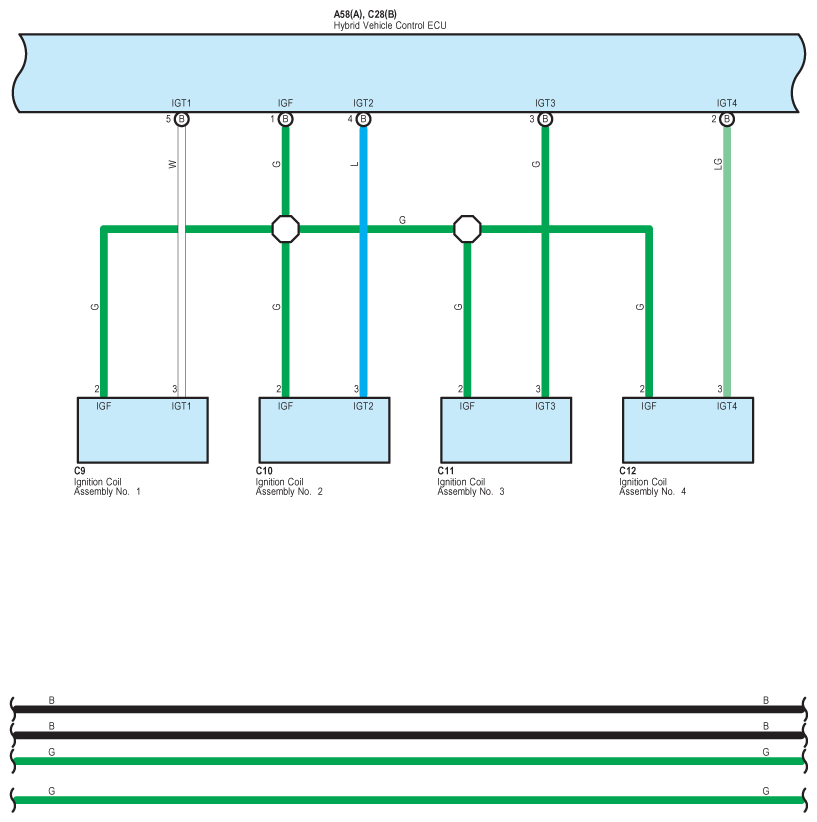

Fig 11: Hybrid System - Wiring Diagram (11 Of 30)

G08911369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

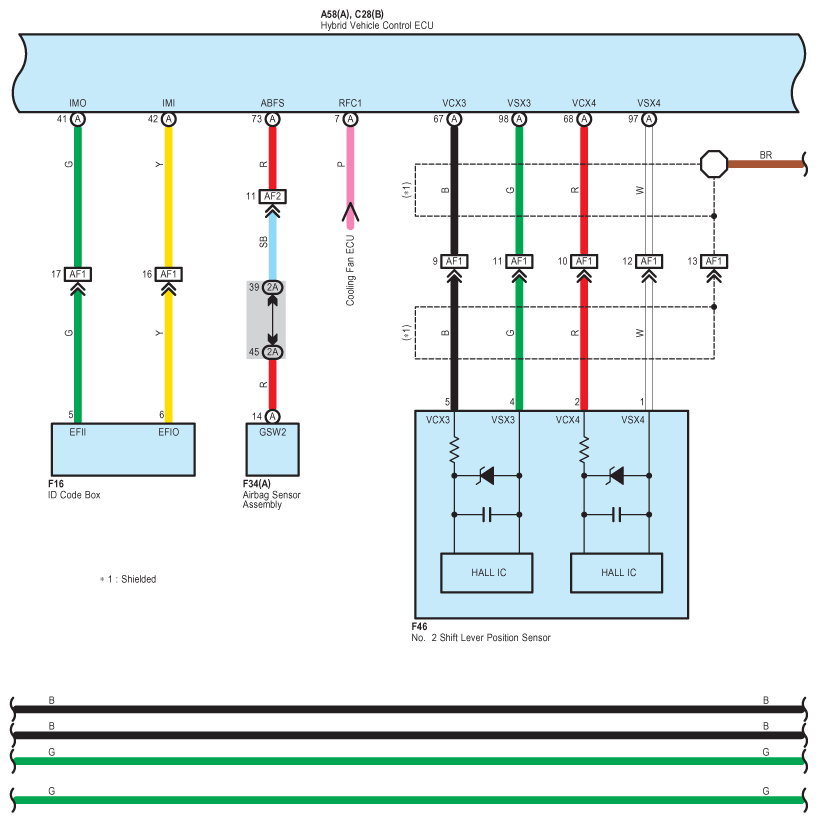

Fig 12: Hybrid System - Wiring Diagram (12 Of 30)

G08911370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

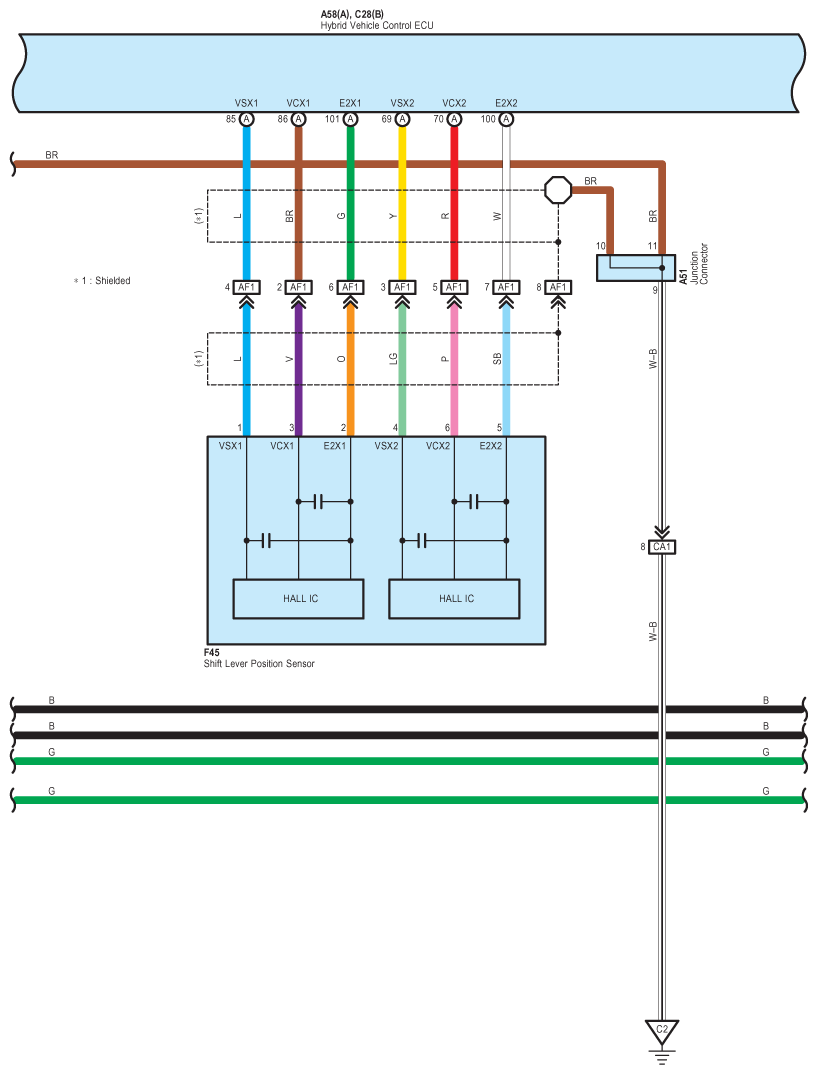

Fig 13: Hybrid System - Wiring Diagram (13 Of 30)

G08911371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

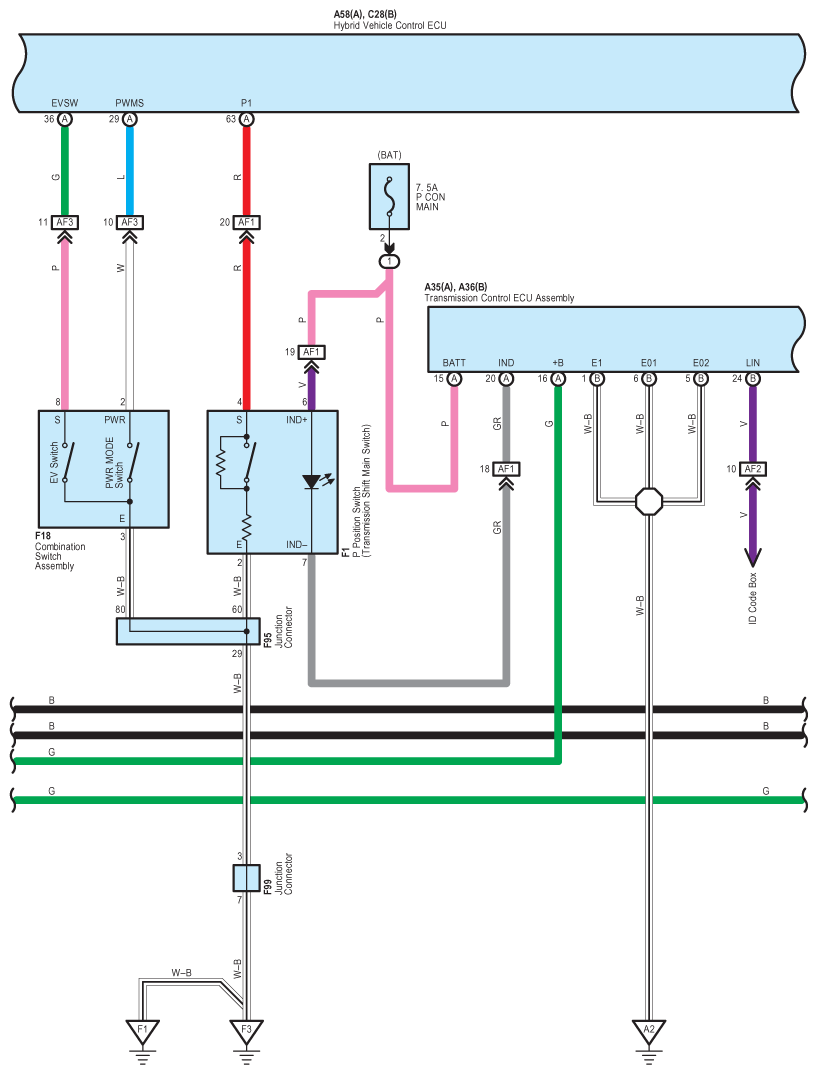

Fig 14: Hybrid System - Wiring Diagram (14 Of 30)

G08911372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

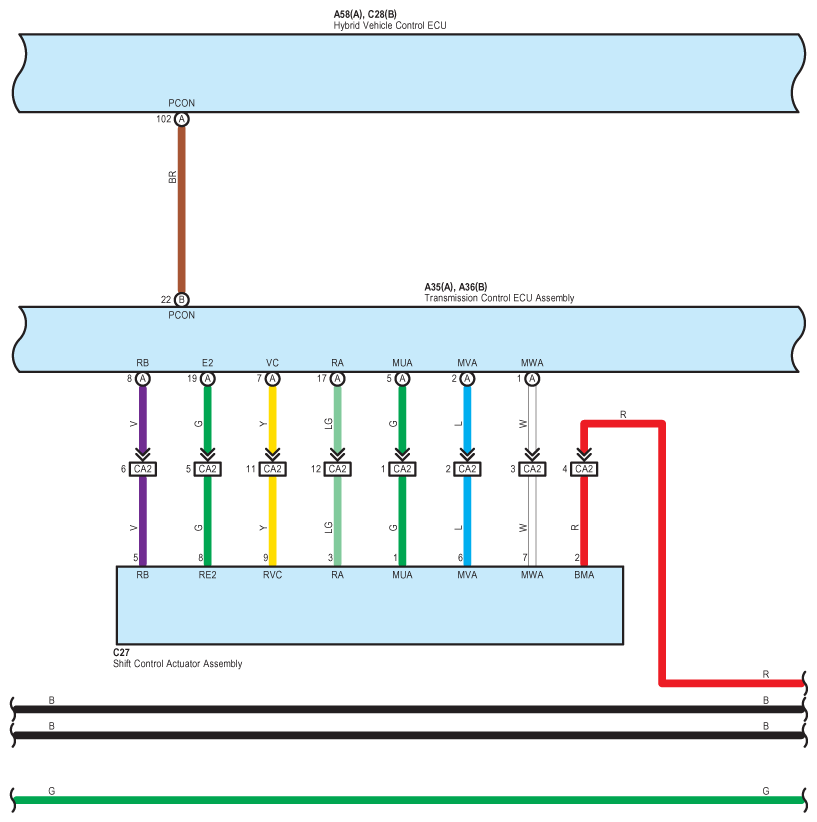

Fig 15: Hybrid System - Wiring Diagram (15 Of 30)

G08911373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

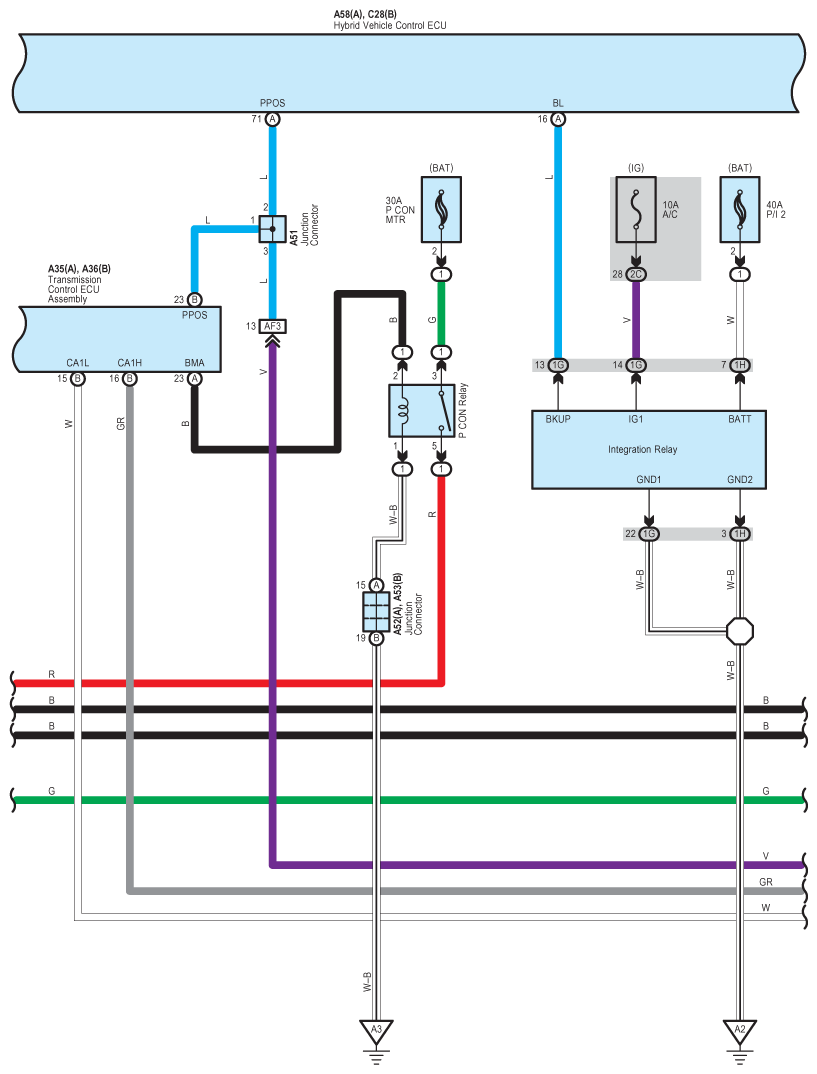

Fig 16: Hybrid System - Wiring Diagram (16 Of 30)

G08911374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Hybrid System - Wiring Diagram (17 Of 30)

G08911375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

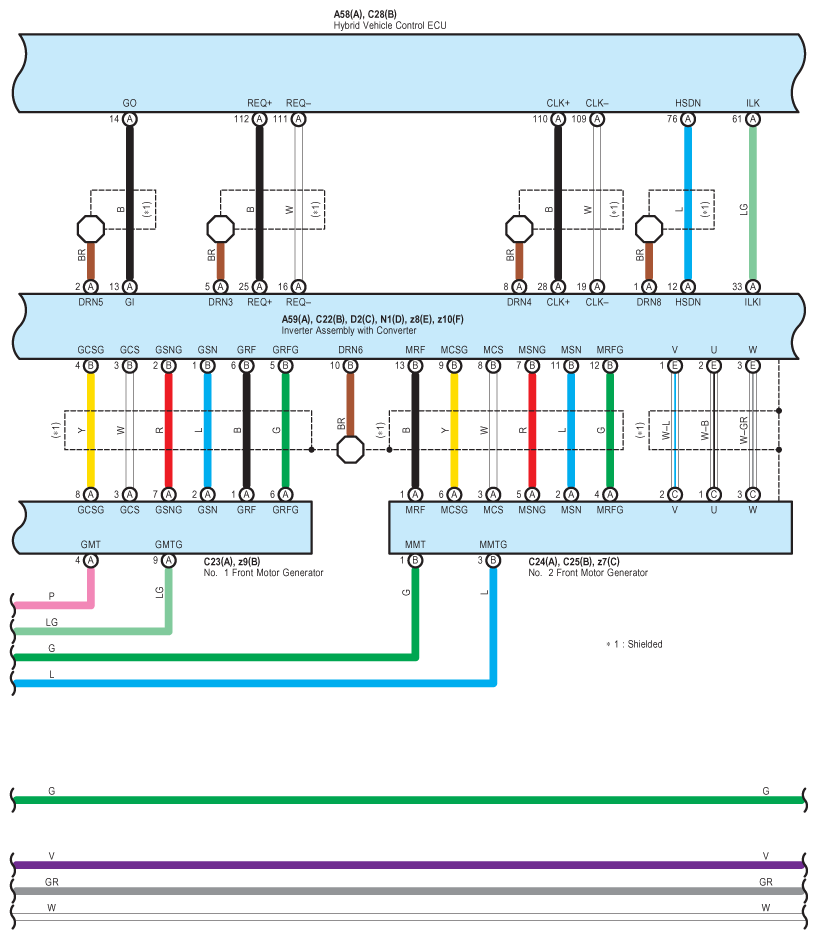

Fig 18: Hybrid System - Wiring Diagram (18 Of 30)

G08911376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

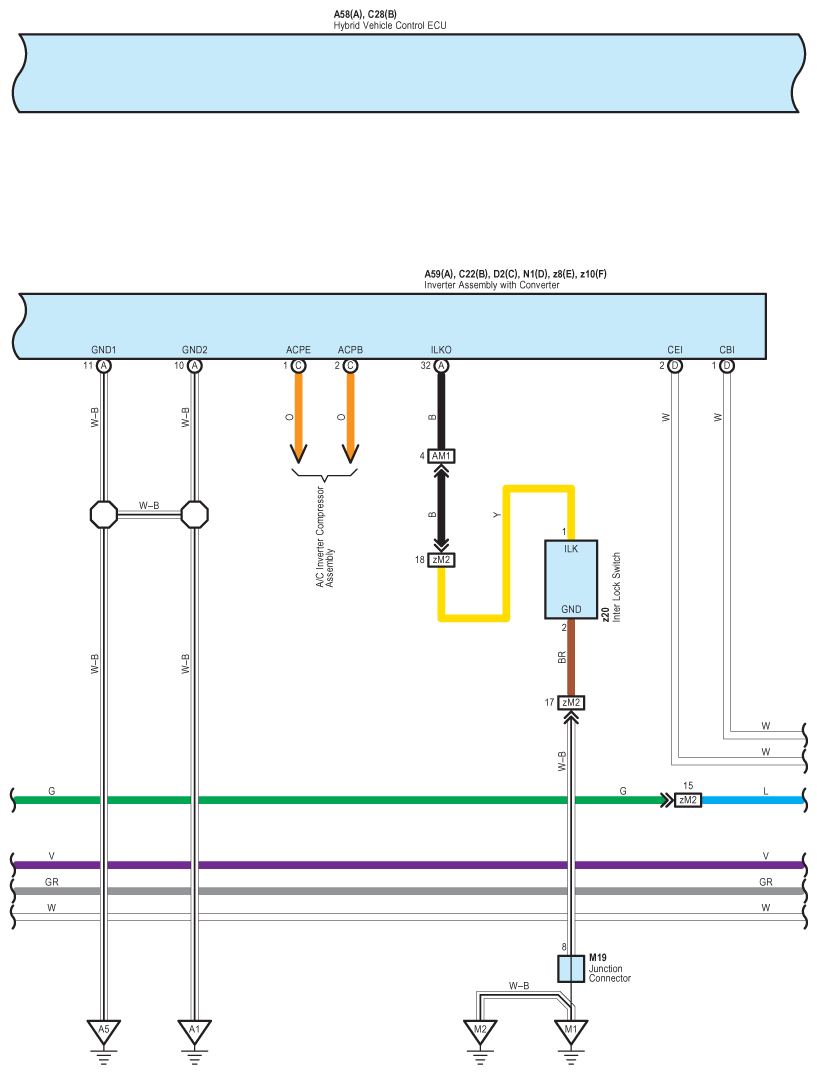

Fig 19: Hybrid System - Wiring Diagram (19 Of 30)

G08911377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

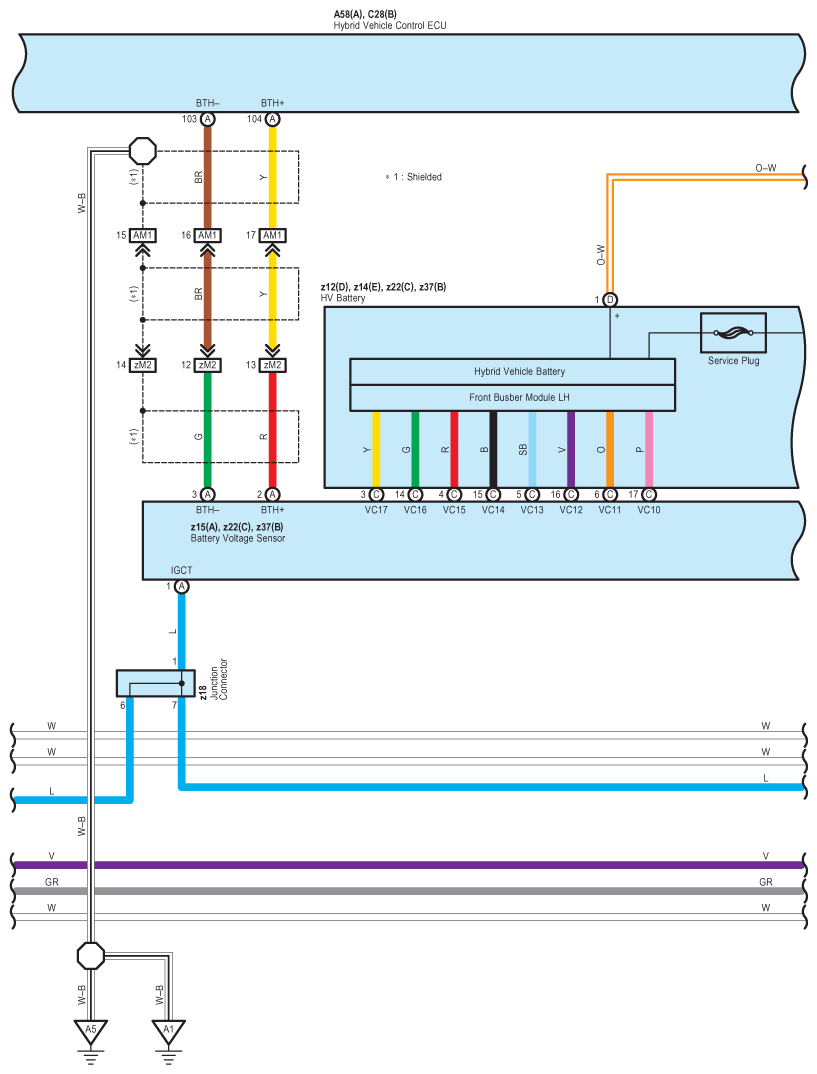

Fig 20: Hybrid System - Wiring Diagram (20 Of 30)

G08911378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

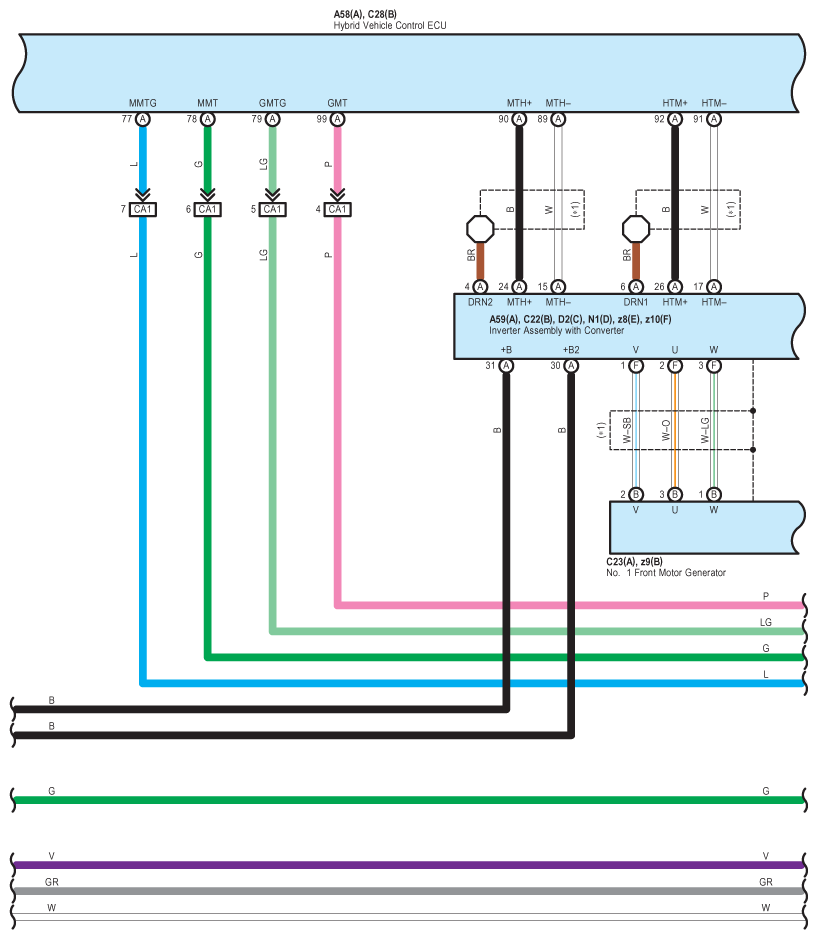

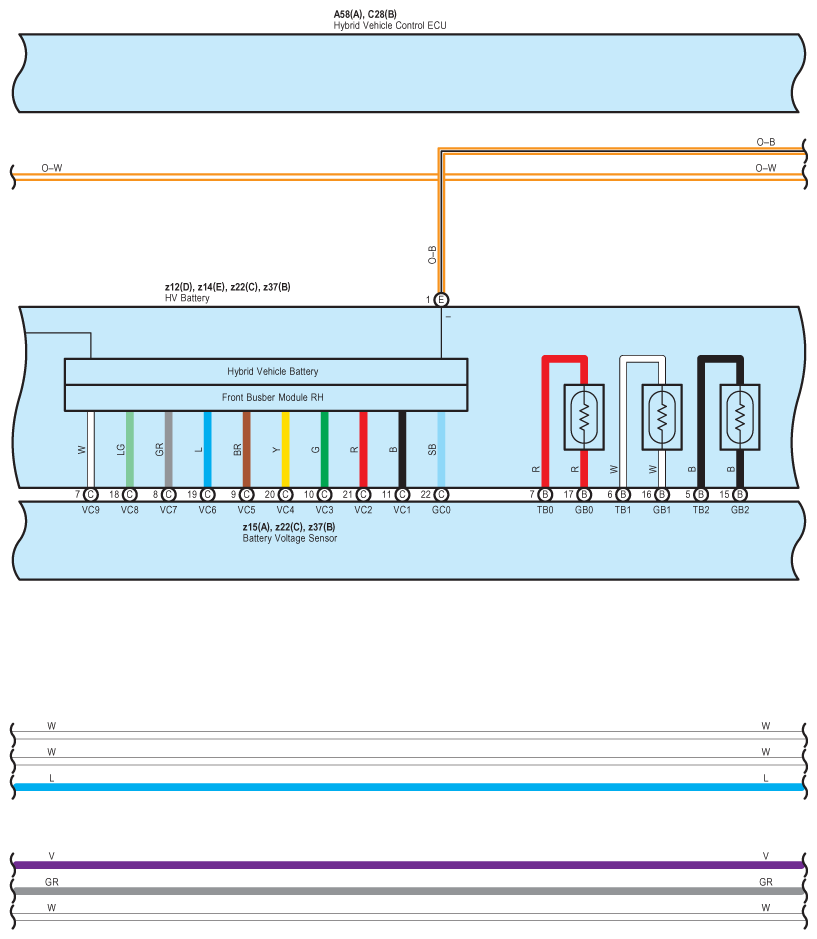

Fig 21: Hybrid System - Wiring Diagram (21 Of 30)

G08911379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

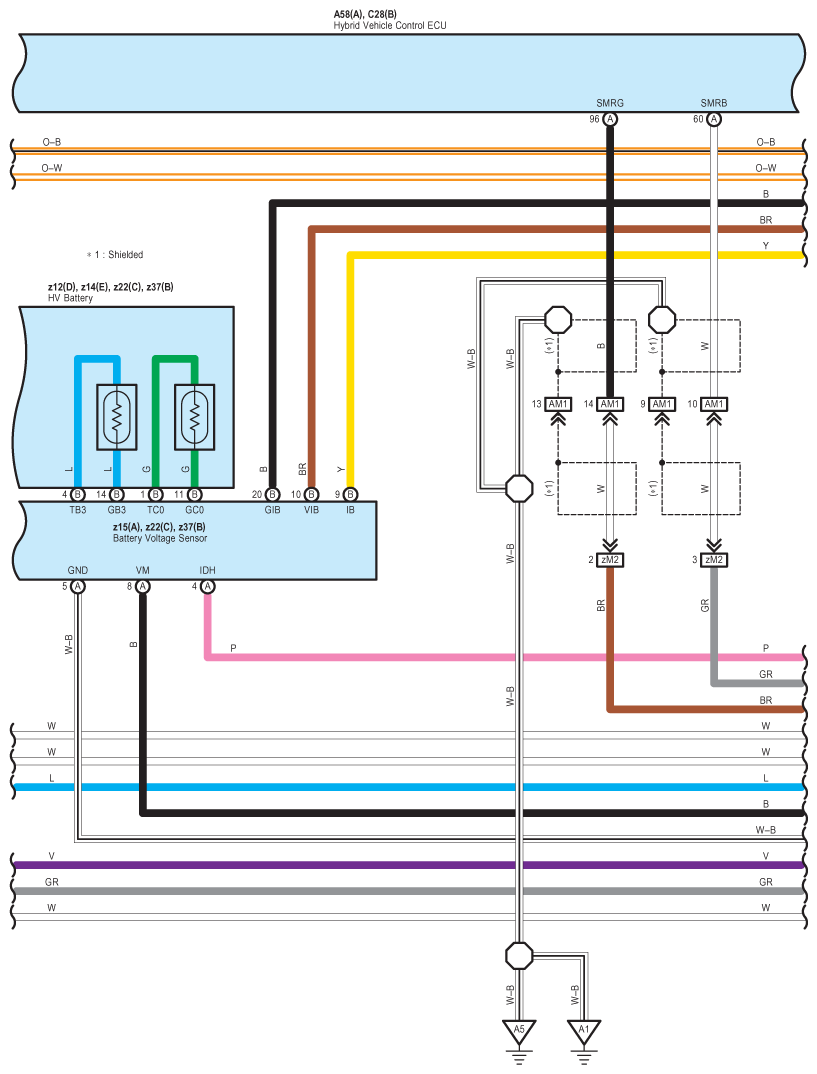

Fig 22: Hybrid System - Wiring Diagram (22 Of 30)

G08911380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

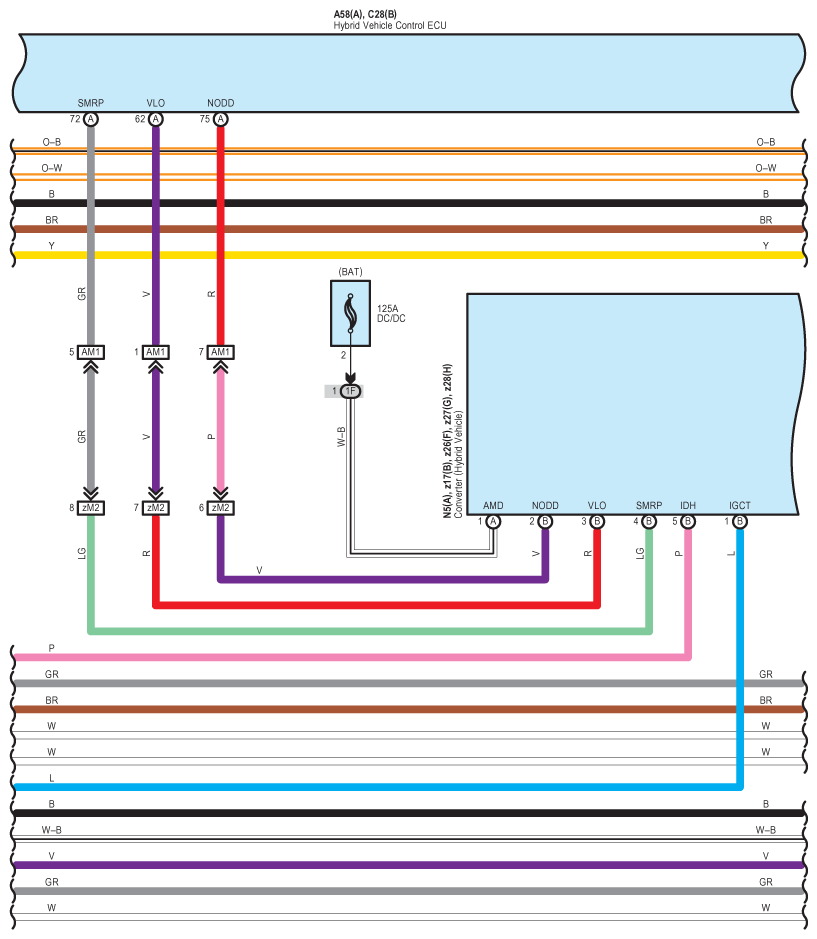

Fig 23: Hybrid System - Wiring Diagram (23 Of 30)

G08911381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

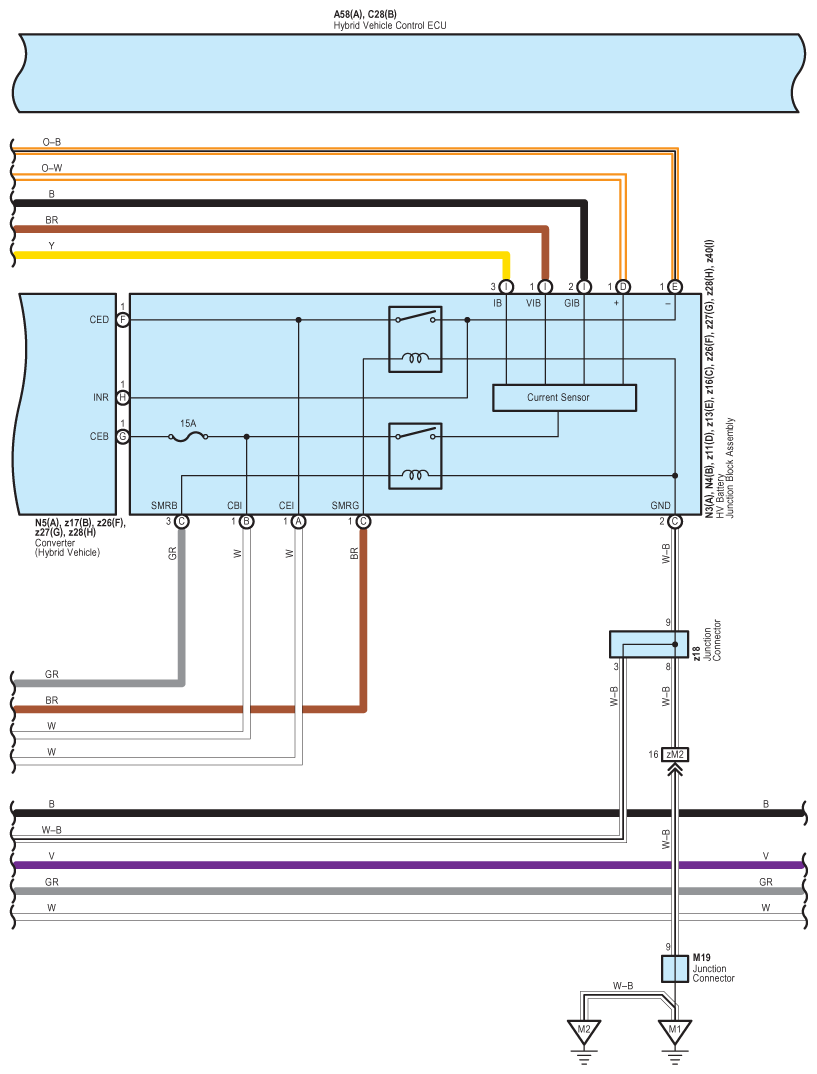

Fig 24: Hybrid System - Wiring Diagram (24 Of 30)

G08911382

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

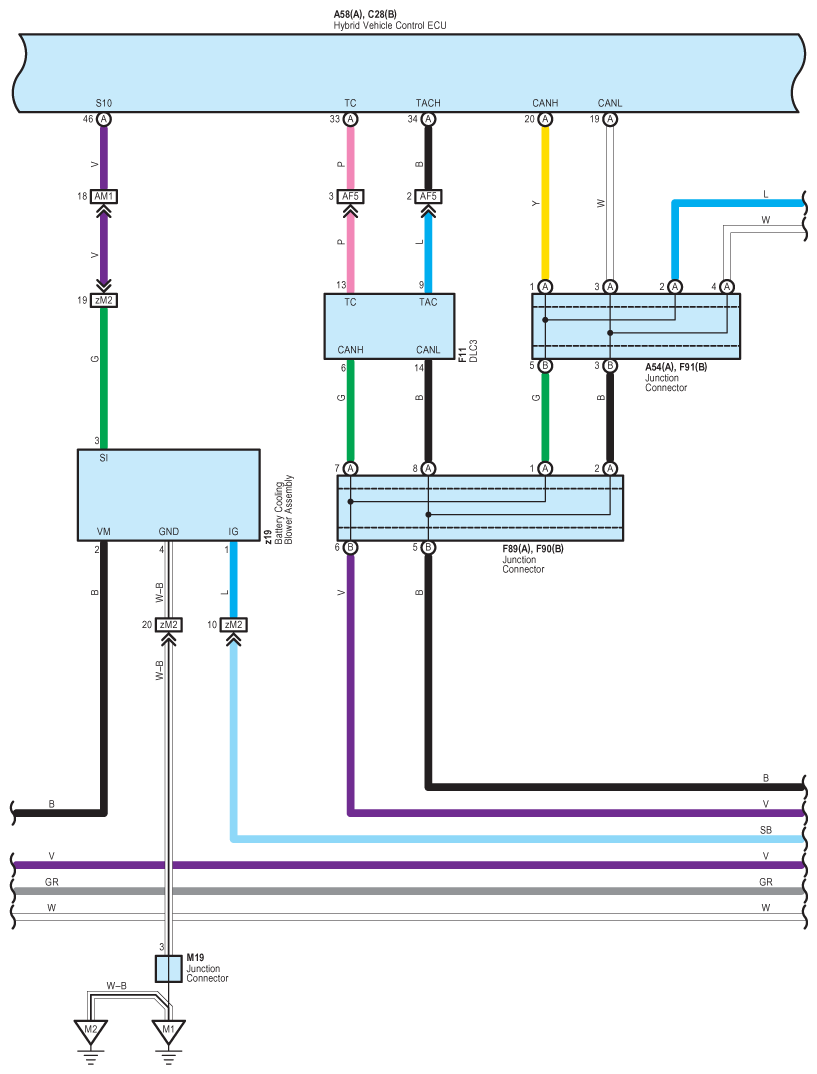

Fig 25: Hybrid System - Wiring Diagram (25 Of 30)

G08911383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

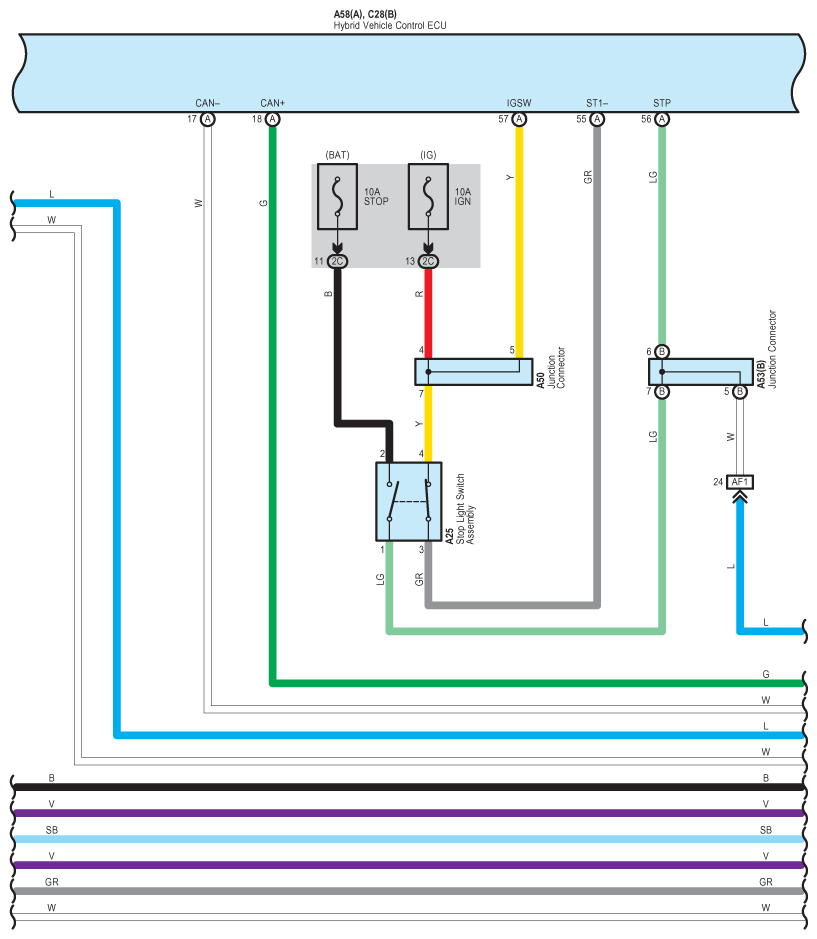

Fig 26: Hybrid System - Wiring Diagram (26 Of 30)

G08911384

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Hybrid System - Wiring Diagram (27 Of 30)

G08911385

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

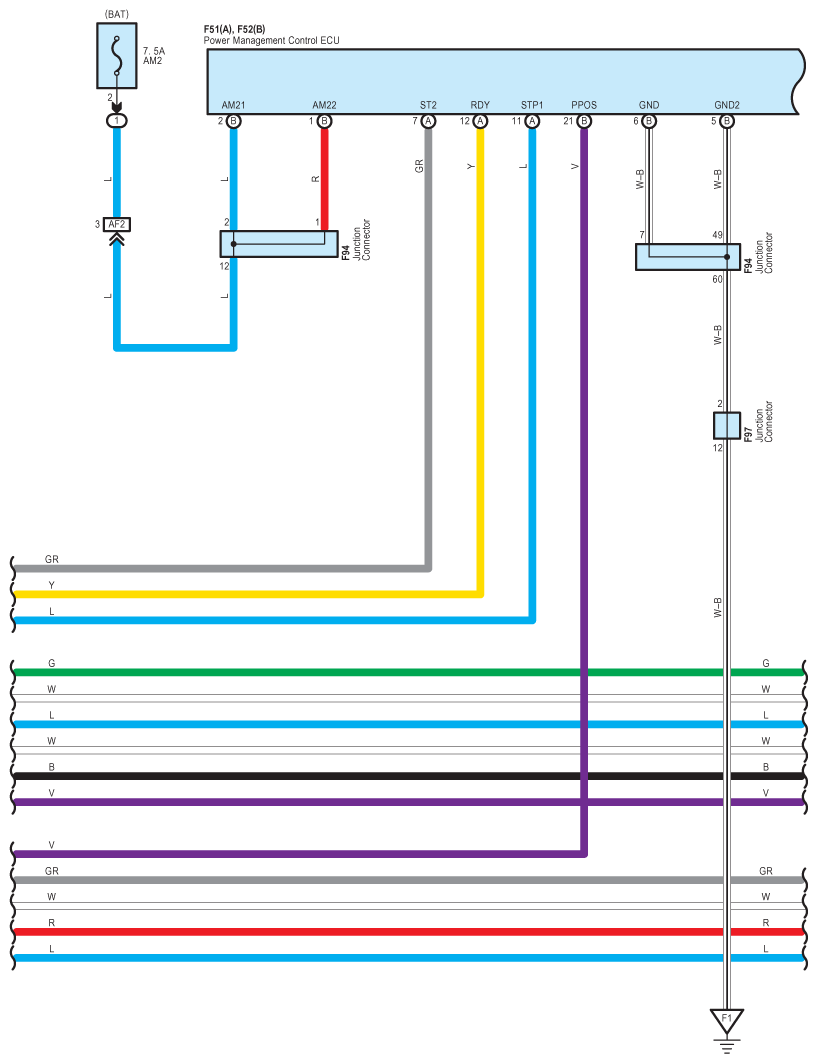

Fig 28: Hybrid System - Wiring Diagram (28 Of 30)

G08911386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

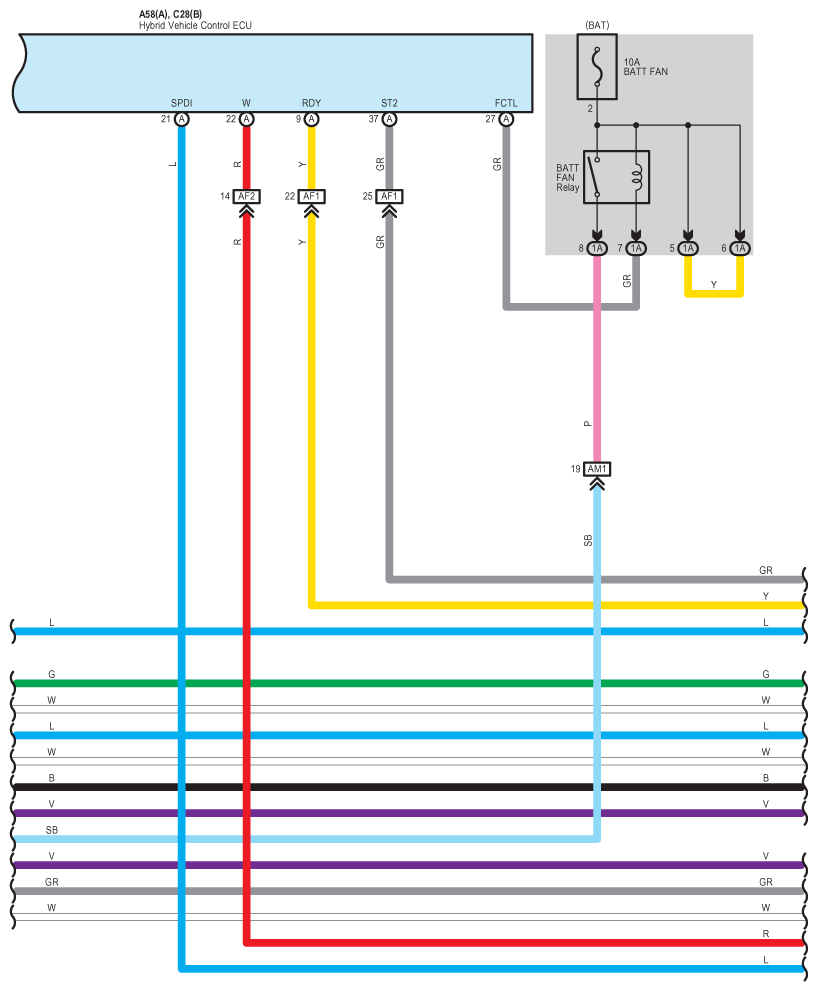

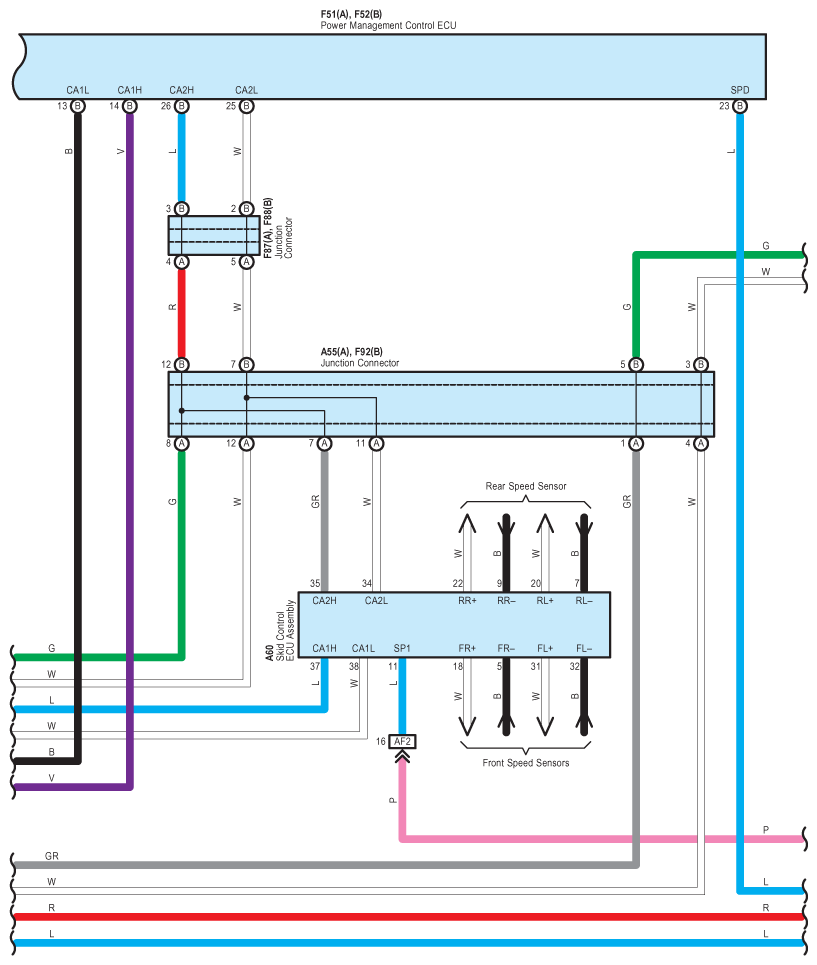

Fig 29: Hybrid System - Wiring Diagram (29 Of 30)

G08911387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

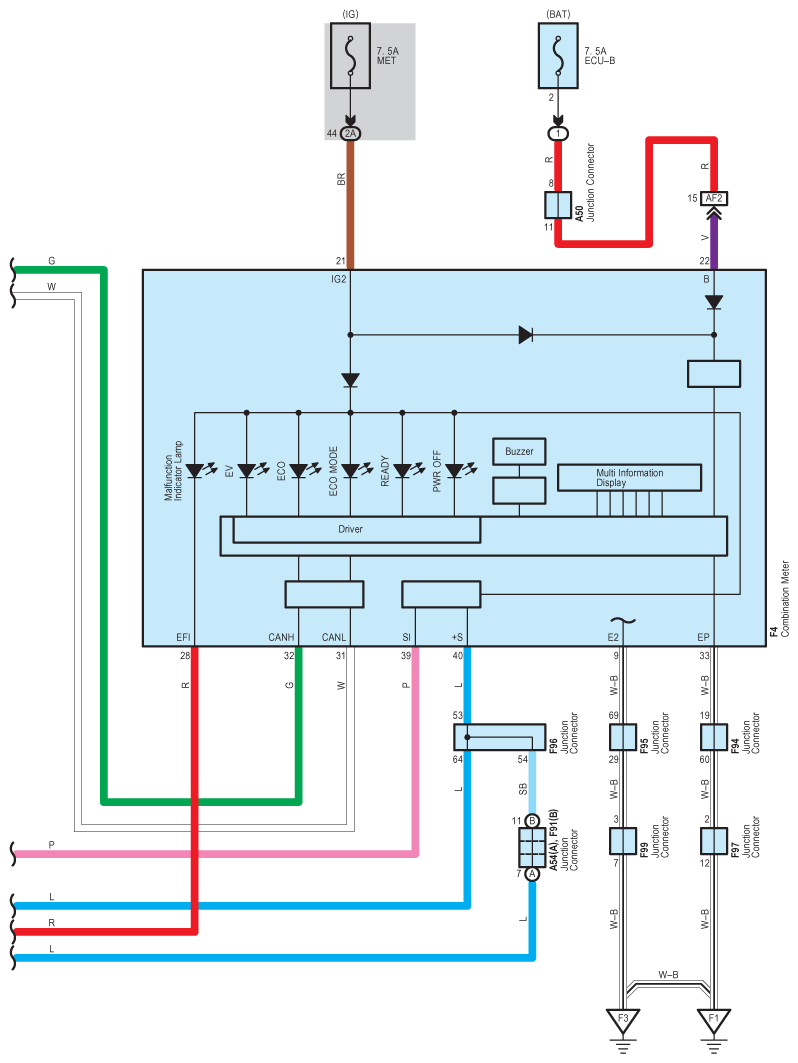

Fig 30: Hybrid System - Wiring Diagram (30 Of 30)

G08911388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
