Interior Light: Notes

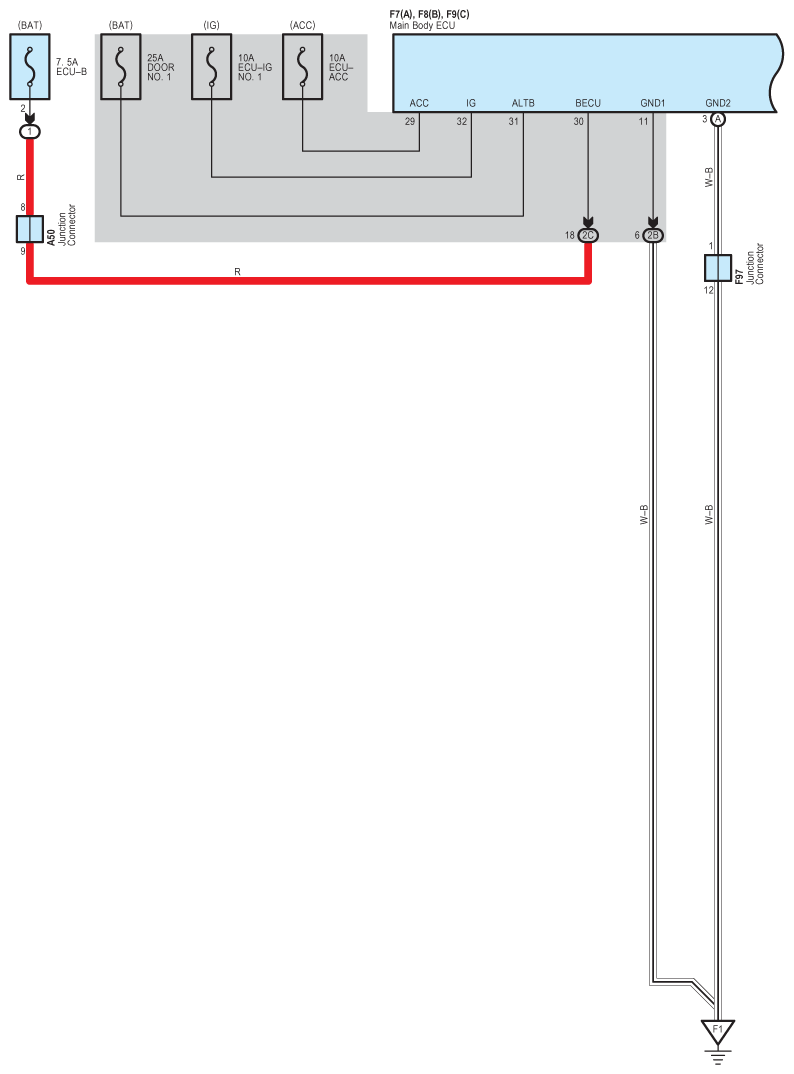

Fig 1: Interior Light - Wiring Diagram (1 Of 7)

G08911448

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

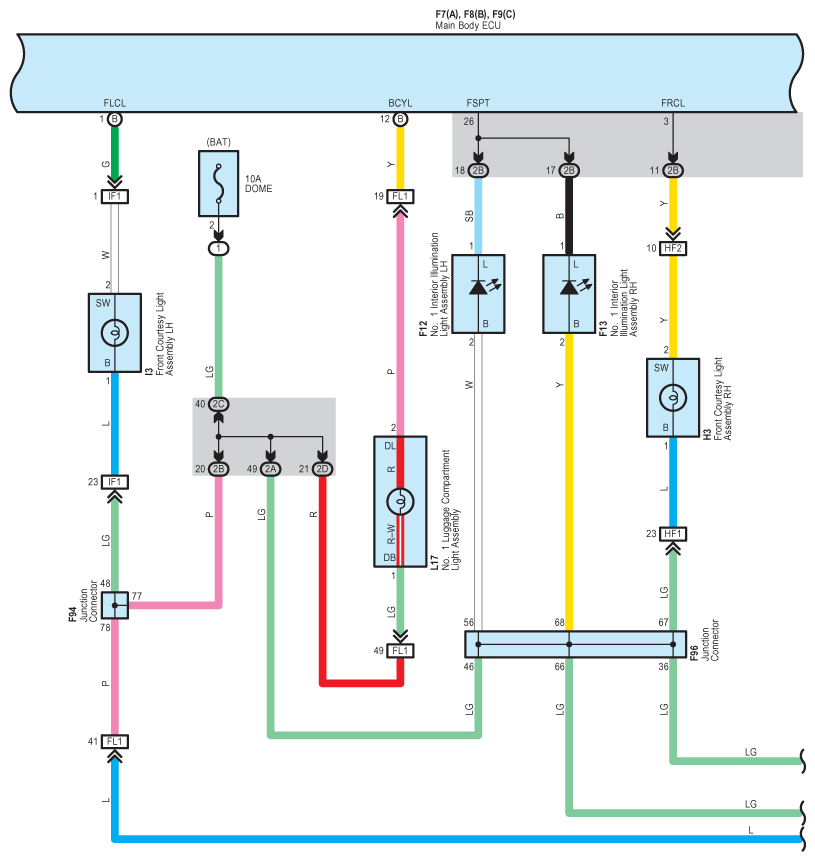

Fig 2: Interior Light - Wiring Diagram (2 Of 7)

G08911449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

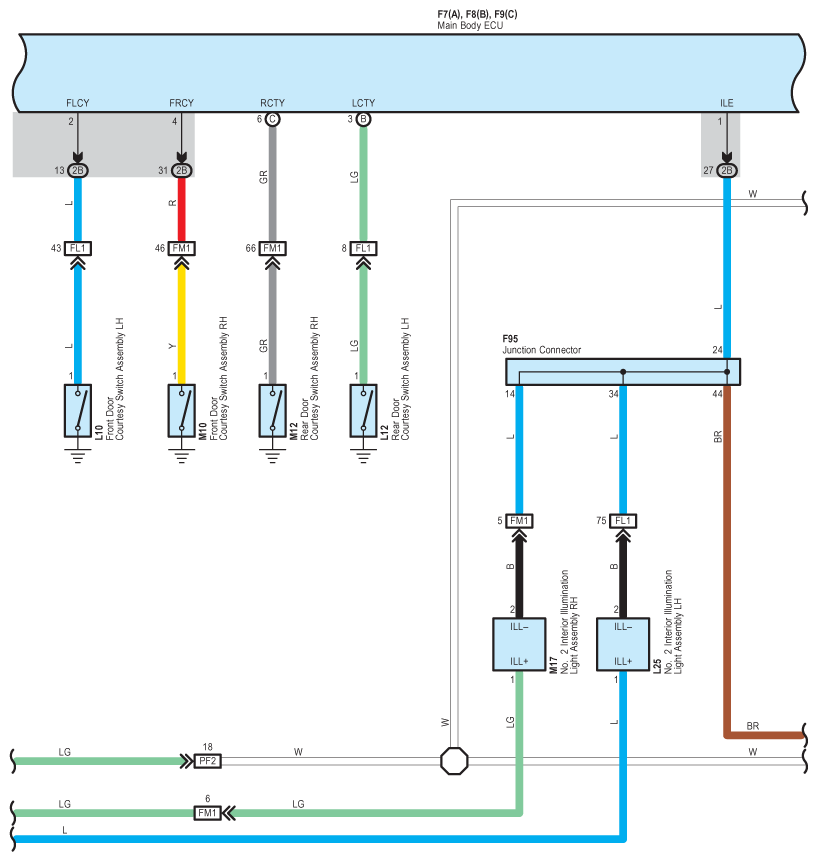

Fig 3: Interior Light - Wiring Diagram (3 Of 7)

G08911450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

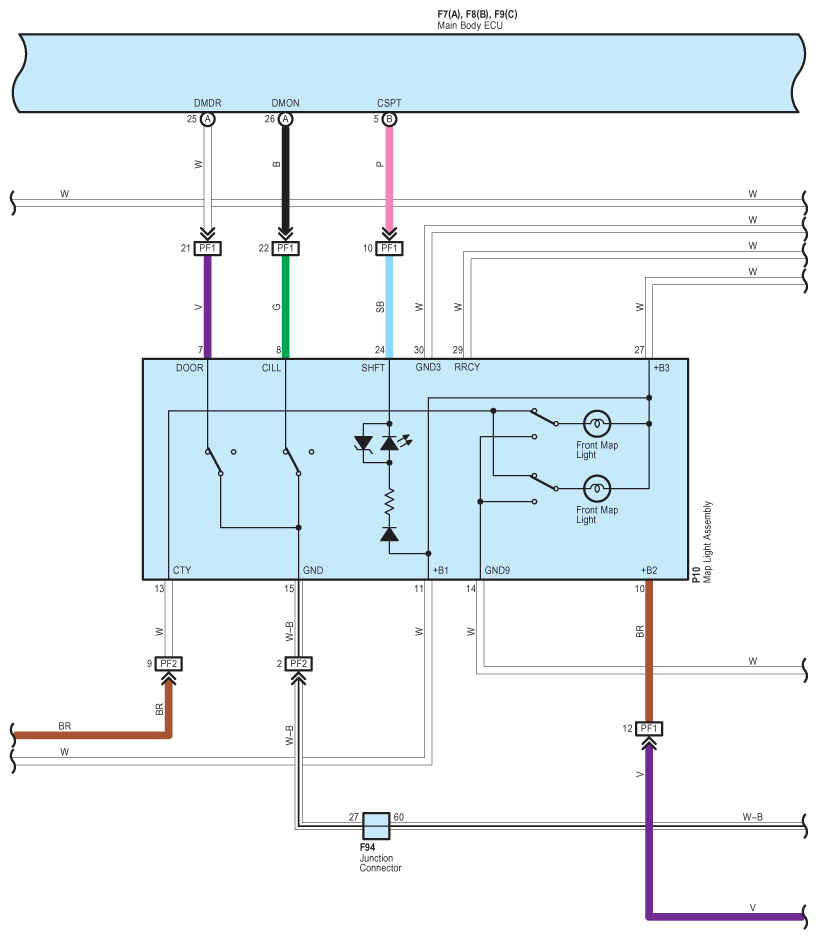

Fig 4: Interior Light - Wiring Diagram (4 Of 7)

G08911451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

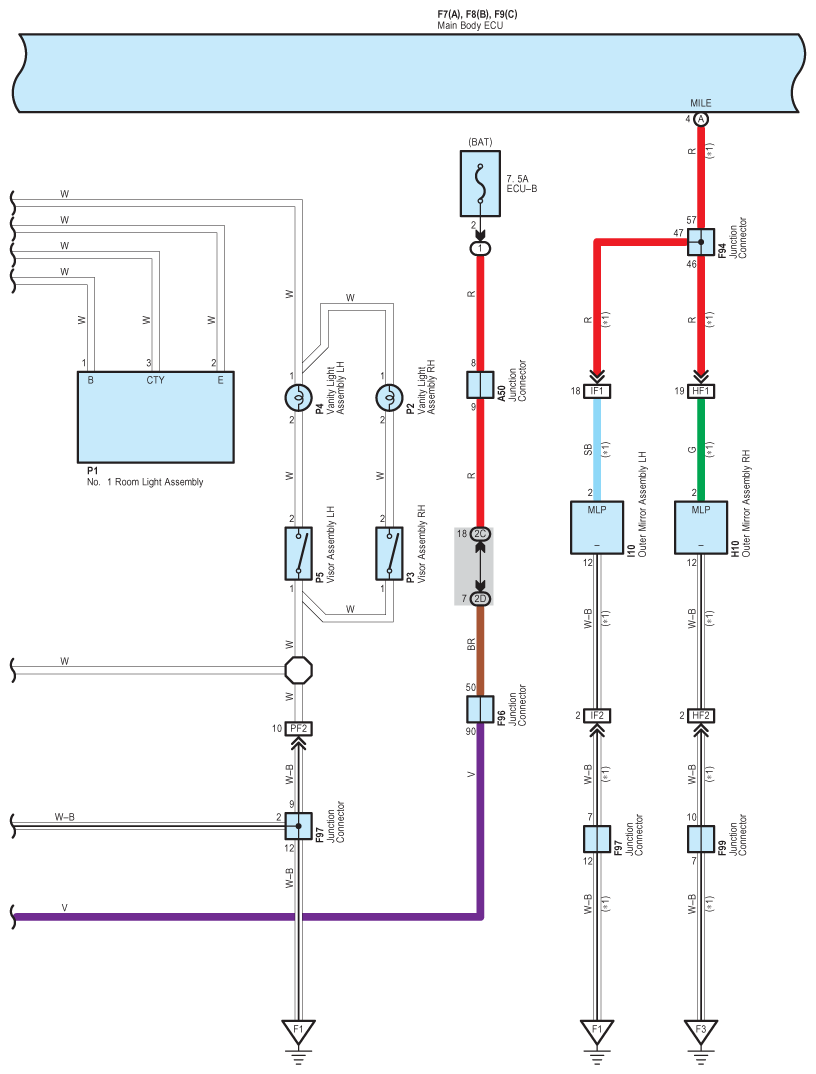

Fig 5: Interior Light - Wiring Diagram (5 Of 7)

G08911452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

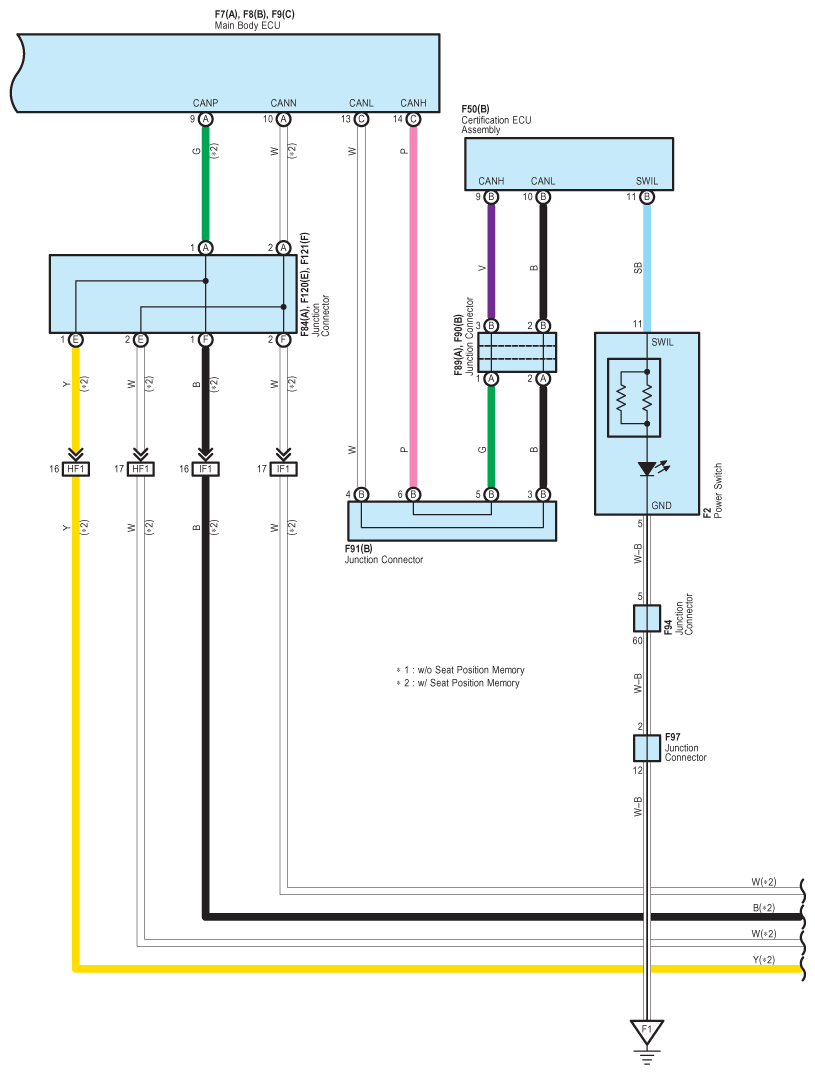

Fig 6: Interior Light - Wiring Diagram (6 Of 7)

G08911453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

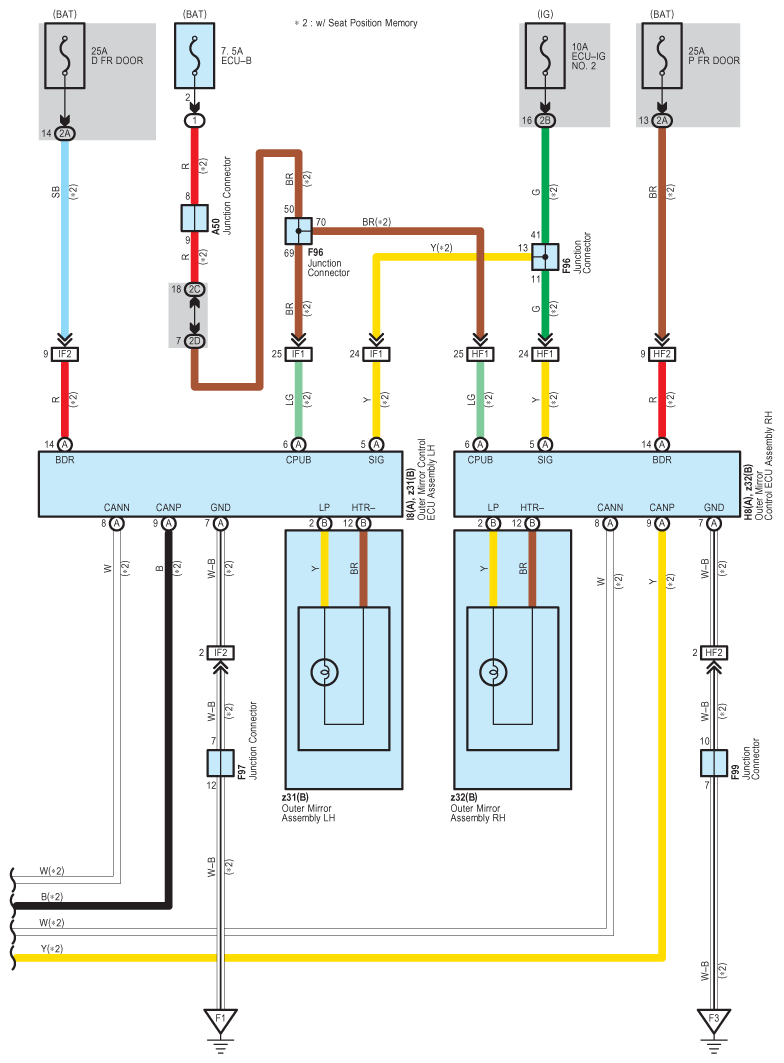

Fig 7: Interior Light - Wiring Diagram (7 Of 7)

G08911454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
