Rear Sunshade: Notes

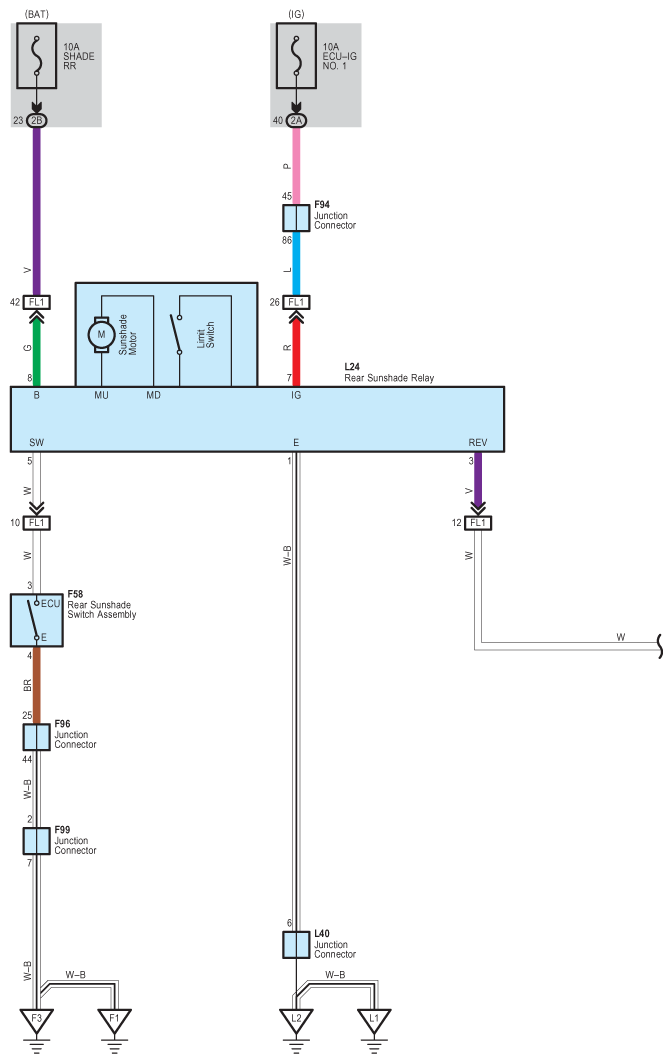

Fig 1: Rear Sunshade - Wiring Diagram (1 Of 5)
G08911525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

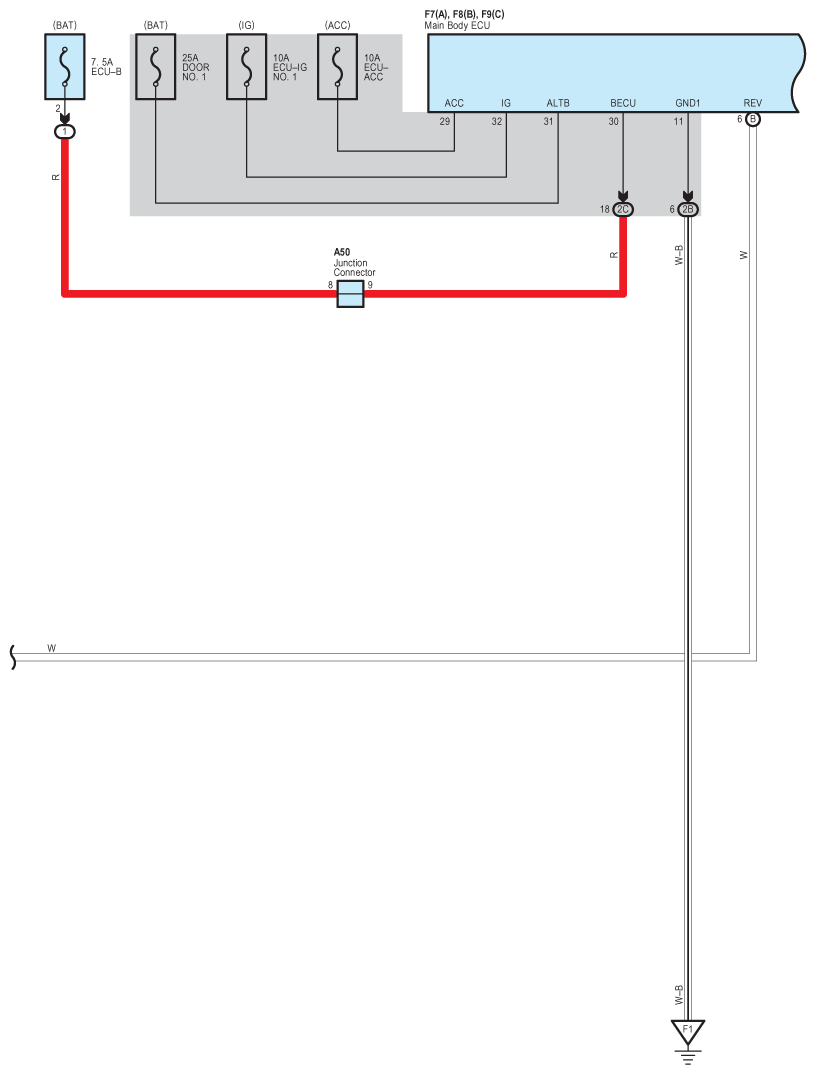

Fig 2: Rear Sunshade - Wiring Diagram (2 Of 5)
G08911526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

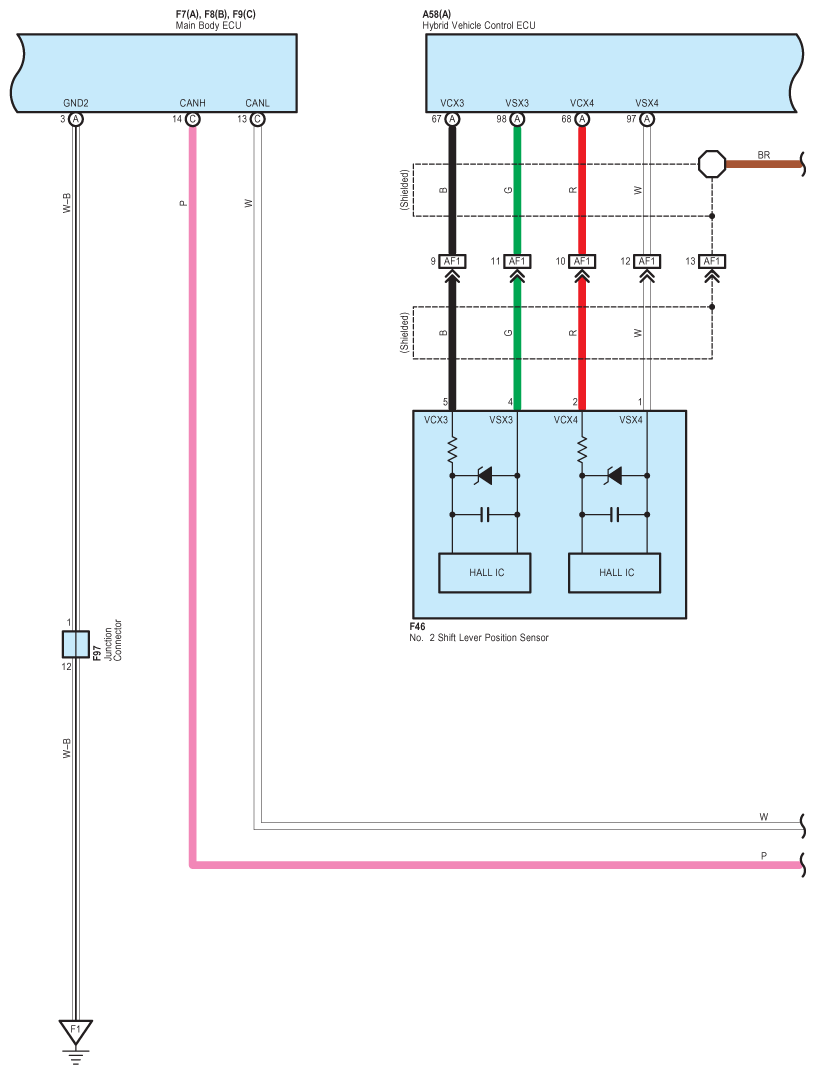

Fig 3: Rear Sunshade - Wiring Diagram (3 Of 5)
G08911527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

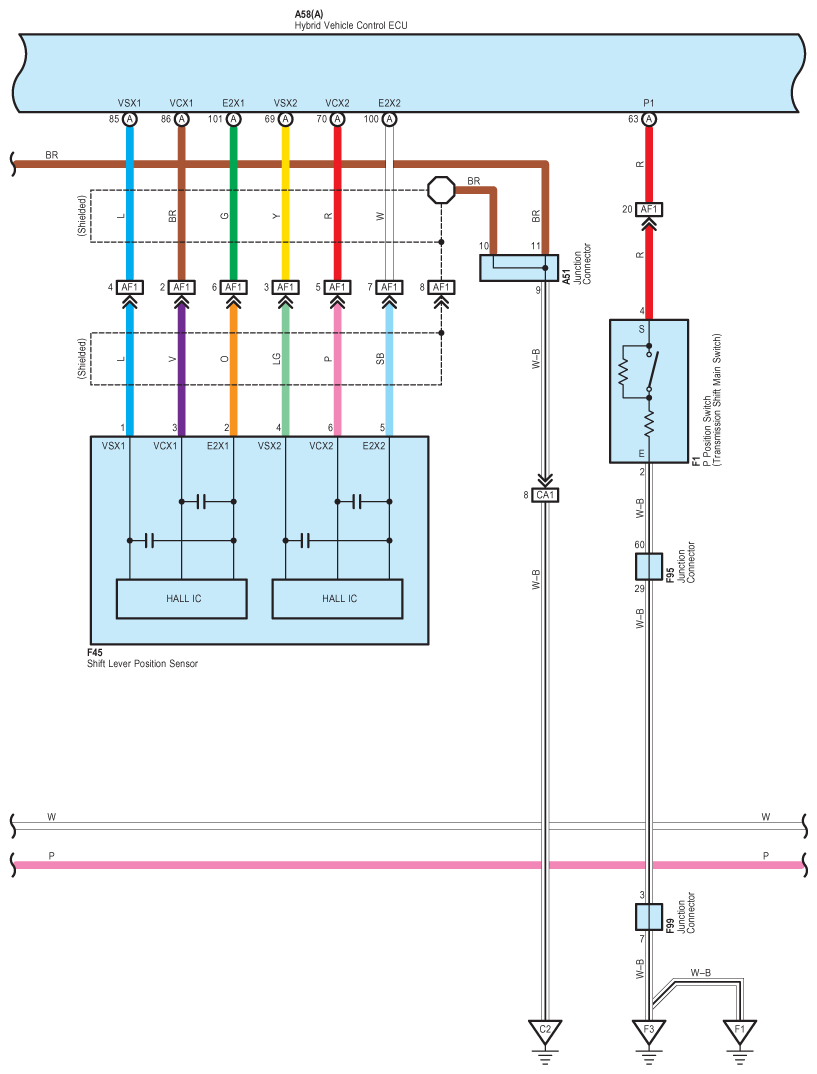

Fig 4: Rear Sunshade - Wiring Diagram (4 Of 5)
G08911528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

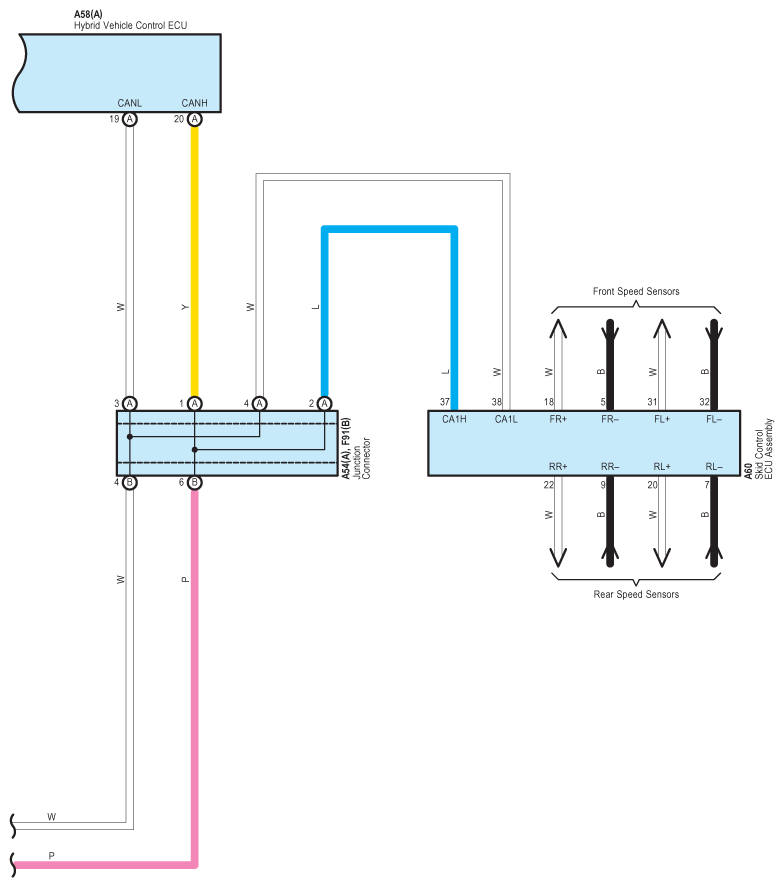

Fig 5: Rear Sunshade - Wiring Diagram (5 Of 5)
G08911529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
