Sliding Roof: Notes

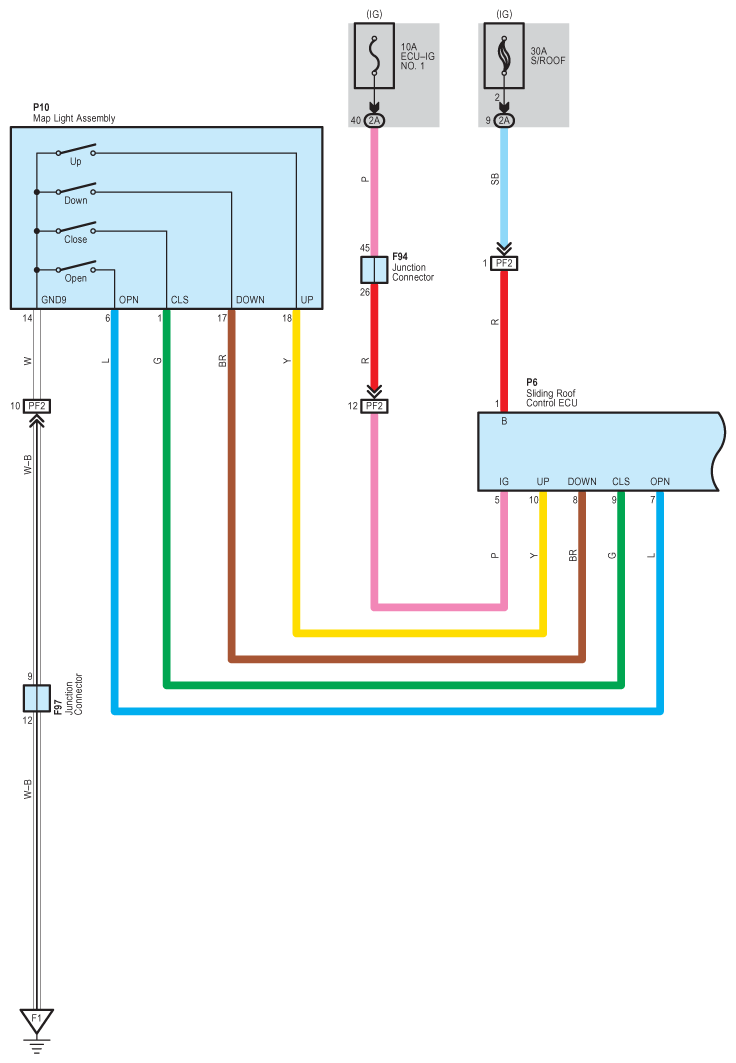

Fig 1: Sliding Roof - Wiring Diagram (1 Of 6)
G08911472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

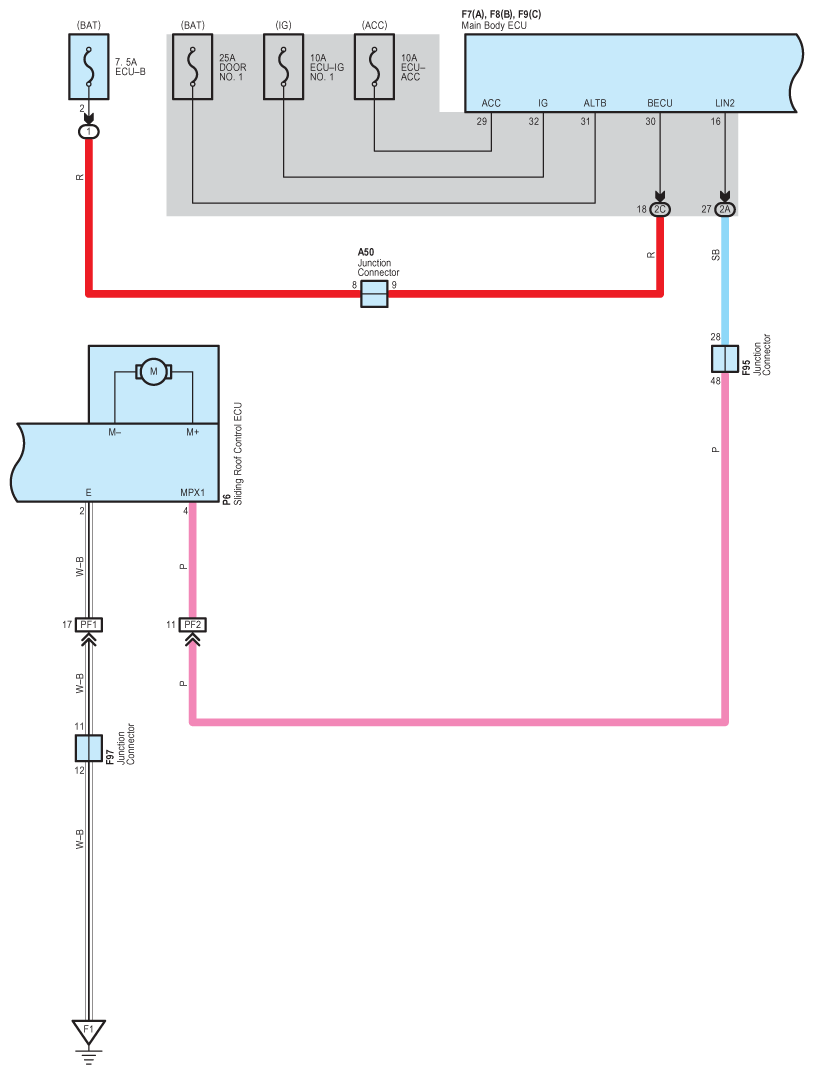

Fig 2: Sliding Roof - Wiring Diagram (2 Of 6)
G08911473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

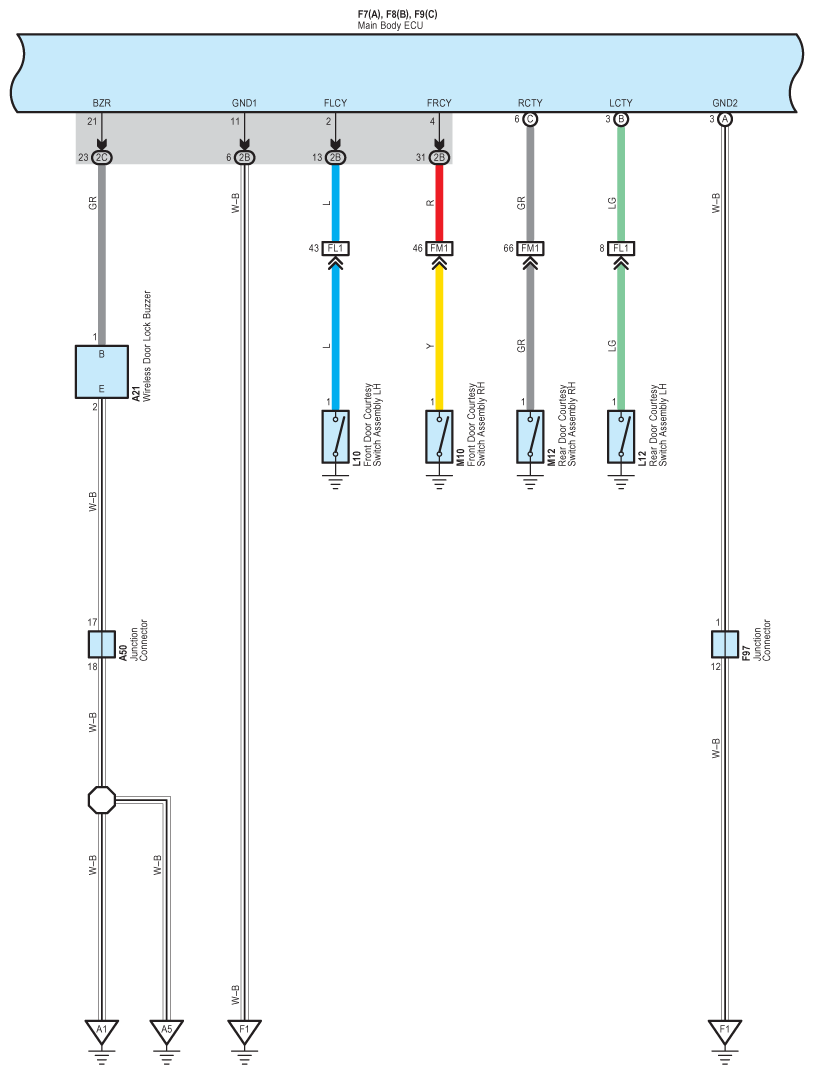

Fig 3: Sliding Roof - Wiring Diagram (3 Of 6)
G08911474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

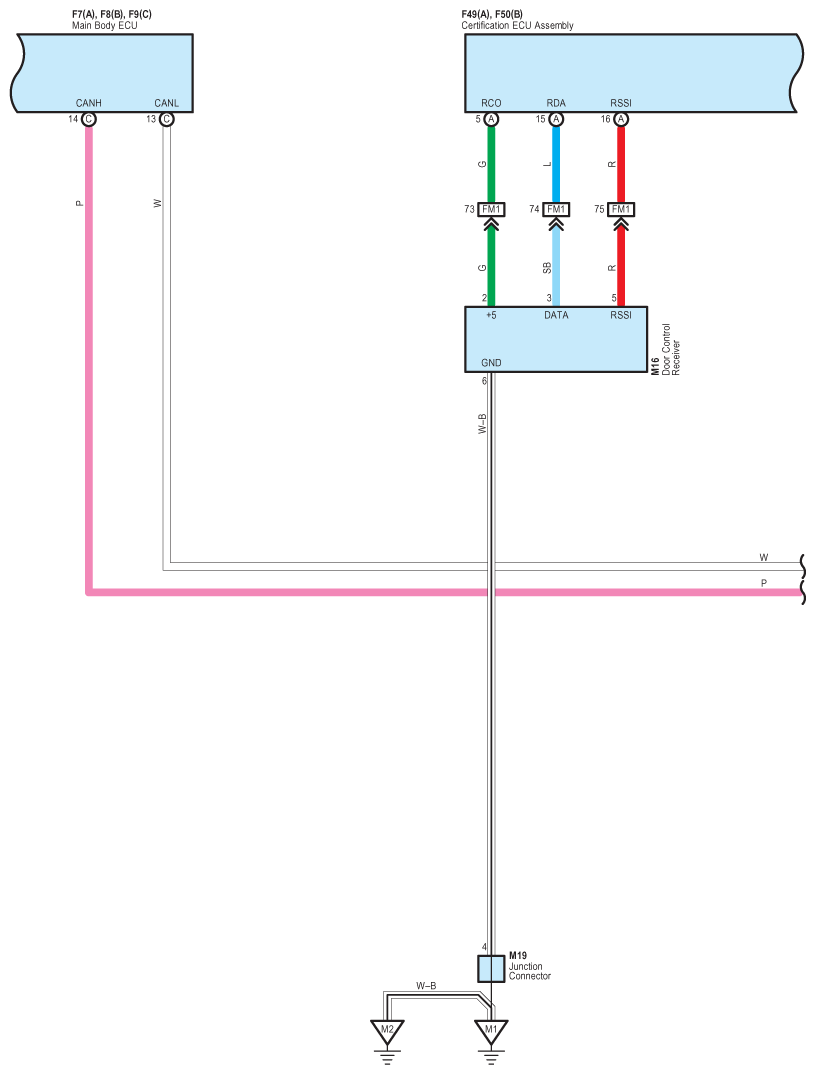

Fig 4: Sliding Roof - Wiring Diagram (4 Of 6)
G08911475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

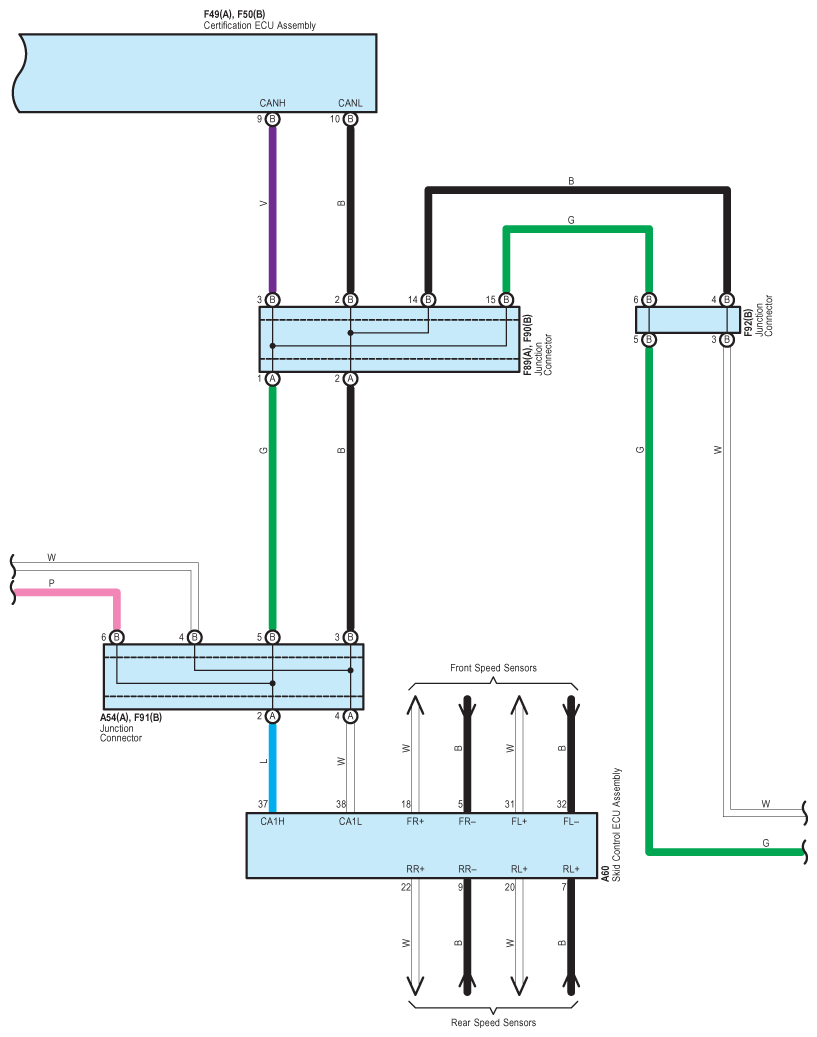

Fig 5: Sliding Roof - Wiring Diagram (5 Of 6)
G08911476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

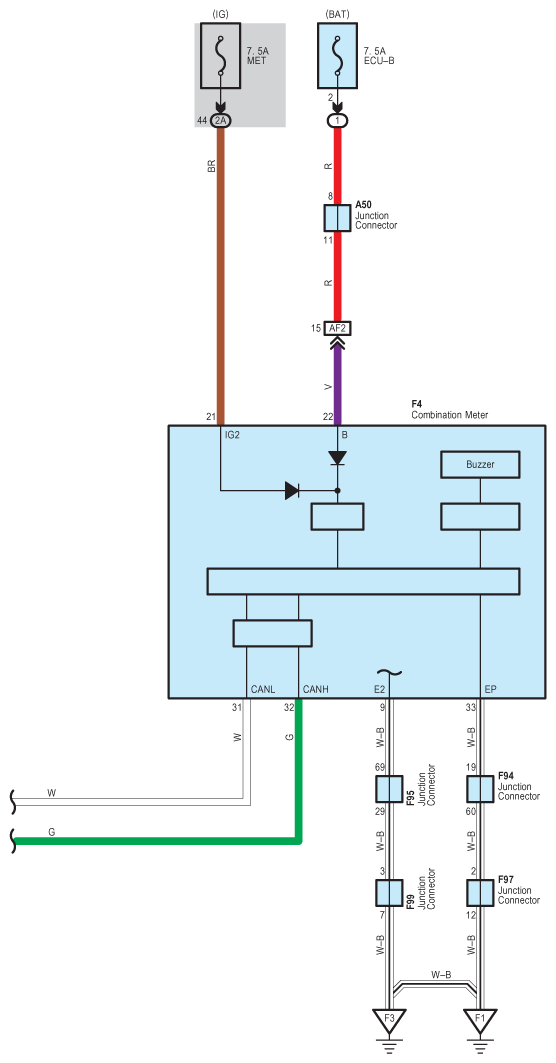

Fig 6: Sliding Roof - Wiring Diagram (6 Of 6)
G08911477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
