Tire Pressure Warning: Notes

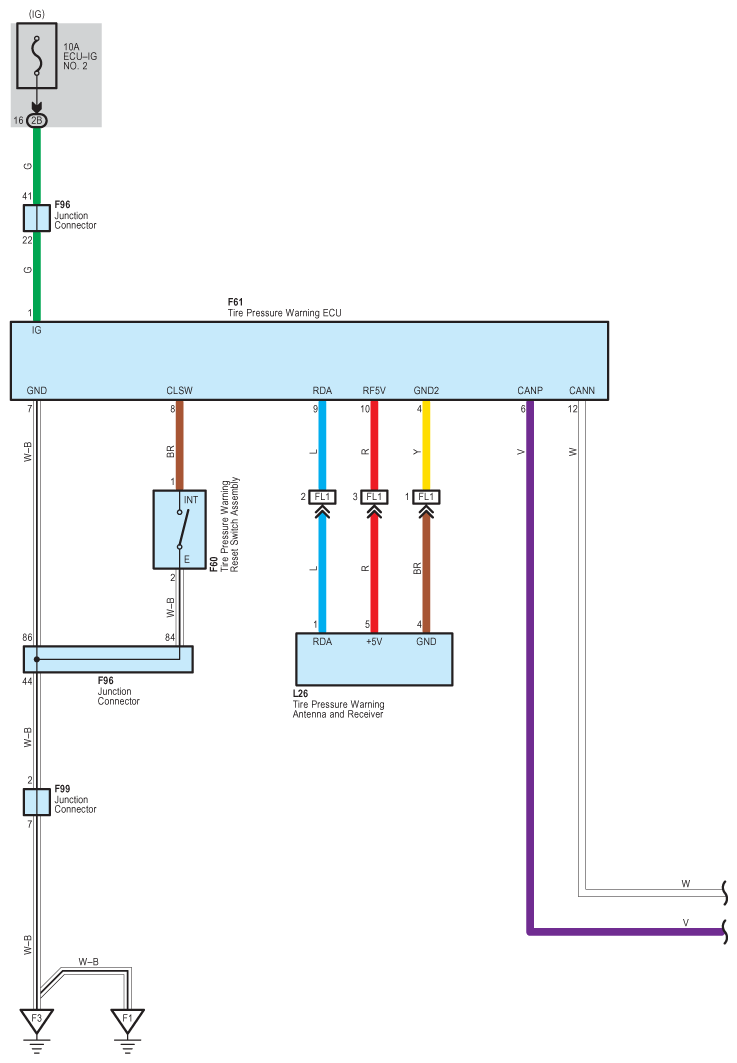

Fig 1: Tire Pressure Warning - Wiring Diagram (1 Of 3)
G08911502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

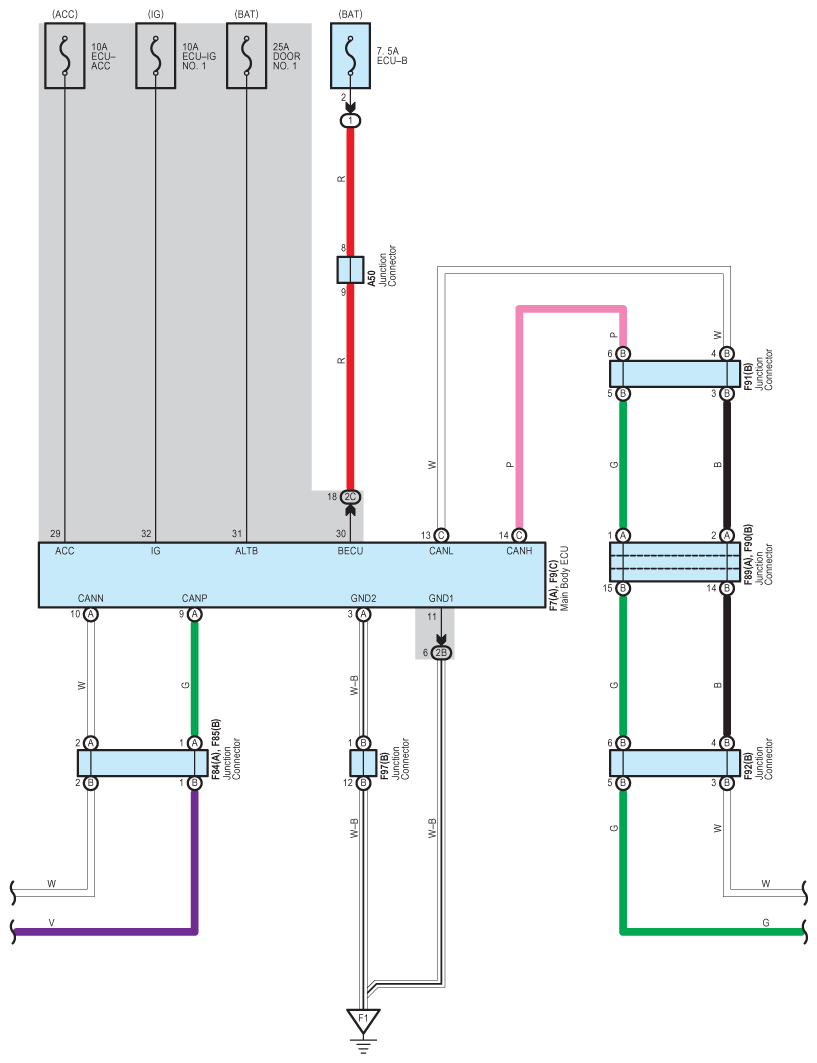

Fig 2: Tire Pressure Warning - Wiring Diagram (2 Of 3)
G08911503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

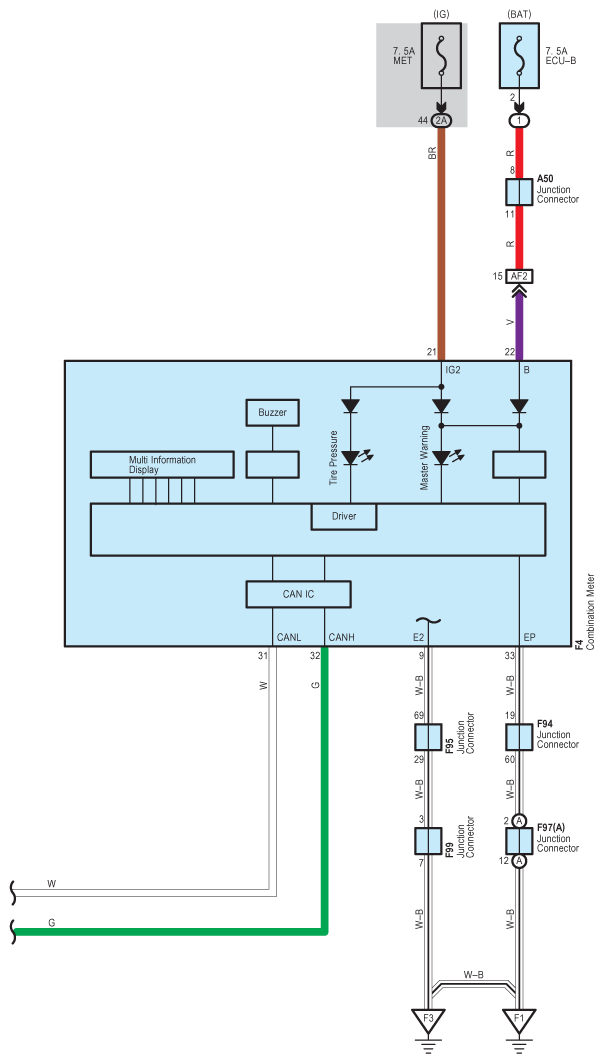

Fig 3: Tire Pressure Warning - Wiring Diagram (3 Of 3)
G08911504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
