Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 4)
GTY273351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Pump Replacement Components (2 Of 4)
GTY281072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

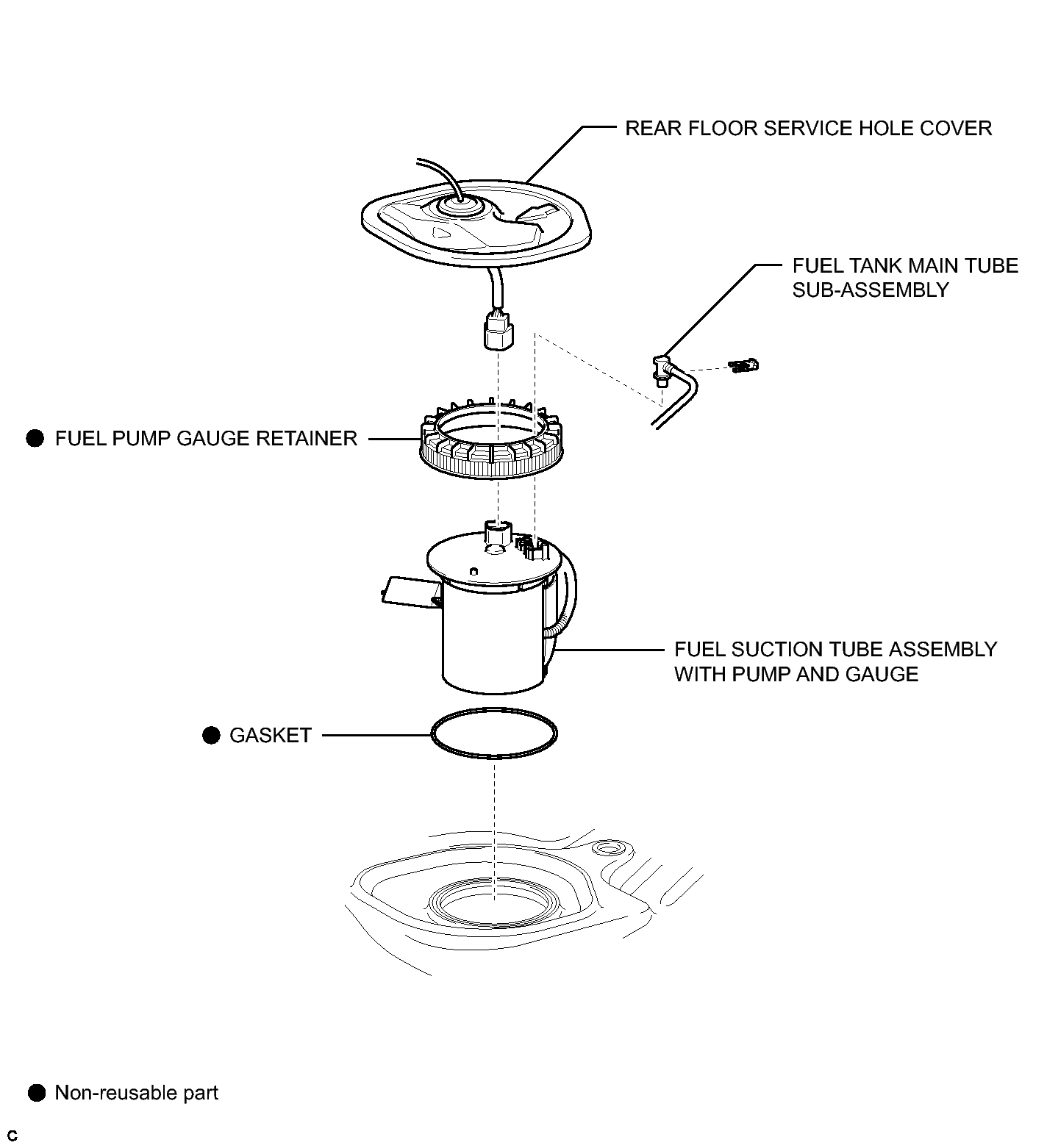

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 4)
GTY280213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

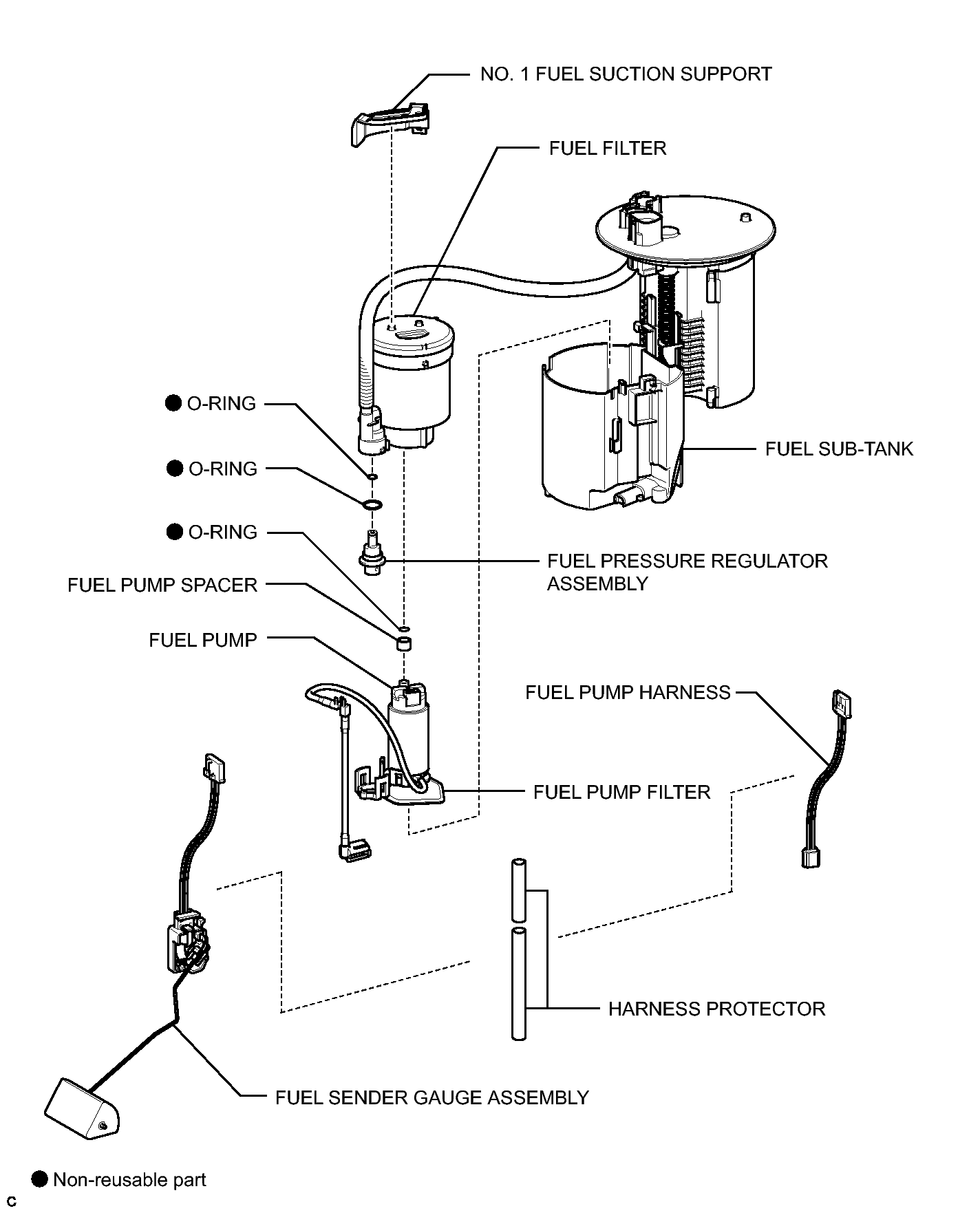

Fig 1: Identifying Fuel Pump Replacement Components (4 Of 4)
GTY269985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
