System Diagram

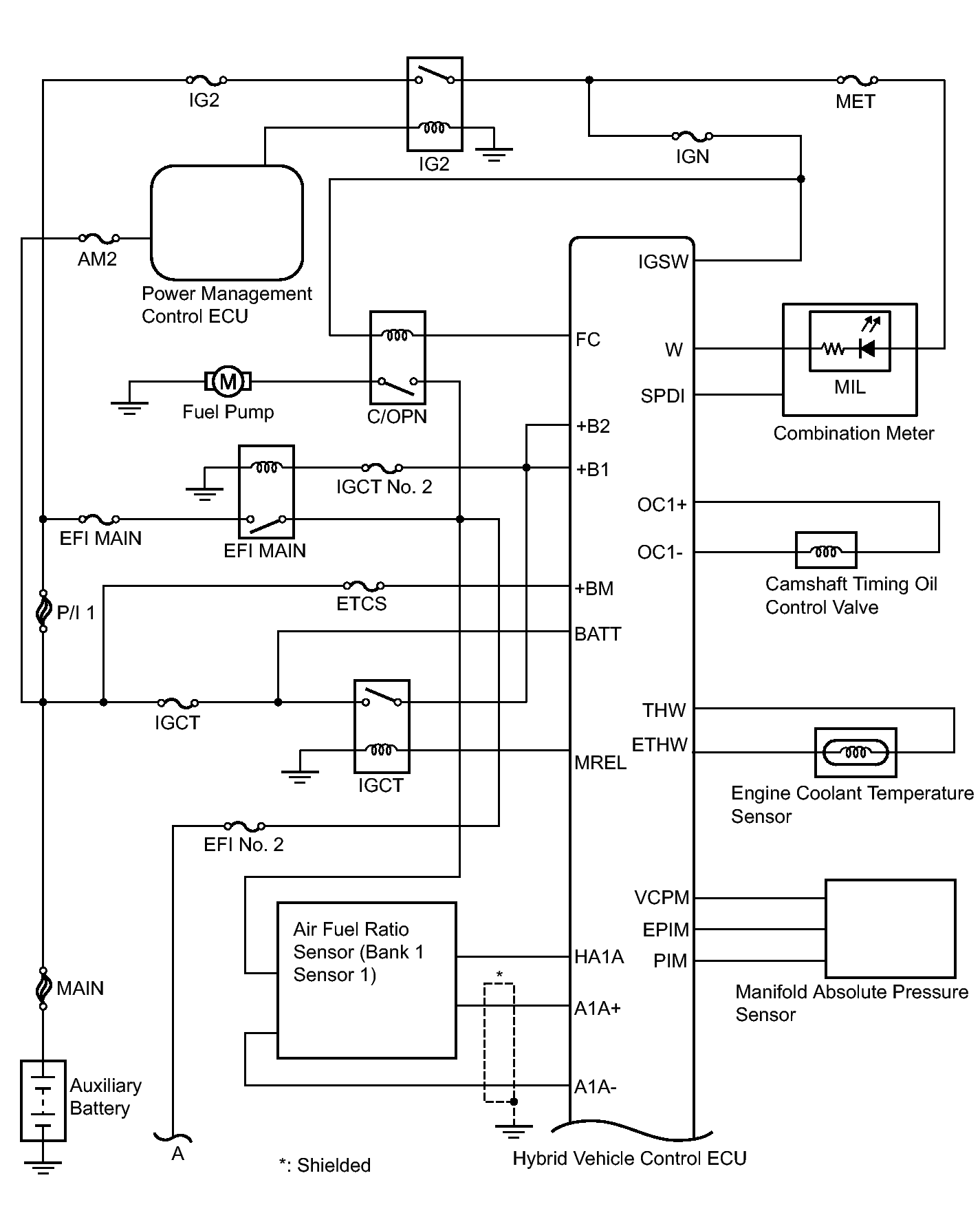

Fig 1: Identifying SFI System Wiring Diagram (1 Of 3)
GTY395078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

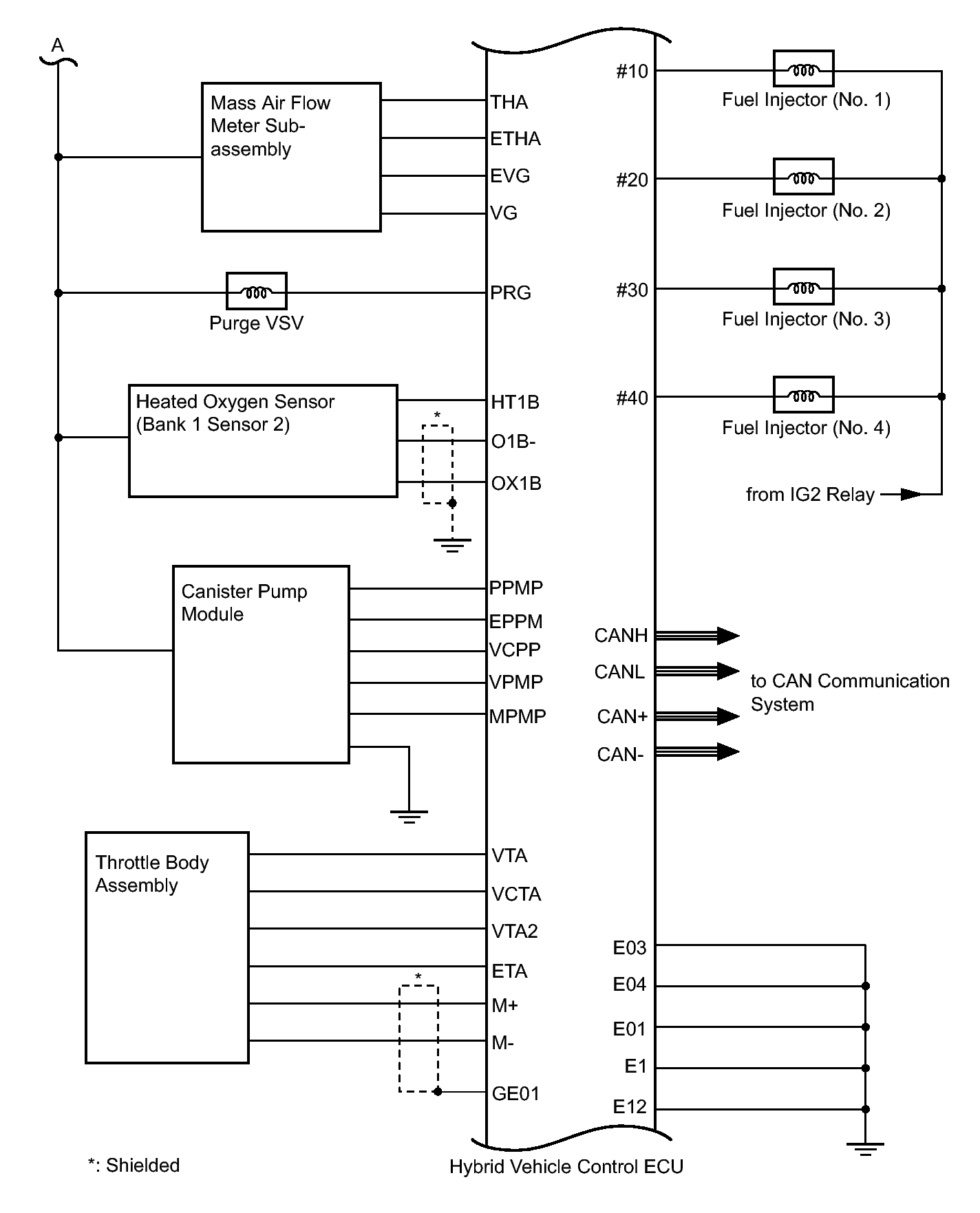

Fig 2: Identifying SFI System Wiring Diagram (2 Of 3)
GTY393826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

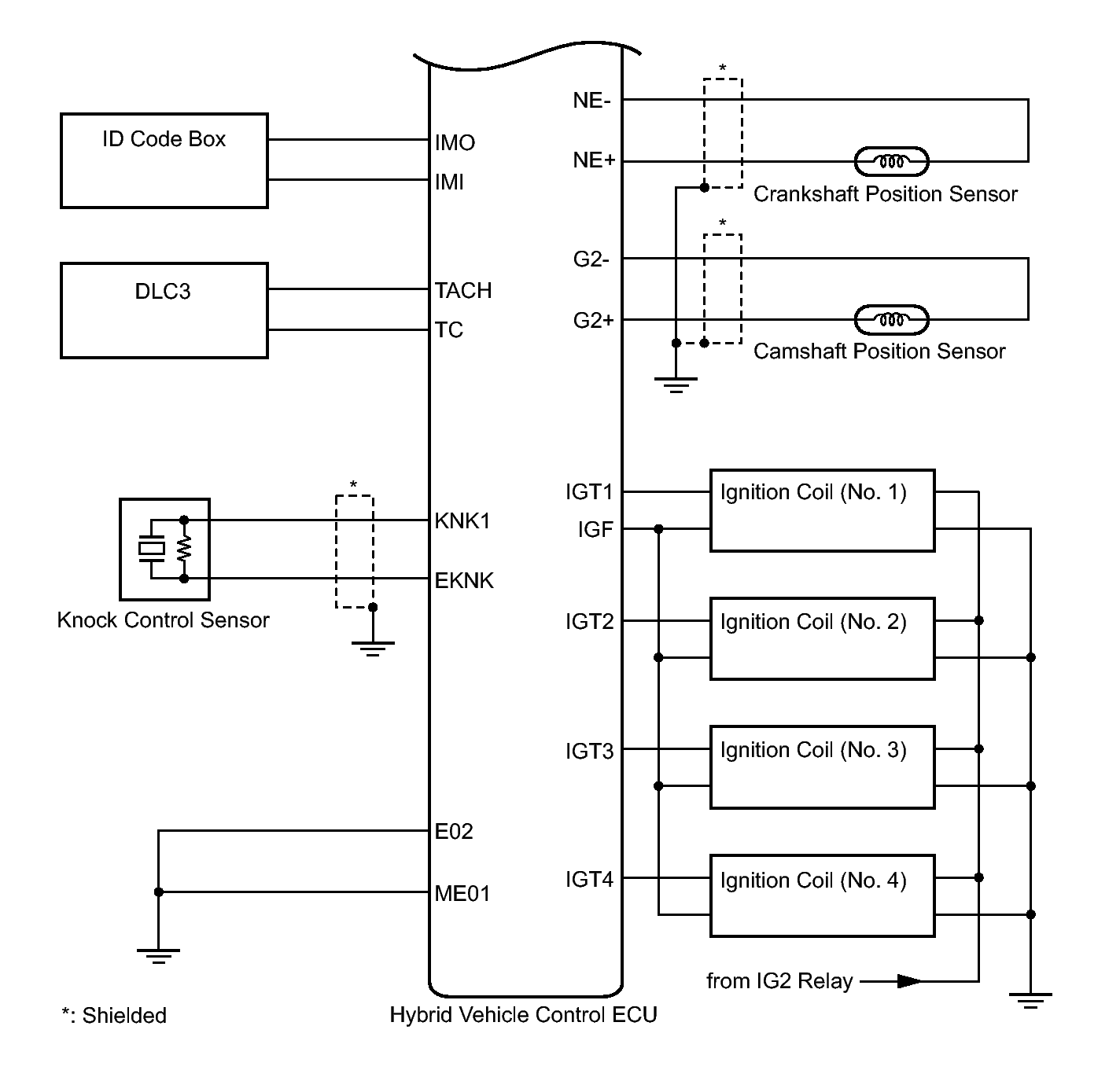

Fig 3: Identifying SFI System Wiring Diagram (3 Of 3)
GTY393358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
