Knock Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold. Refer to REMOVAL .
  2. REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.

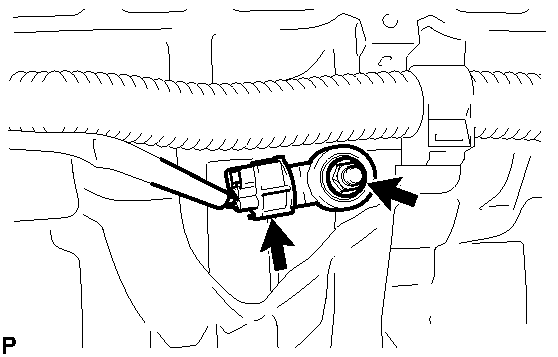

      Fig 1: Identifying Knock Sensor With Nut
      GTY188634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and knock sensor.
