Torque Specifications





SERVICE SPECIFICATIONS: A760H AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

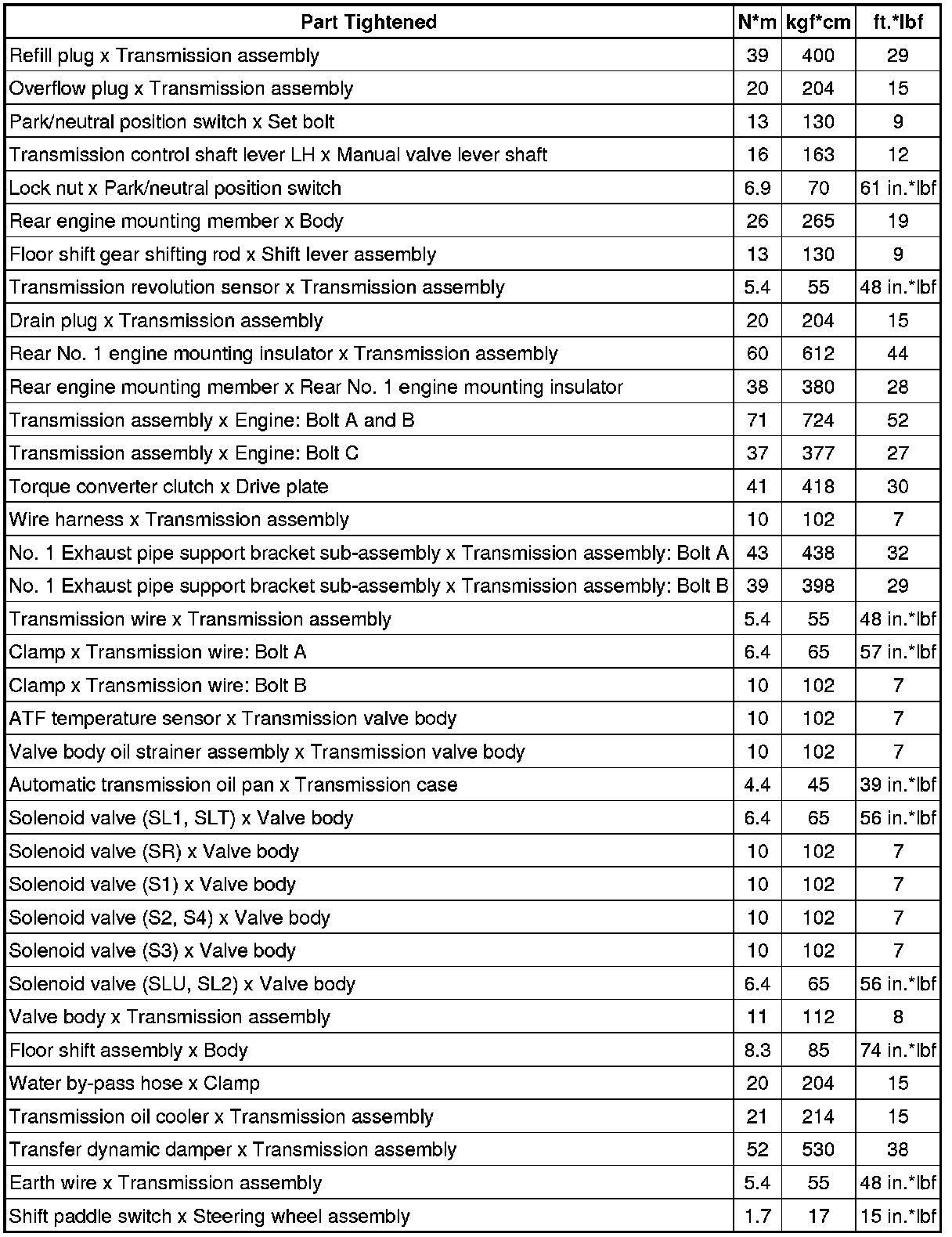

Automatic Transmission Assembly:

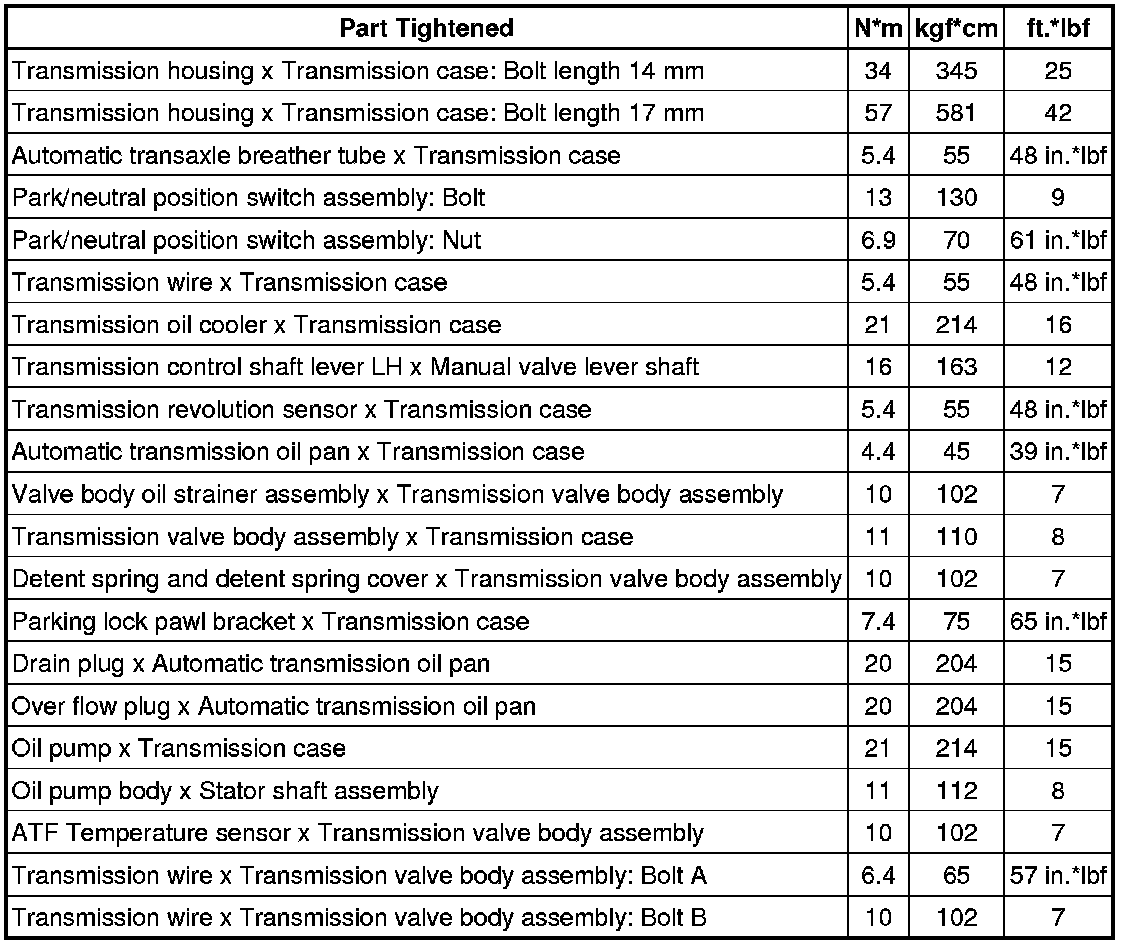

Automatic Transmission Unit:
