Service Data





SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

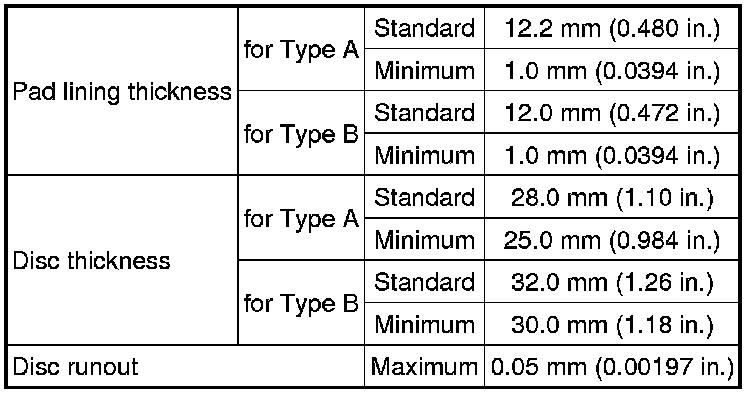

Front Brake (for 2GR-FSE)

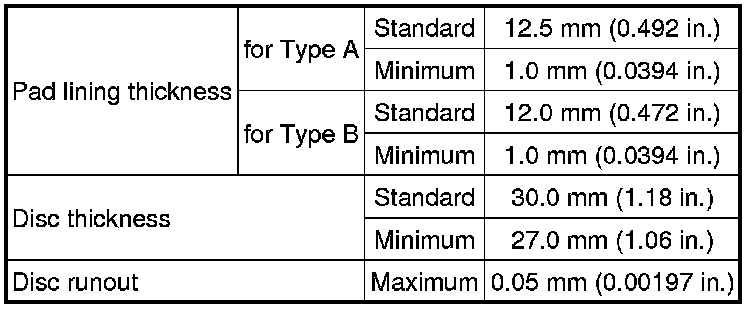

Front Brake (for 4GR-FSE)

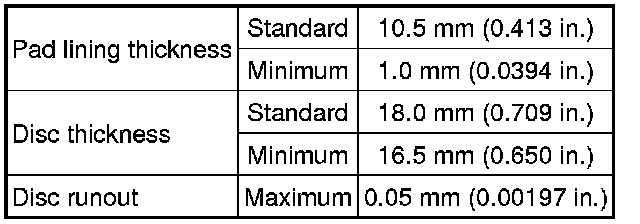

Rear Brake (for Ventilated Disc)

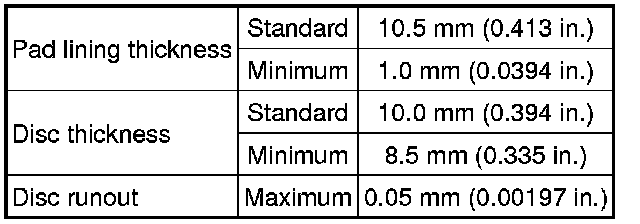

Rear Brake (for Solid Disc)
