Service Data





SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

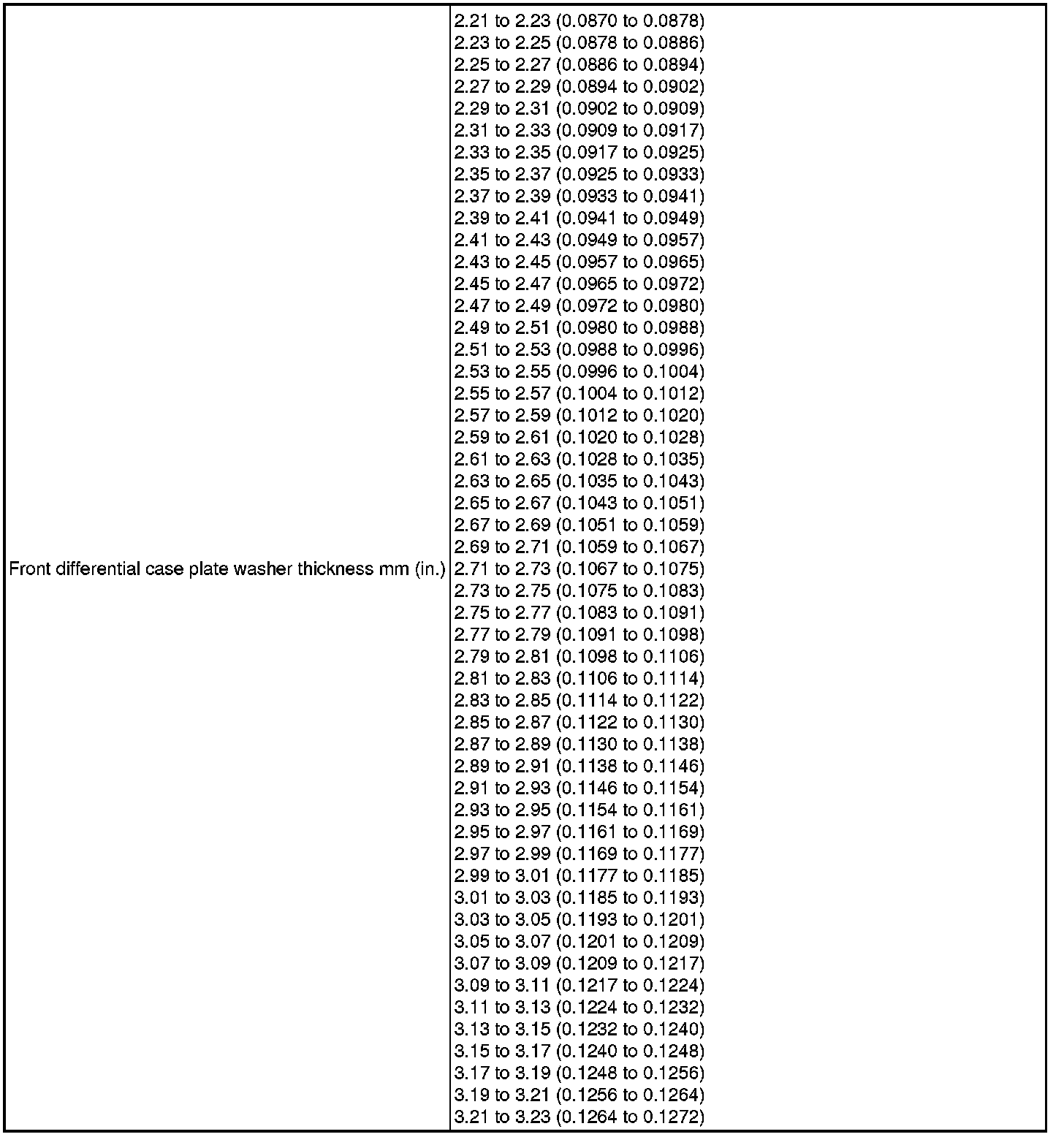

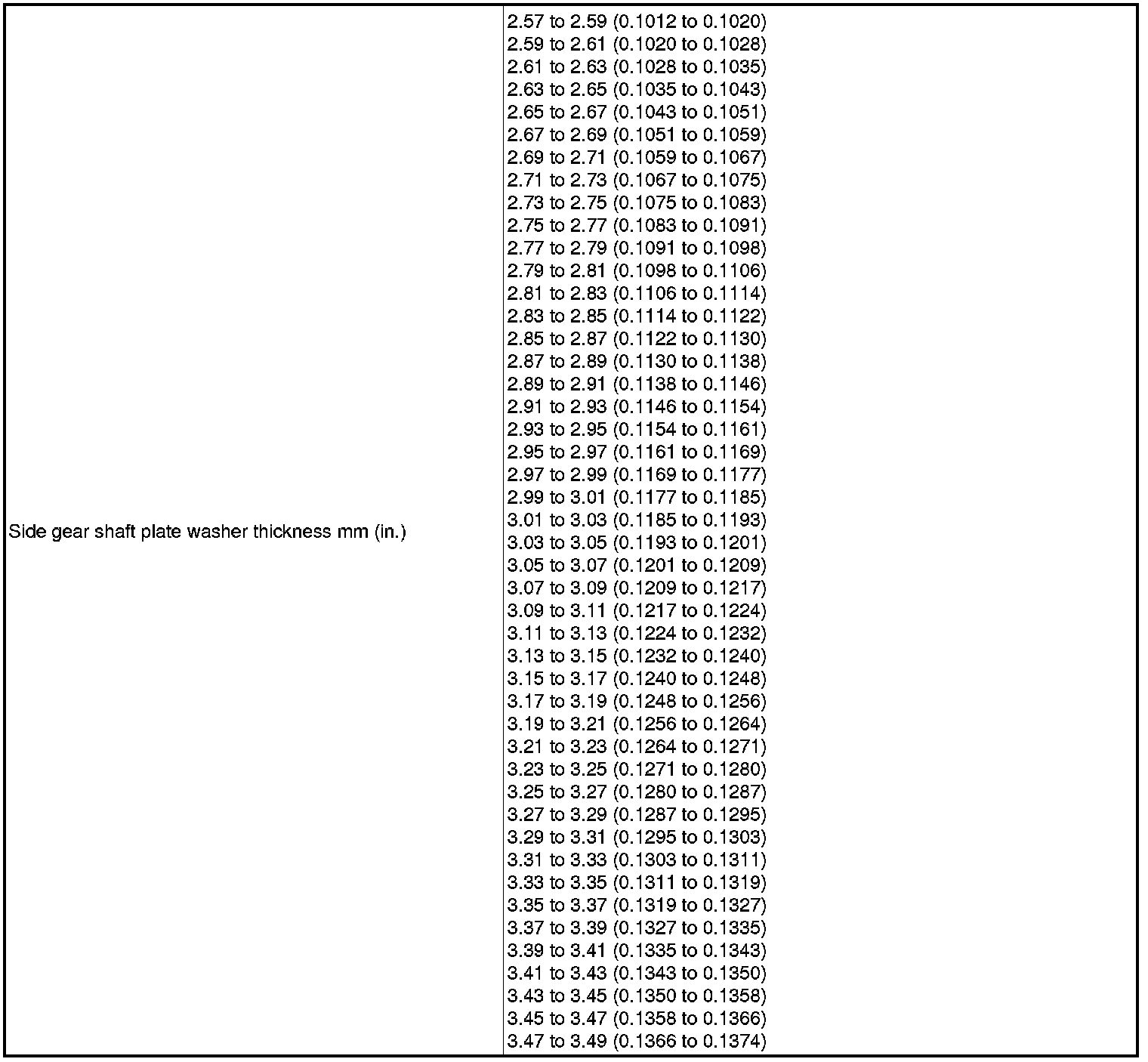

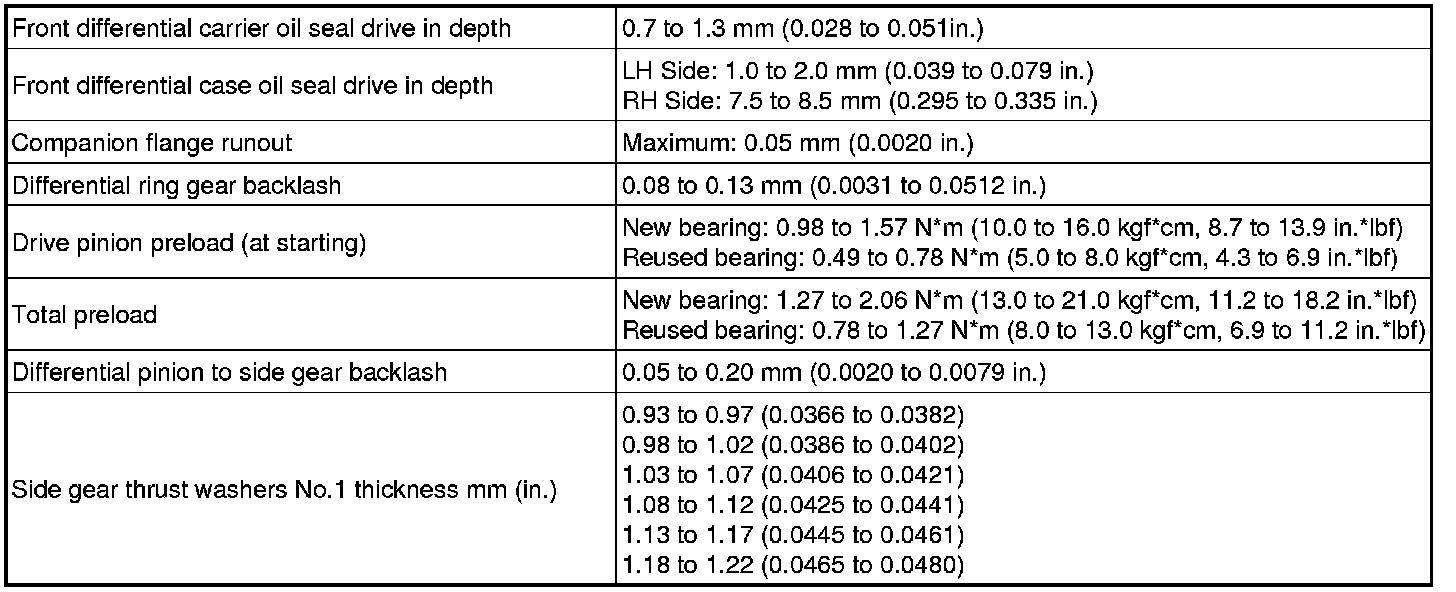

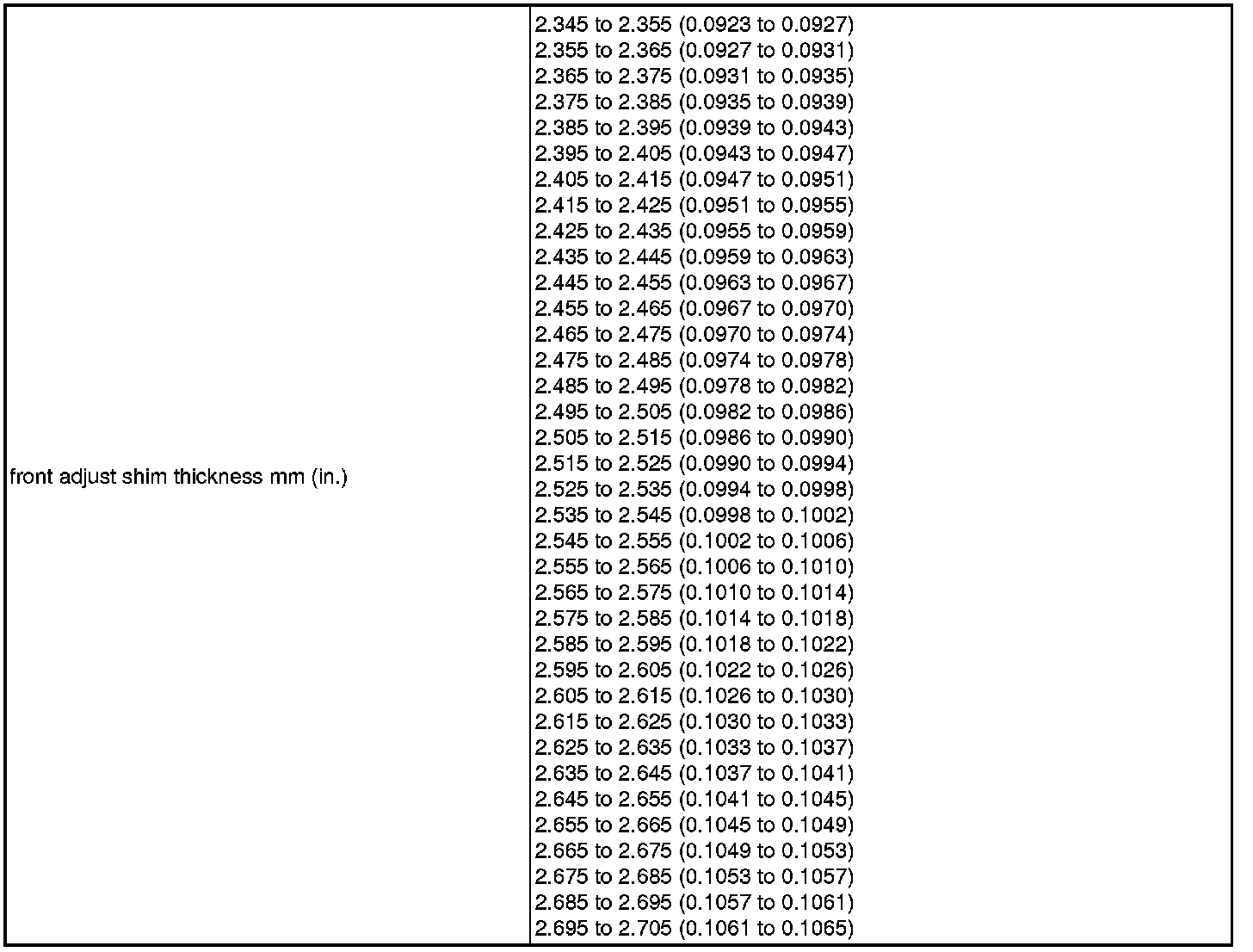

FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD)

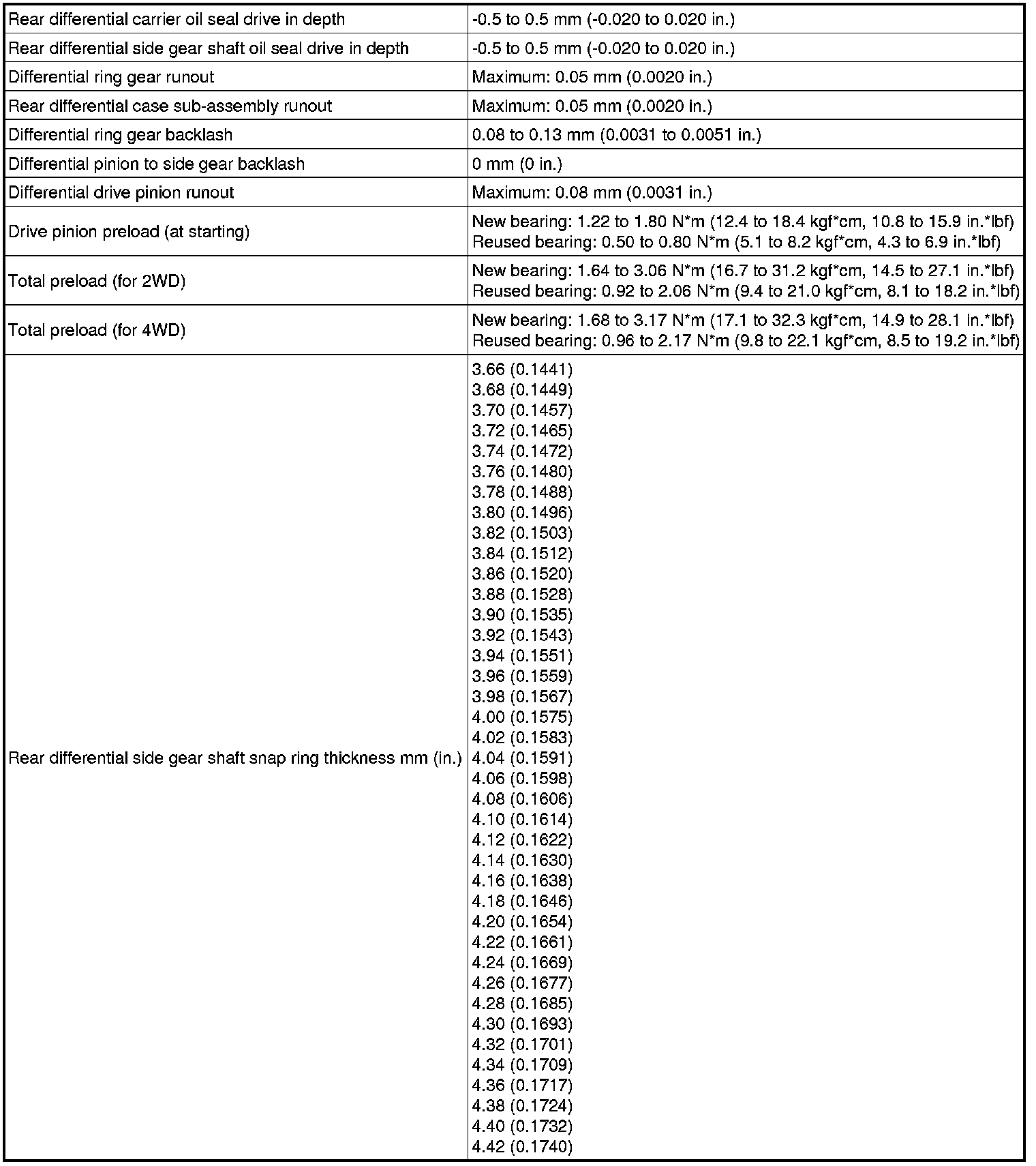

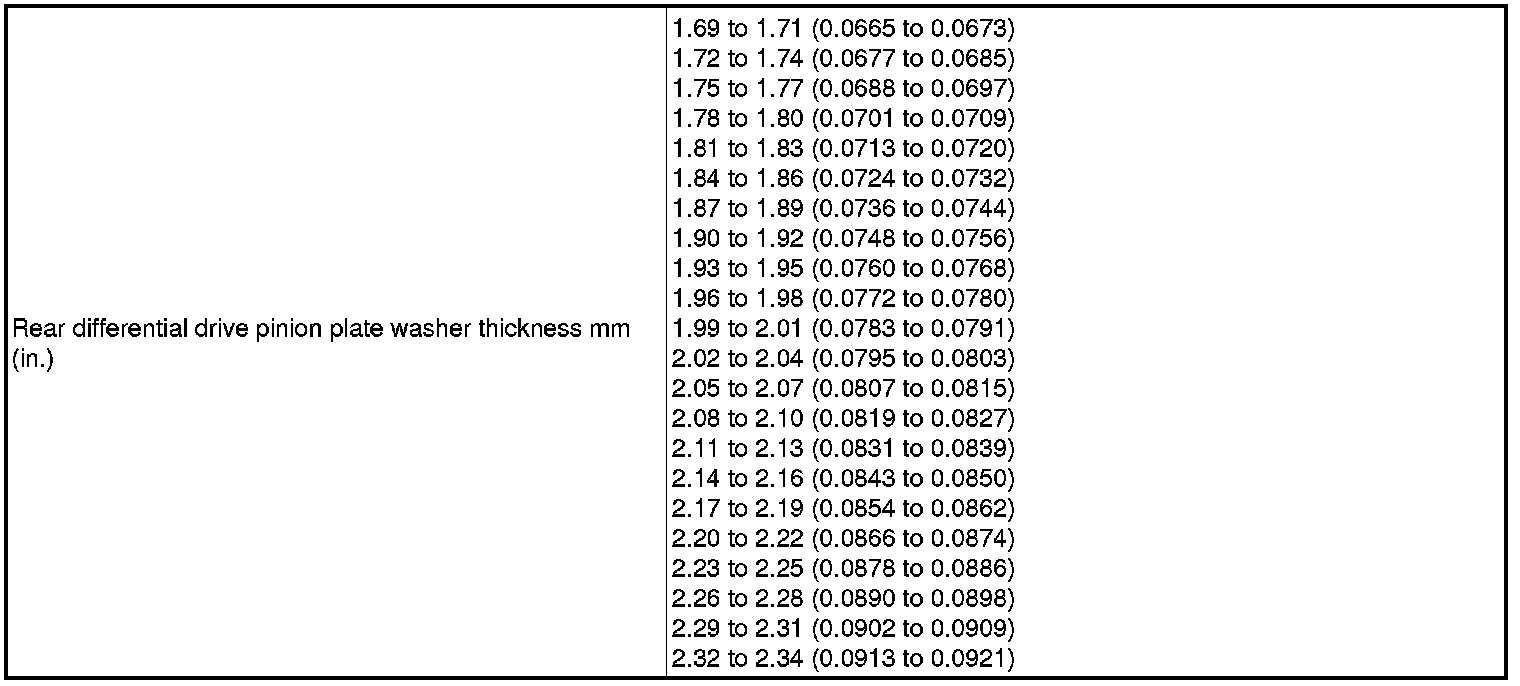

REAR DIFFERENTIAL CARRIER ASSEMBLY (for 2GR-FSE)

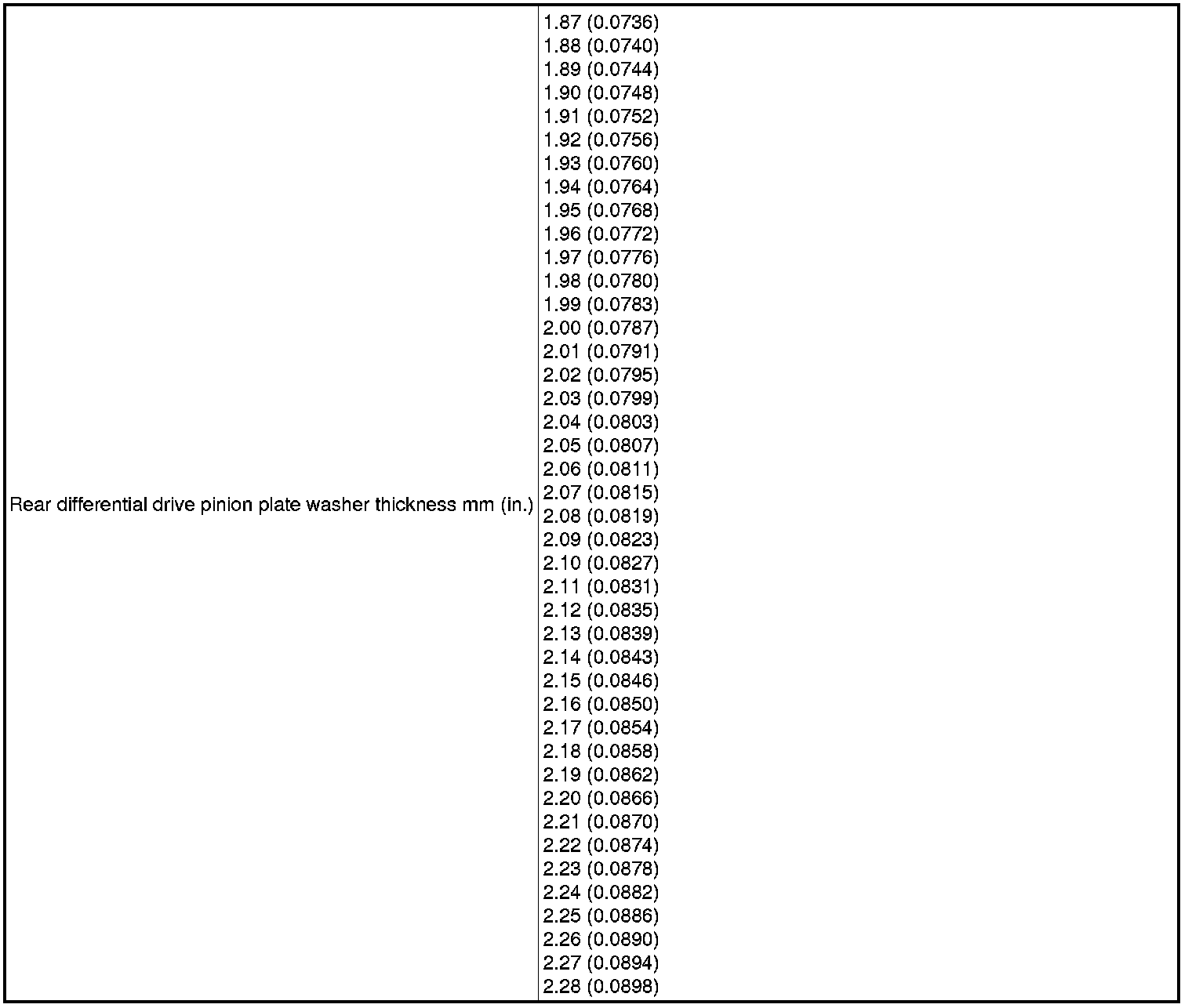

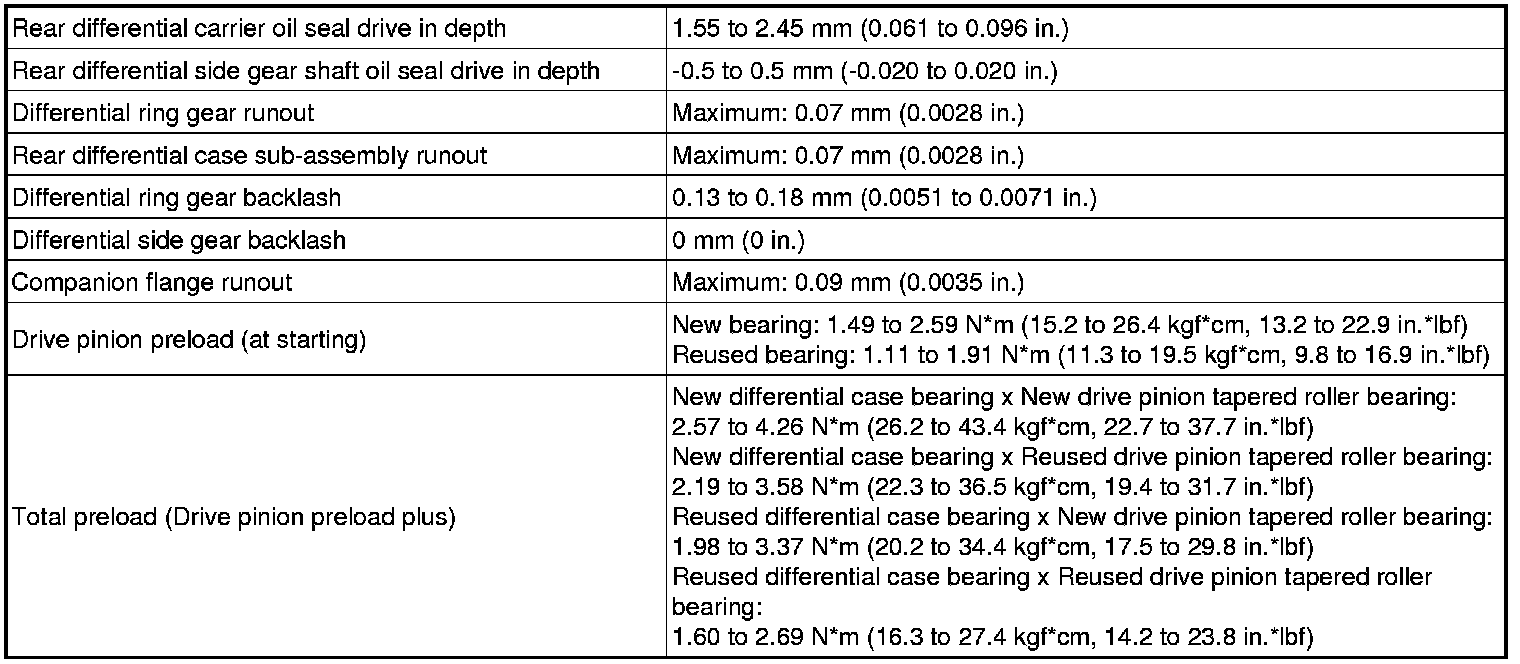

REAR DIFFERENTIAL CARRIER ASSEMBLY (for 4GR-FSE)
