Intake Manifold

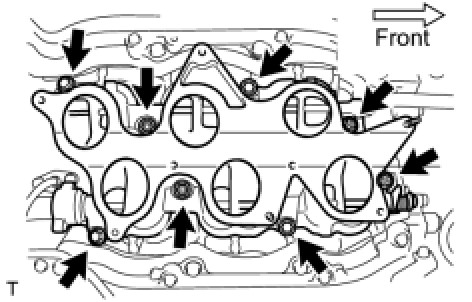

Intake Manifold





Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

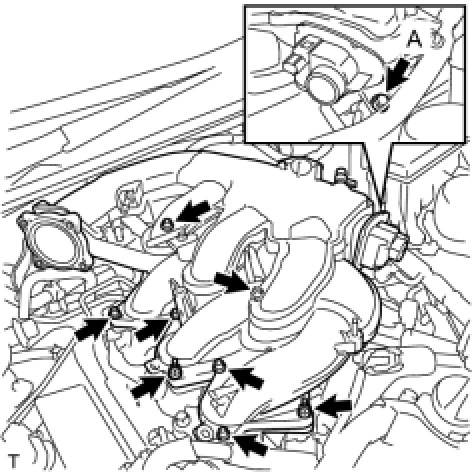

Intake Air Surge Tank





Bolts except A - Torque 18 Nm (184 kgf-cm, 13 ft-lbf)
Bolt A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Nut - Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
