Sliding Roof: Notes

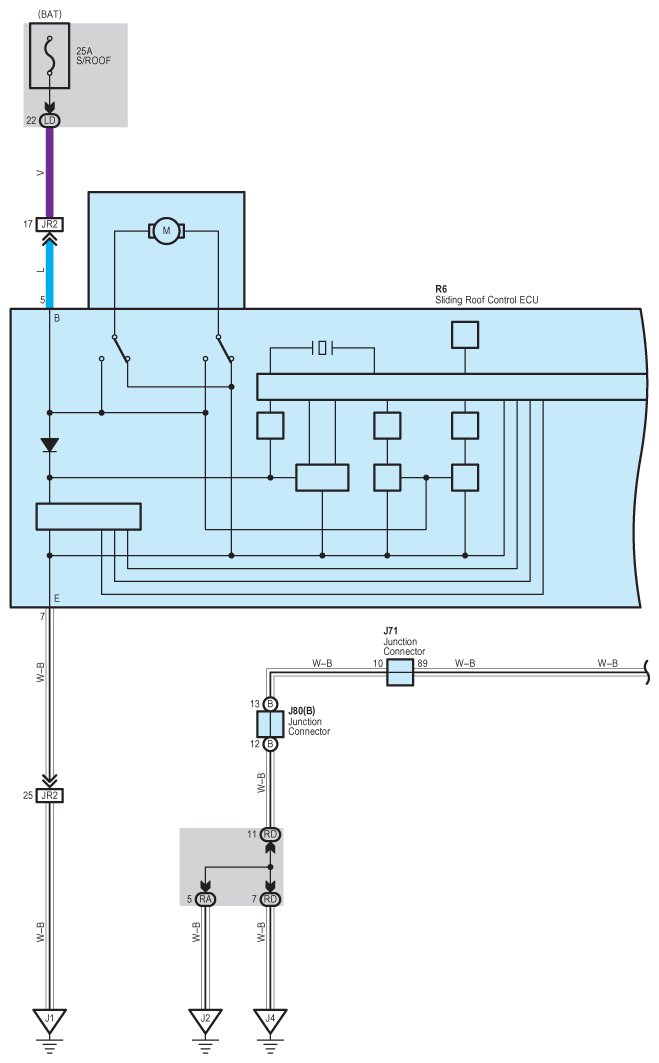

Fig 1: Sliding Roof - Wiring Diagram (1 Of 5)
G08935597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

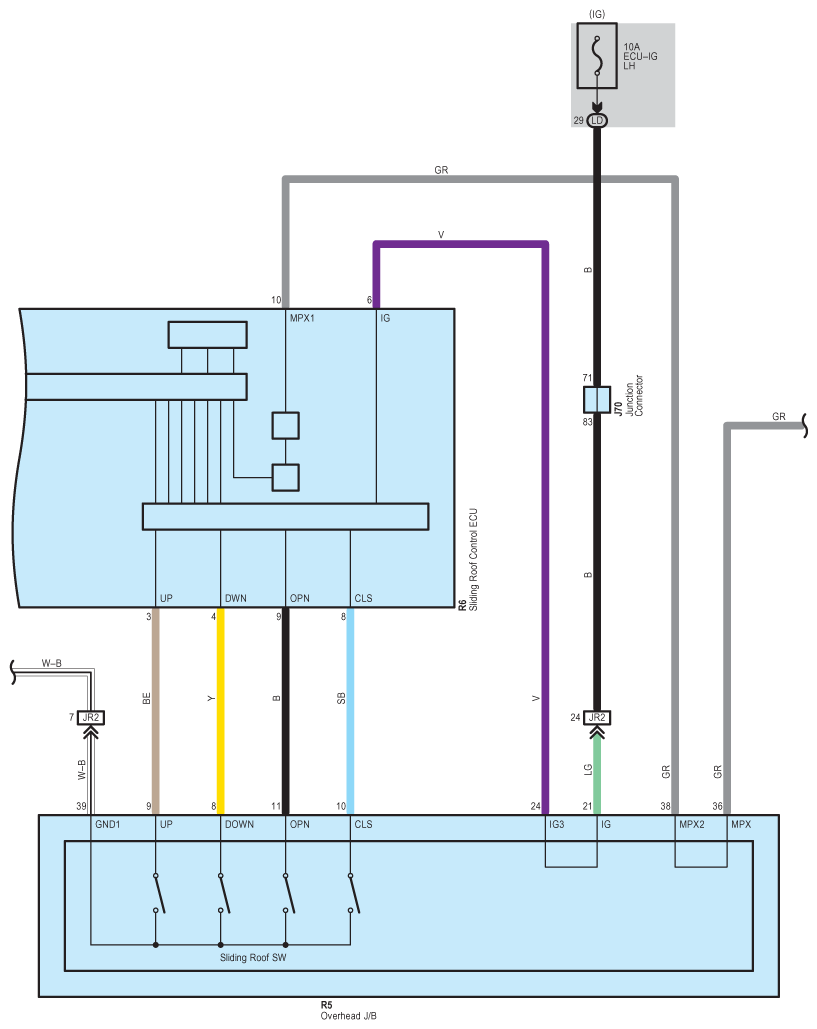

Fig 2: Sliding Roof - Wiring Diagram (2 Of 5)
G08935598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

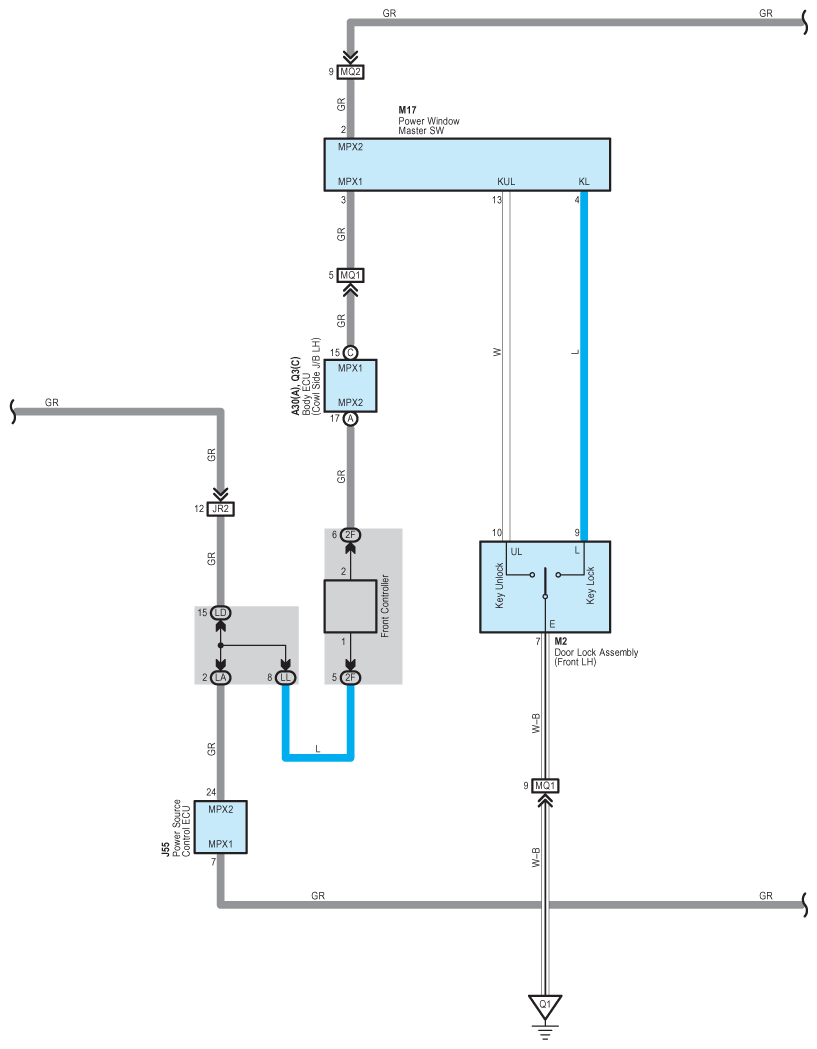

Fig 3: Sliding Roof - Wiring Diagram (3 Of 5)
G08935599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

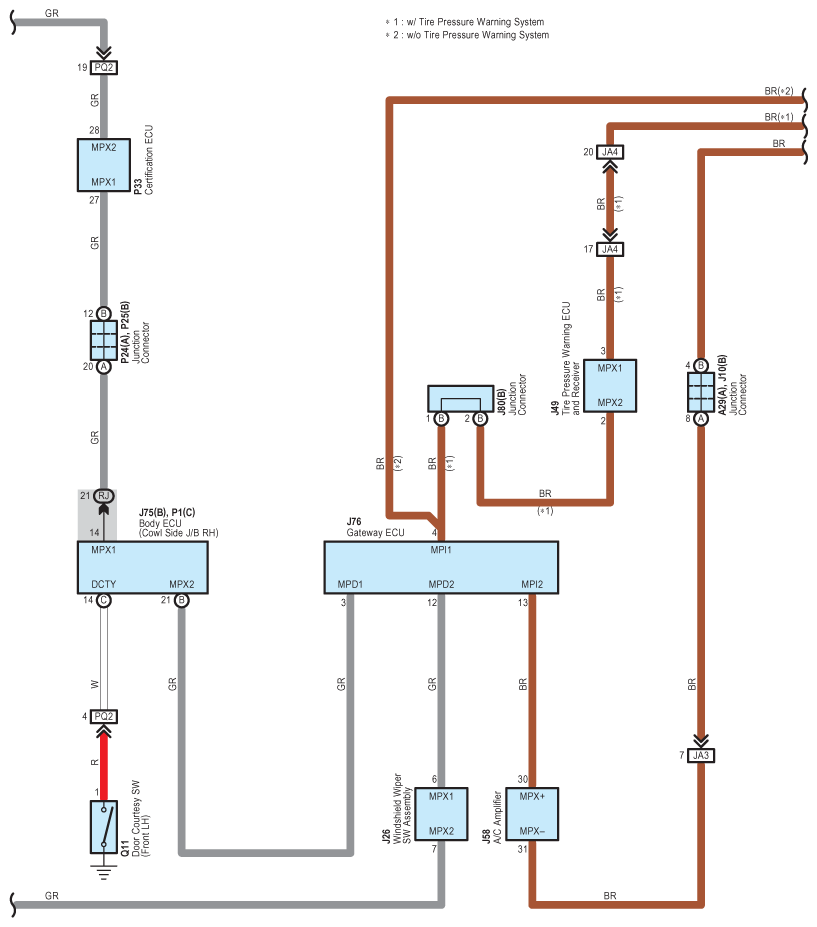

Fig 4: Sliding Roof - Wiring Diagram (4 Of 5)
G08935600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

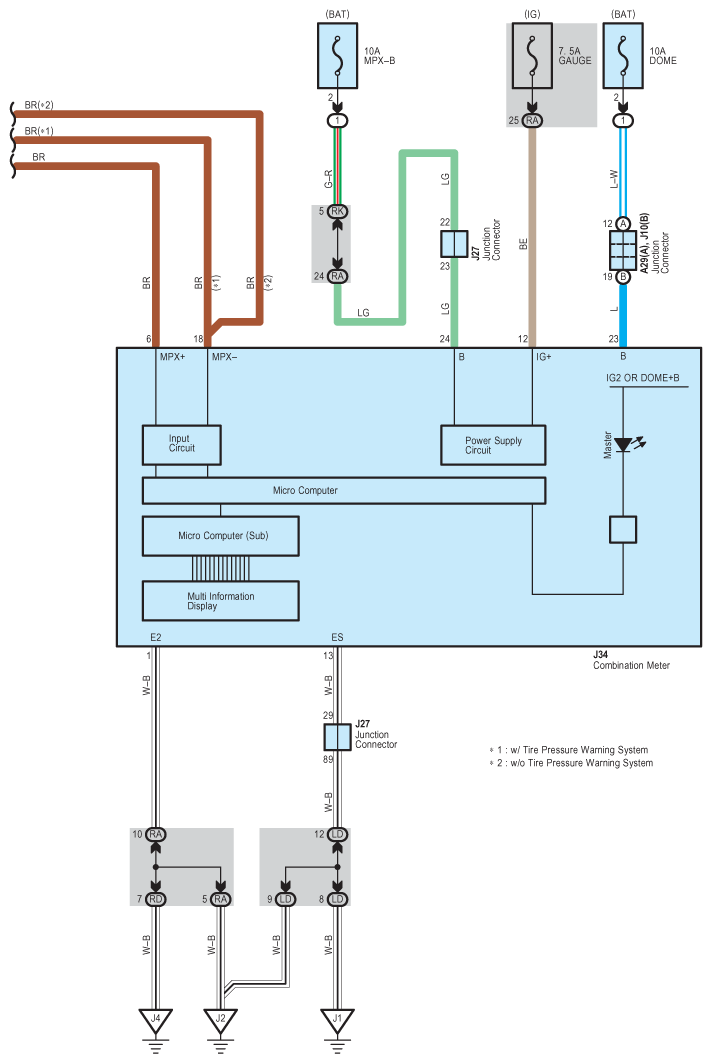

Fig 5: Sliding Roof - Wiring Diagram (5 Of 5)
G08935601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
