Turn Signal and Hazard Warning Light: Notes

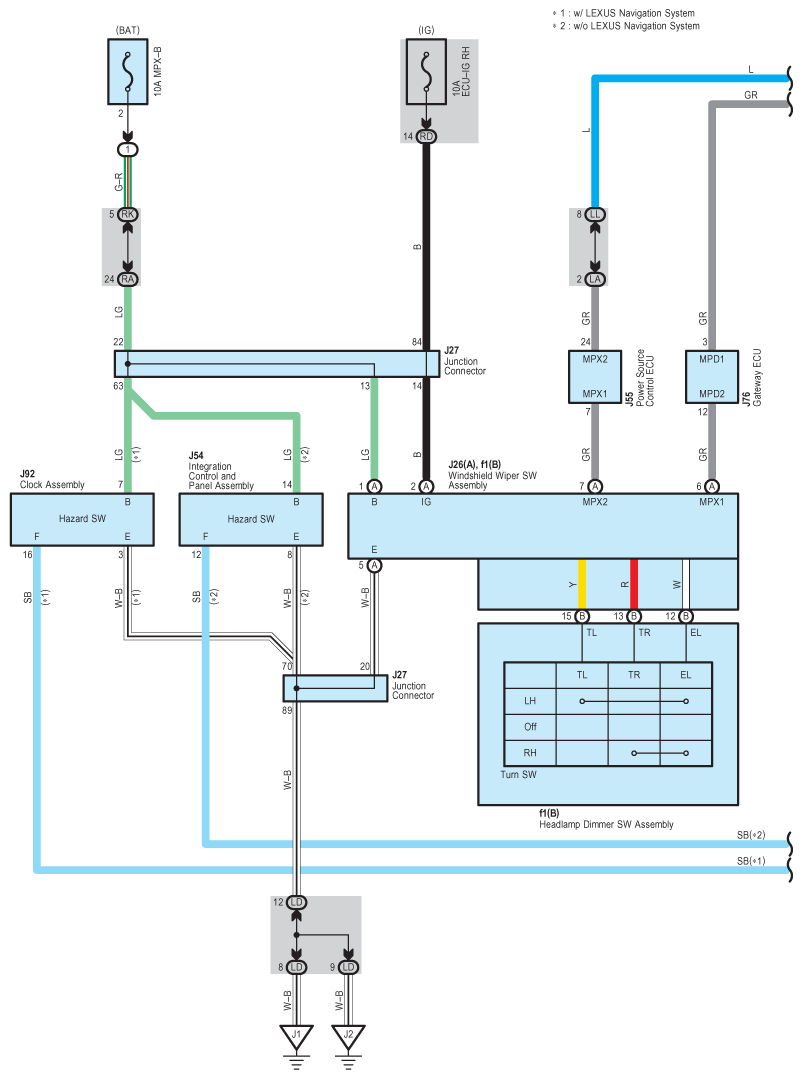

Fig 1: Turn Signal And Hazard Warning Light - Wiring Diagram (1 Of 5)
G08935452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

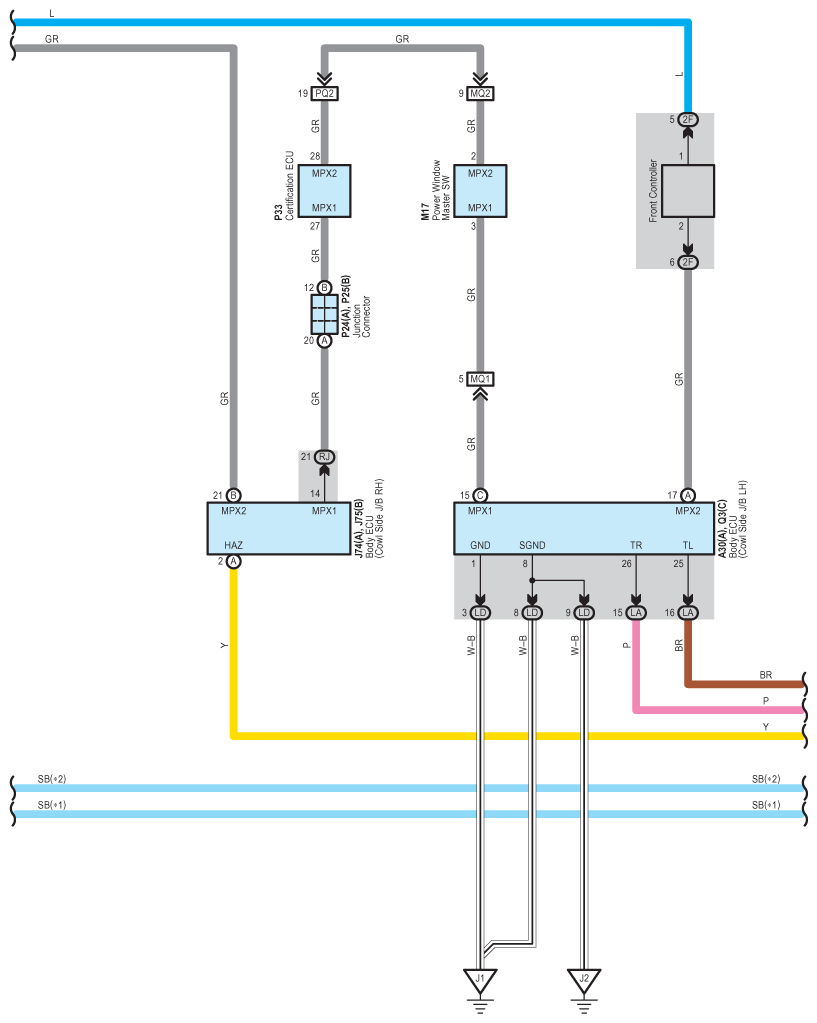

Fig 2: Turn Signal And Hazard Warning Light - Wiring Diagram (2 Of 5)
G08935453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

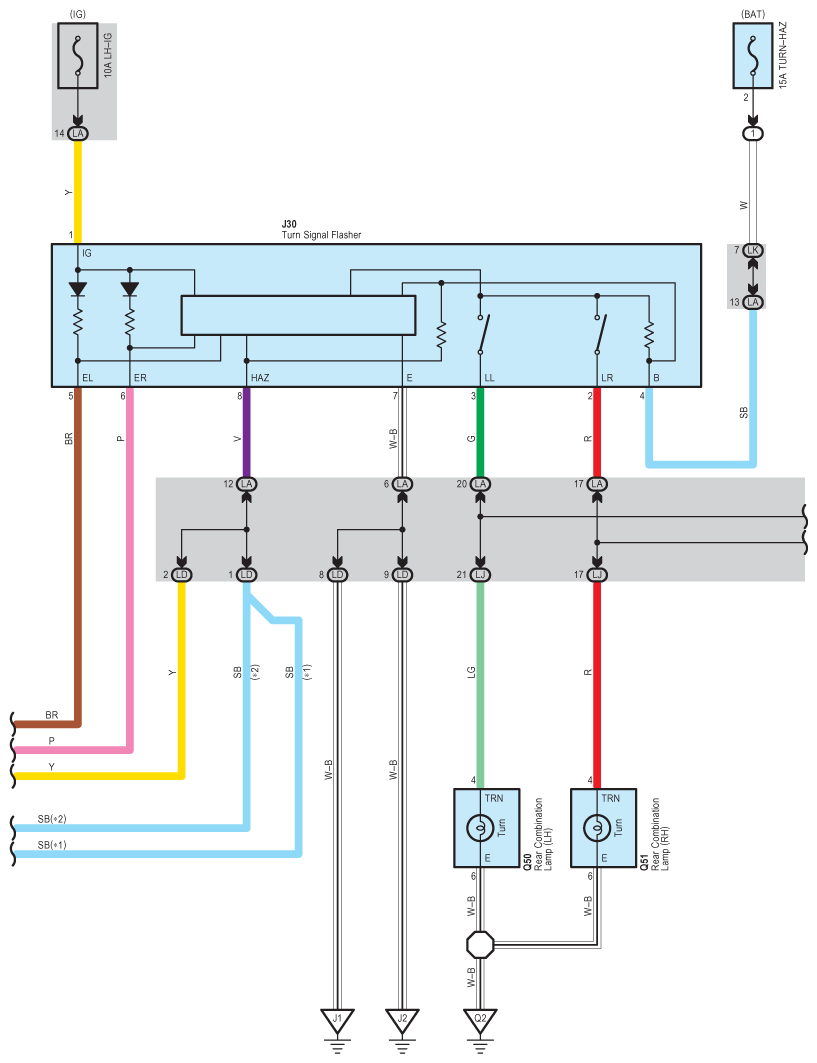

Fig 3: Turn Signal And Hazard Warning Light - Wiring Diagram (3 Of 5)
G08935454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

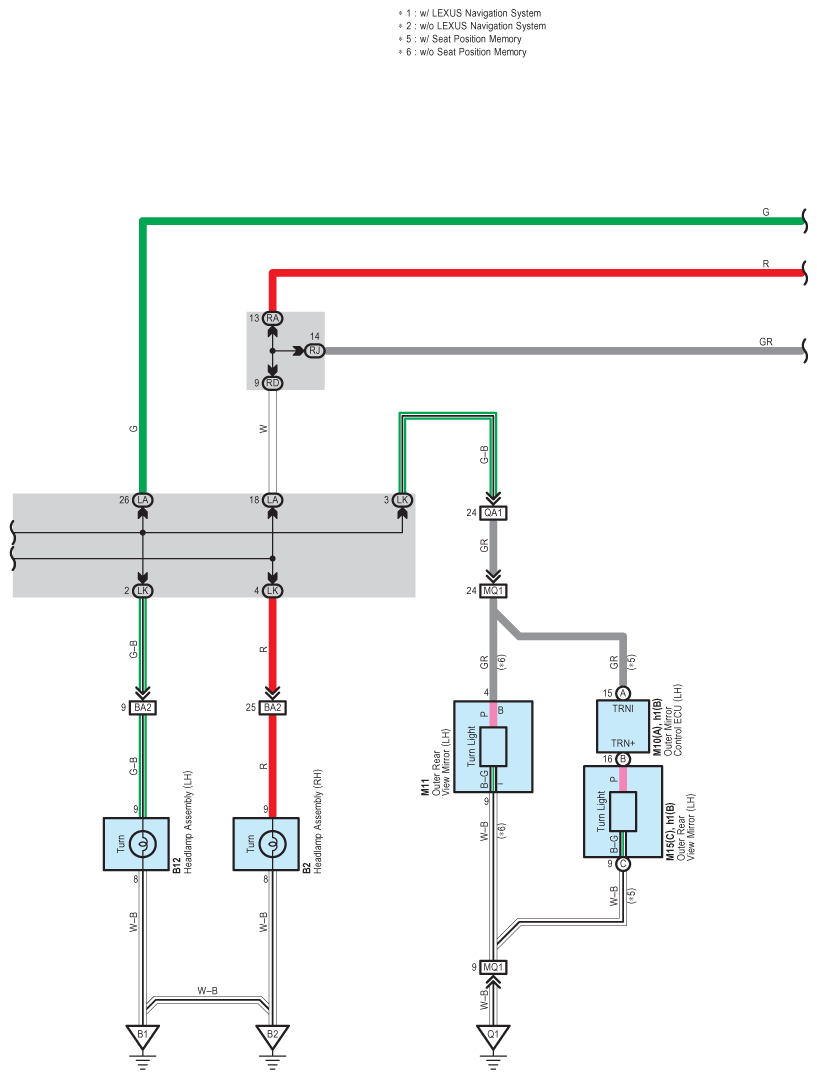

Fig 4: Turn Signal And Hazard Warning Light - Wiring Diagram (4 Of 5)
G08935455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

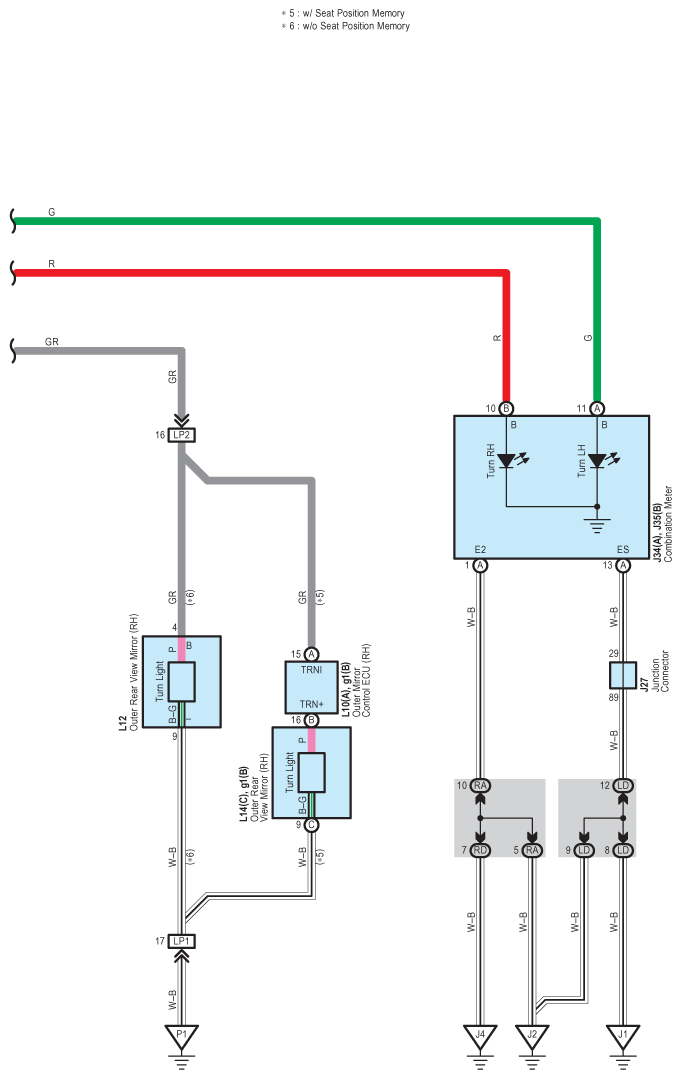

Fig 5: Turn Signal And Hazard Warning Light - Wiring Diagram (5 Of 5)
G08935456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
