Fuel Injector, Intake Manifold: Components: Illustration

Fig 1: Identifying Fuel Injector Replacement Components with Torque Specifications (1 Of 4)
GTY358100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

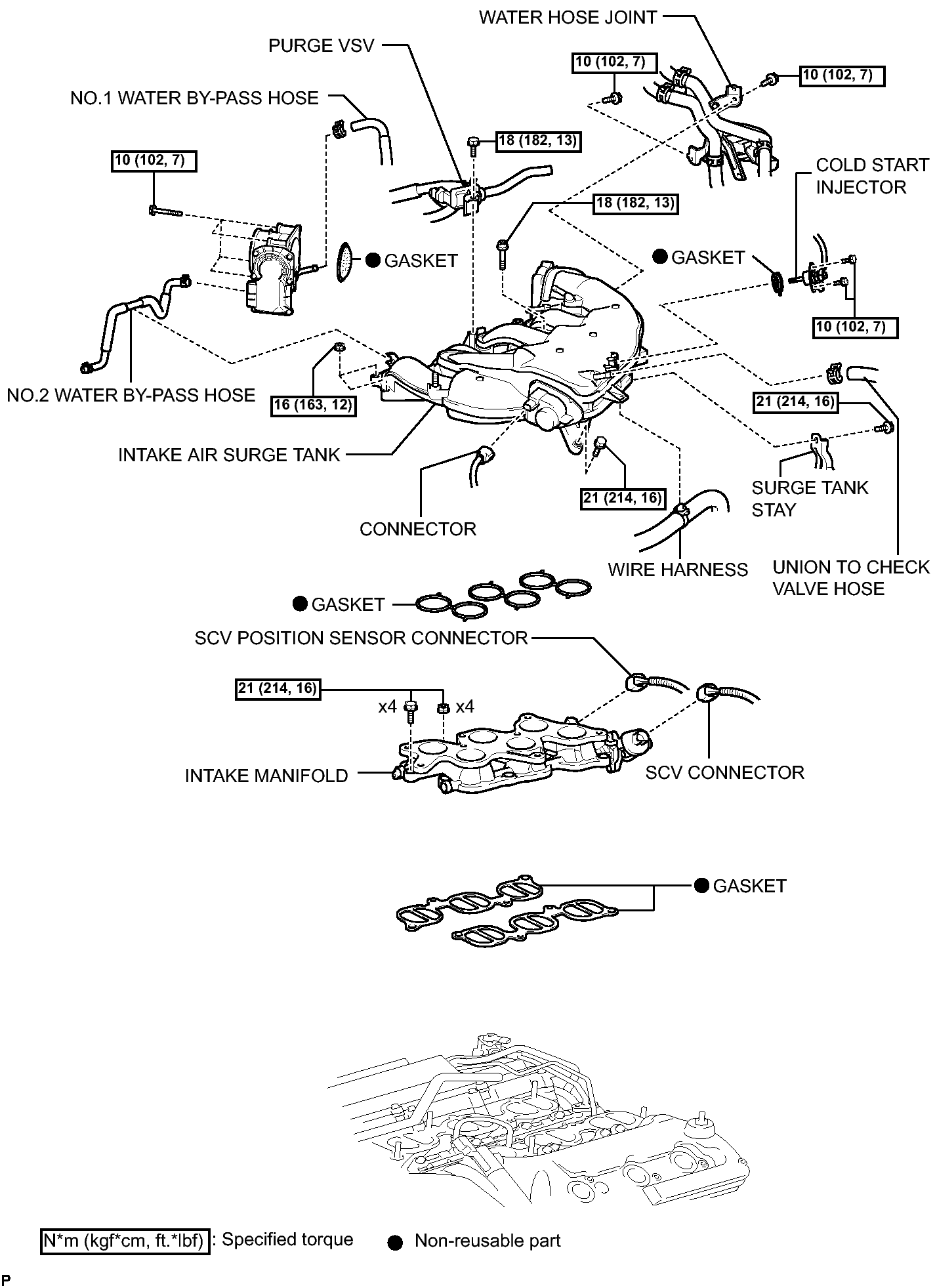

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 4)
GTY146141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

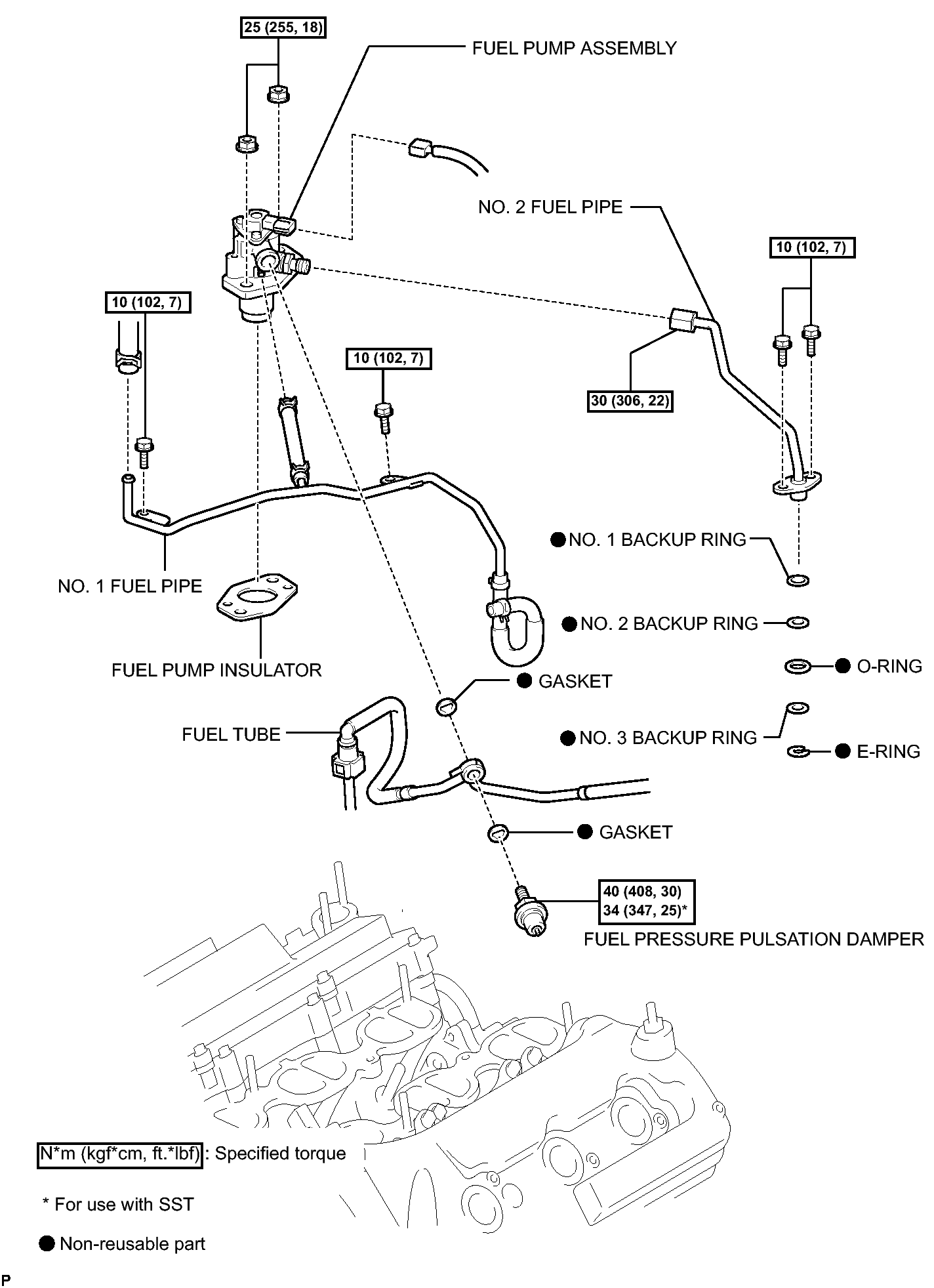

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 4)
GTY278902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

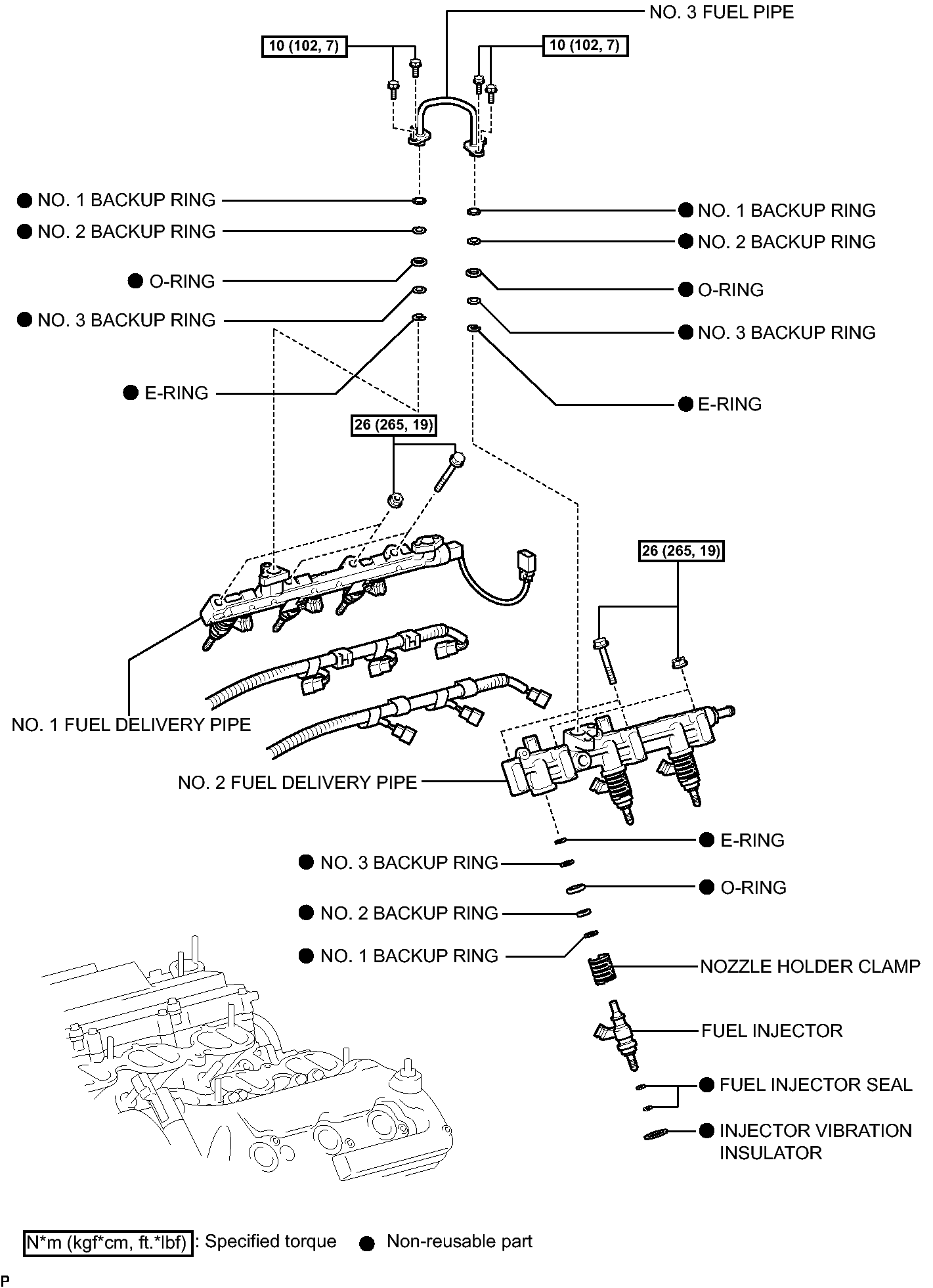

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (4 Of 4)
GTY282094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
