Transfer Control Solenoid: Components: Illustration

Fig 1: dentifying Transfer Control Solenoid Replacement Components With Torque Specifications (1 Of 2)
GTY351269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

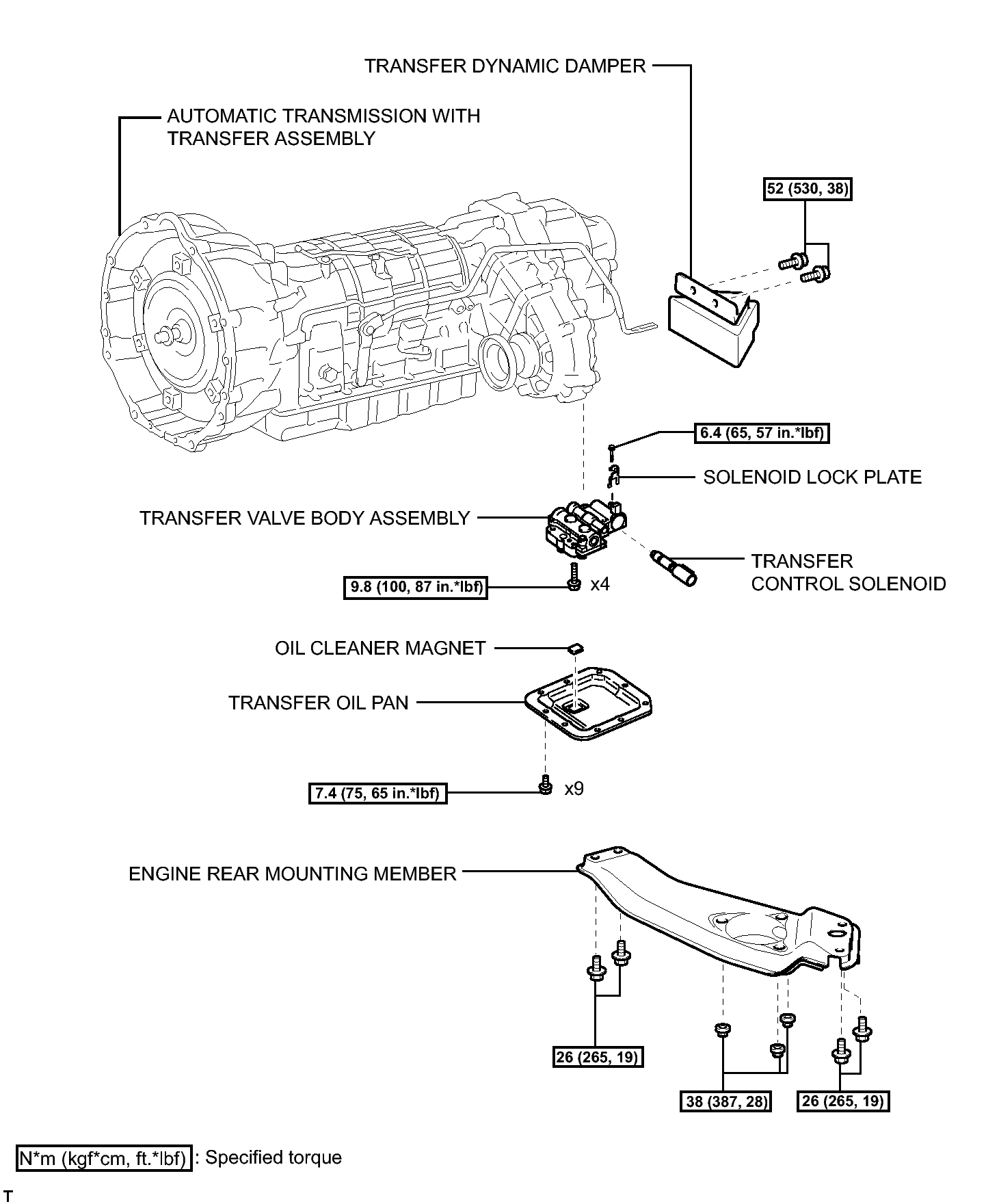

Fig 1: Identifying Transfer Control Solenoid Replacement Components With Torque Specifications (2 Of 2)
GTY114000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
