Air conditioning: Notes

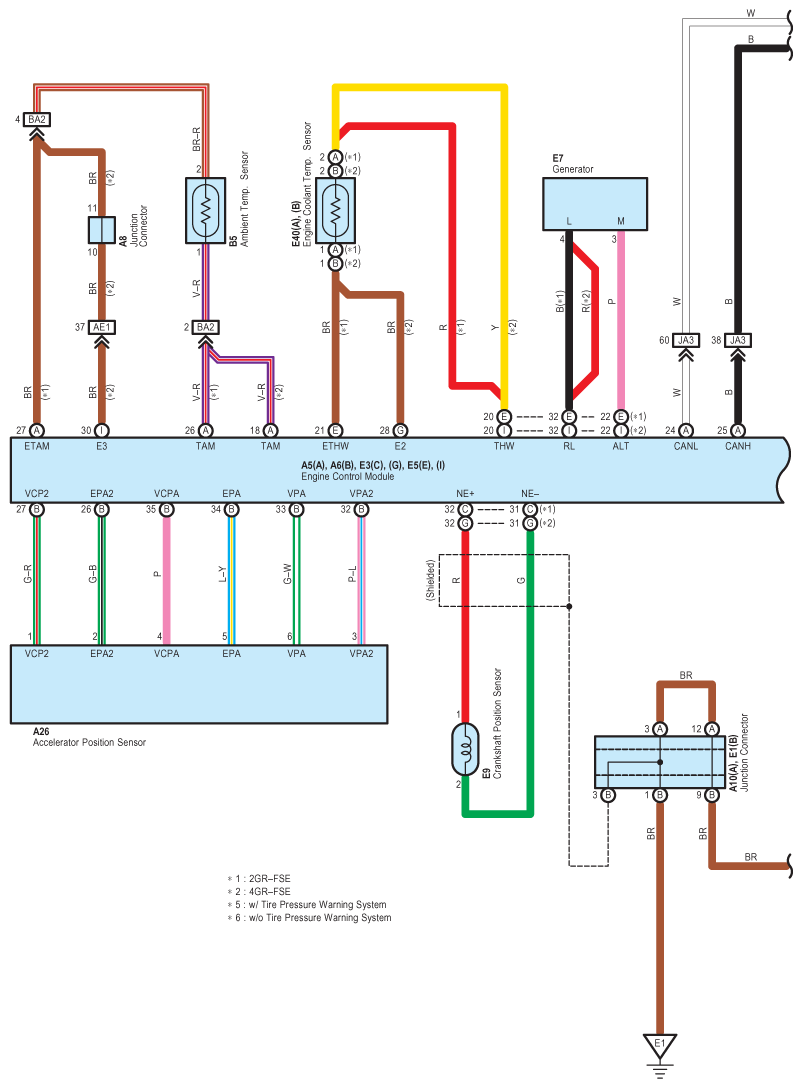

Fig 1: Air Conditioning - Wiring Diagram (1 Of 7)

G08935692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

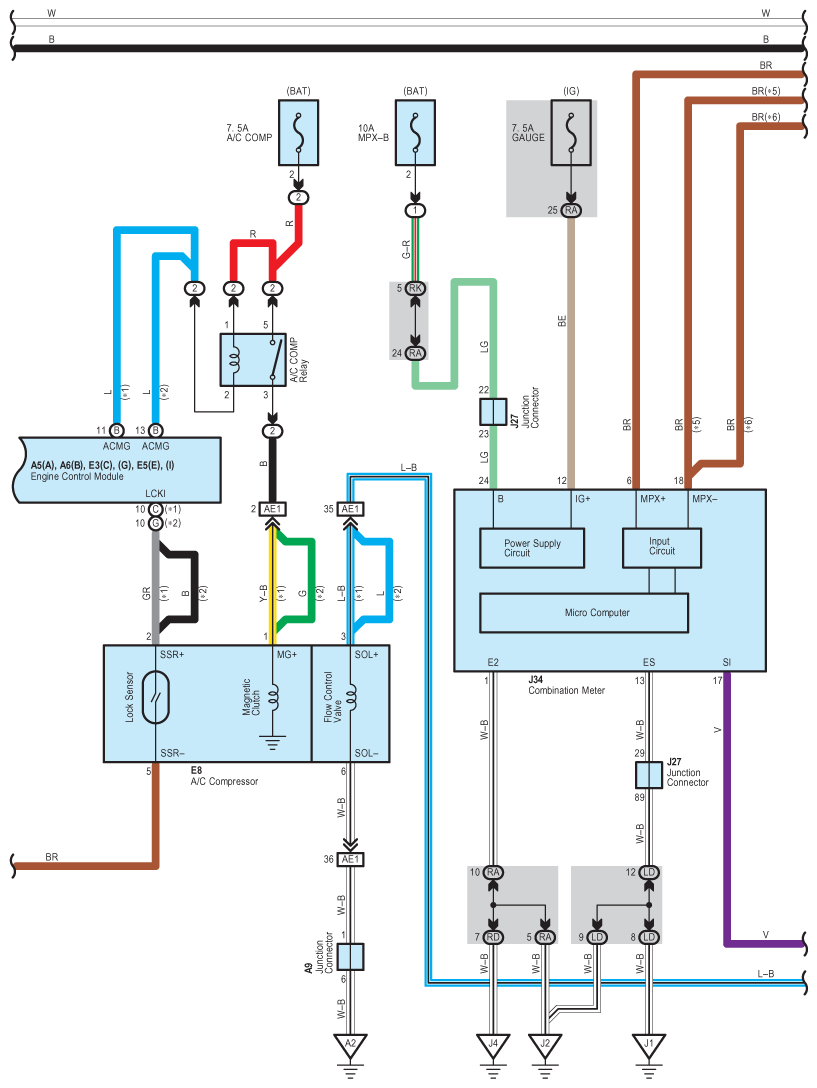

Fig 2: Air Conditioning - Wiring Diagram (2 Of 7)

G08935693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

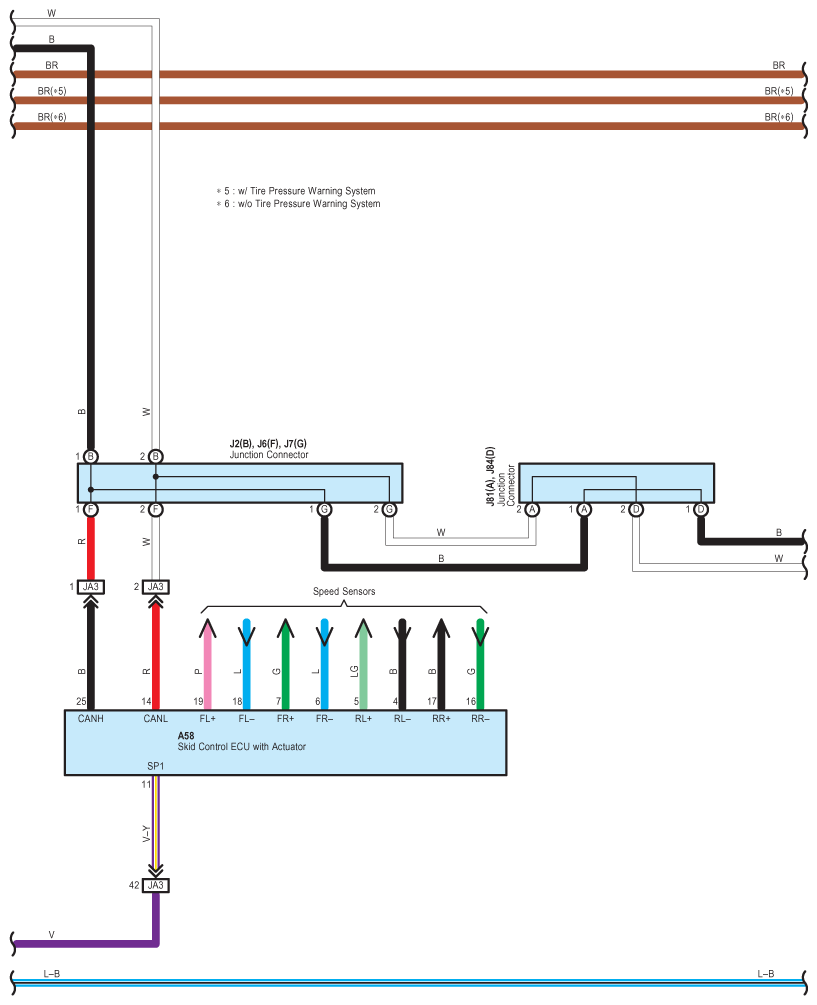

Fig 3: Air Conditioning - Wiring Diagram (3 Of 7)

G08935694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

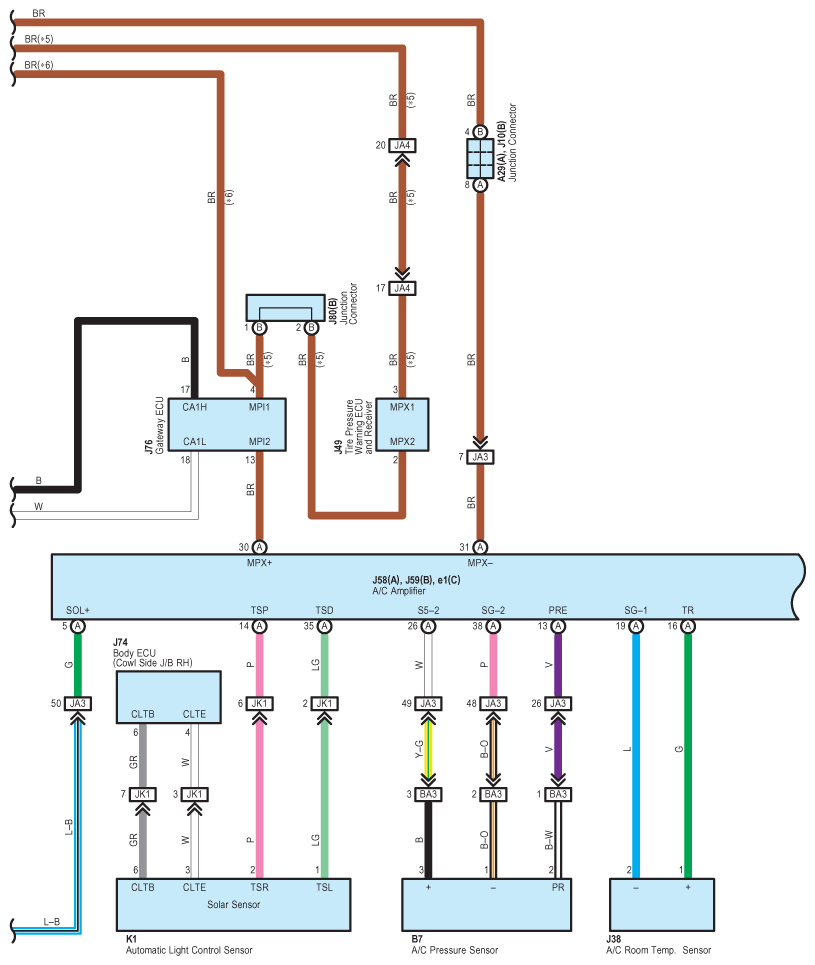

Fig 4: Air Conditioning - Wiring Diagram (4 Of 7)

G08935695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

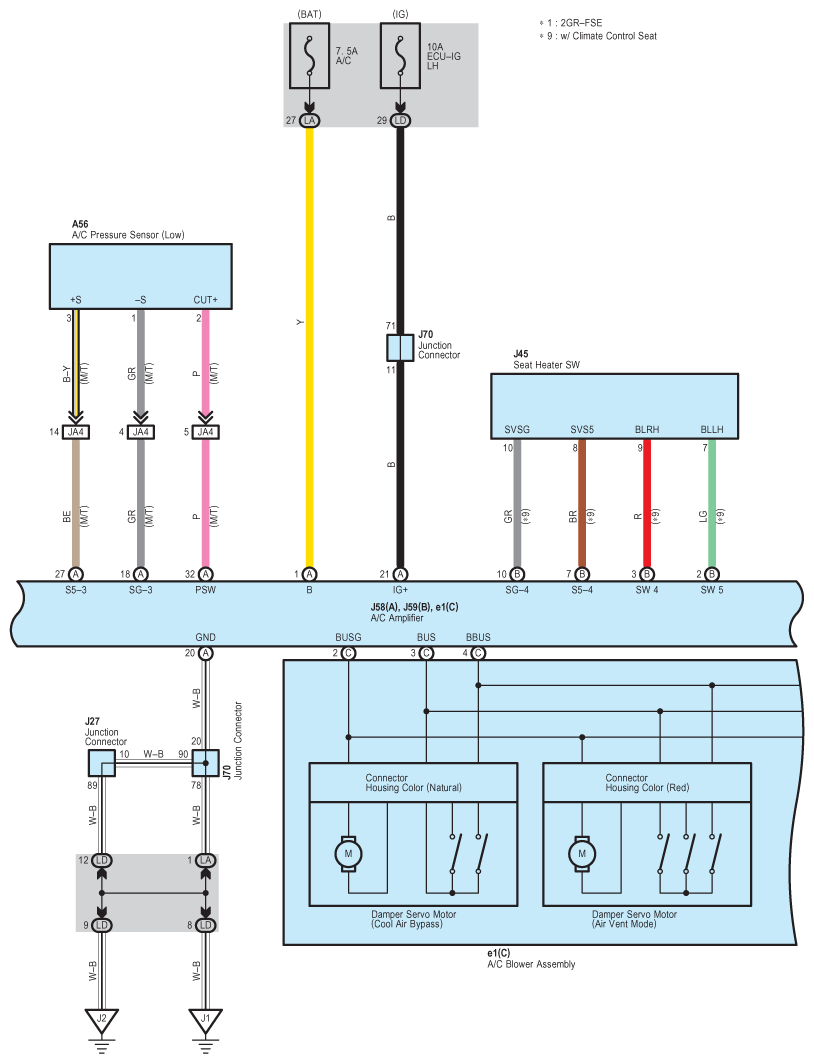

Fig 5: Air Conditioning - Wiring Diagram (5 Of 7)

G08935696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

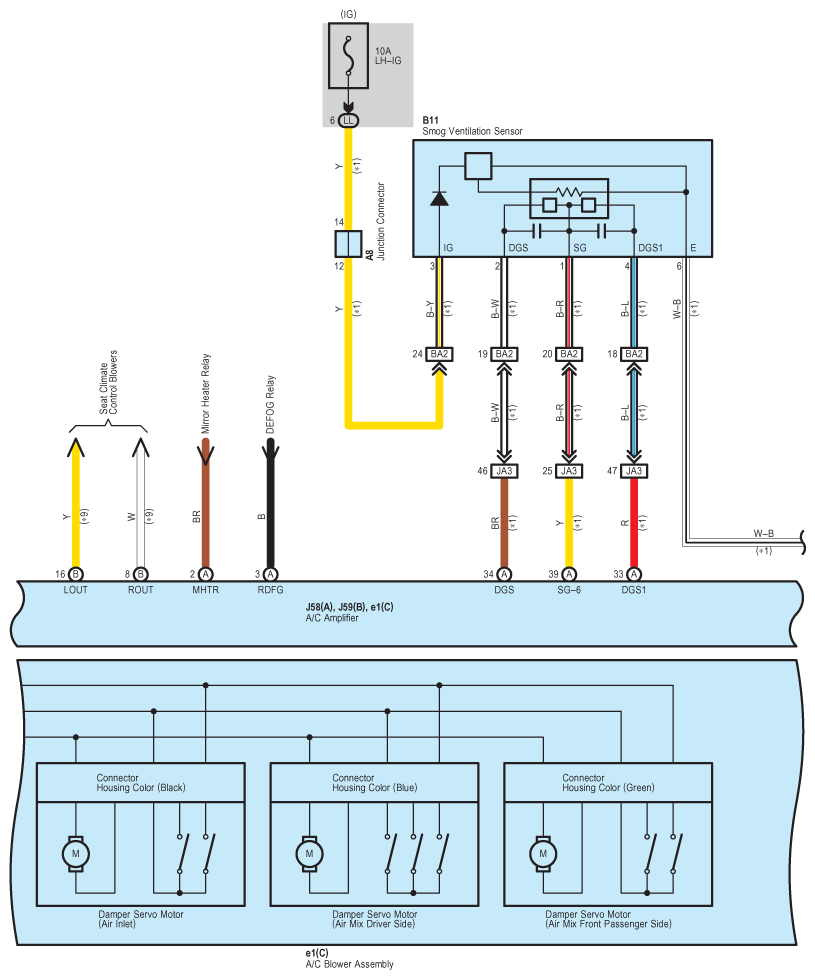

Fig 6: Air Conditioning - Wiring Diagram (6 Of 7)

G08935697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

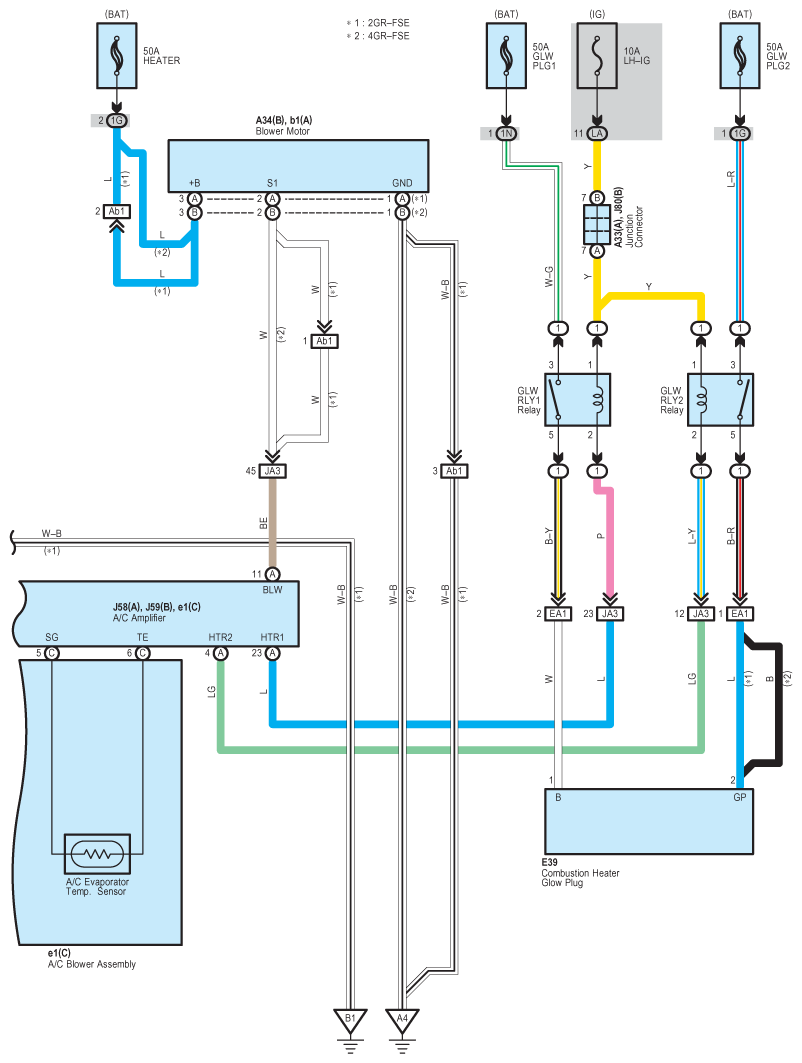

Fig 7: Air Conditioning - Wiring Diagram (7 Of 7)

G08935698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
