Service Data

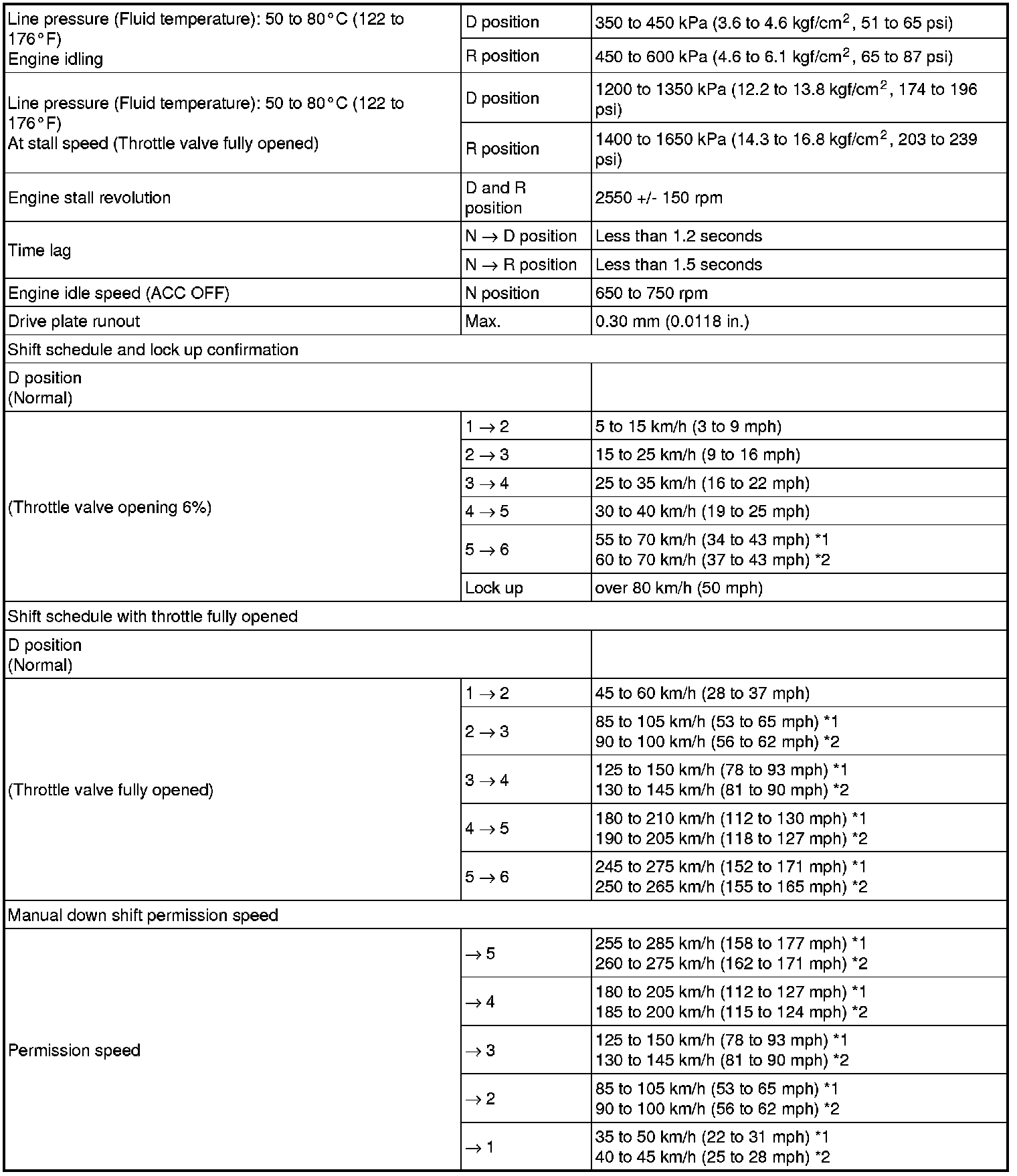

SERVICE SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION: SERVICE DATA
*1: except for Korea
*2: for Korea
NOTICE:
* All shift point values indicated in the above table are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
* If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

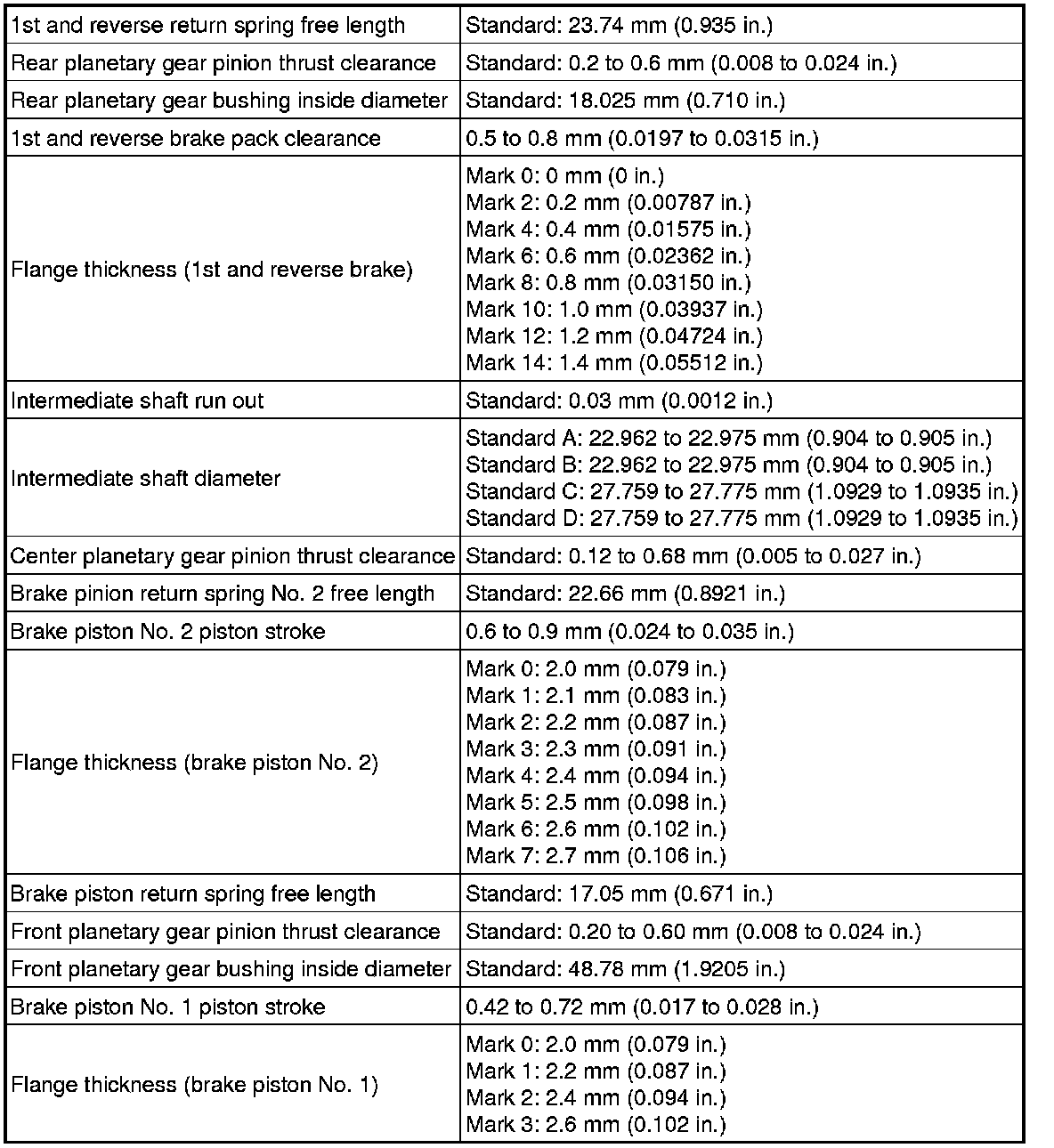

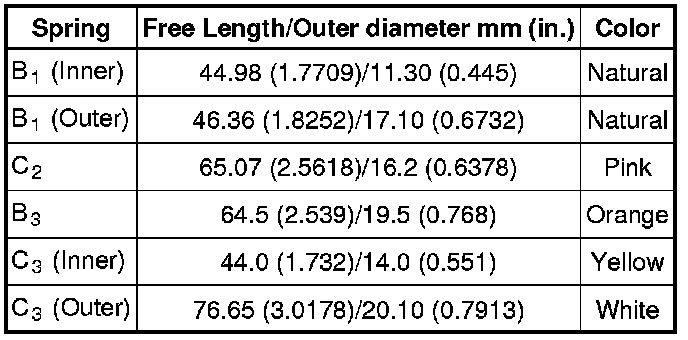

AUTOMATIC TRANSMISSION UNIT:

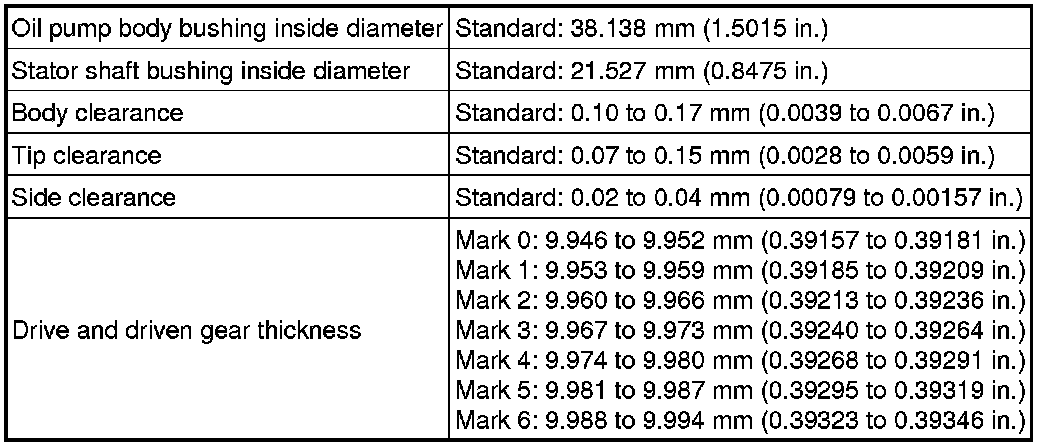

OIL PUMP:

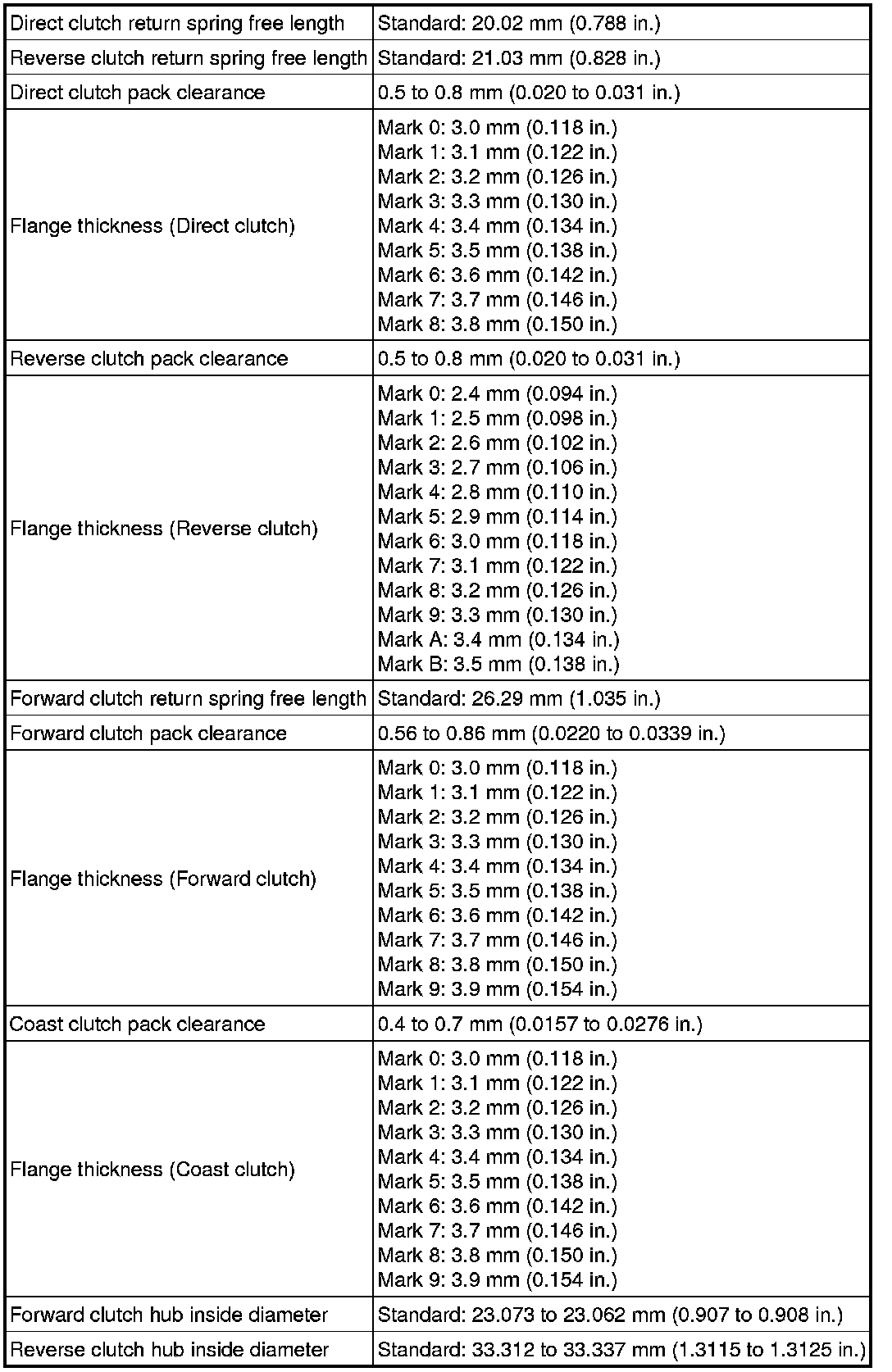

CLUTCH DRUM AND INPUT SHAFT:
ACCUMULATOR:

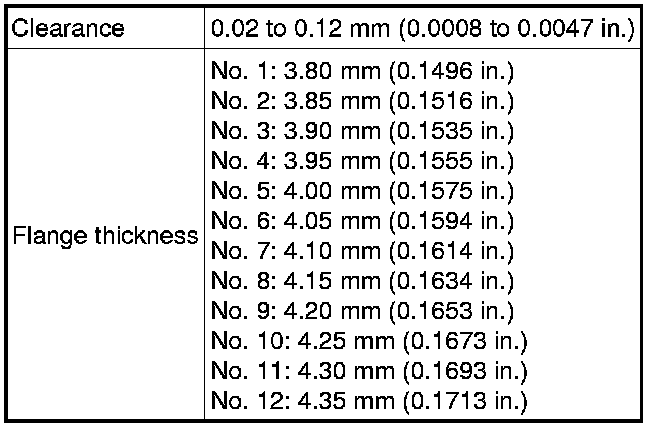

OUTPUT SHAFT BEARING:
