Camshaft Oil Control Valve: Installation: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

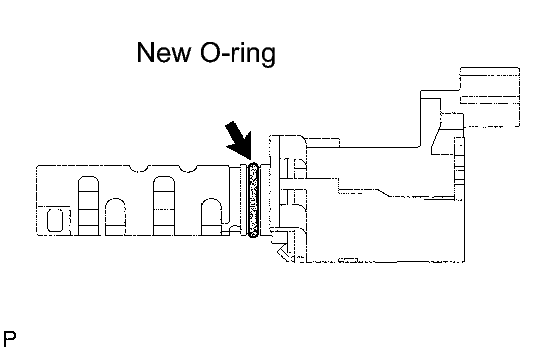

  Fig 1: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Exhaust Side) & O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve with the bolt.

  Fig 2: Identifying Camshaft Timing Oil Control Valve Connector& Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
4. Install the bracket with the 2 bolts.

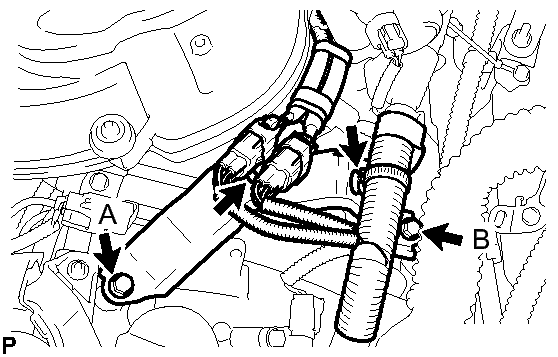

  Fig 3: Identifying Wire Harness Clamps And Bracket Bolts (For Bank 2 Intake Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 10 N*m (104 kgf*cm, 7 ft.*lbf)

  Bolt B

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
5. Connect the 2 wire harness clamps to the bracket.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

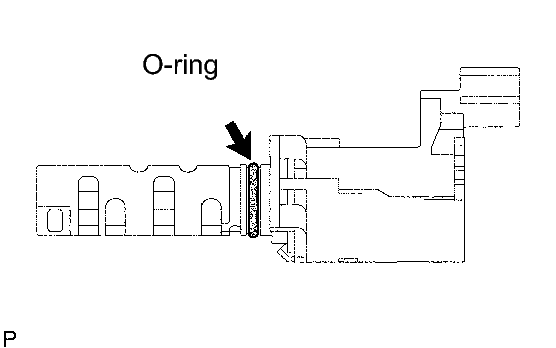

  Fig 4: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Intake Side) & O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve with the bolt.

  Fig 5: Identifying Camshaft Timing Oil Control Valve, Bolt & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

  Fig 6: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Intake Side) & O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve with the bolt.

  Fig 7: Identifying Camshaft Timing Oil Control Valve Connector, Control Valve, Bolt & 0 - Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
4. Install the V-bank cover bracket with the bolt.

  Fig 8: Location of V-Bank Cover Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

  Fig 9: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Intake Side) & O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve with the bolt.

  Fig 10: Identifying Camshaft Timing Oil Control Valve Connector, Oil Valve, Bolt & O - Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
INSTALL INTAKE AIR SURGE TANK
1. Install the intake air surge tank. Refer to INSTALLATION .
