Quarter Window Glass: Components: Illustration

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (1 of 4)
GTY281224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

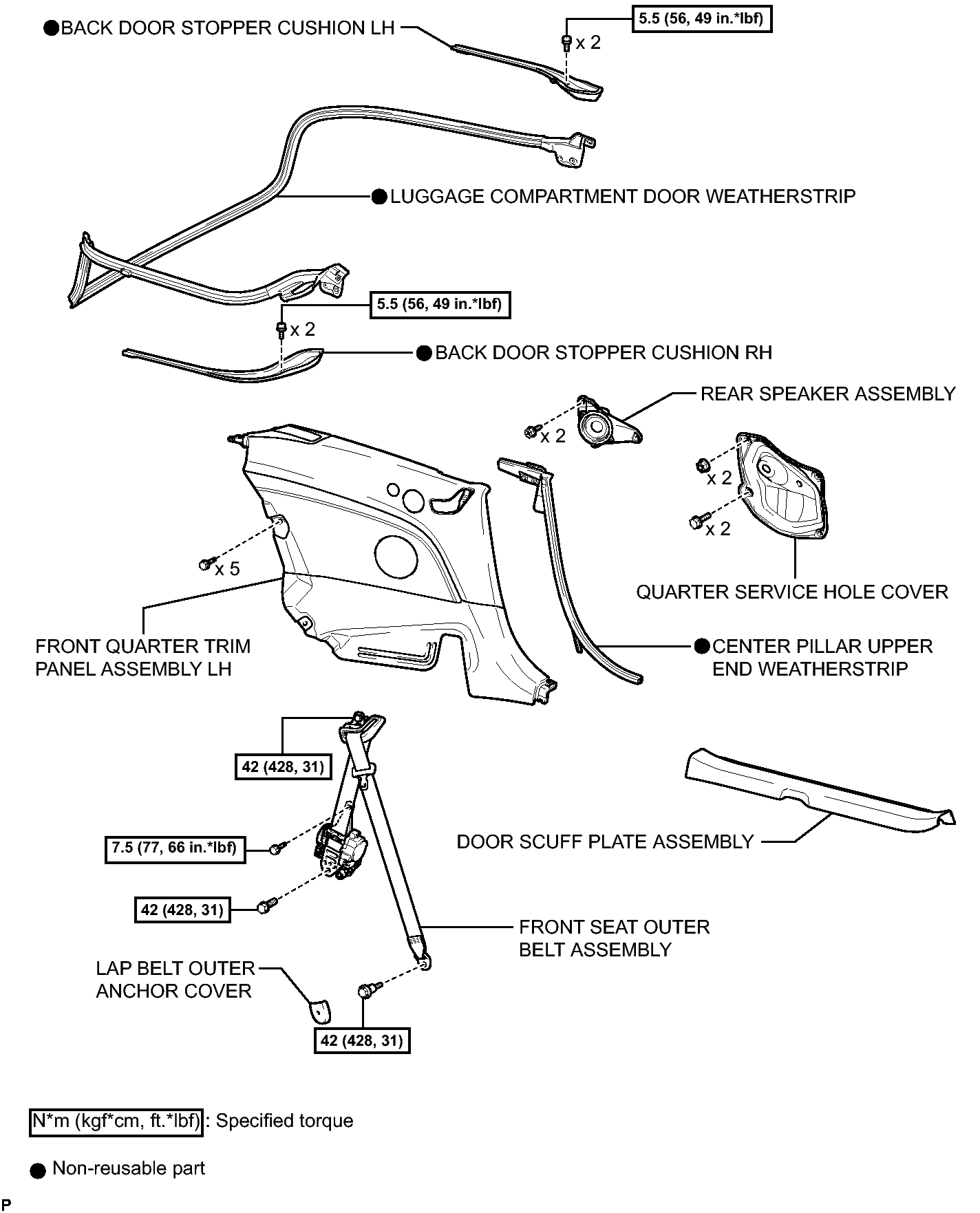

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (2 of 4)
GTY284493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

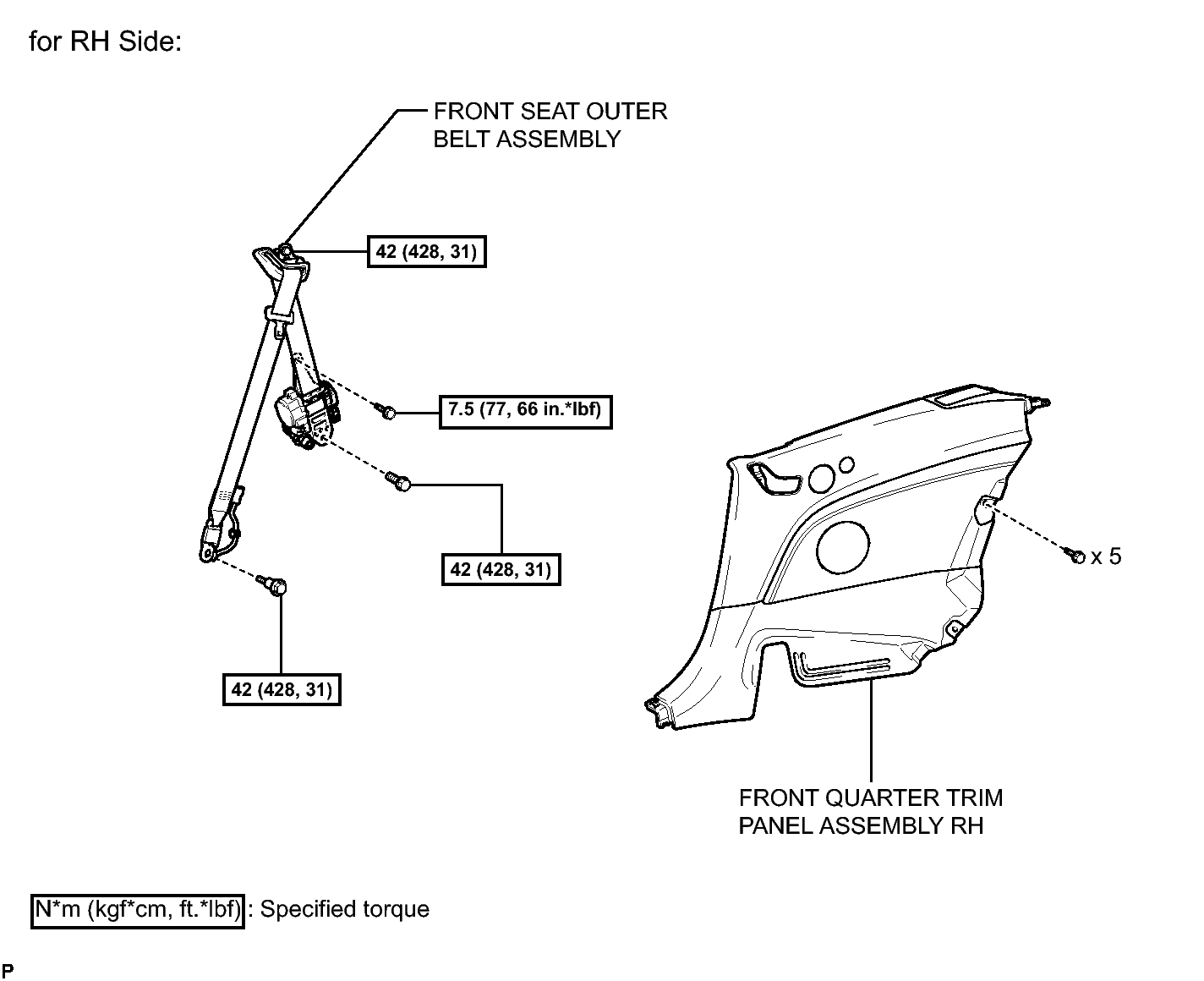

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (3 of 4)
GTY282247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

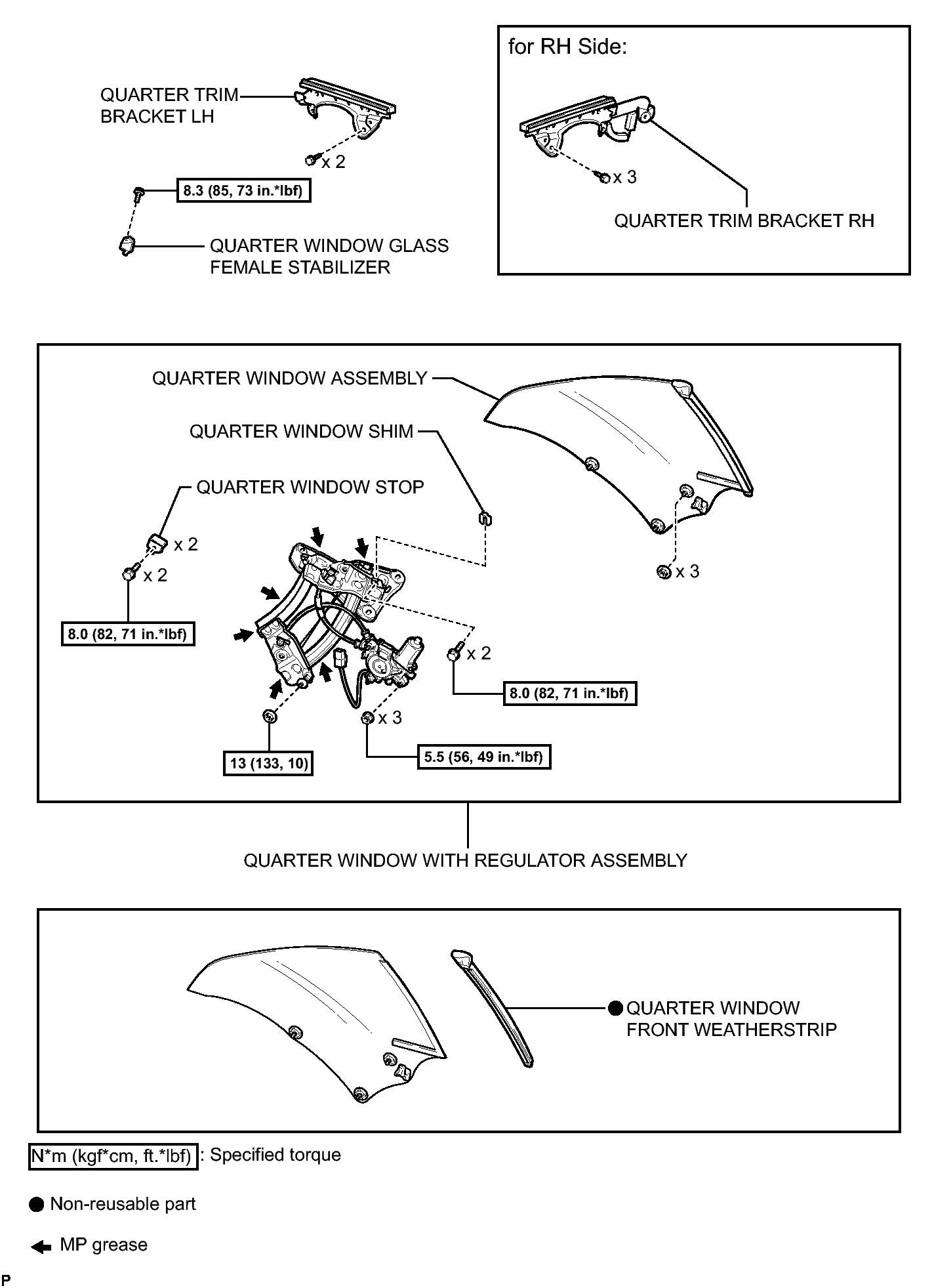

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (4 of 4)
GTY271438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
